Overview

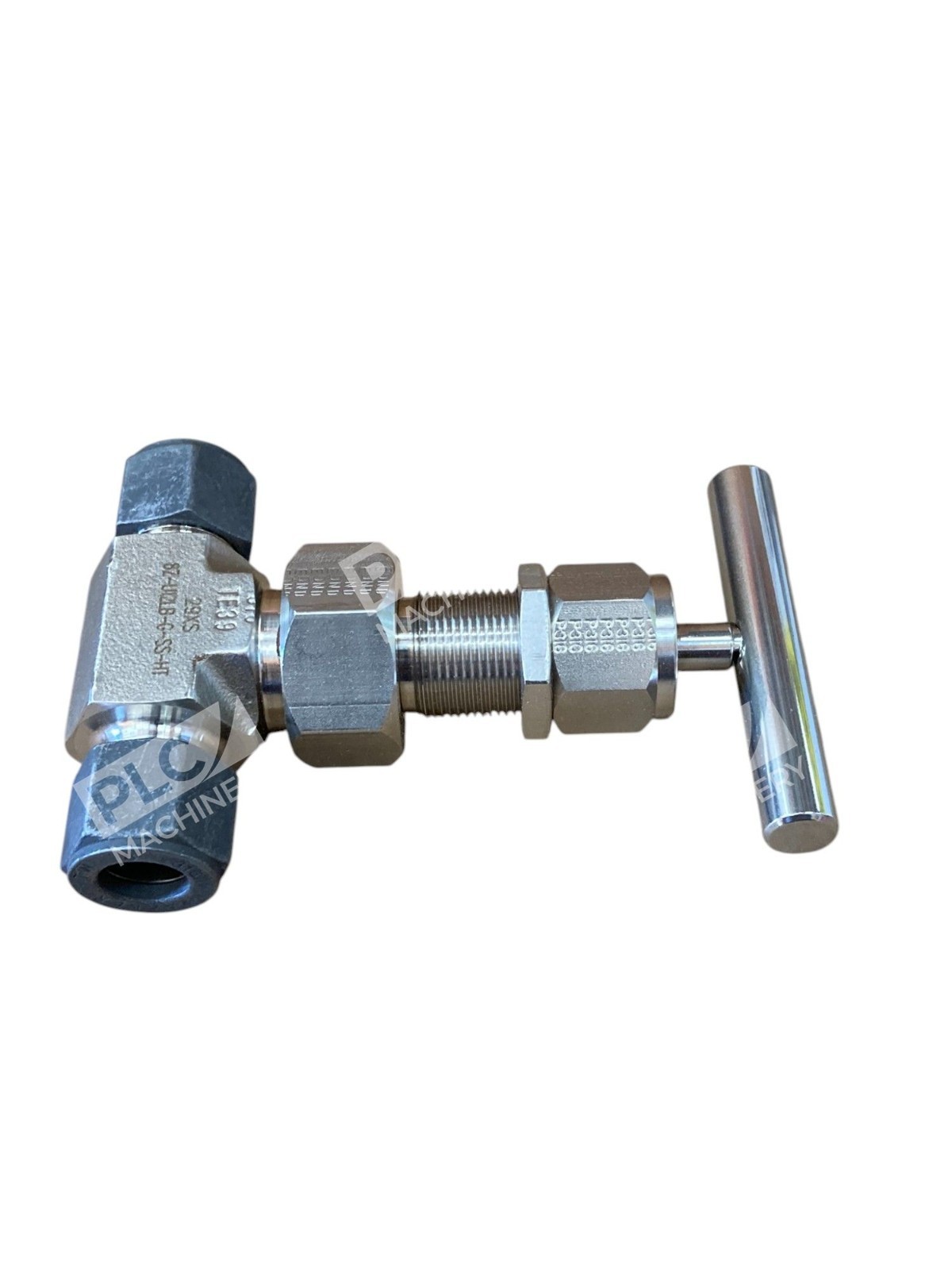

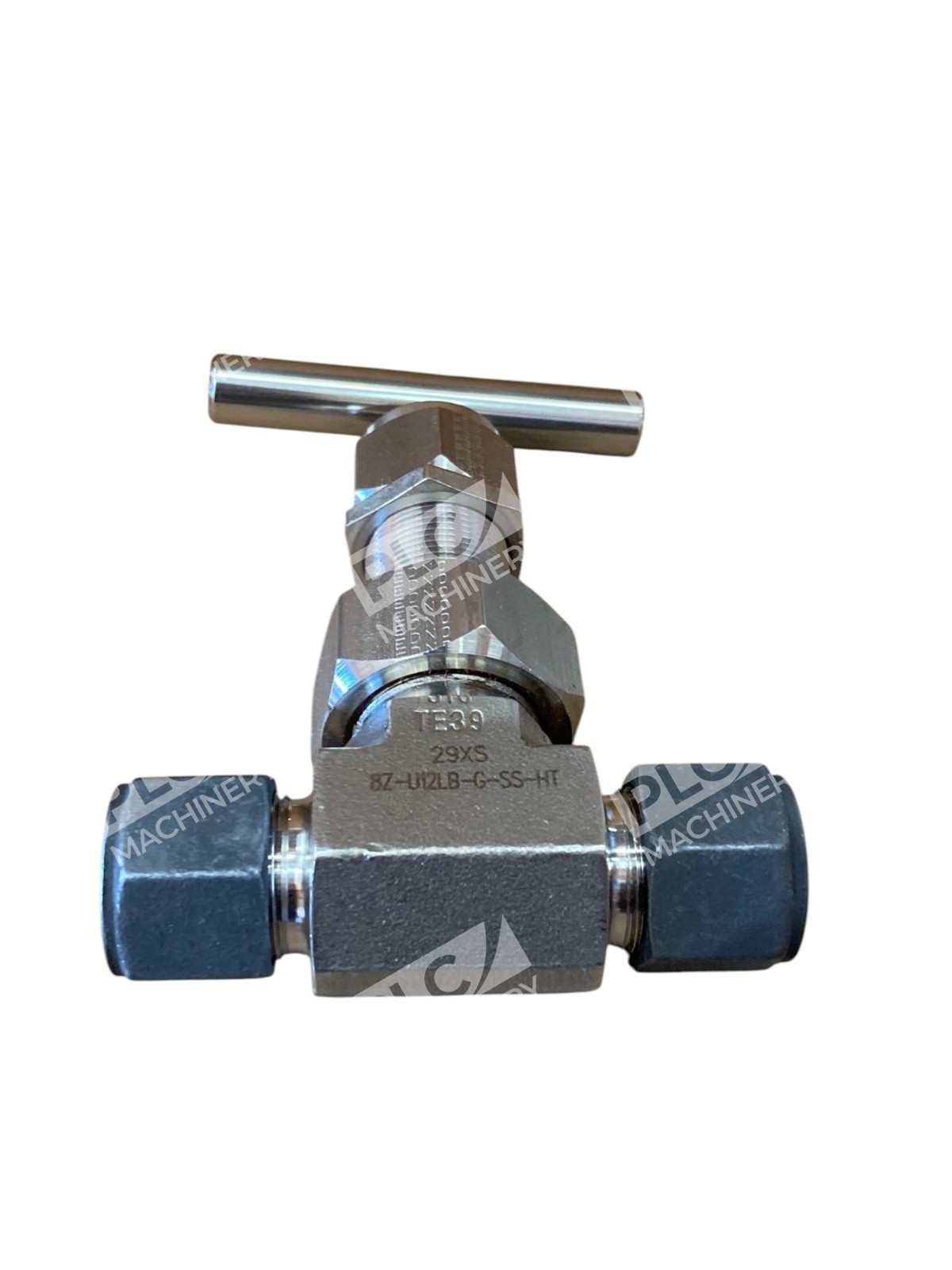

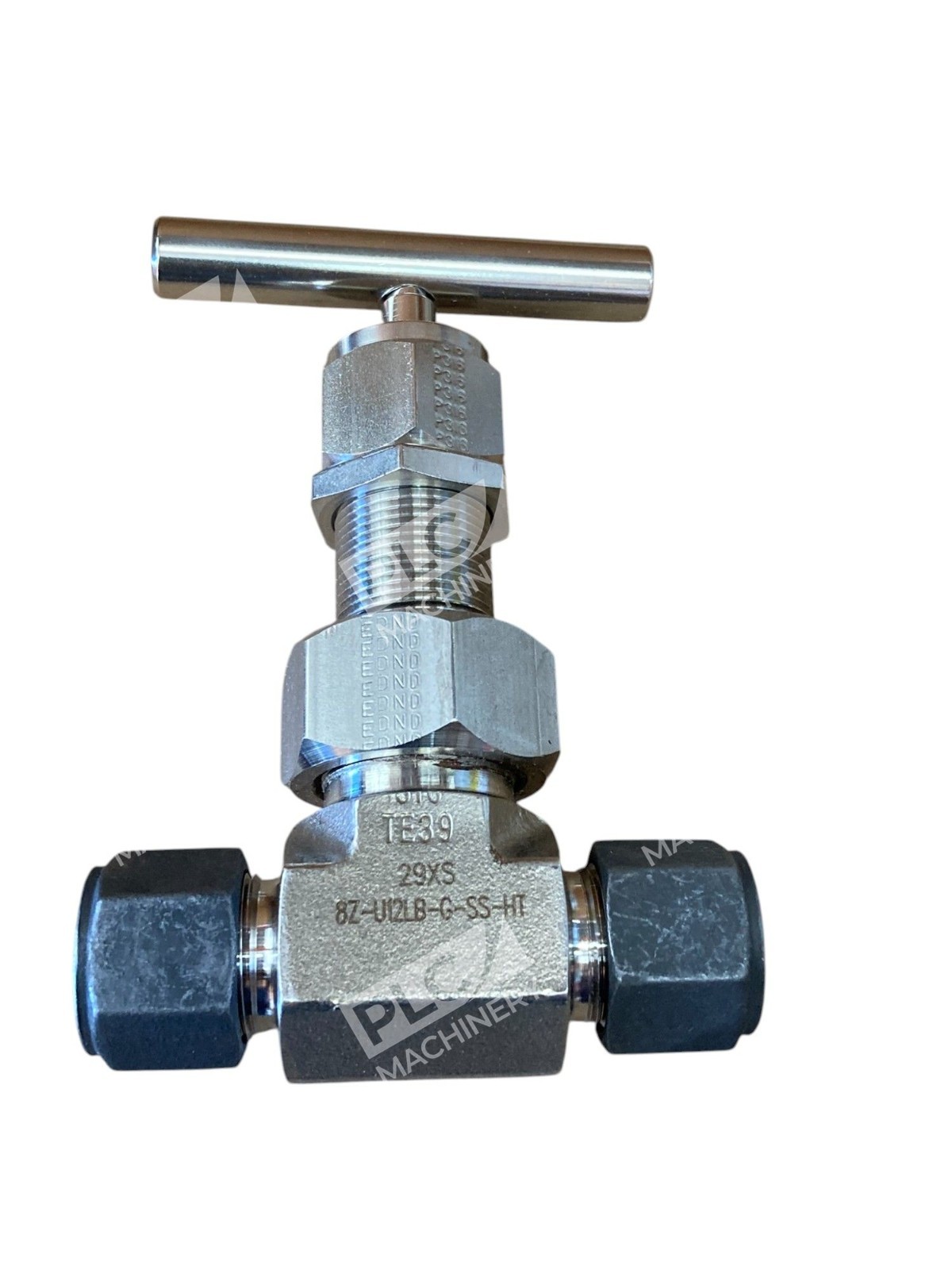

The Parker 8Z-U12LB-G-SS-HT needle valve is a high-performance union bonnet regulating valve designed for severe-service instrumentation and industrial applications. Part of Parker’s acclaimed U Series, this valve combines robust construction with precision flow control, making it ideal for high-pressure and high-temperature systems across oil & gas, chemical processing, power generation, and aerospace industries.
Key Features
- 316 Stainless Steel Body: Corrosion-resistant construction for harsh environments and extended service life
- Regulating Stem Configuration: Precision flow control with integral hard seat for reliable shutoff
- Grafoil Packing with 316 SS Lower Stem: Protected stem design reduces packing wear and maintenance downtime
- Non-Rotating Lower Stem: Extends packing life by eliminating rotational stress in the packing area
- Stainless Steel Body Gasket: Superior sealing performance across wide temperature and pressure ranges
- Union Bonnet Configuration: Allows easy stem and internal component replacement without full valve removal
Technical Specifications
- Pressure Rating: 6,000 psi (414 bar)
- Temperature Range: Up to 1,200°F (649°C)
- Port Size: 1/2 inch
- End Connection Type: Single ferrule tube fitting (inline-identical ends)
- Valve Configuration: Regulating stem, blunt stem type
- Body Material: 316 stainless steel
- Packing Material: Grafoil with 316 stainless steel
- Seat Type: Integral hard seat
- Series: U Series (U12L)
- Valve Type: Union bonnet needle valve
Typical Applications
The Parker 8Z-U12LB-G-SS-HT excels in demanding environments including:
- Oil and gas exploration and production (upstream/downstream)
- Chemical and petrochemical processing
- Power plant instrumentation and steam systems
- Aerospace hydraulic and pneumatic systems
- High-temperature process control and sampling lines
- Instrumentation manifolds requiring precision flow regulation
- High-pressure test and monitoring equipment
Compatibility & Replacements
Compatible With
- Parker instrumentation manifolds and system integration
- High-pressure hydraulic and pneumatic lines (1/2″ connections)
- Stainless steel tubing and fittings rated 6,000 psi
- Instrumentation systems requiring 316 stainless materials
- Oil, gas, chemical, and power generation control loops
Replaces / Drop-In Replacement For
The Parker 8Z-U12LB-G-SS-HT is a direct replacement for legacy Parker U Series union bonnet needle valves with identical 1/2″ ferrule-end configuration and 6,000 psi ratings. Verify specific model compatibility with your system integrator before ordering to confirm identical port sizes and end connections.
Works With
- Parker CPI instrumentation tube fittings and manifolds
- Manual and automated control systems
- Hydraulic pressure lines up to 6,000 psi
- Pneumatic systems and compressed gas applications
- Industrial instrumentation and measurement systems
