Overview

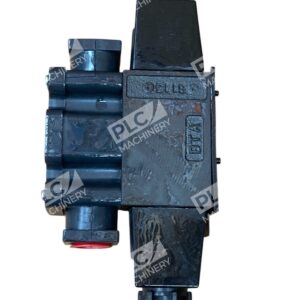

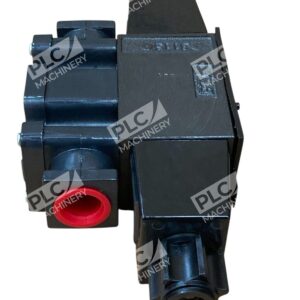

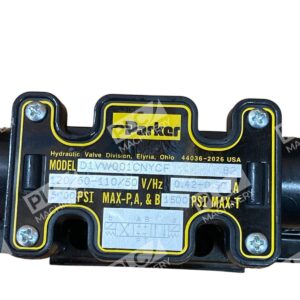

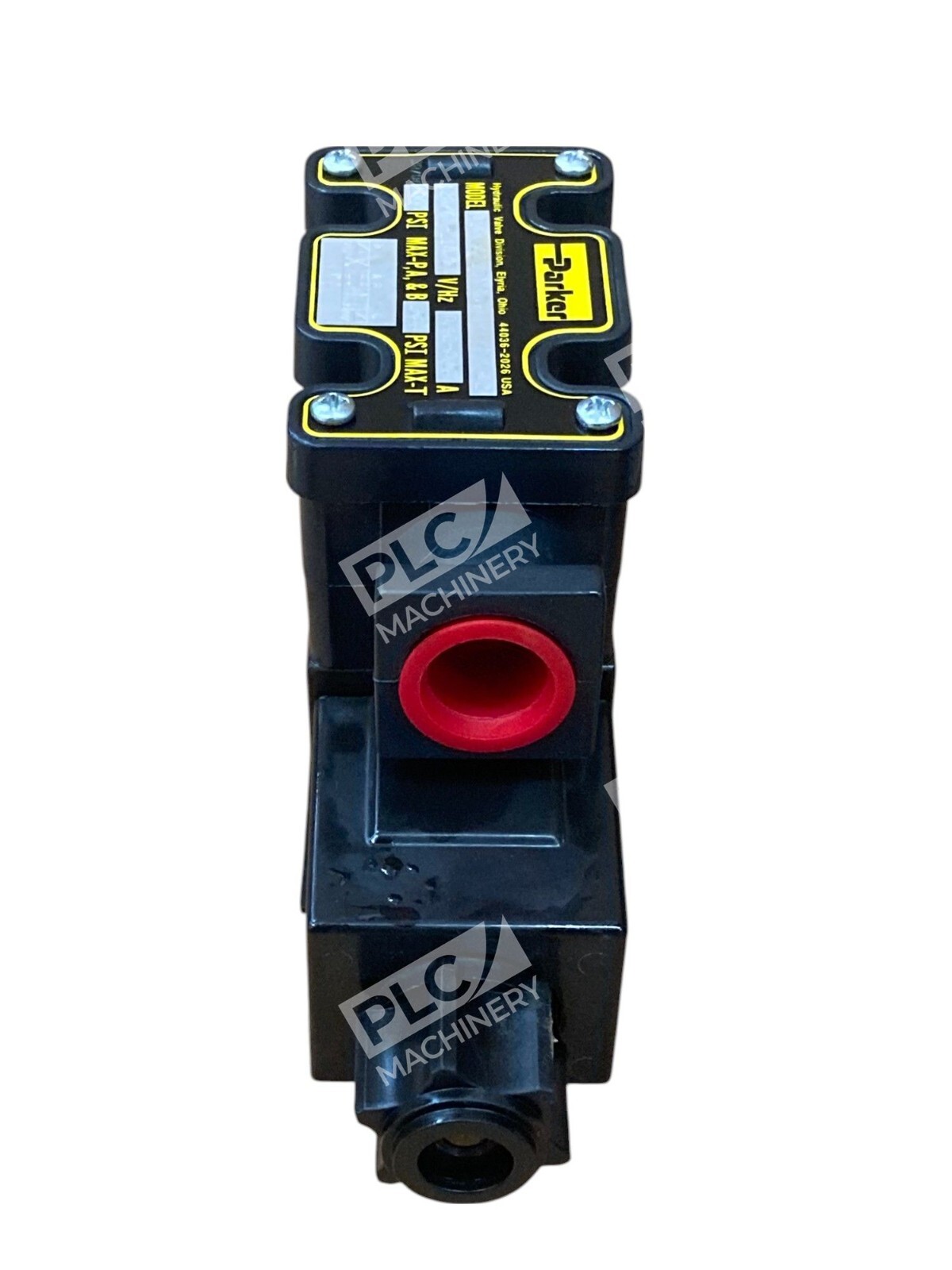

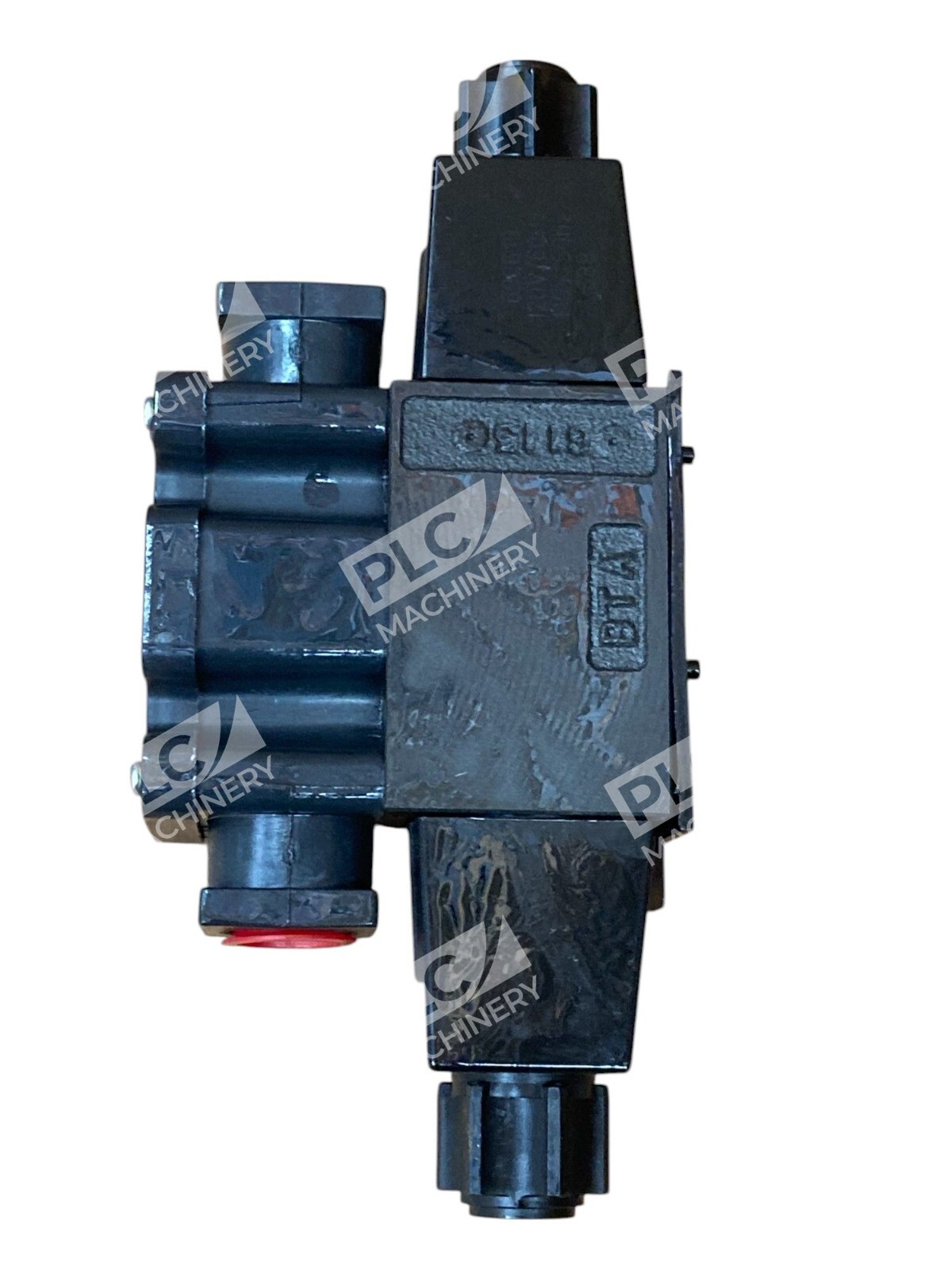

The Parker D1VW001CNYCF82 is a direct-operated hydraulic directional control valve from Parker’s proven D1VW series. This NG6-sized valve uses wet armature solenoid actuation and is designed for 2 or 3-position configurations. The D1VW001CNYCF82 conforms to the D03 (NG6) mounting pattern, ensuring straightforward integration into existing hydraulic manifold systems. Parker D1VW001CNYCF82 units deliver proven performance in machine tool, industrial automation, and fluid power applications requiring precise flow direction control.
Key Features
- Direct-operated wet armature solenoid design for reliable on/off valve operation
- NG6 (D03 CETOP 03) mounting standard for universal manifold compatibility
- Compact footprint suitable for space-constrained installations
- Proven design used in OEM equipment and retrofit applications across industries
- Available in 2 or 3-position spool configurations with various operator options
- New in box condition, factory sealed and ready for deployment
Technical Specifications
- Maximum Operating Pressure (P, A, B): 345 bar (5000 PSI)
- Mounting Standard: NG6 (D03 CETOP 03)
- Valve Type: Direct-operated, 4-chamber, wet armature solenoid
- Spool Configuration: 2 or 3-position (model-dependent)
- Coil Connector: Available in Manaplug (Mini, Micro) or DIN configurations
- Seal Material Options: Nitrile (N) or Fluorocarbon (V)
- Electrical Ratings: 12 VDC, 24 VDC, 120 VDC, 120/60 VAC, or 240/60 VAC (model-dependent)
- Maximum Allowable Leakage: 100 SSU @ 19.7 cc/min @ 49°C (120°F) @ 69 bar (1000 PSI)

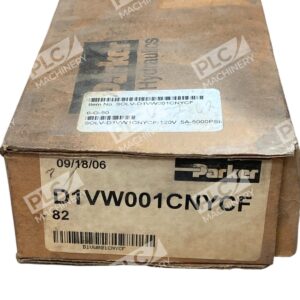

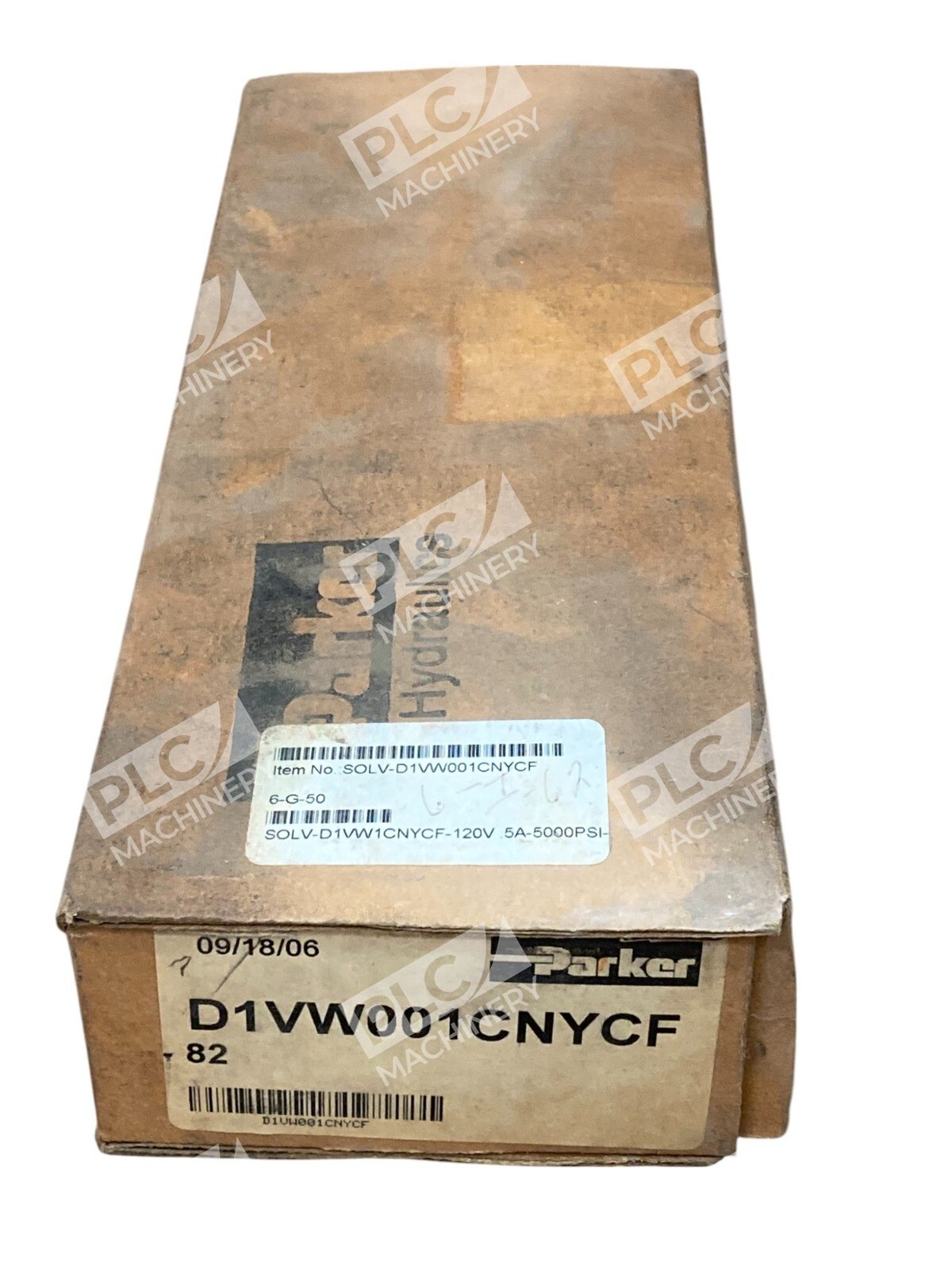

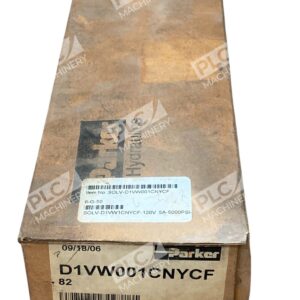

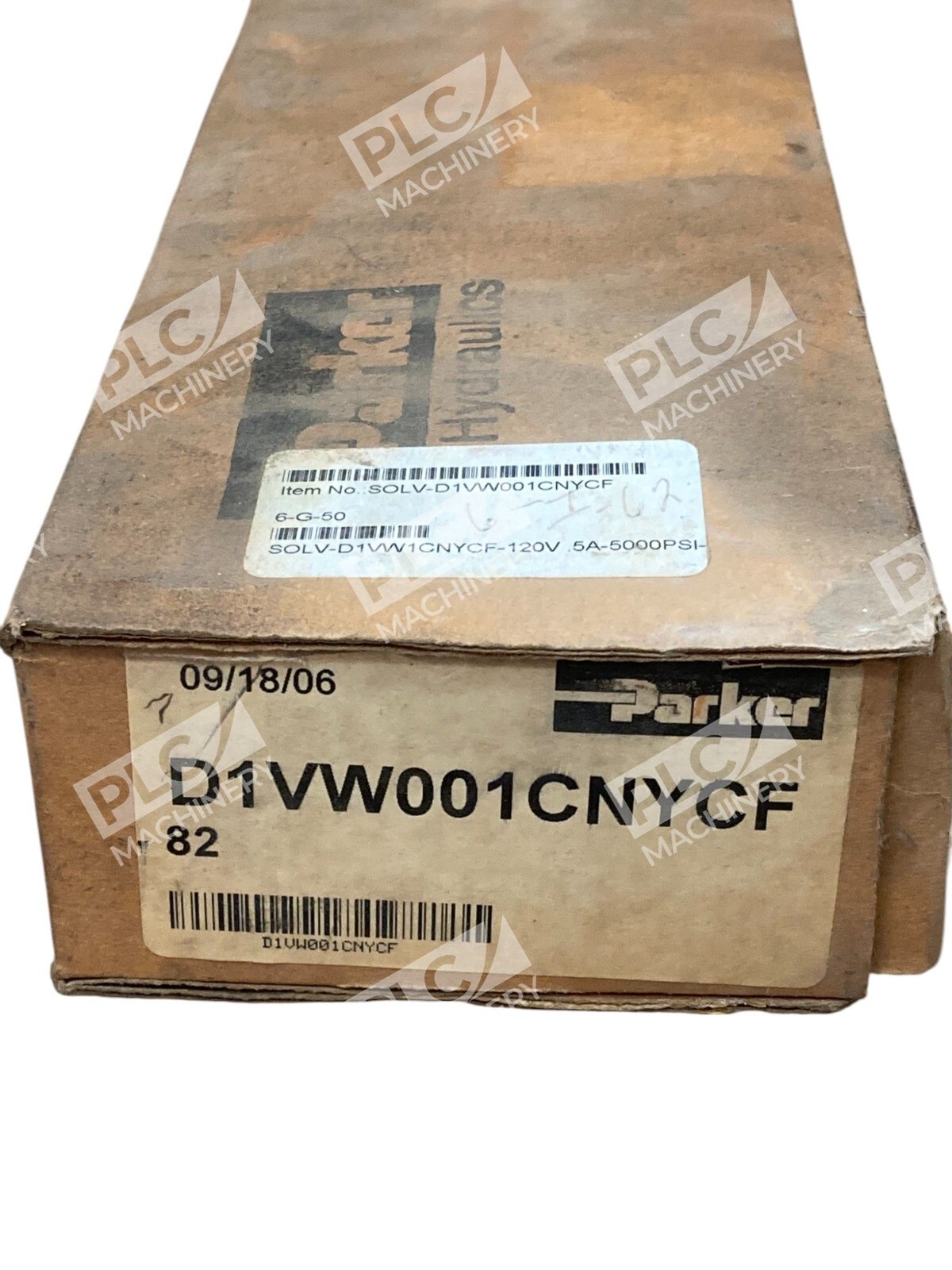

- Condition: New in Box
Typical Applications
The Parker D1VW001CNYCF82 serves critical functions in:
- Hydraulic machine tool automation (spindle drive, table feed control)
- Industrial press and forming equipment actuator control
- Mobile and stationary equipment directional switching
- Pilot-operated valve systems and complex manifold circuits
- OEM new equipment builds and field retrofit installations
Compatibility & Replacements
Compatible With
- NG6 (D03 CETOP 03) standard hydraulic manifolds and subbases
- Manifolds designed for ISO 4401-05 mounting interface
- Hydraulic systems operating at pressures up to 345 bar (5000 PSI)
- Standard solenoid coil control circuits (12/24/120 VDC, 120/240 VAC)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The D1VW001CNYCF82 configuration may replace similar D1VW spool models; consult Parker cross-reference documentation for your specific application.
Works With
- Parker and third-party NG6 manifold platforms
- Proportional and pilot-operated valve stacks
- Standard industrial hydraulic control circuits and PLC systems
- Proportional directional control systems with onboard electronics
- Meter-out flow control and load-check valve integration
