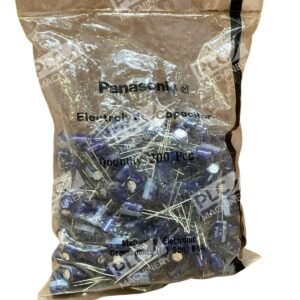

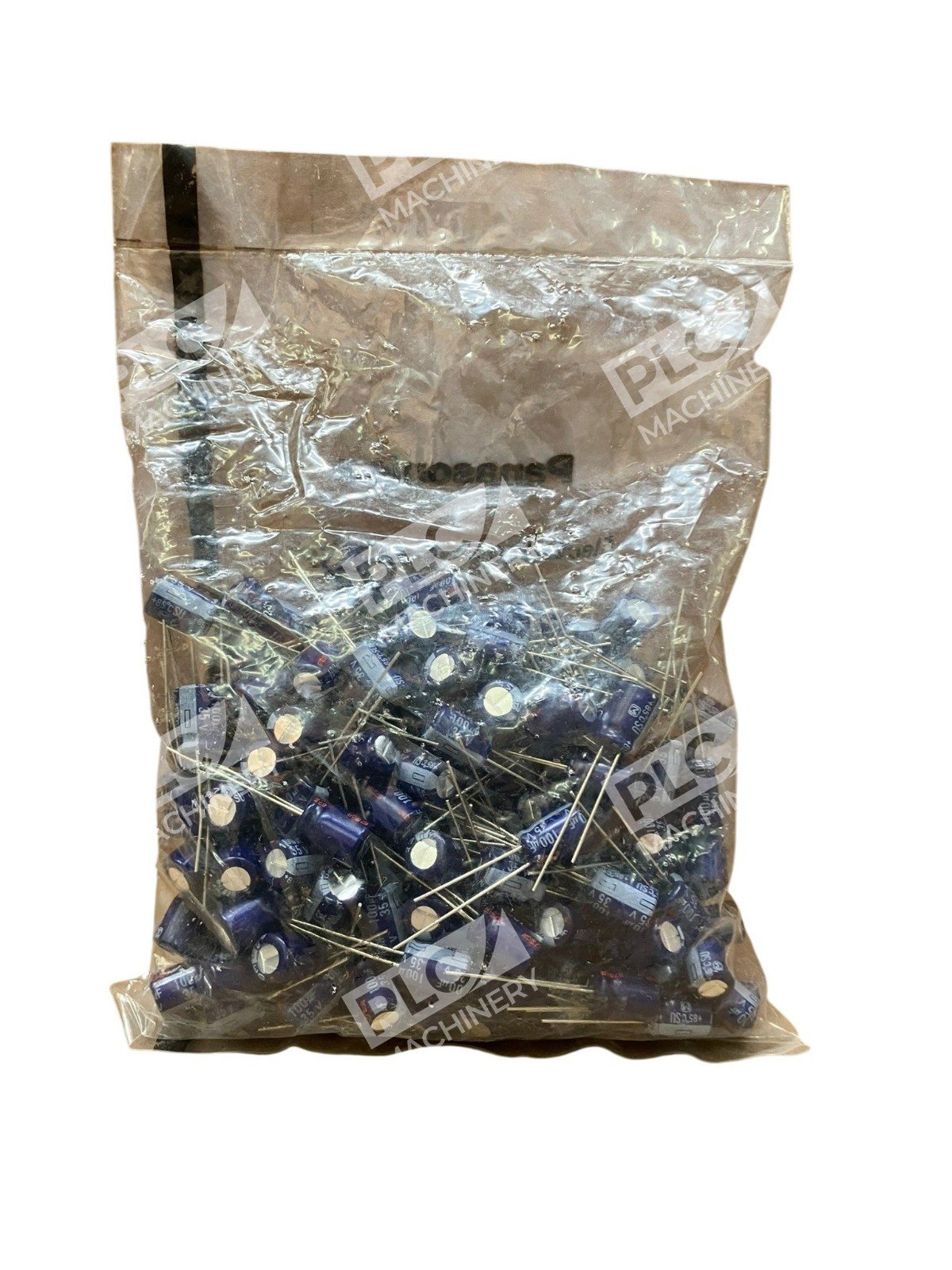

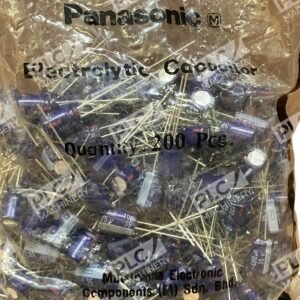

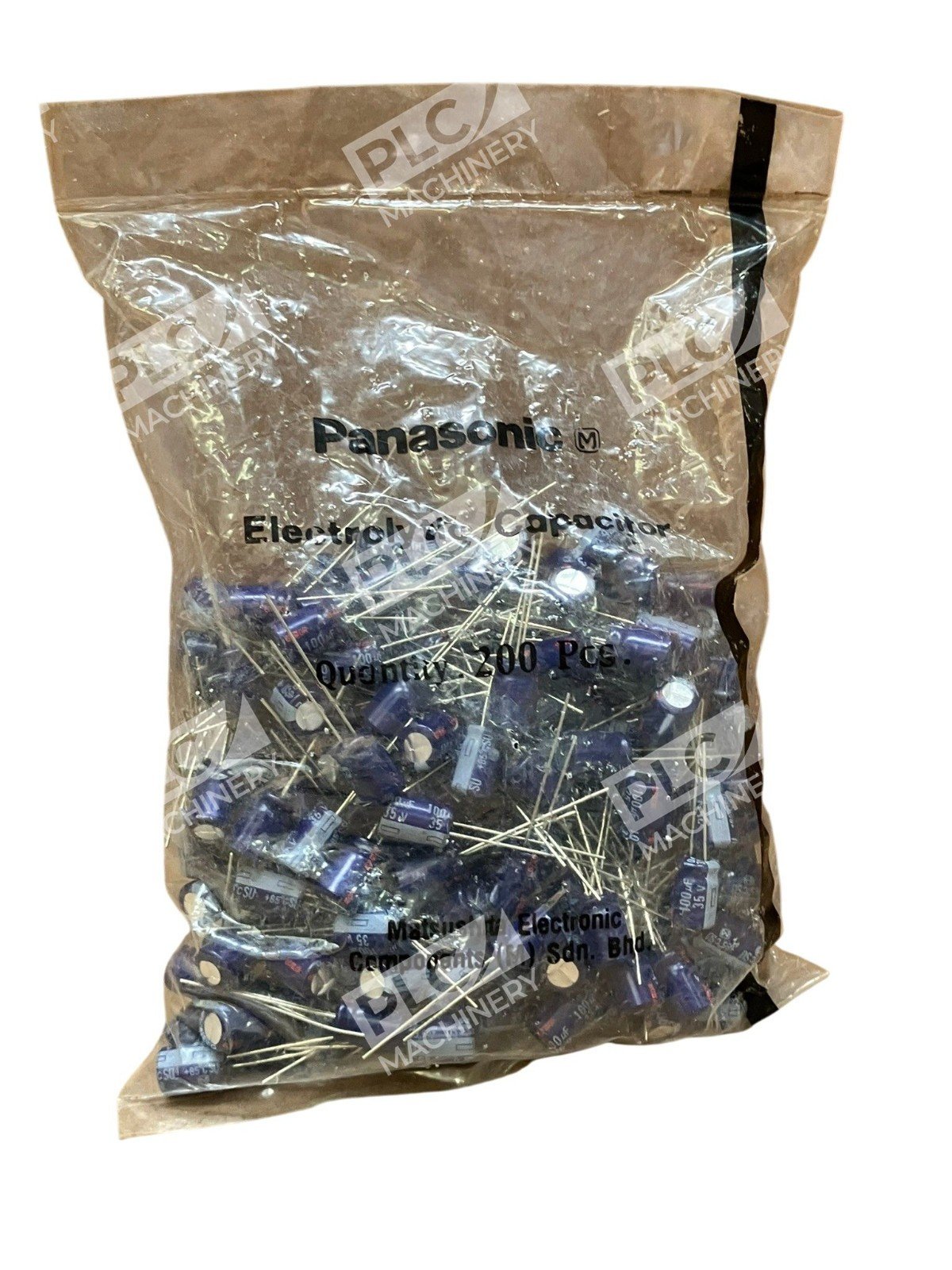

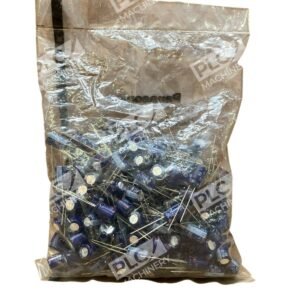

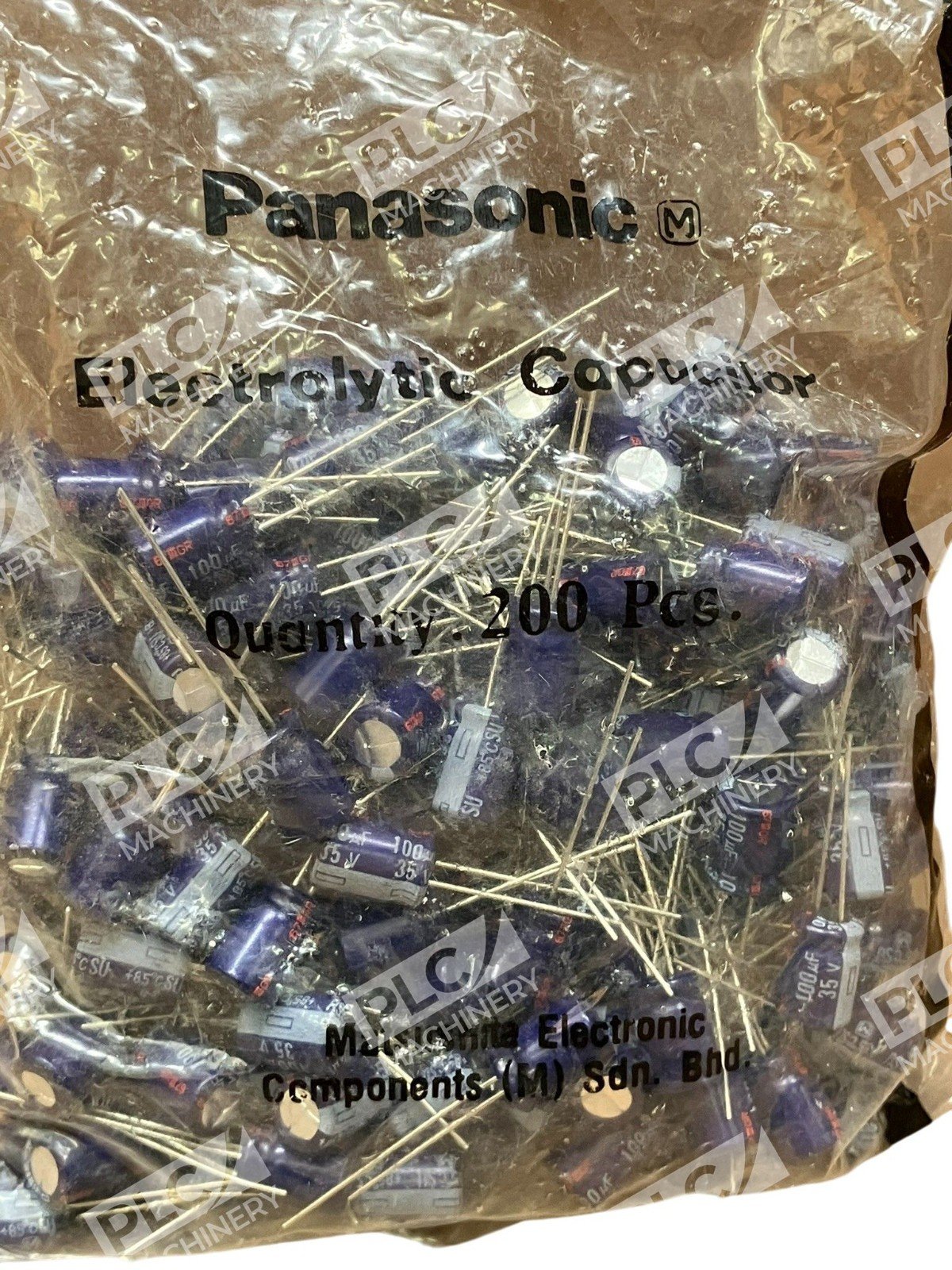

Panasonic Aluminum Electrolytic Capacitors 35V 100uF

Panasonic Aluminum Electrolytic Capacitors 35V 100µF

Panasonic’s 35V 100µF aluminum electrolytic capacitors are engineered for high performance and reliability in various electronic applications. These capacitors are available in multiple series, each tailored to meet specific requirements.

Key Features

• Capacitance: 100µF
• Voltage Rating: 35V DC
• Capacitance Tolerance: ±20%
• Operating Temperature Range: -40°C to +105°C
• Endurance: Up to 10,000 hours at 105°C, depending on the series
• Low Equivalent Series Resistance (ESR): Ensures efficient performance
• High Ripple Current Capability: Suitable for demanding applications

Available Series

Panasonic offers several series of 35V 100µF aluminum electrolytic capacitors, including:

• FR Series: Features low ESR and high endurance up to 10,000 hours at 105°C. Example: EEUFR1V101.
• FC Series: Known for low impedance and high reliability with endurance up to 2,000 hours at 105°C. Example: EEUFC1V101.
• FK Series: Designed for surface mount applications with endurance up to 2,000 hours at 105°C. Example: EEEFK1V101AP.
• HD Series: Offers high ripple current and endurance up to 1,000 hours at 105°C. Example: EEUHD1V101.

Applications

These capacitors are ideal for use in:

• Power supply circuits
• Audio equipment
• Industrial electronics
• Automotive applications

Dimensions and Mounting

Depending on the series, these capacitors are available in various sizes and mounting styles, including radial leaded and surface mount options, to accommodate different design requirements.

For detailed specifications and to select the appropriate capacitor for your application, please refer to the datasheets of the specific series.
