Overview

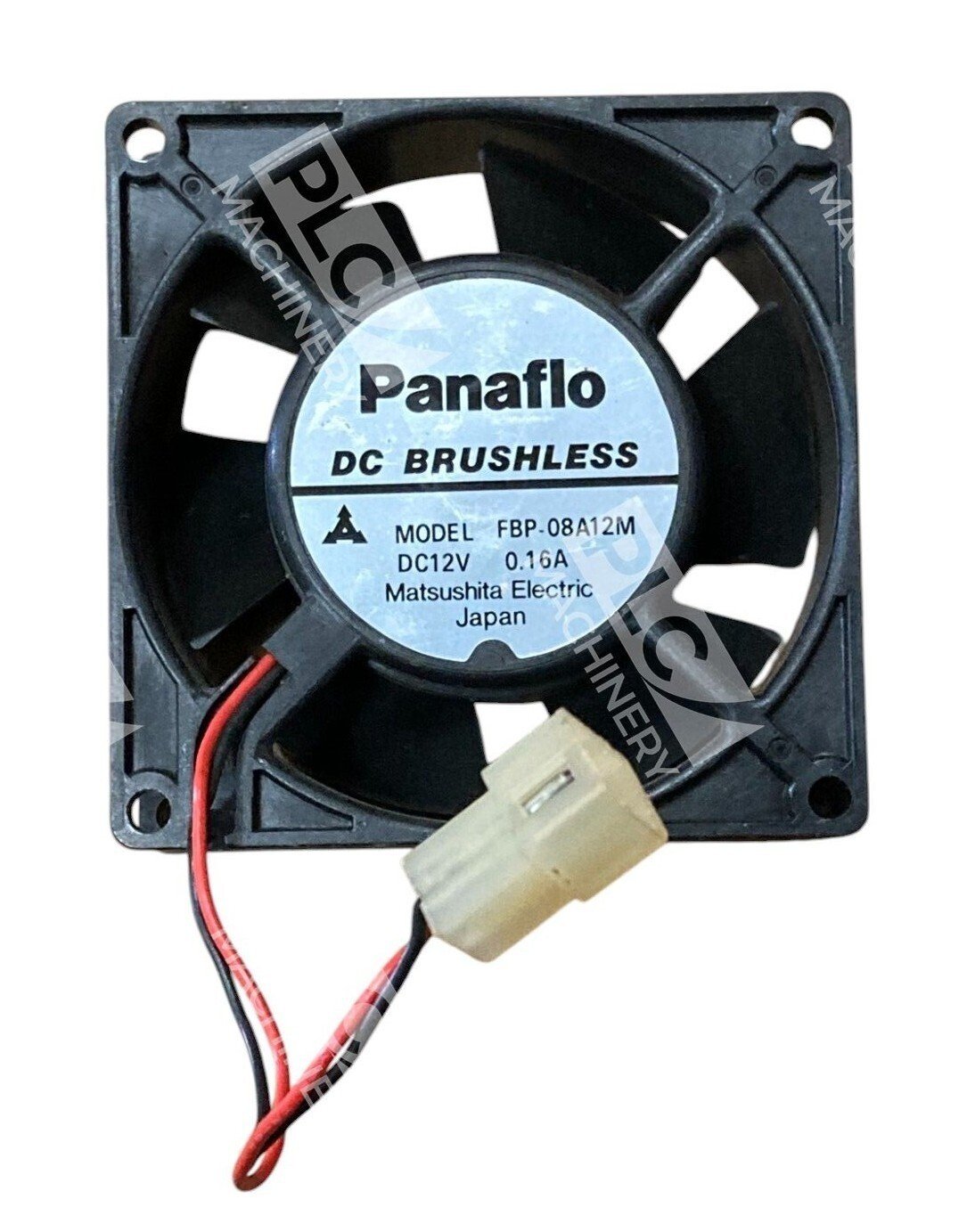

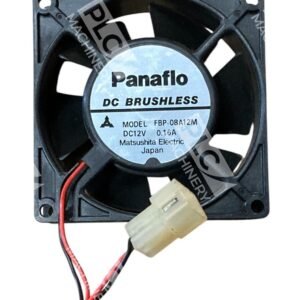

The Panaflo FBP 08A12M is a DC brushless axial fan manufactured by Panaflo (Matsushita Electric), engineered for dependable cooling in industrial automation systems, control panel thermal management, and equipment enclosures. The fan combines compact design with efficient operation, making it an ideal replacement or upgrade for existing thermal management solutions in manufacturing environments.
Key Features
- Brushless motor design for long operational life and minimal maintenance
- Compact 80×80×25mm form factor fits standard panel mounting spaces
- 12VDC nominal operating voltage, 0.16A current draw
- Low weight (0.06 lbs) simplifies installation and reduces mounting stress
- Quiet, efficient operation suitable for continuous duty cycles
Technical Specifications
- Nominal Voltage: 12VDC
- Current Draw: 0.16A
- Physical Dimensions: 80 × 80 × 25mm
- Weight: 0.06 lbs (27g)
- Motor Type: Brushless DC axial fan
- Operating Temperature: −10°C to +70°C (65% RH)
- Storage Temperature: −40°C to +75°C (65% RH)
- Connection: 2-wire lead
- Mounting: Standard 80mm square panel mount holes
Typical Applications
- Industrial control panel cooling and ventilation
- Equipment enclosure thermal management
- Manufacturing machine cabinet air circulation
- Servo drive and power supply cooling
- PLC and automation cabinet temperature regulation
Compatibility & Replacements
Compatible With
- 12VDC-supplied industrial enclosures and control panels
- Standard 80mm square mounting holes
- Industrial thermal management systems rated for 12V DC operation
- Equipment requiring continuous or intermittent cooling cycles
Replaces / Drop-In Replacement For
- FBM-08A12M (similar equivalent part number)
- Other Panaflo 80×80mm 12VDC cooling fans
Works With
- 12VDC power supplies and UPS systems
- Industrial temperature monitoring and control systems
- Enclosure-mounted thermostat switches
- Standard DIN rail and panel-mounted equipment
