Overview

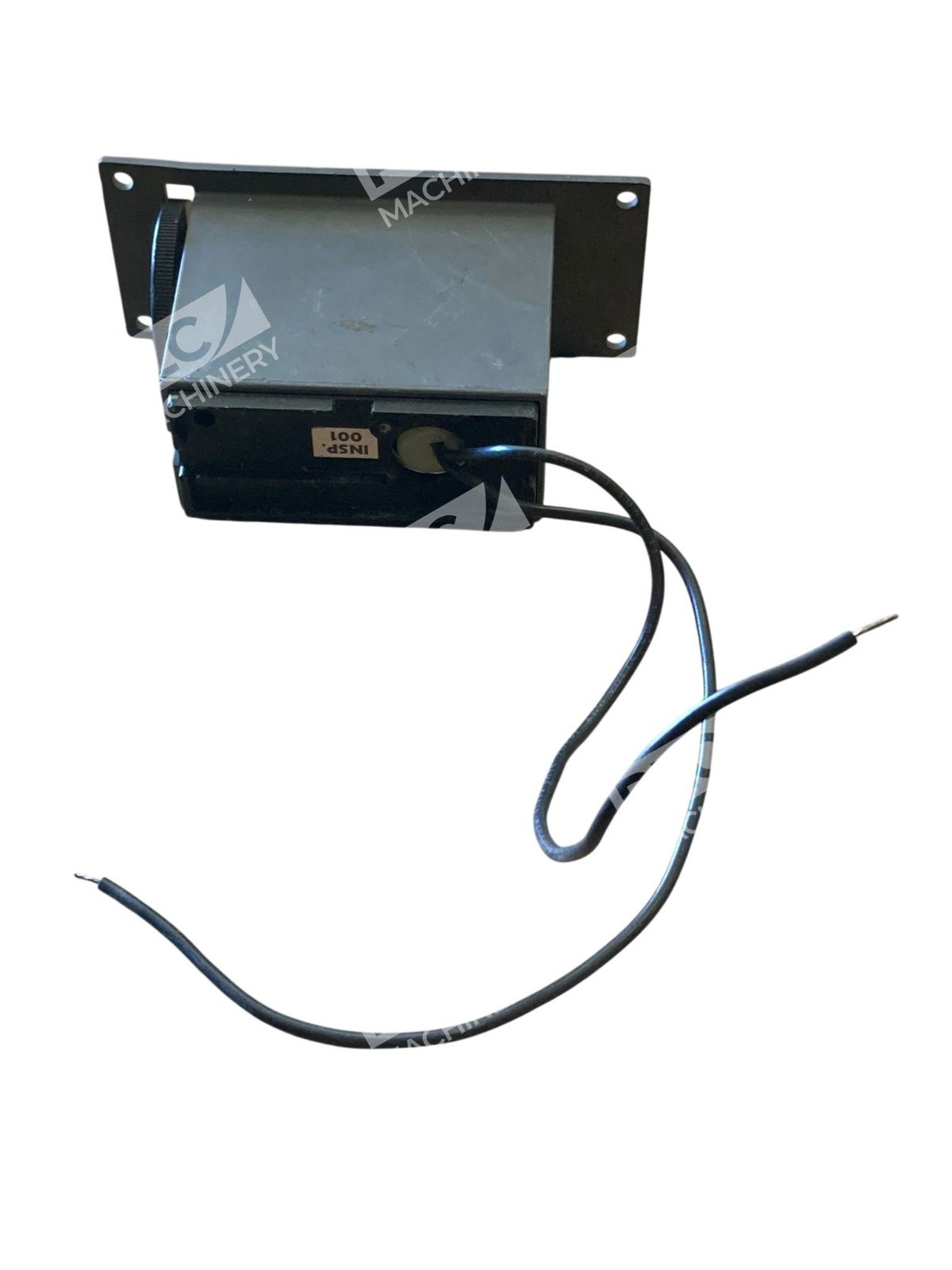

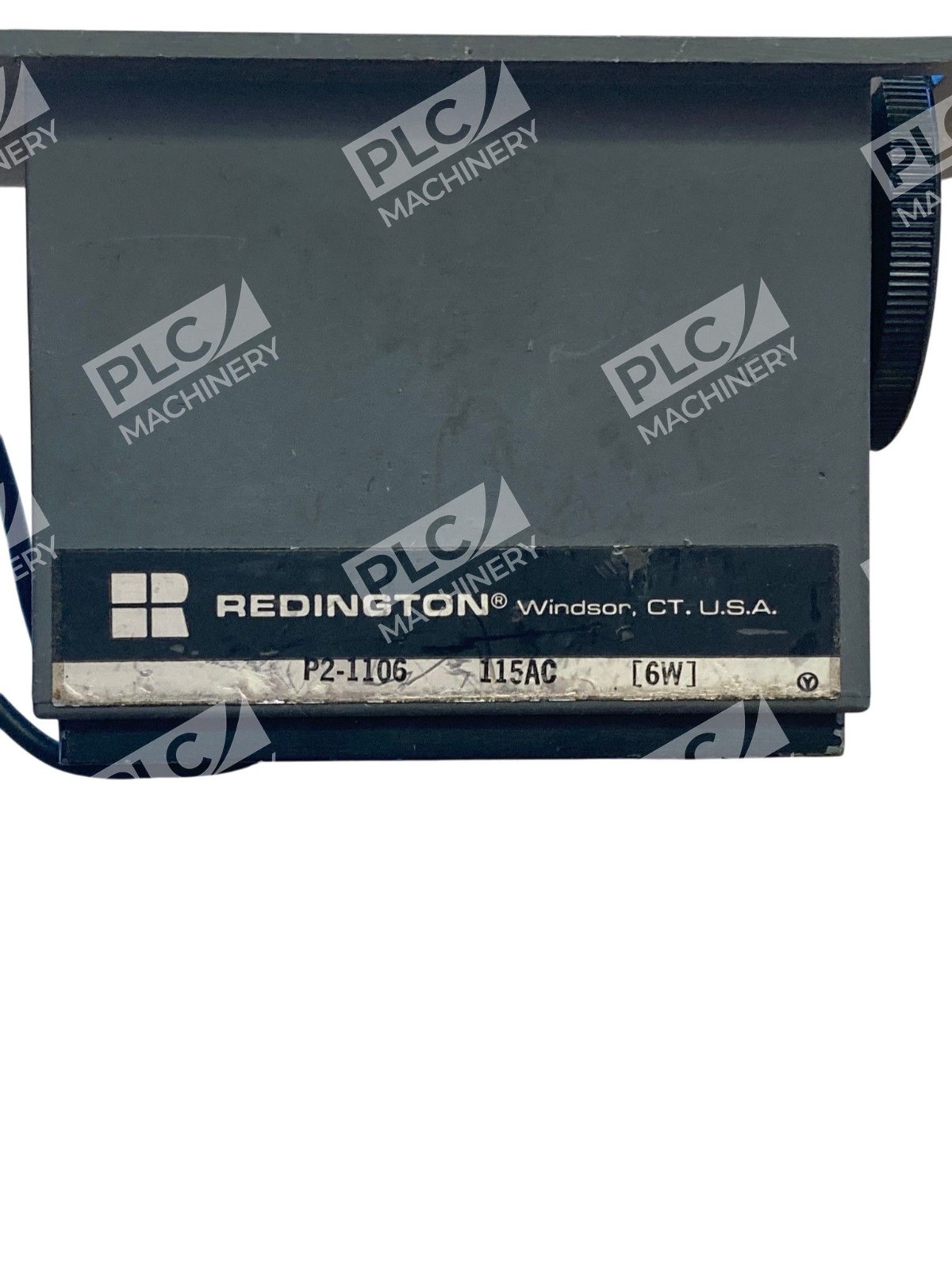

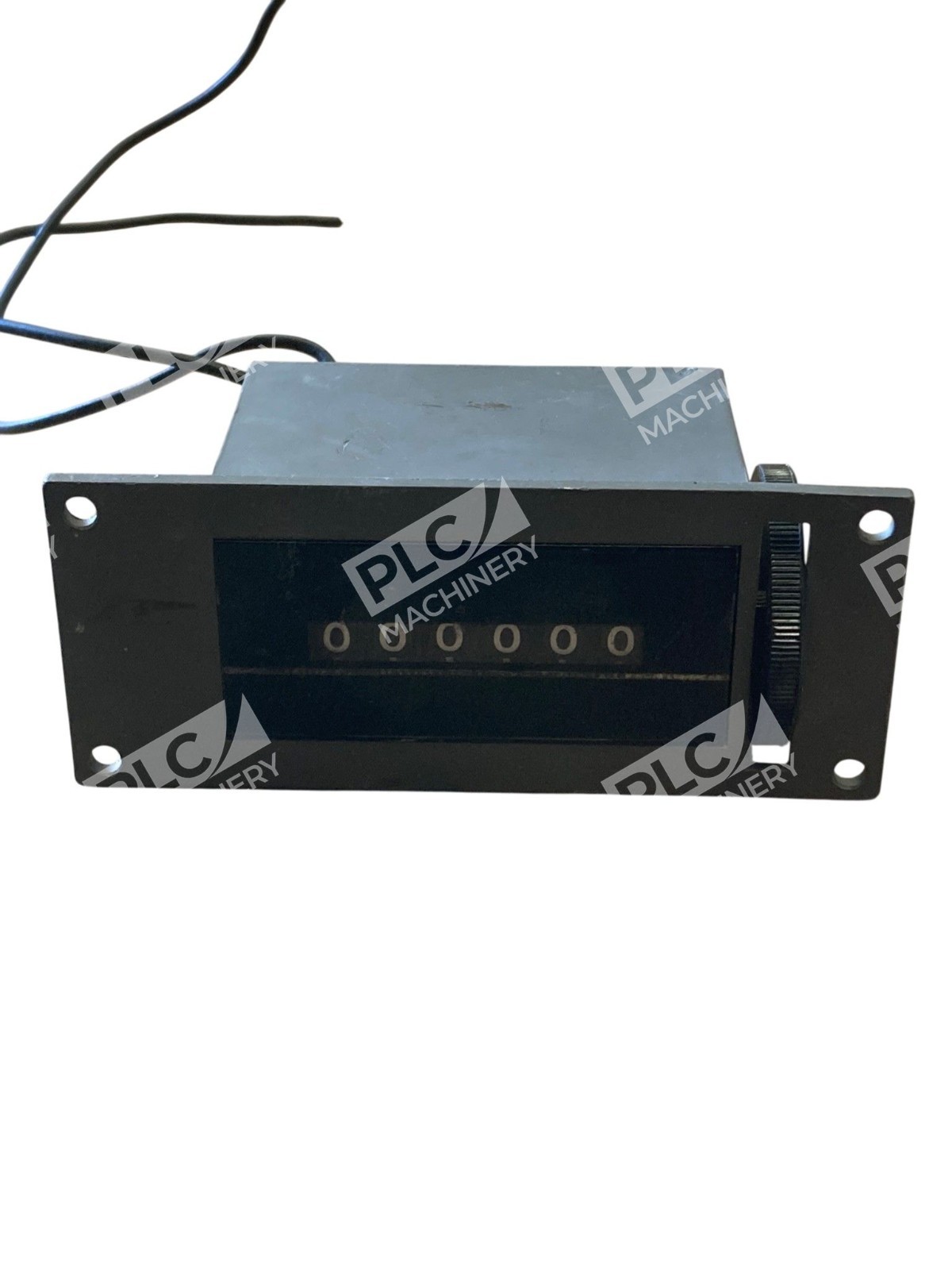

The Redington P2-1106 is a 6-digit electromechanical totalizing counter designed for use in industrial automation and control applications. This counter delivers dependable counting performance with robust mechanical construction that requires minimal maintenance. The P2-1106 is ideal for OEMs, system integrators, and maintenance teams that need a proven, cost-effective counting solution for control panels, machinery, and process monitoring.
Key Features
- 6-digit mechanical display for visual counting and monitoring
- Electromechanical totalizing design with no electronic components to fail
- Rugged construction requires no lubrication or maintenance
- Panel-mount design for easy integration into control cabinets
- Compact footprint minimizes panel space requirements
- Reset capability for cycle control and process management
Technical Specifications
- Model: P2-1106
- Manufacturer: Redington
- Type: Electromechanical Totalizing Counter
- Display: 6-digit mechanical drum
- Power Rating: 6W
- Display Range: 000000 to 999999
- Mounting: Panel mount
- Operating Temperature Range: -15°F to +140°F (-26°C to +60°C)
- Construction: Mechanical with rigid support frame
- Certifications: UL Recognized, CSA Certified, CE Compliant
Typical Applications
- Production line cycle counting and monitoring
- Parts or piece counting in assembly operations
- Batch counting for quality control
- Equipment runtime and event logging
- Control panel integration for visual feedback
- Process automation and conveyor system monitoring
Compatibility & Replacements
Compatible With
- Industrial control panels and PLC systems
- Discrete automation circuits and relay logic
- AC-powered industrial equipment (standard panel voltage)
- Mechanical counters and impulse-driven applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Redington P2-1106 may replace other Redington counter models in similar applications; consult your OEM documentation or contact technical support for specific interchangeability information.
Works With
- Mechanical impulse inputs and solenoid-driven reset mechanisms
- Standard industrial AC control voltages (95–277VAC)
- Panel-mount relay circuits and PLC discrete outputs
- Dry-contact reset signals from counters, timers, and limit switches
