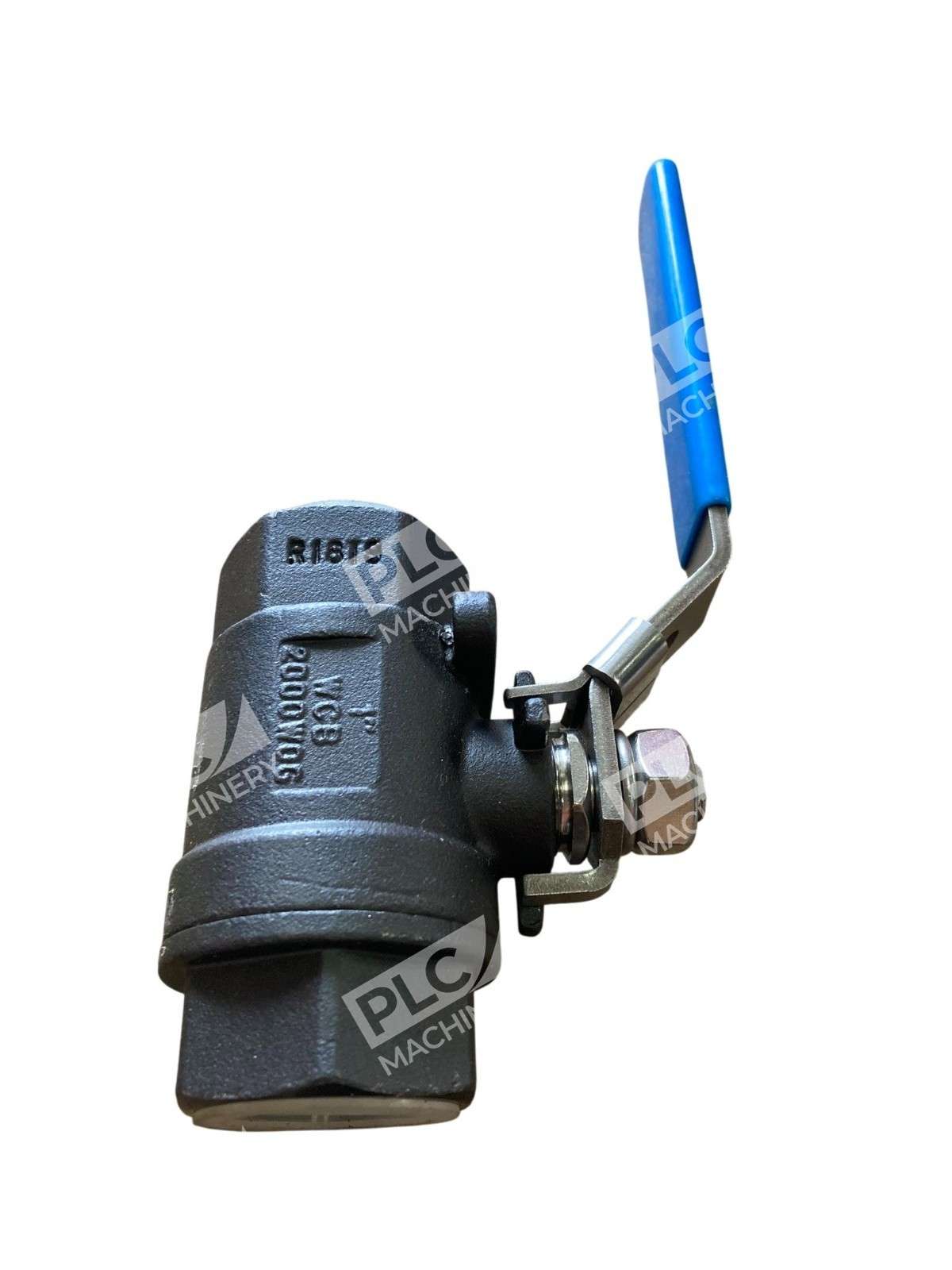

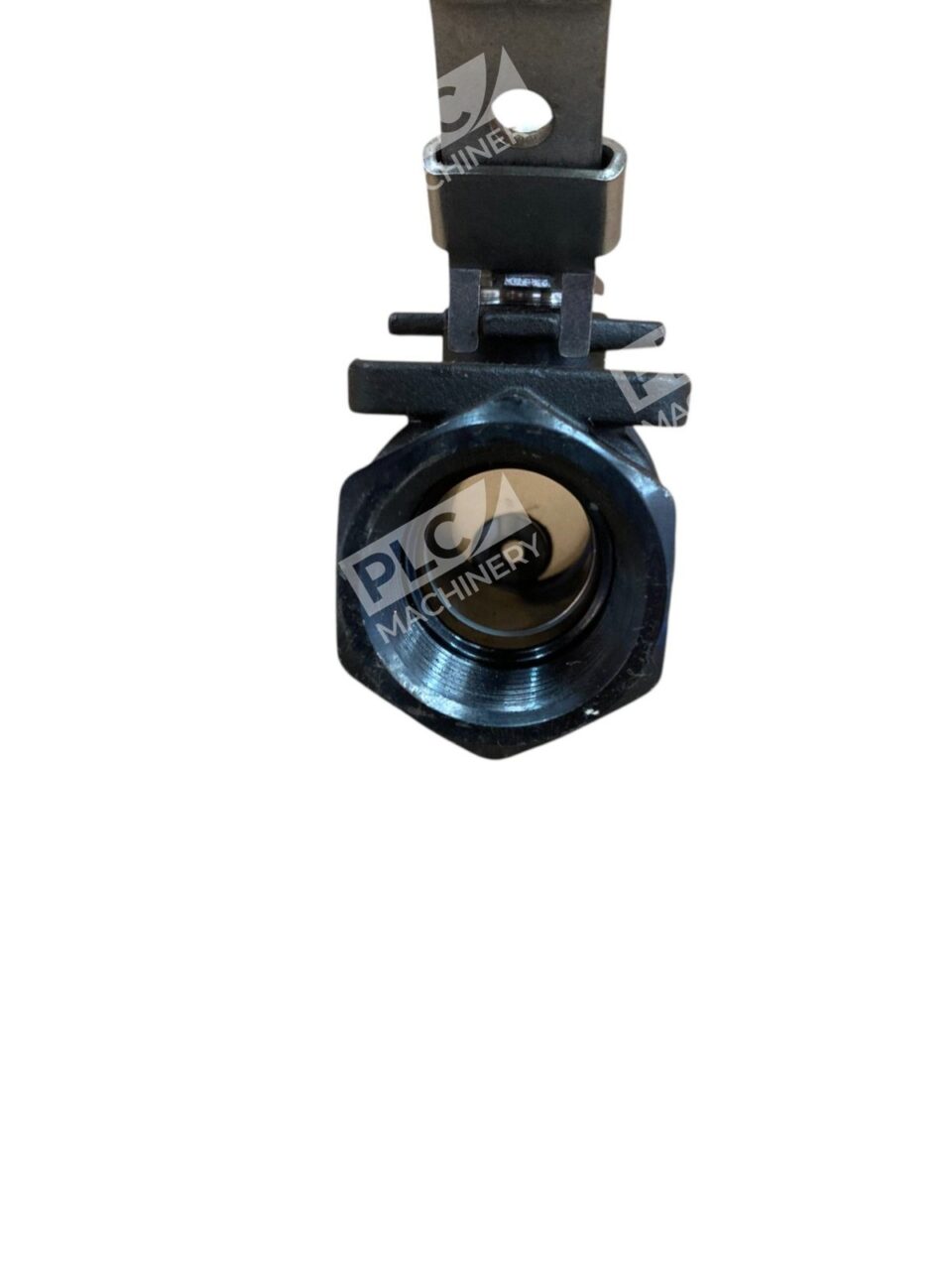

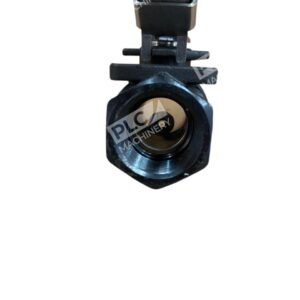

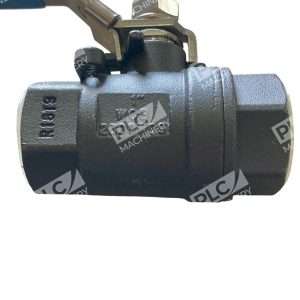

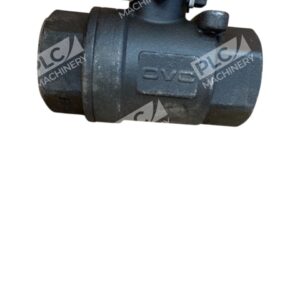

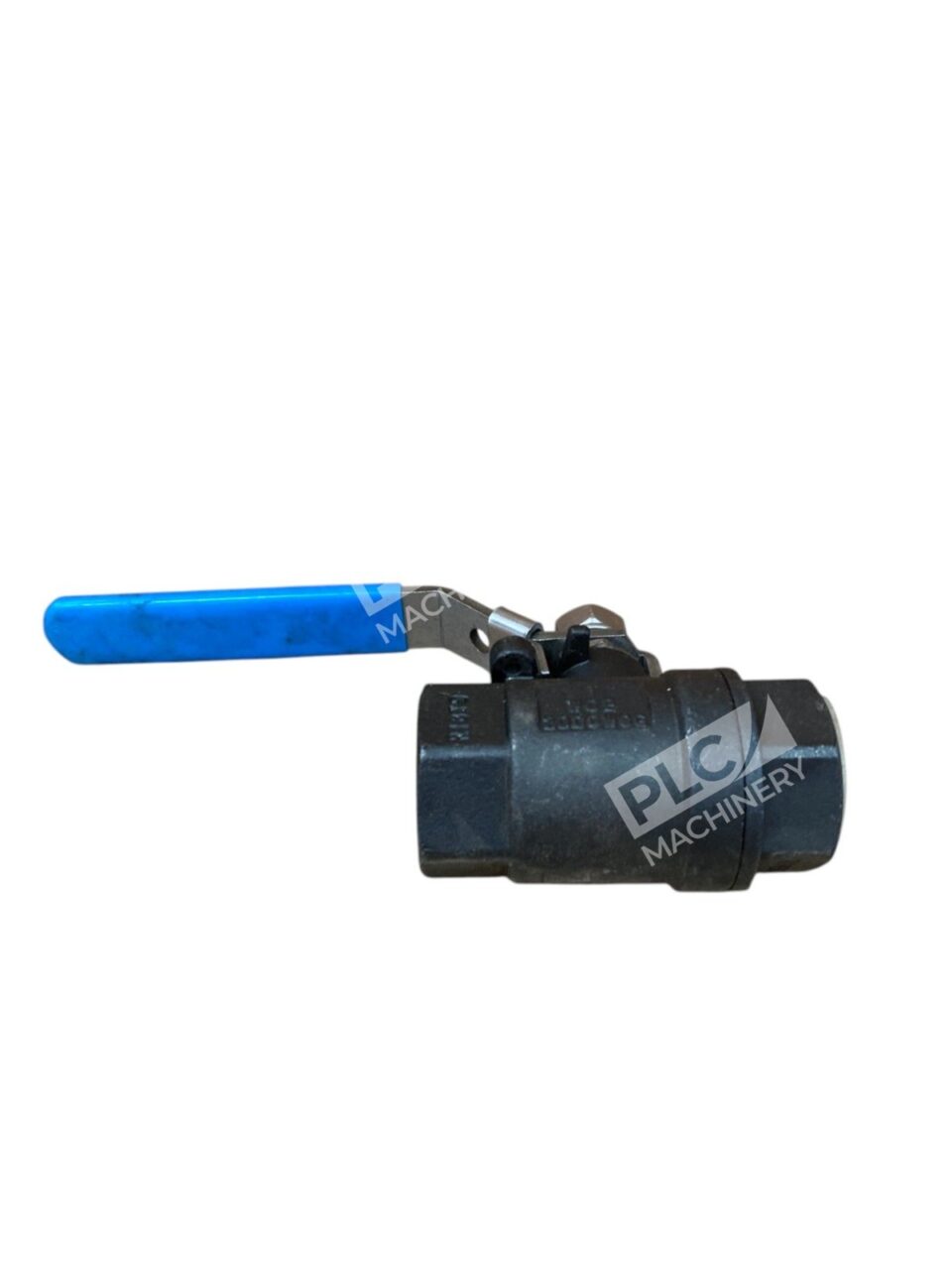

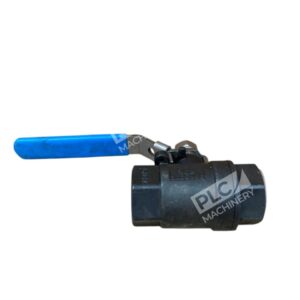

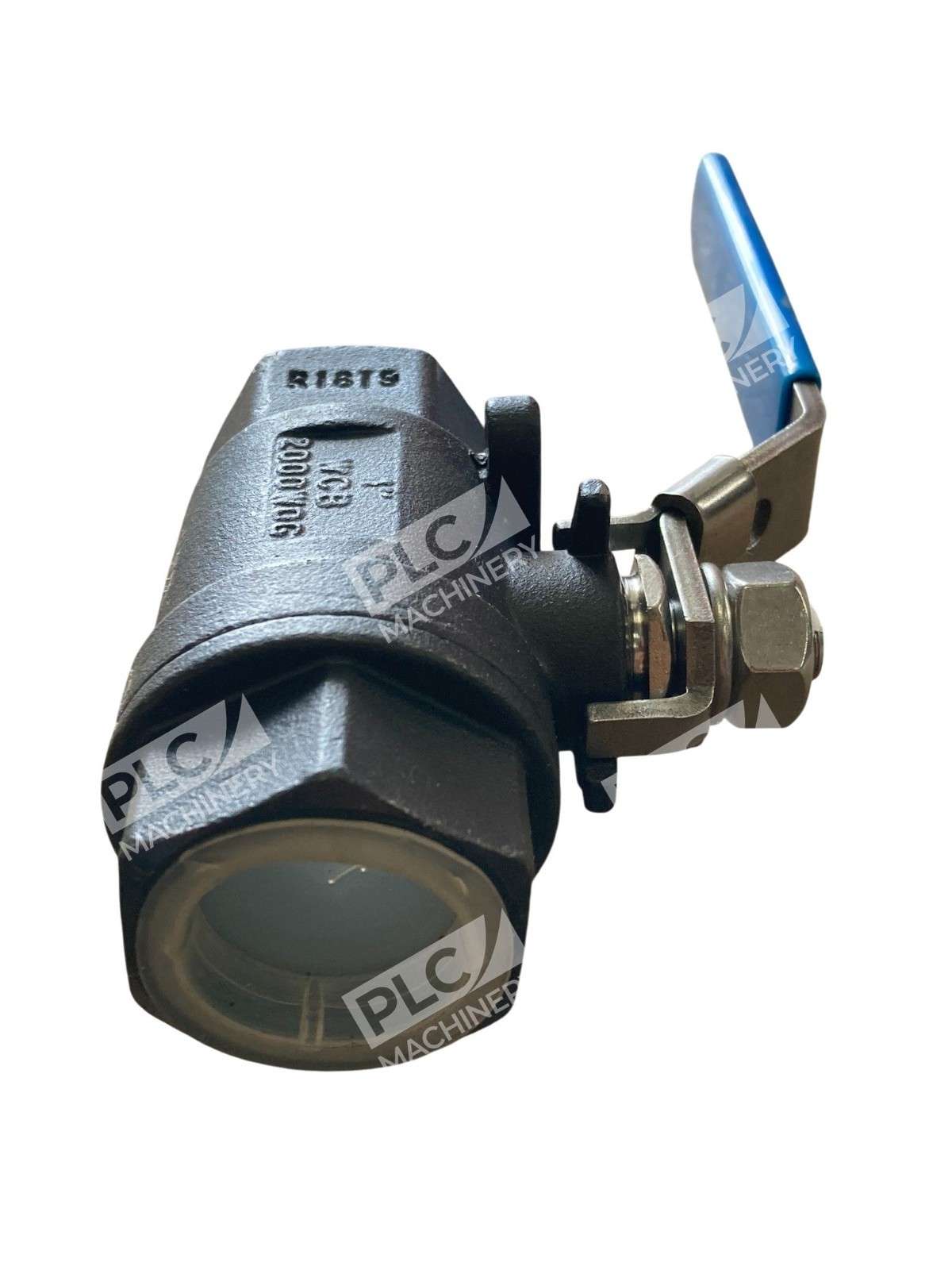

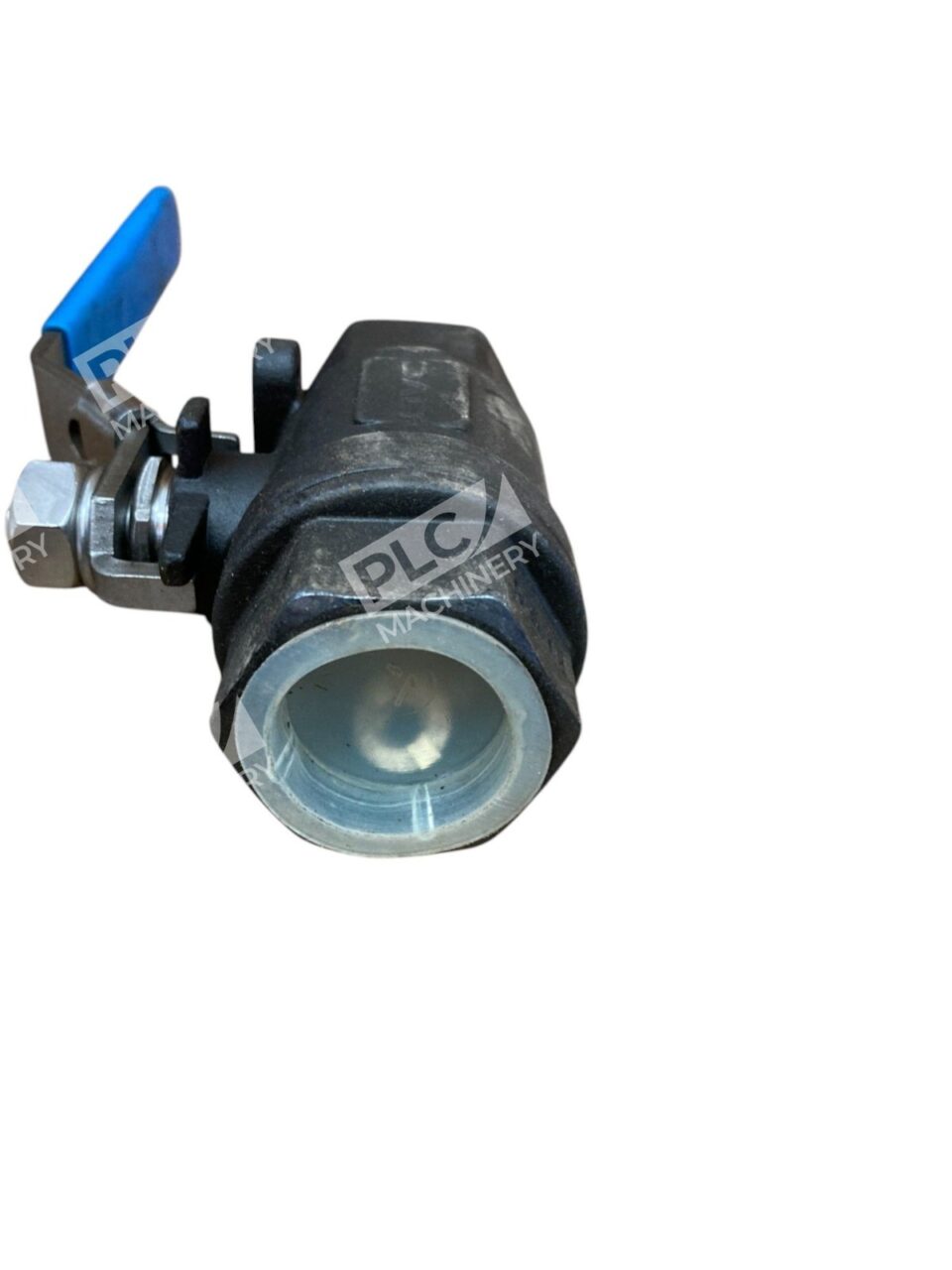

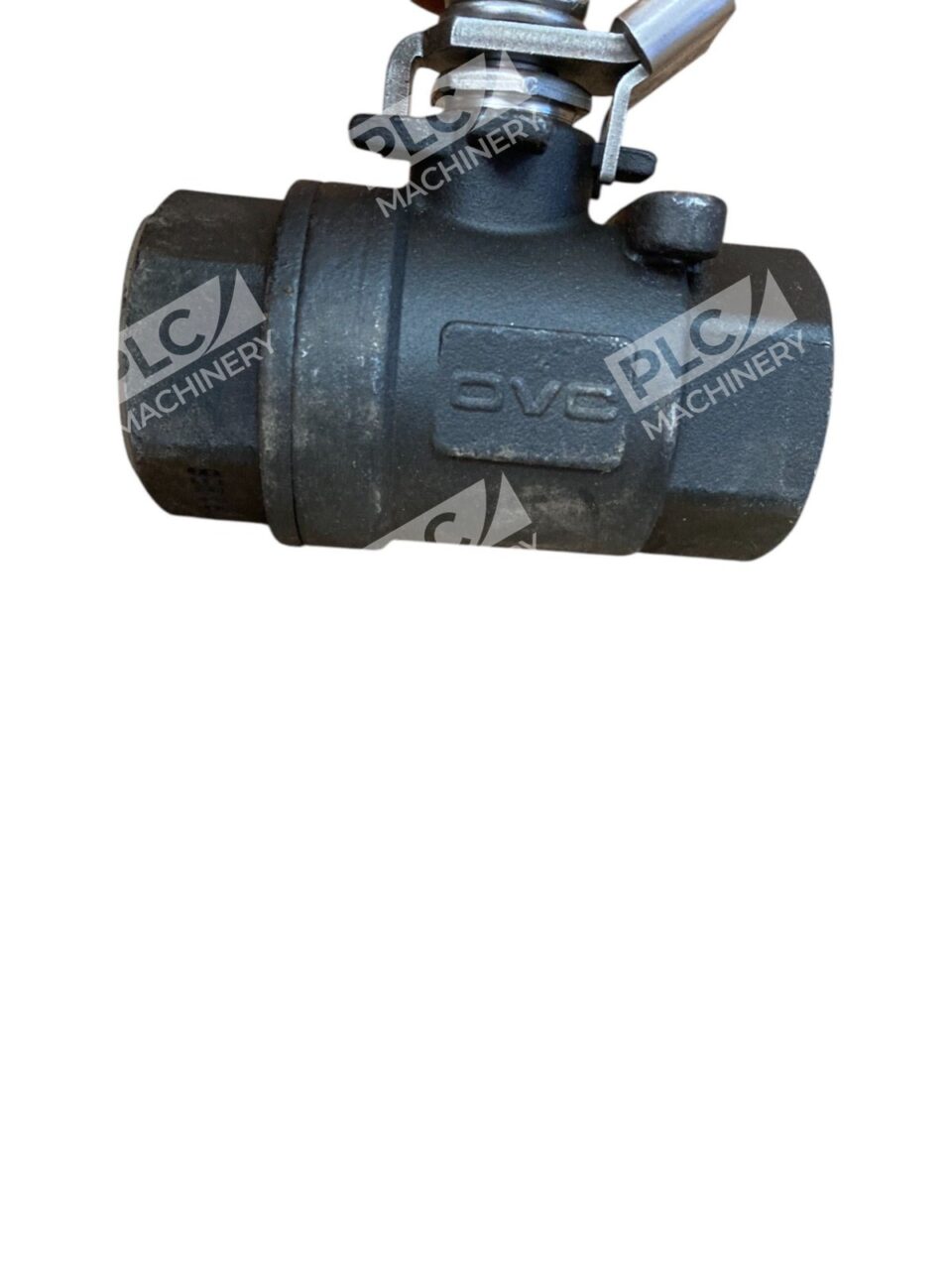

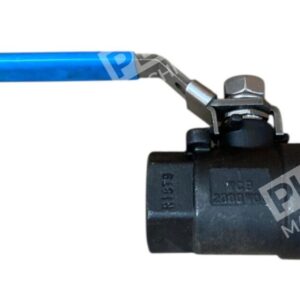

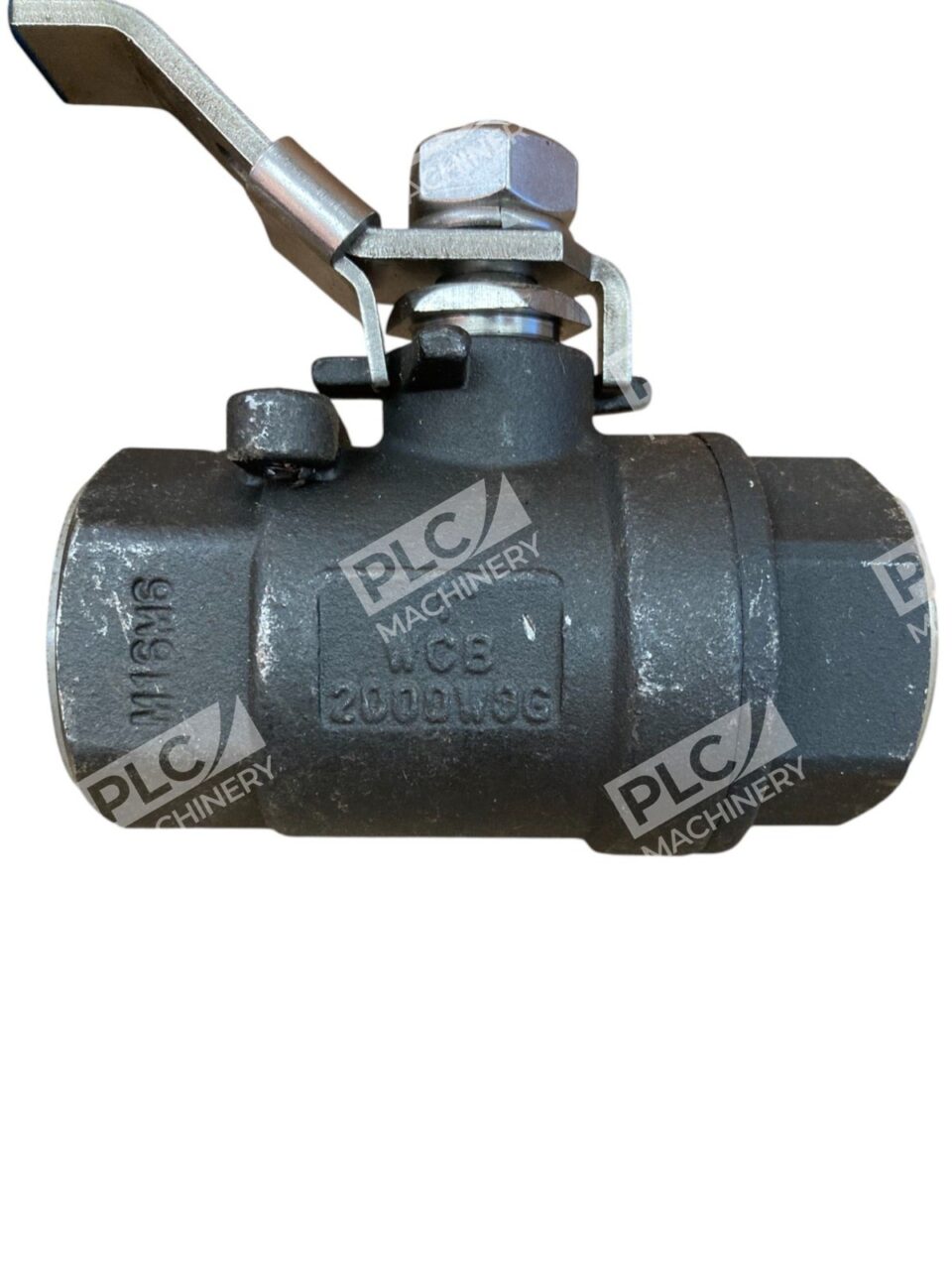

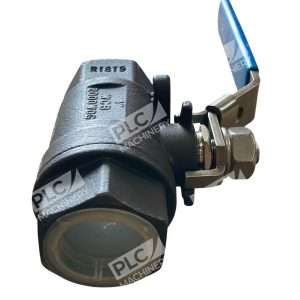

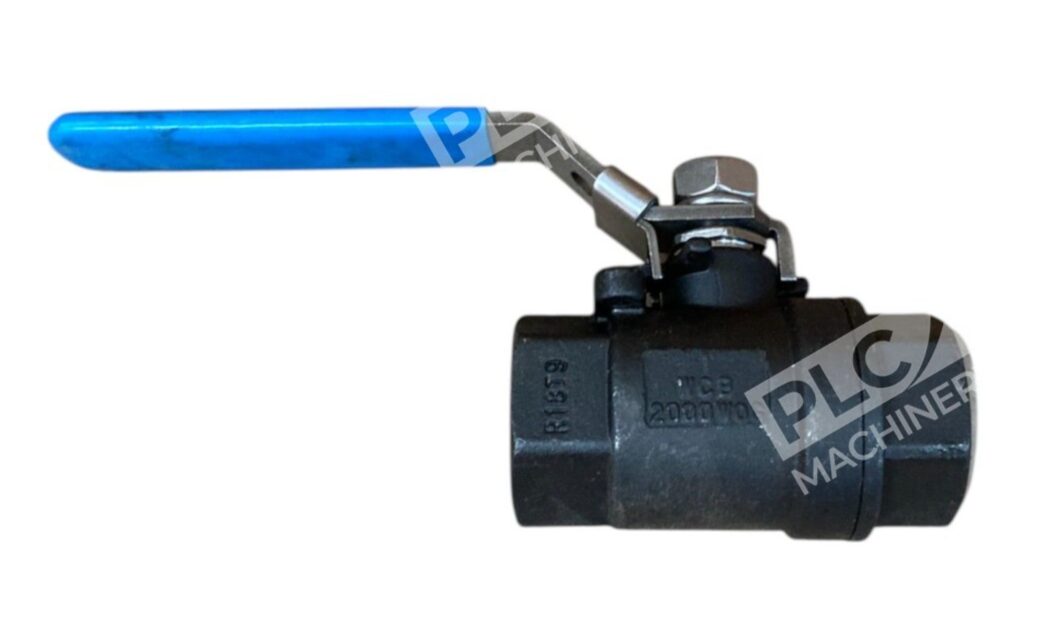

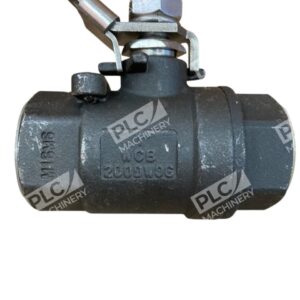

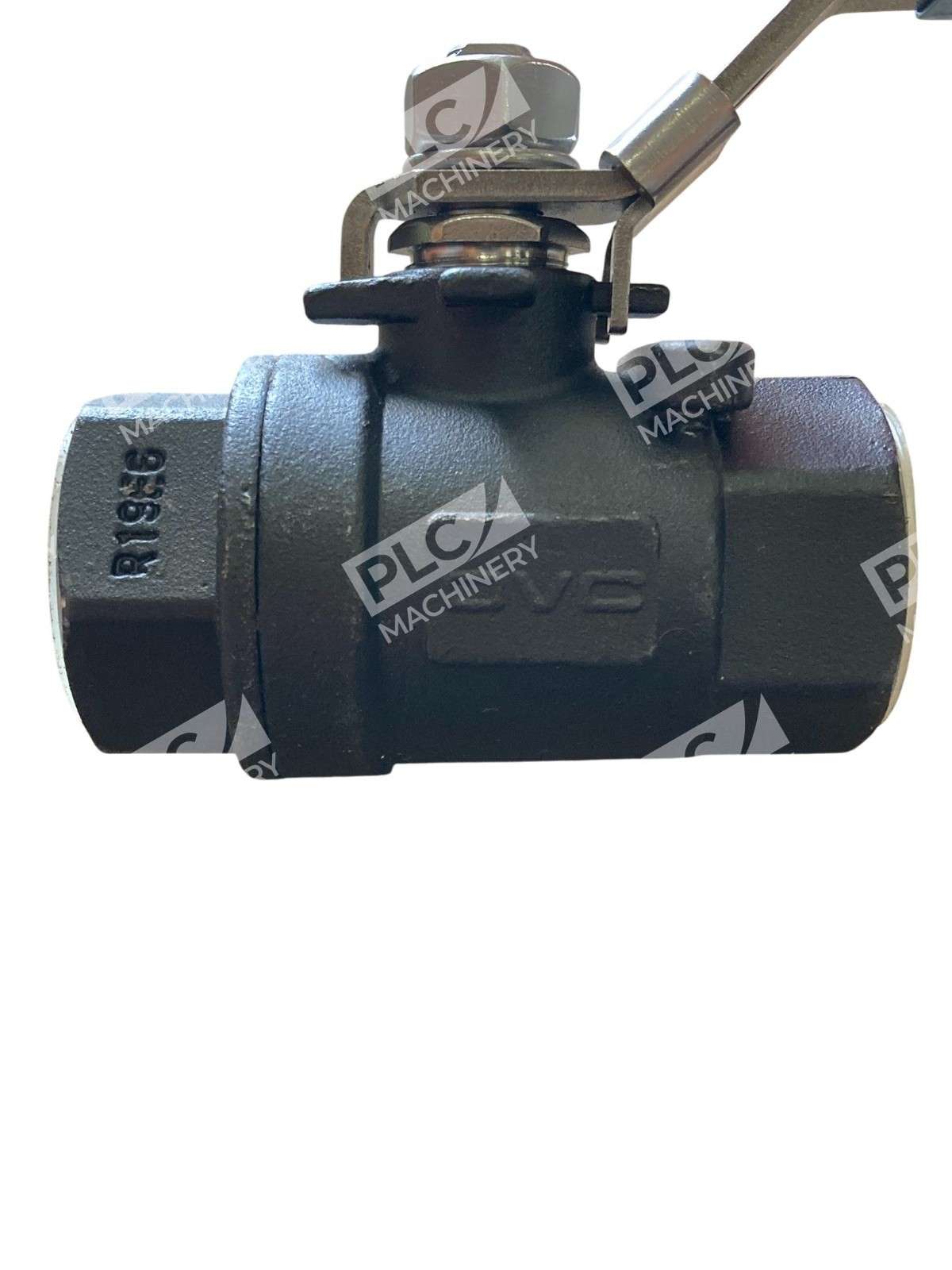

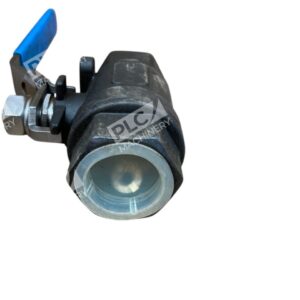

OVC Ohio Valve Company 256FT Ball Valve 1″ WCB 2000WOG
The OVC Ohio Valve Company 256FT Ball Valve is a high-performance, two-piece full port valve designed for demanding industrial applications. Engineered with precision, this 1-inch valve offers exceptional durability and reliability.
Key Features
- Full Port Design: Ensures minimal pressure drop and unrestricted flow, optimizing system efficiency.
- High Pressure Rating: Rated at 2000 psi WOG (Water, Oil, Gas) for sizes 1/4″ through 1″, accommodating a wide range of applications.

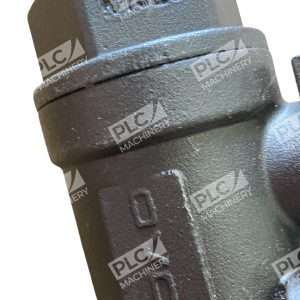

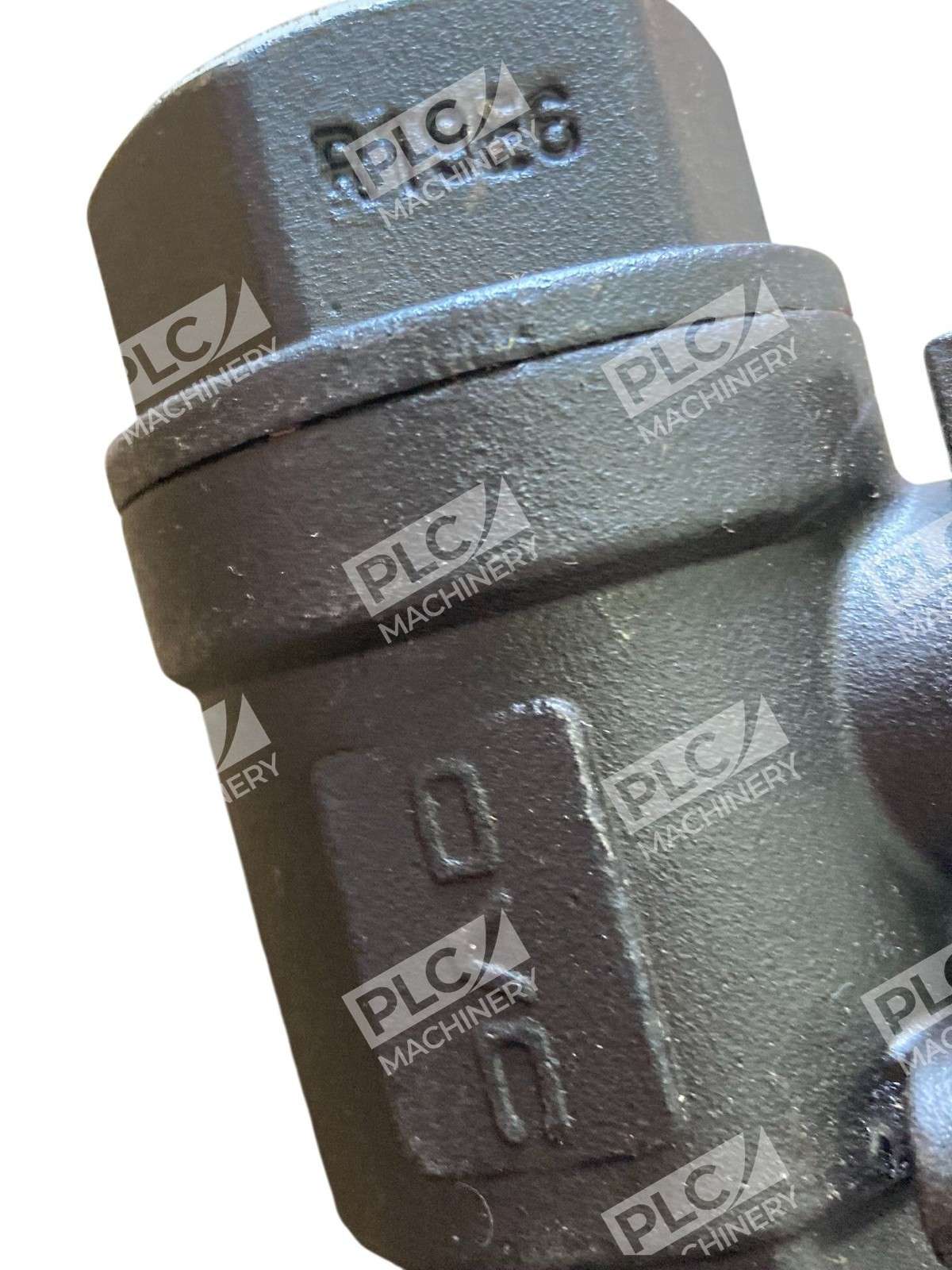

- Robust Construction: The body and cap are constructed from ASTM A216-WCB carbon steel, providing strength and longevity.
- Superior Sealing: Equipped with 15% glass fiber-filled PTFE reinforced seats and PTFE seals and packing, ensuring leak-proof operation.
- Blow-Out Proof Stem: Enhances safety by preventing stem blowout under pressure.

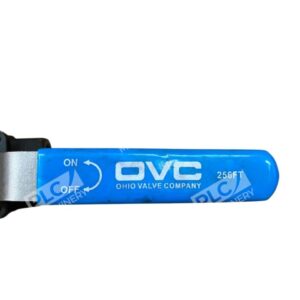

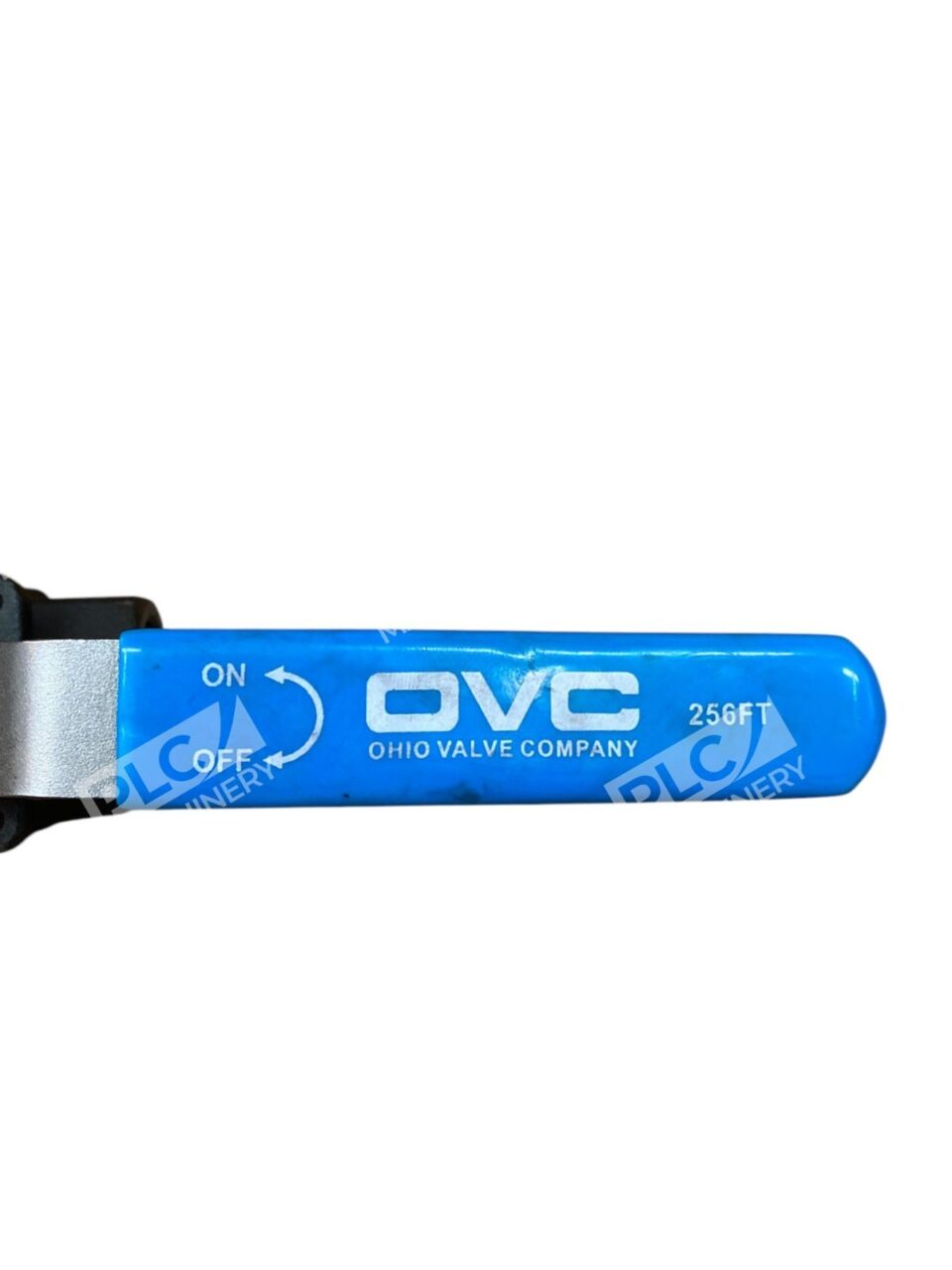

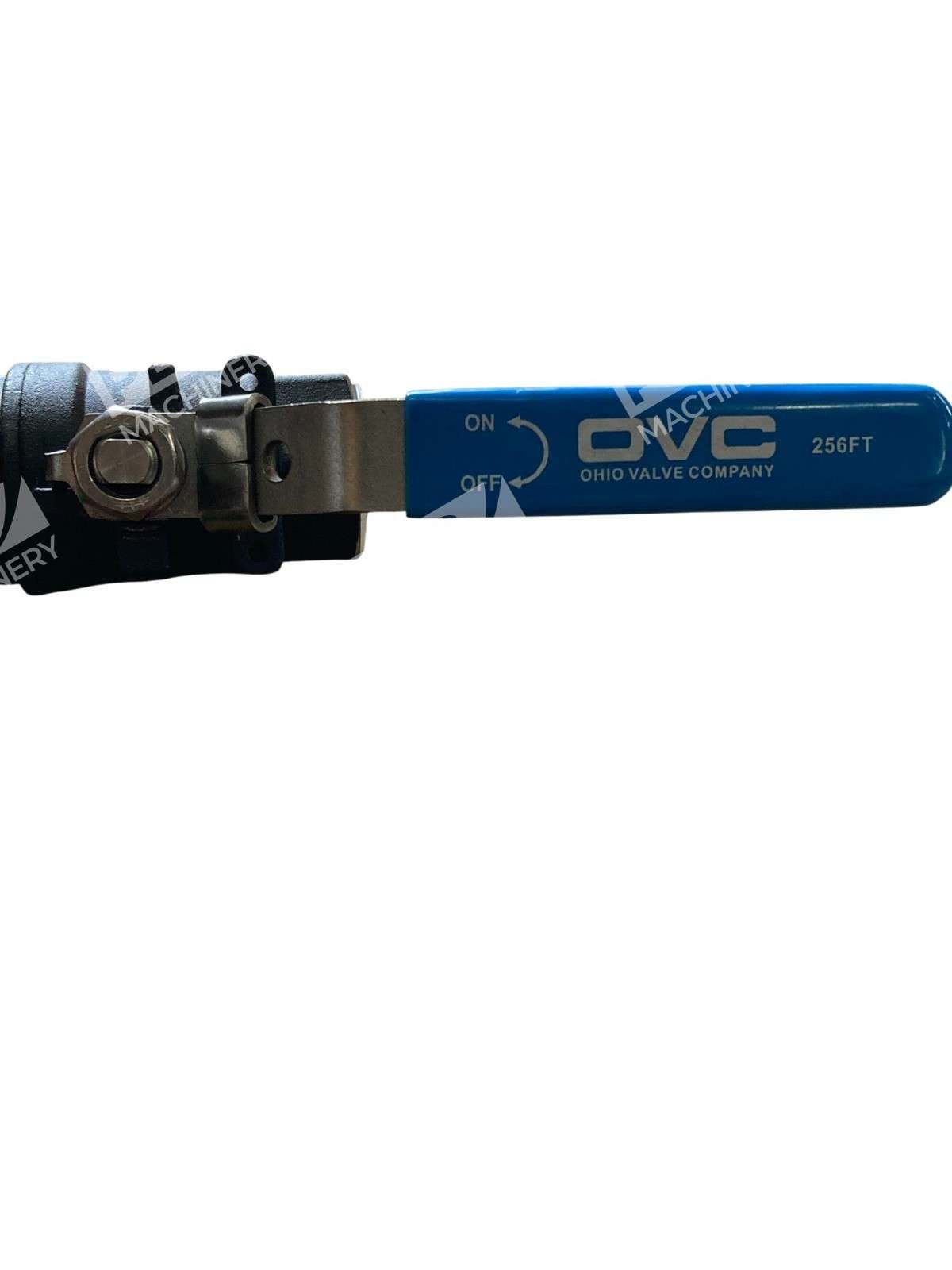

- Latch Lock Handle: Features a locking device for secure operation and to prevent unintended actuation.
- Compliance and Testing: Manufactured under ISO 9002 standards and tested in accordance with API-598 to ensure quality and performance.
Materials of Construction
| Component | Material |
|---|---|
| Body | ASTM A216-WCB |
| Cap | ASTM A216-WCB |
| Ball | ASTM A351-CF8M |
| Stem | ASTM A276-316 |
| Gland Nut | AISI 304 |
| Ball Seat | RTFE |
| Body Seal | PTFE |
| Packing | PTFE |
| Thrust Washer | PTFE |
| Spring Washer | AISI 304 |
| Nut | AISI 304 |
| Handle | AISI 304 |
| Handle Sleeve | PVC |
| Locking Device | AISI 304 |
Dimensions and Specifications
| Size | ød (in) | L (in) | W (in) | H (in) | H1 (in) | T (in) | C (in) | Torque (in-lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| 1″ | 1.01 | 3.54 | 6.50 | 3.15 | 0.62 | 7/16″ | 0.31 | 101 | 2.40 |
Note: Actual torque values may vary. Please consult the factory for precise specifications.
The OVC 256FT Ball Valve is an ideal choice for industries requiring reliable flow control under high-pressure conditions. Its robust design and high-quality materials ensure long-term performance and safety in various applications.
