Overview

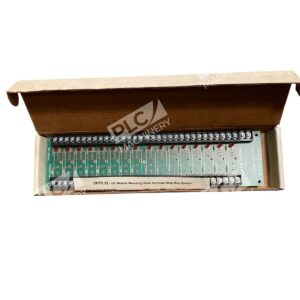

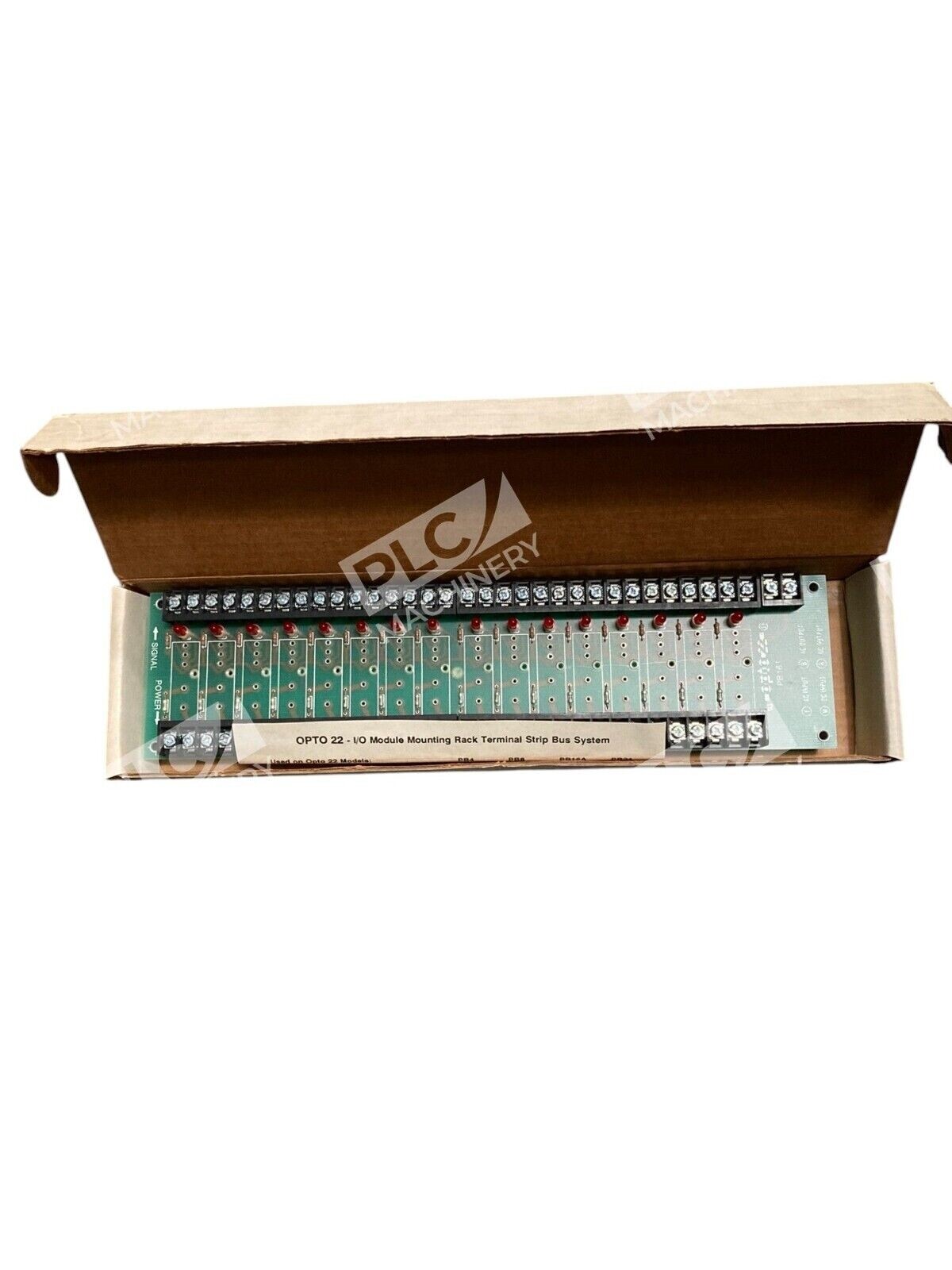

The Opto22 PB16A is a compact G1 16-channel I/O module mounting rack designed for industrial automation and control applications. This rack provides a direct-connect interface for up to 16 single-channel Opto 22 standard (Generation 1) digital I/O modules, making it an essential component in modular control systems where field I/O expansion is required without redesigning the entire control architecture.
Key Features
- Accommodates 16 single-channel Opto 22 G1 standard digital I/O modules
- 50-pin card edge connector for direct interface via 50-conductor ribbon cable
- LED status indicators for each channel module—visual feedback without external monitoring
- Replaceable fuses on each channel for overcurrent protection and module isolation
- Compact PCB-mounted design for cabinet and panel integration
- Supports both AC and DC digital I/O module types (G1 family)
Technical Specifications
- Manufacturer: Opto 22
- Part Number: PB16A
- I/O Family: Generation 1 (G1) Standard
- Module Capacity: 16 single-channel I/O modules
- Connector Type: 50-pin card edge
- Cable Interface: 50-conductor ribbon cable
- Status Indication: LED per module
- Operating Temperature: 0 to 70°C
- Form Factor: PCB-mounted terminal strip bus system
- Channel Protection: Replaceable fuses per channel
Typical Applications
- Modular PLC and industrial controller I/O expansion
- Machine automation and process control systems
- SCADA and remote monitoring installations
- Legacy Opto 22 G1 control system upgrades and replacements
- Distributed I/O in cabinet and panel layouts
- Direct-connect automation where PC or adapter card I/O is required
Compatibility & Replacements
Compatible With
- Opto 22 Generation 1 (G1) standard digital I/O modules—all single-channel types
- 50-conductor ribbon cable interface to PC I/O adapter cards or controller ports
- Opto 22 industrial automation and SCADA systems
- Cabinet and panel-mount control systems
Replaces / Drop-In Replacement For
- Legacy Opto 22 PB16A units in existing G1 systems
- Verify compatibility with your system integrator before ordering to ensure module family alignment
Works With
- Opto 22 G1 digital I/O modules (input and output types)
- Standard 50-pin PC and industrial controller interface cables
- Industrial automation software platforms supporting Opto 22 I/O
- Legacy and modern Opto 22 groov EPIC and controller systems (with adapter)
