Overview

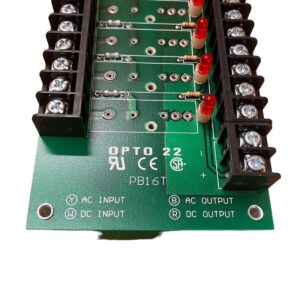

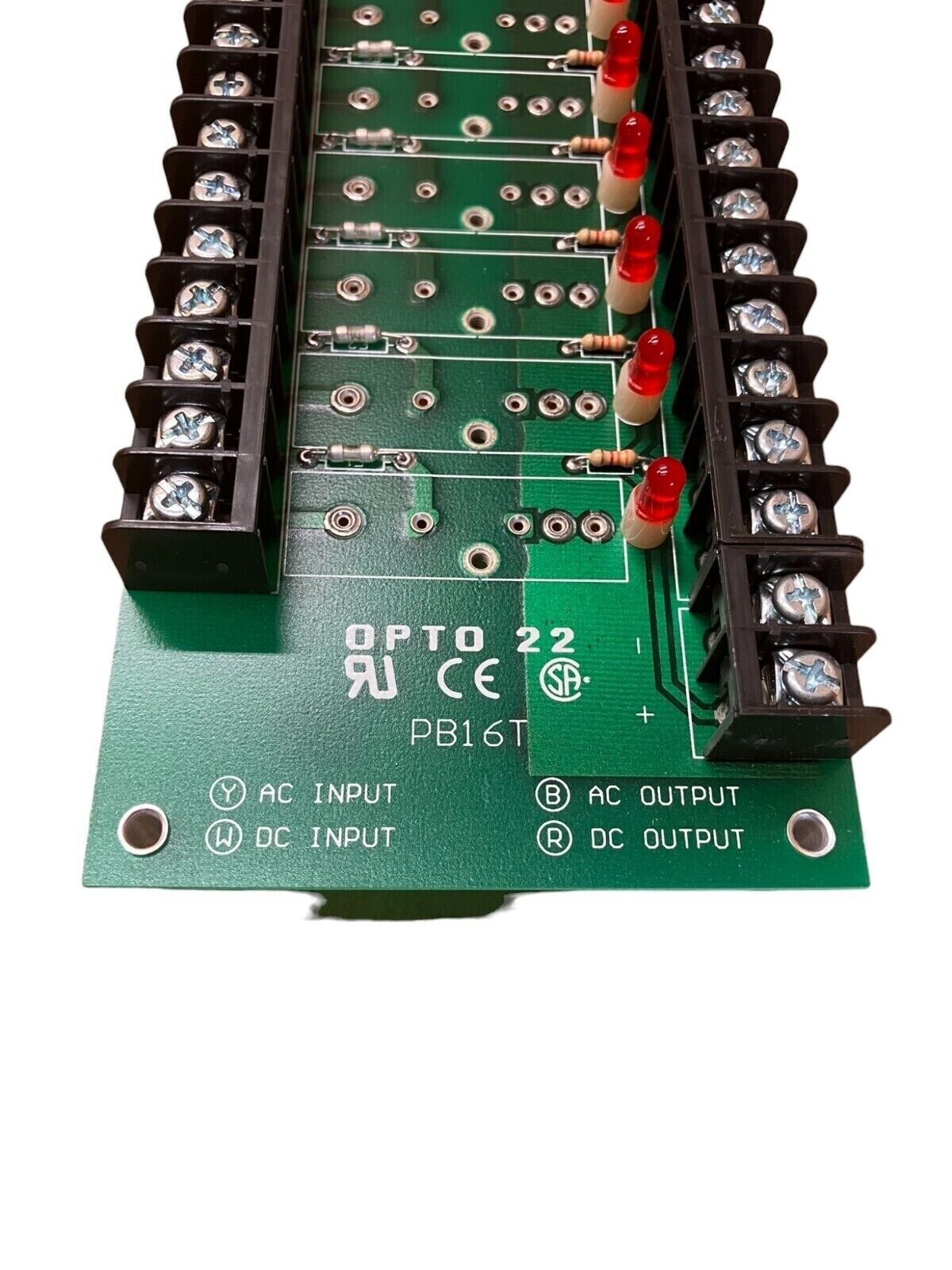

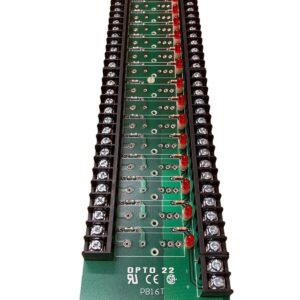

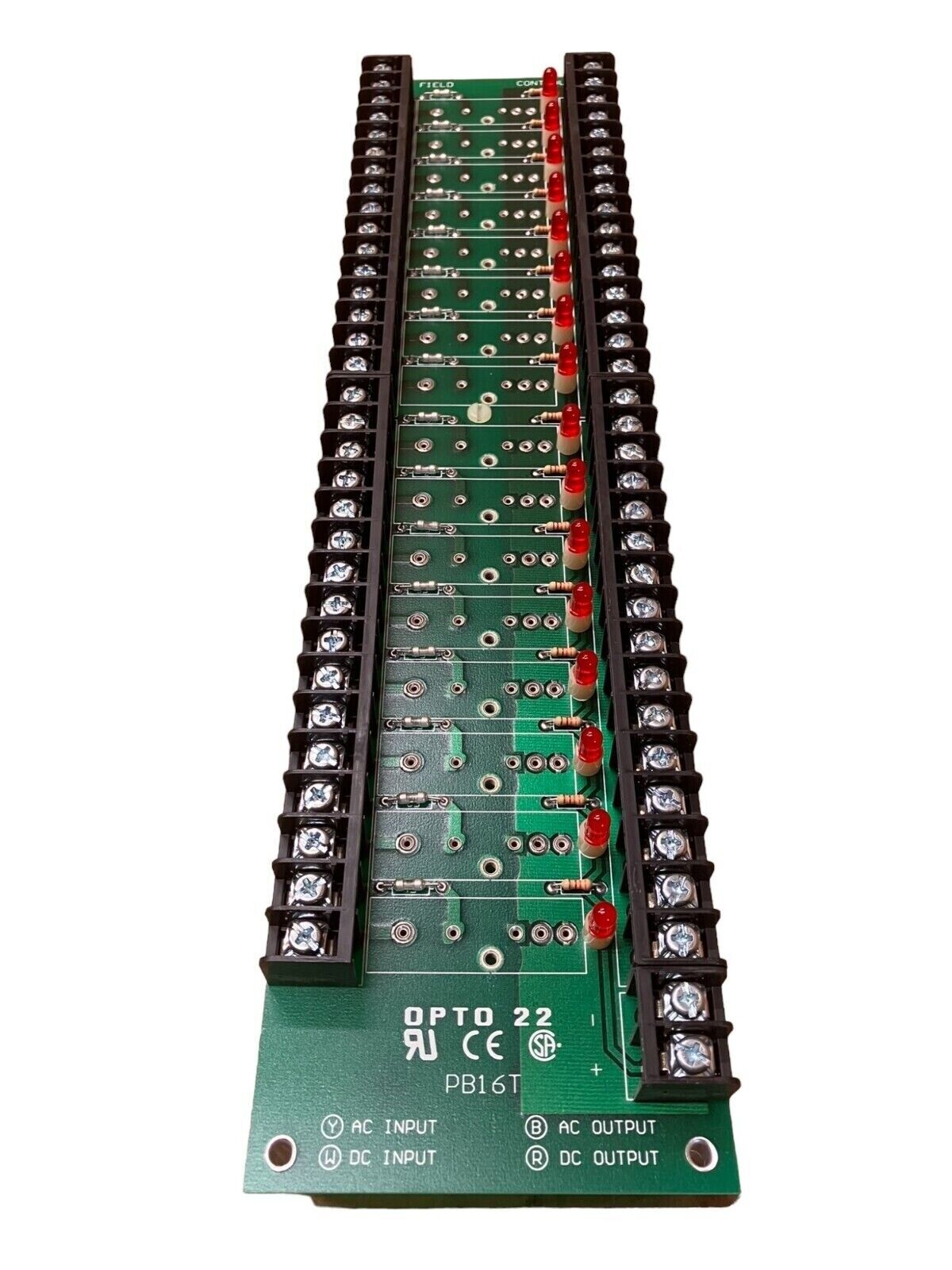

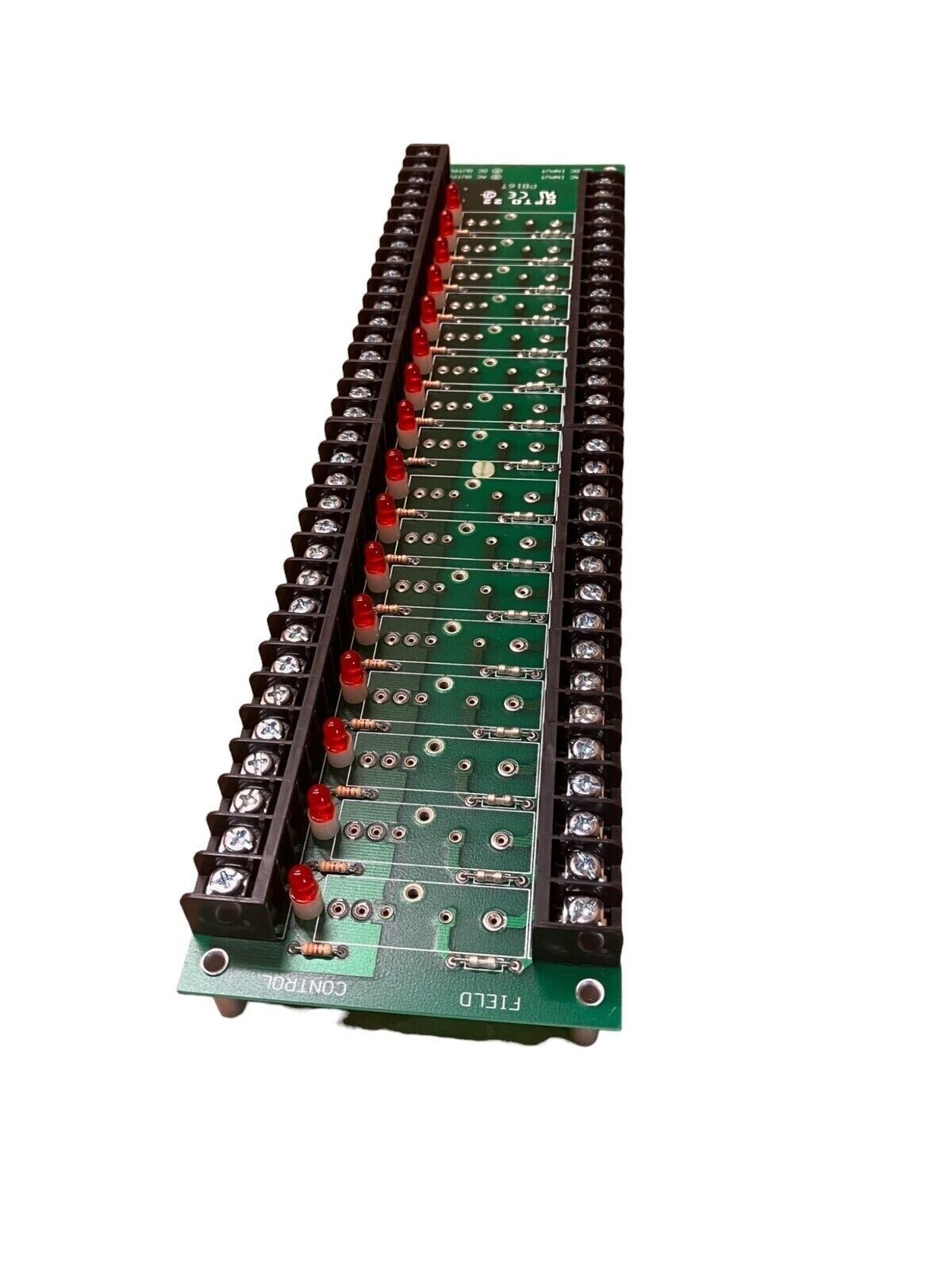

The Opto 22 PB16T is a professional-grade 16-channel I/O module mounting rack built for control systems that demand reliable field-side and logic-side connectivity. Part number 96F1035, this G1-generation rack provides a modular foundation for digital input and output control in process automation, machine control, and industrial monitoring applications.
Key Features
- 16-channel I/O module capacity with G1 digital I/O family compatibility

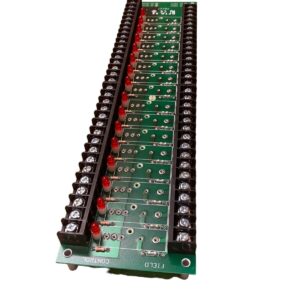

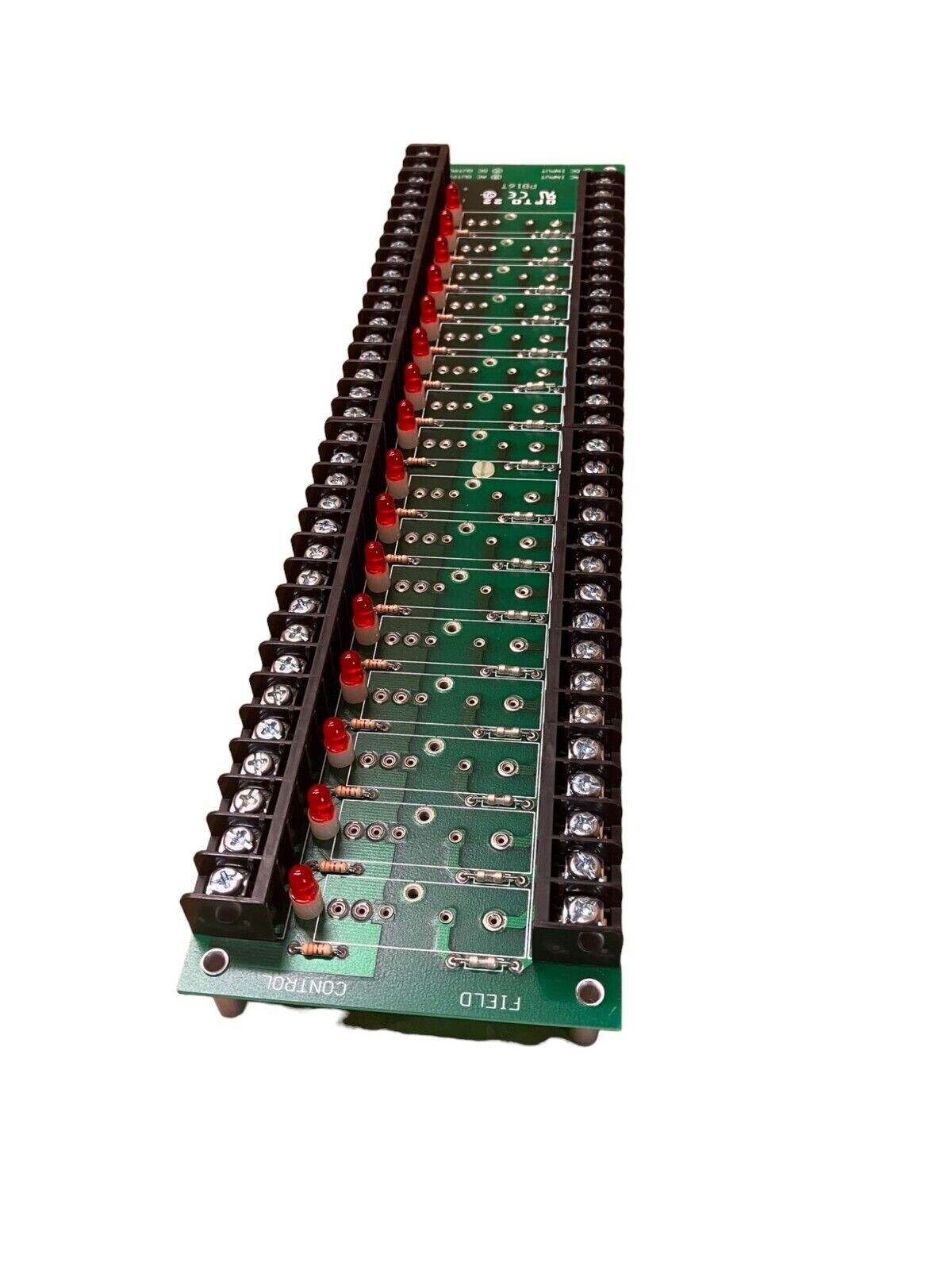

- Dual barrier strips for separate field and logic-side wiring
- Accepts both input and output modules in any combination
- Supports 5V, 15V, and 24V module voltages
- Individual fuse protection and status LED per module position
- Compact screw-terminal design for quick field connections
Technical Specifications
| Module Capacity | 16 channels |
| Compatible Voltage Levels | 5V, 15V, 24V |
| I/O Module Family | Opto 22 G1 modules |
| Barrier Strip Configuration | 2 (dual field and logic sides) |
| Fuse Protection | Individual per module slot |
| Status Indication | LED per module position |

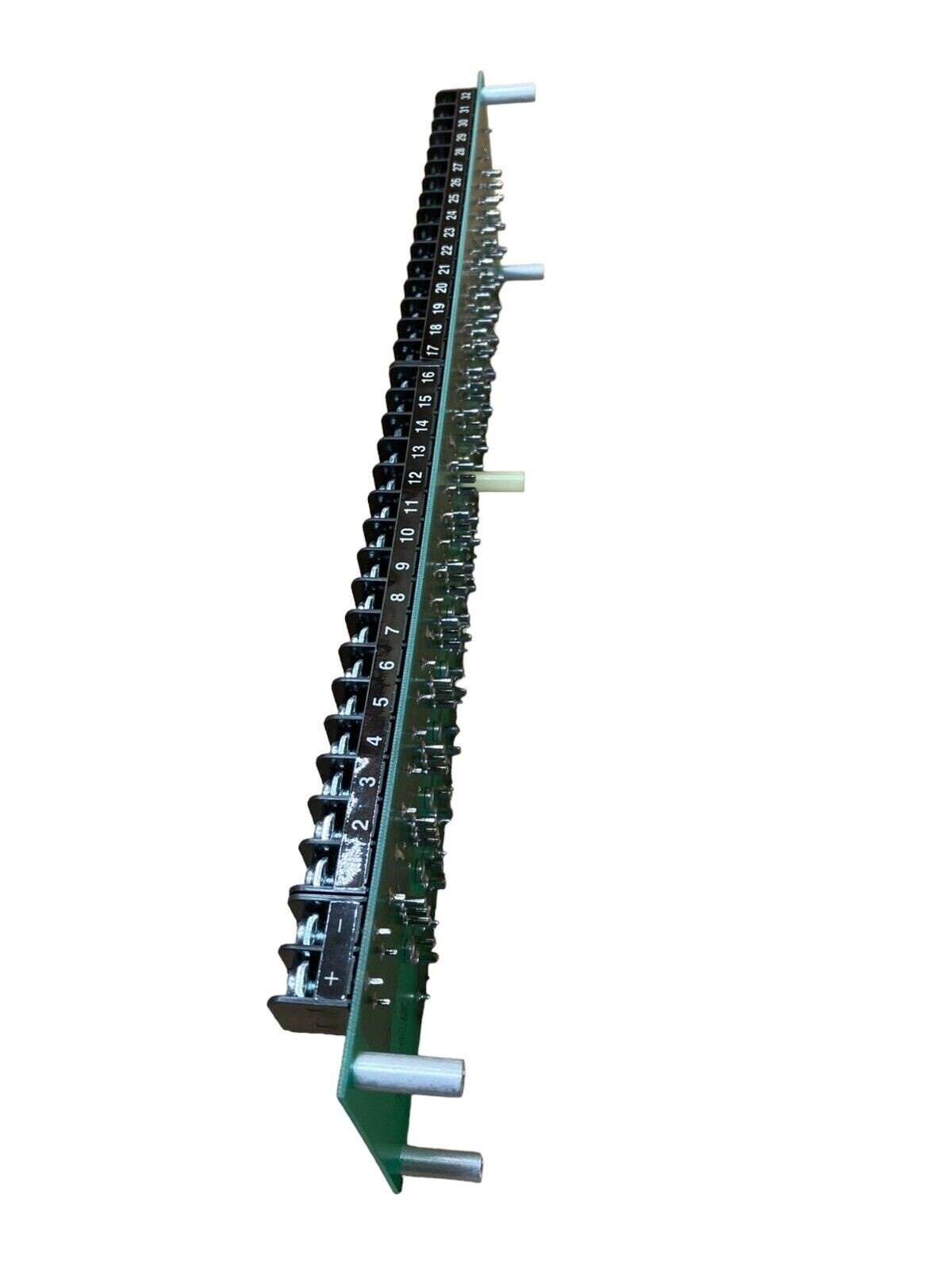

| Connector Type | 50-pin screw terminal |
| Input Modules Supported | G1 digital input modules |
| Output Modules Supported | G1 digital output modules |
| Mounting | DIN rail or panel |
| Manufacturer Part Number | PB16T (Model: 96F1035 58A7) |
Typical Applications
- Process control systems and SCADA installations
- Machine automation and motion control
- Remote monitoring and data acquisition systems
- Industrial equipment retrofits and upgrades
- Water/wastewater treatment automation
- Power distribution and monitoring systems
Compatibility & Replacements
Compatible With
- Opto 22 G1-series digital I/O modules
- Opto 22 SNAP PAC controllers and I/O systems
- Standard PLC systems via external I/O integration
- Industrial automation platforms with standard I/O protocols
Replaces / Drop-In Replacement For
- Earlier Opto 22 module rack configurations (verify module compatibility)
- Direct replacement for legacy PB16T installations
Works With
- Opto 22 G1 Input and Output modules (any voltage combination)
- Standard industrial field wiring and terminal strips
- Industrial control systems using discrete I/O
- Legacy and modern PLC automation architectures
