Overview

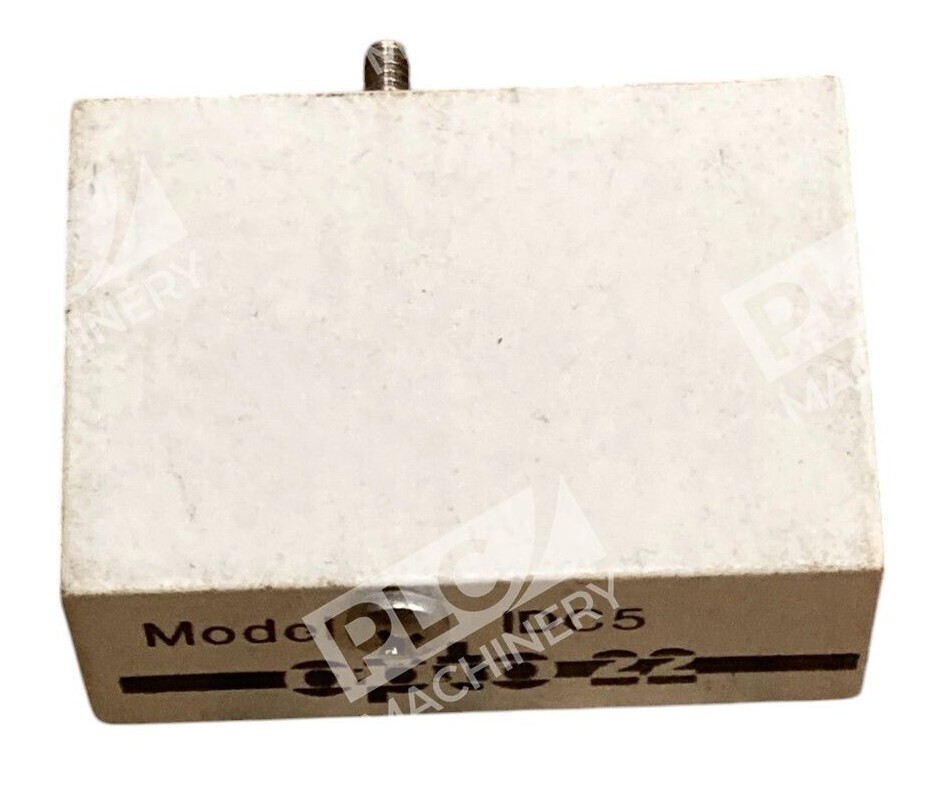

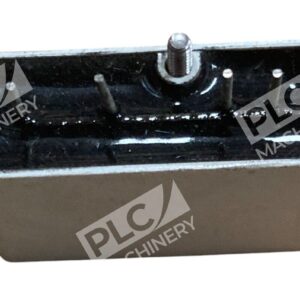

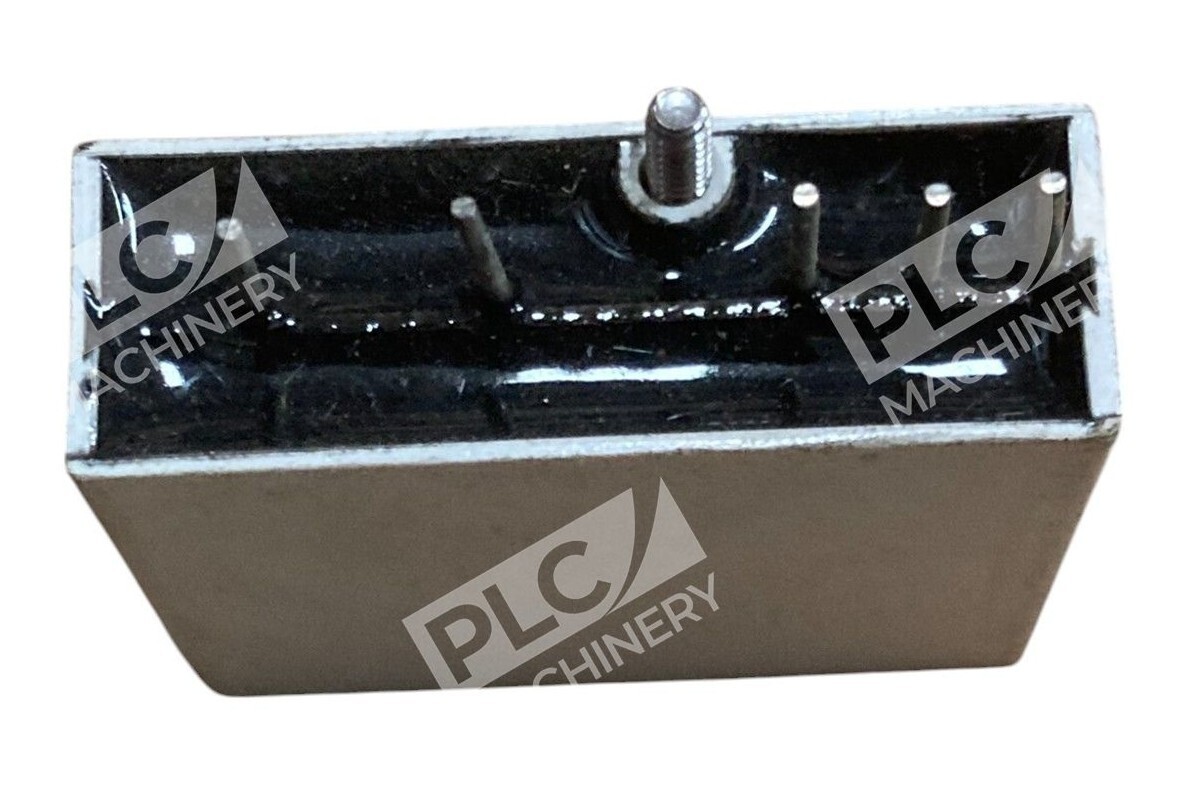

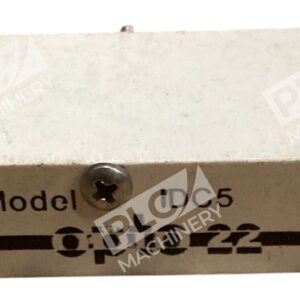

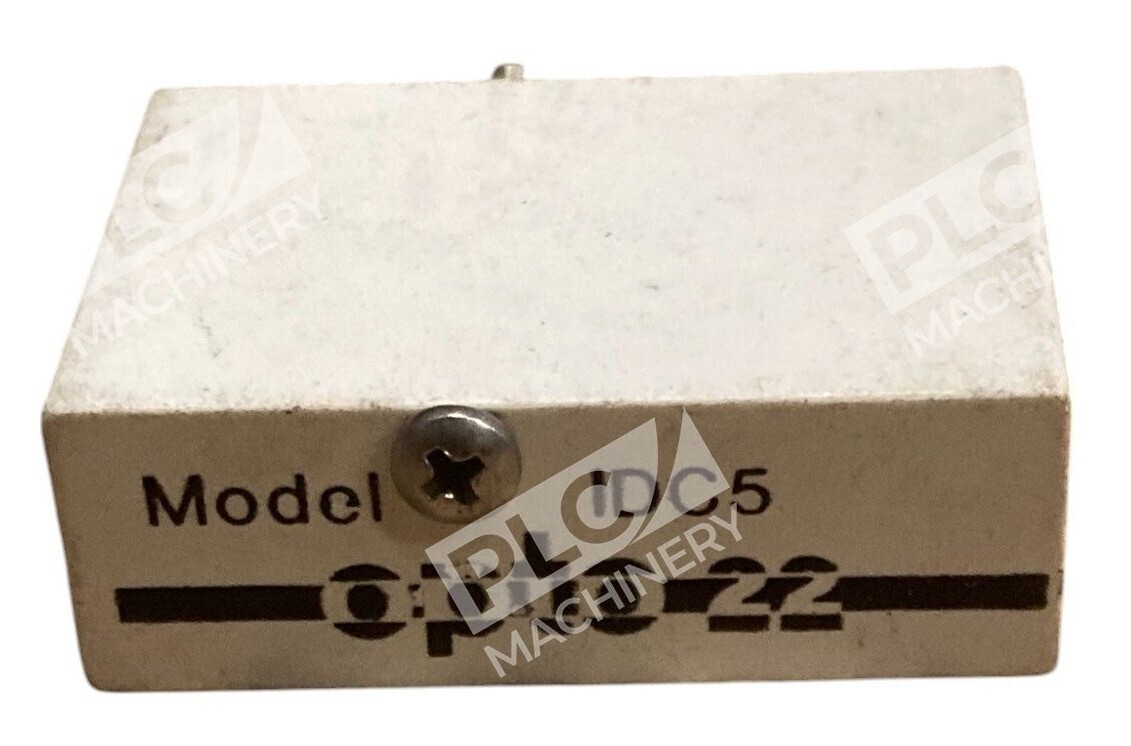

The Opto 22 IDC5 is a legacy G1 series digital input module built for reliable ON/OFF voltage sensing in industrial automation systems. The IDC5 can act as either a DC or AC input, accepting 10-32 VDC or 12-32 VAC. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the output side of the circuit. This module is widely used in legacy control systems, retrofit installations, and field-mounted remote I/O racks.
Key Features
- Bridge-rectifier input design for flexible AC/DC voltage sensing
- 4000V transient optical isolation protects sensitive control electronics
- 50 mA maximum output current for robust signal conditioning
- Red-black-yellow-white color-coding scheme for quick terminal identification
- Thru-hole construction for plug-in rack mounting
- Industry-standard form factor compatible with legacy Opto 22 G1 systems
Technical Specifications
The IDC5 operates over a wide input voltage range with fast switching response:
- Input Voltage (DC): 10–32 VDC
- Input Voltage (AC): 12–32 VAC
- Input Current @ Max Line: 25 mA
- Turn-On Time: 5 ms
- Turn-Off Time: 5 ms
- Output Voltage: 5 VDC Logic
- Output Current: 50 mA (maximum)
- Output Leakage (No Input): 0.1 mA @ 30 VDC
- Optical Isolation: 4000 V transient (1 ms)
- Operating Ambient Temperature: −30 to +70 °C
- Supply Current: 12 mA @ nominal logic voltage
- Input Resistance: 1.5 kΩ
Typical Applications
Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as: Proximity, limit, selector, photoelectric, toggle, and float switches, push buttons, thermostats, or TTL-compatible devices. The IDC5 is commonly deployed in machine control, HVAC systems, process monitoring, and safety interlocks where isolated input sensing is required.
Compatibility & Replacements
Compatible With
- Opto 22 G1 I/O racks and enclosures
- Opto 22 G1 controllers and I/O processors
- Industry-standard PLC systems requiring isolated discrete inputs
- Field-mounted remote I/O installations
- Legacy automation control cabinets
Replaces / Drop-In Replacement For
The IDC5 is a legacy product that may be replaced by or upgraded to the modern SNAP-IDC5 module in newer SNAP PAC System installations. For direct replacement of surplus or end-of-life units, consult the Opto 22 product selector or verify compatibility with your system integrator before ordering.
Works With
- Opto 22 G1 plug-in racks and rail-mount enclosures
- PAC Project™ software (legacy automation programming)
- Standard 24 VDC industrial control wiring and field devices
- Optical isolation safeguards against high-voltage transients and EMI
