Overview

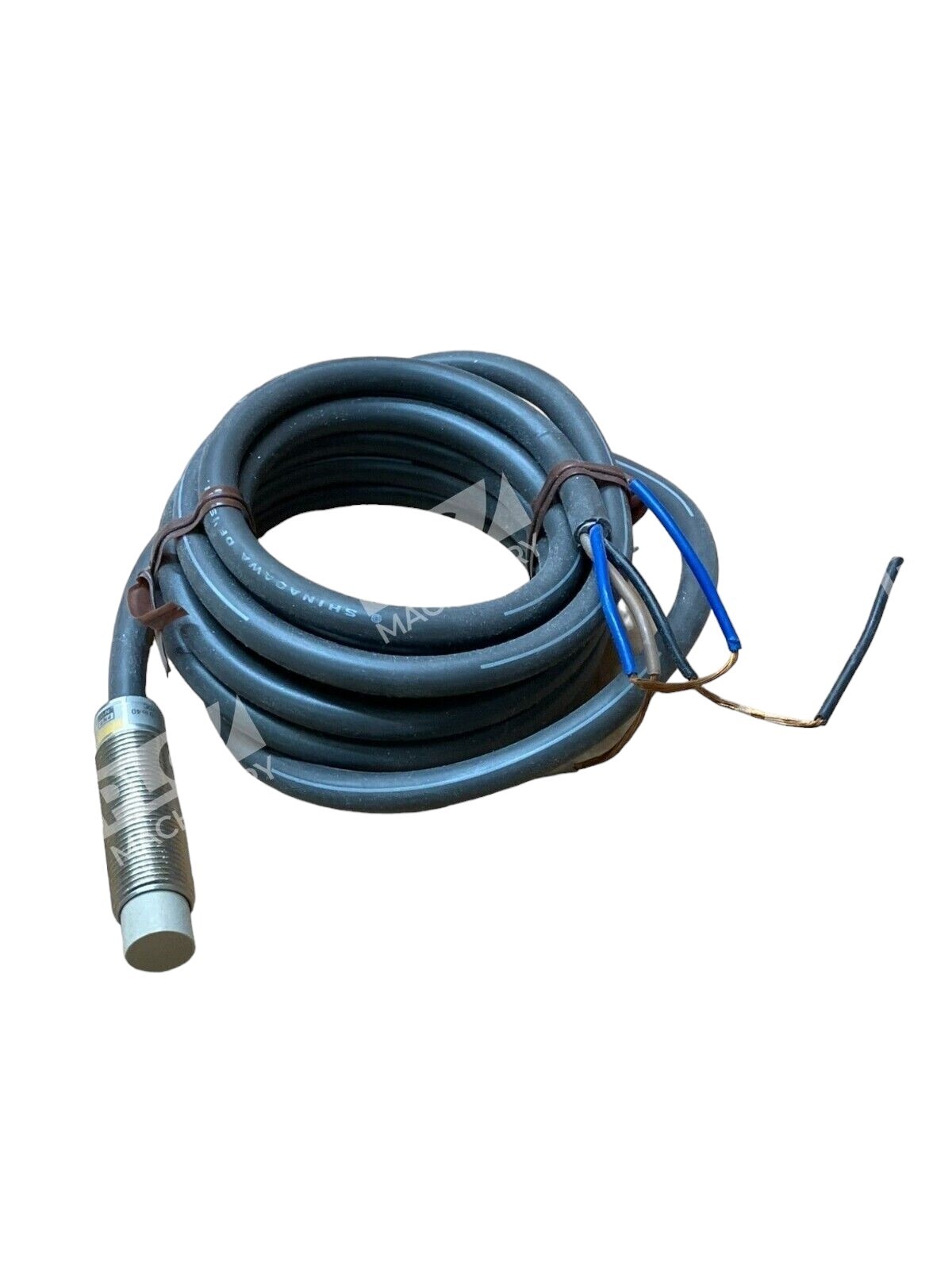

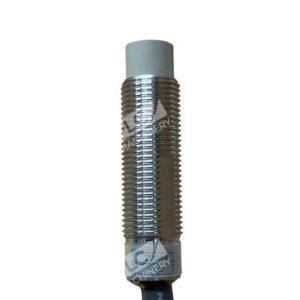

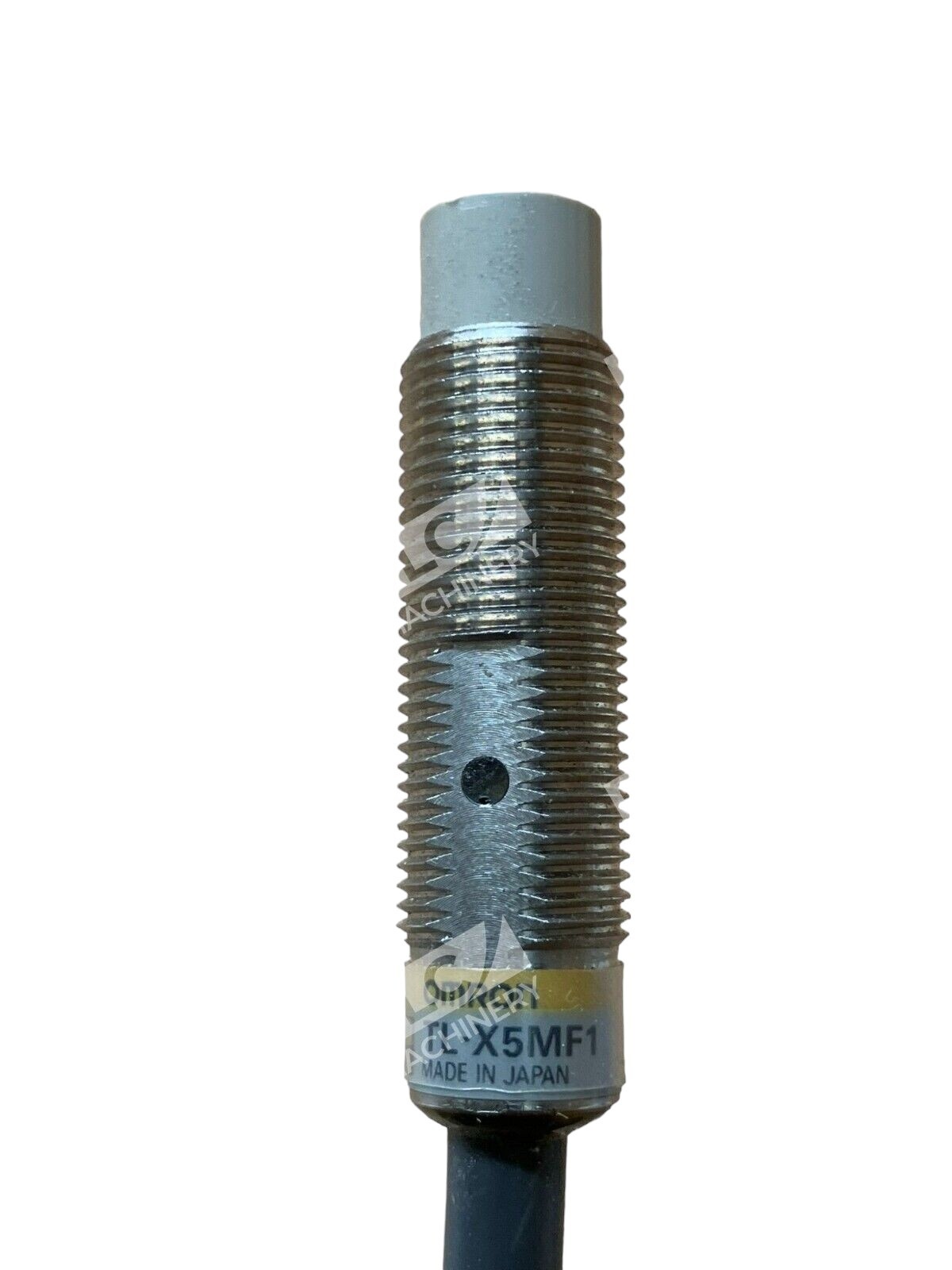

The Omron TL-X5MF1 is a compact inductive proximity sensor designed for reliable metal object detection in industrial automation. Operating across a 12-24VDC supply range, this unshielded proximity switch delivers precise 5mm sensing distance, making it suitable for conveyor systems, position sensing, and automated production environments. The 2-meter cable length and rugged construction enable flexible installation in demanding industrial settings.
Key Features
- 5mm sensing distance for accurate metal detection
- 12-24VDC operating voltage range for broad electrical compatibility
- 2-meter pre-equipped cable for flexible deployment
- Unshielded inductive design for general-purpose industrial use
- Robust construction for reliable performance in harsh environments
- NO (Normally Open) output configuration for standard control logic
Technical Specifications
- Sensing Distance: 5mm
- Supply Voltage: 12-24VDC (10-30VDC range)
- Output Type: NO (Normally Open), DC 3-wire

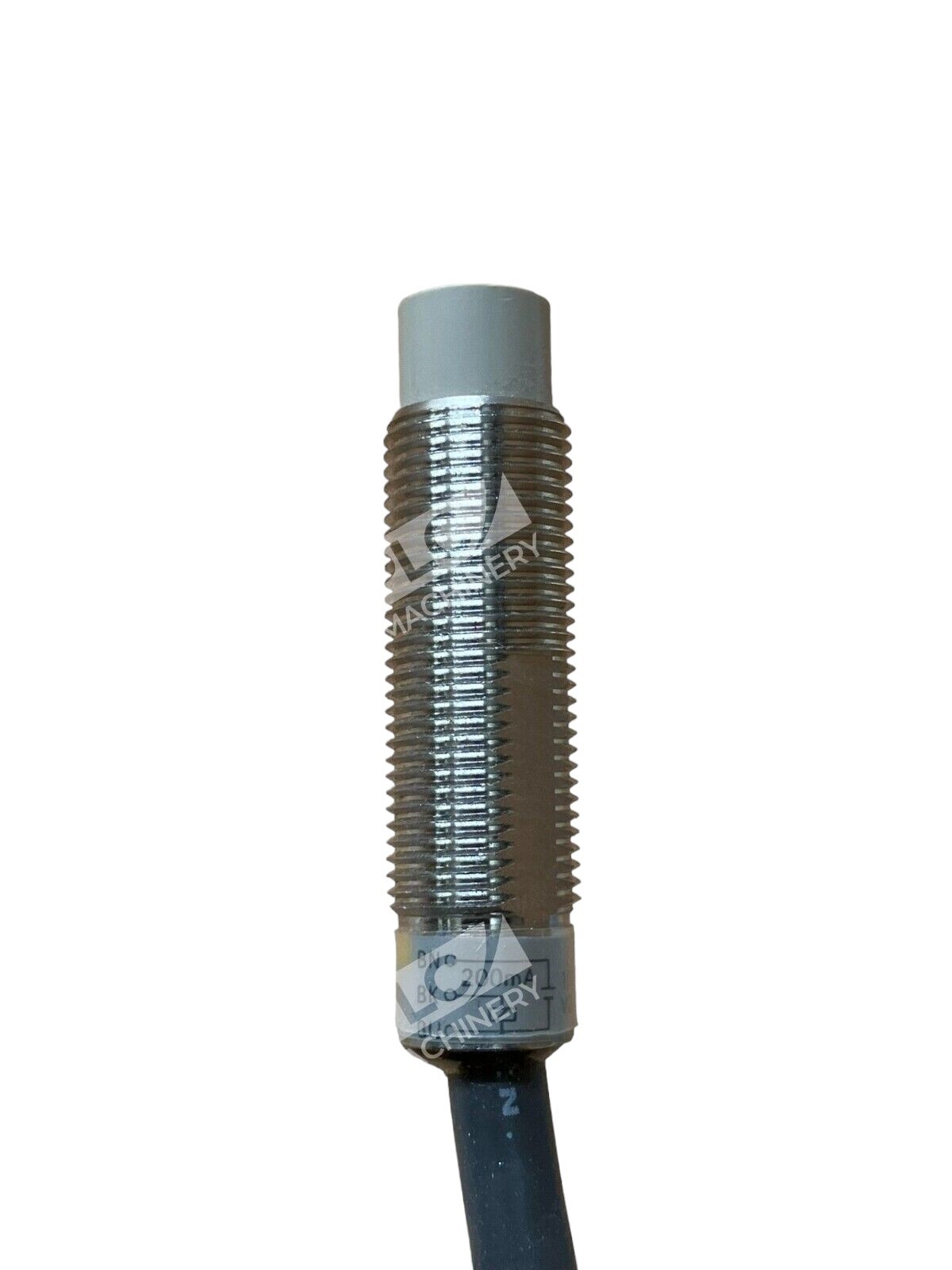

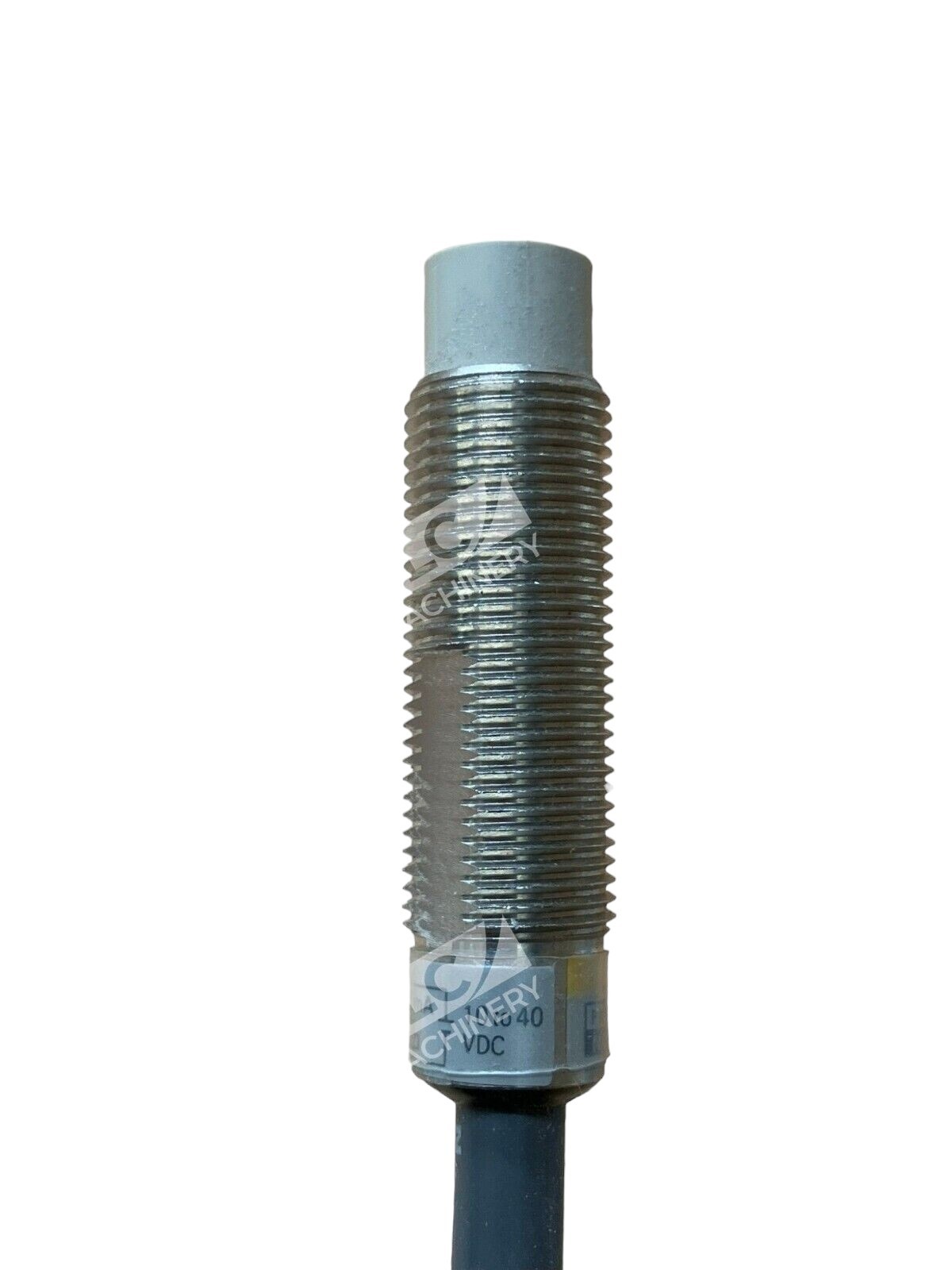

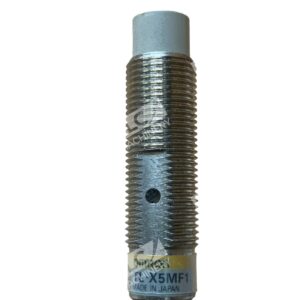

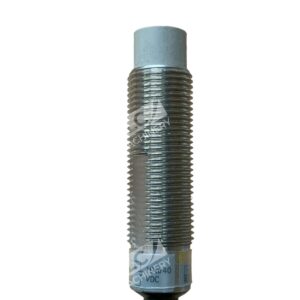

- Housing Diameter: 12mm (M12 cylindrical)

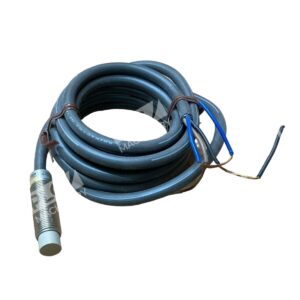

- Cable Length: 2 meters
- Protection Class: IP67
- Maximum Switching Frequency: 400 Hz
- Degree of Protection: Unshielded, non-embeddable
- Protection Features: Output reverse polarity protection, surge suppressor, load short-circuit protection
Typical Applications
- Conveyor system position detection and control
- Automated production line monitoring
- Metal object and proximity sensing
- Position feedback for mechanical systems
- Industrial automation and motion control systems
Compatibility & Replacements
Compatible With
- Standard industrial 12-24VDC control systems
- PLC input modules and relay logic circuits
- AC/DC drive control systems
- Conveyor and material handling automation
- Position sensing and limit switch applications
Replaces / Drop-In Replacement For
- Omron E2E-X5MF1 (same sensing characteristics)
- Verify compatibility with your system integrator before ordering
Works With
- PLC digital input modules (Rockwell, Siemens, Mitsubishi, Omron)
- Safety relays and control logic systems
- Industrial Ethernet gateways with analog/digital conversion
- Discrete signal input terminals on inverters and AC drives
