Overview

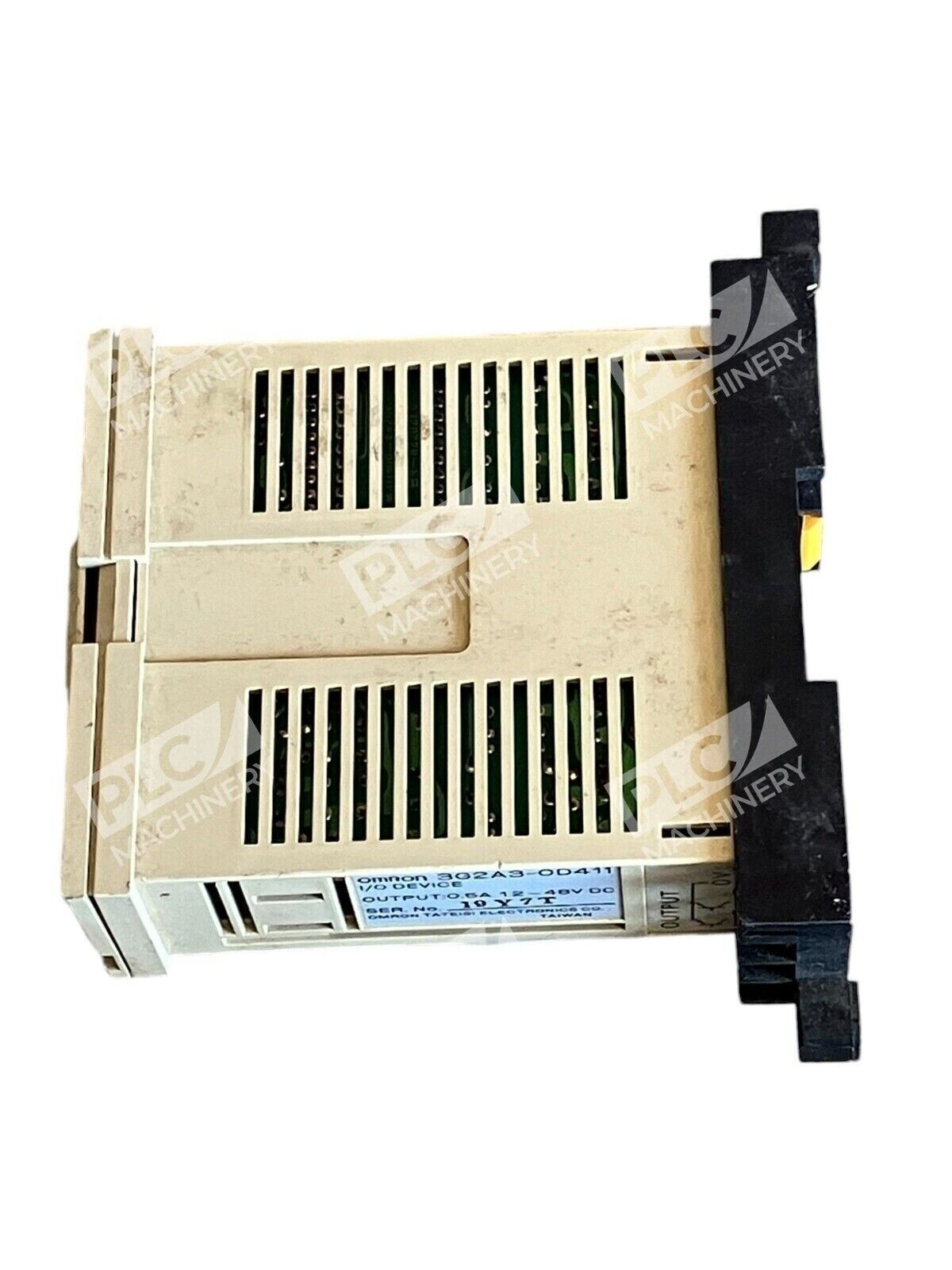

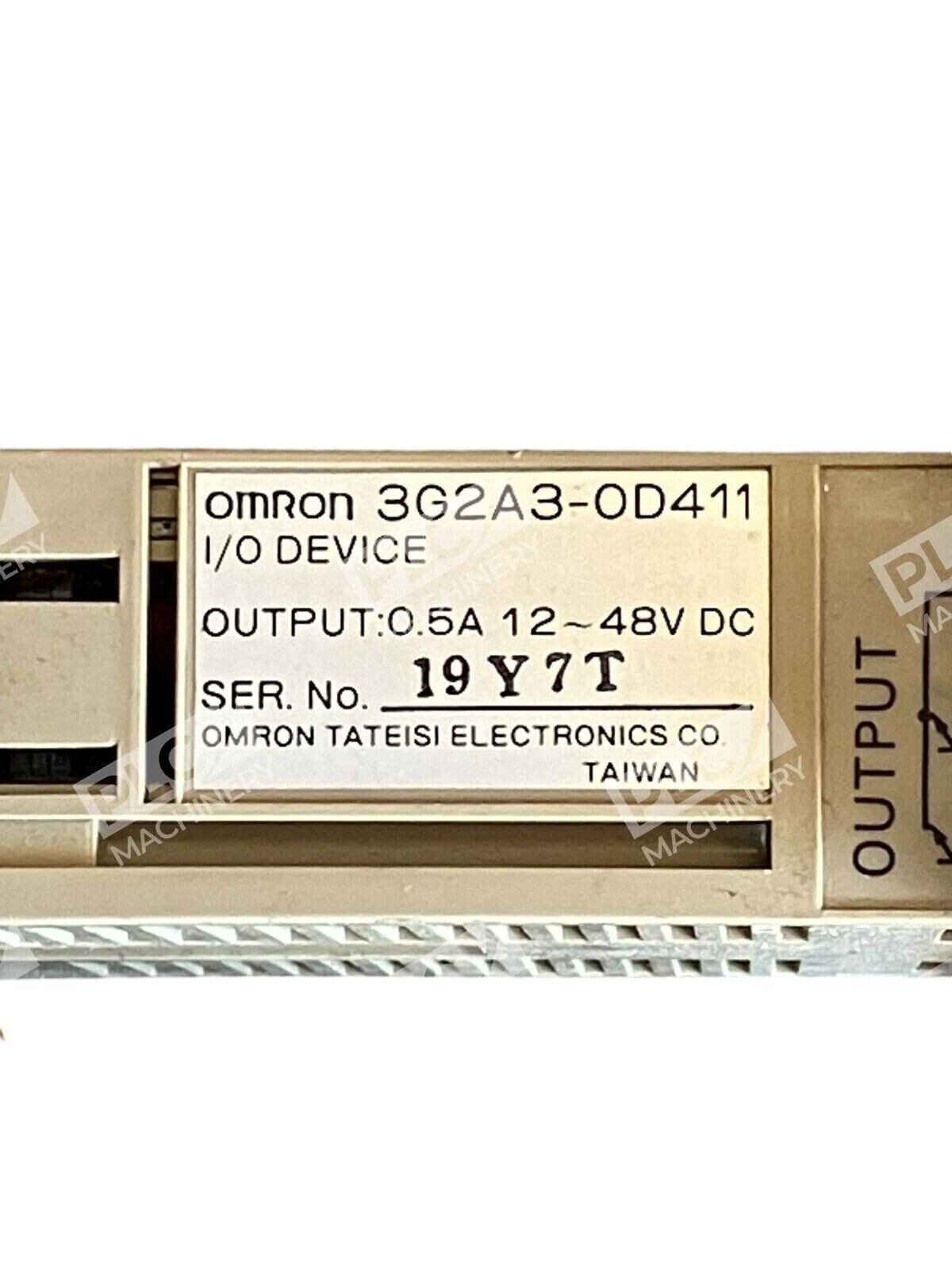

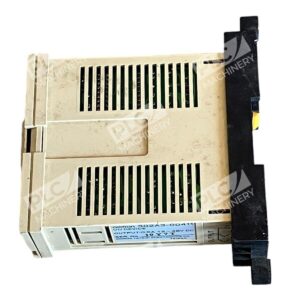

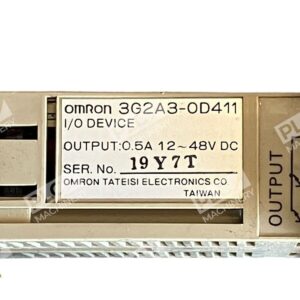

The Omron 3G2A3-OD411 is a discrete relay output expansion module for Omron SYSMAC PLC systems. This 8-point output module provides reliable DC switching control in industrial automation applications where digital outputs must drive relays or low-power DC loads. With input voltage ranging from 12 to 48VDC and a 0.5A per-point current rating, the 3G2A3-OD411 delivers steady-state output control for motion control, solenoid activation, lamp indication, and alarm circuits. Though discontinued by the manufacturer, surplus units remain in high demand for system maintenance and expansion on legacy SYSMAC installations.
Key Features
- 8 discrete relay output points for robust DC load switching
- 0.5A per point rated current capacity
- Wide supply voltage range: 12 to 48VDC
- Compact module design for space-constrained control cabinets
- Field-proven reliability in legacy SYSMAC systems
- Drop-in replacement for existing SYSMAC I/O configurations
Technical Specifications
- Module Type: Output (OD411)
- Output Points: 8
- Output Type: Relay
- Rated Current per Point: 0.5A
- Supply Voltage: 12–48VDC
- Weight: 0.278 kg (0.613 lb)
- Operating Temperature: 0–55°C ambient
- Manufacturer Status: Discontinued
- Manufacturer: Omron (Tateisi Electronics)
Typical Applications
- Discrete solenoid and motor starter control in SYSMAC-based systems
- Lamp and indicator circuit actuation
- Machine tool positioning and clamping logic
- Material handling and conveyor relay outputs
- Process alarm and shutdown circuit expansion
- Legacy automation system upgrades and repairs
Compatibility & Replacements
Compatible With
- Omron SYSMAC S3/S6/S7 PLC controllers
- SYSMAC C-series programmable controllers
- Omron relay output I/O expansion racks
Replaces / Drop-In Replacement For
- Original OEM Omron 3G2A3-OD411 units in SYSMAC installations
- Verify exact compatibility with your system integrator before ordering, as module slot and firmware configuration must match original specifications.
Works With
- SYSMAC programming environments (SYSWIN, CX-Programmer)
- Omron relay output expansion modules and I/O racks
- 12–48VDC industrial control systems
