Overview

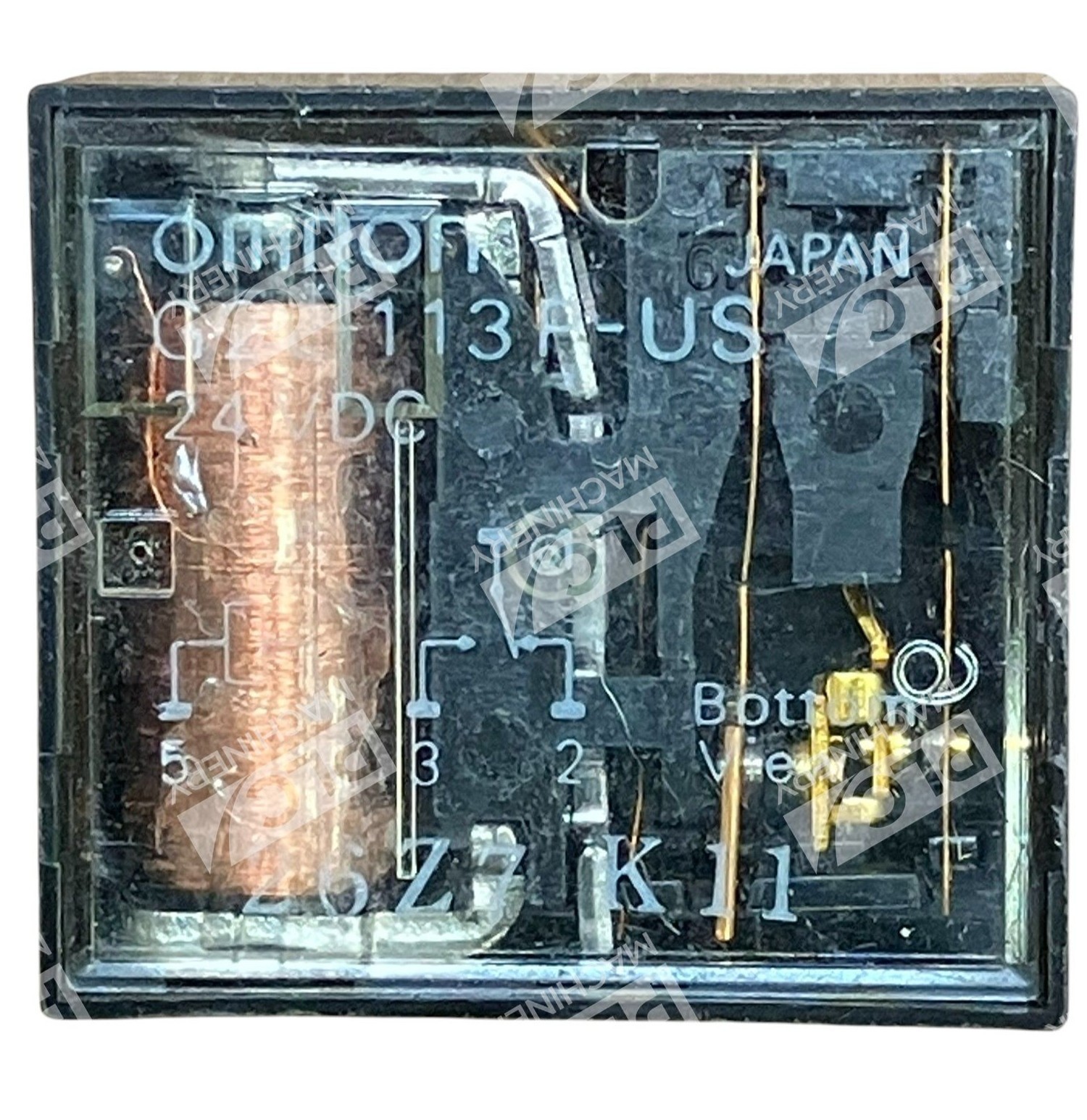

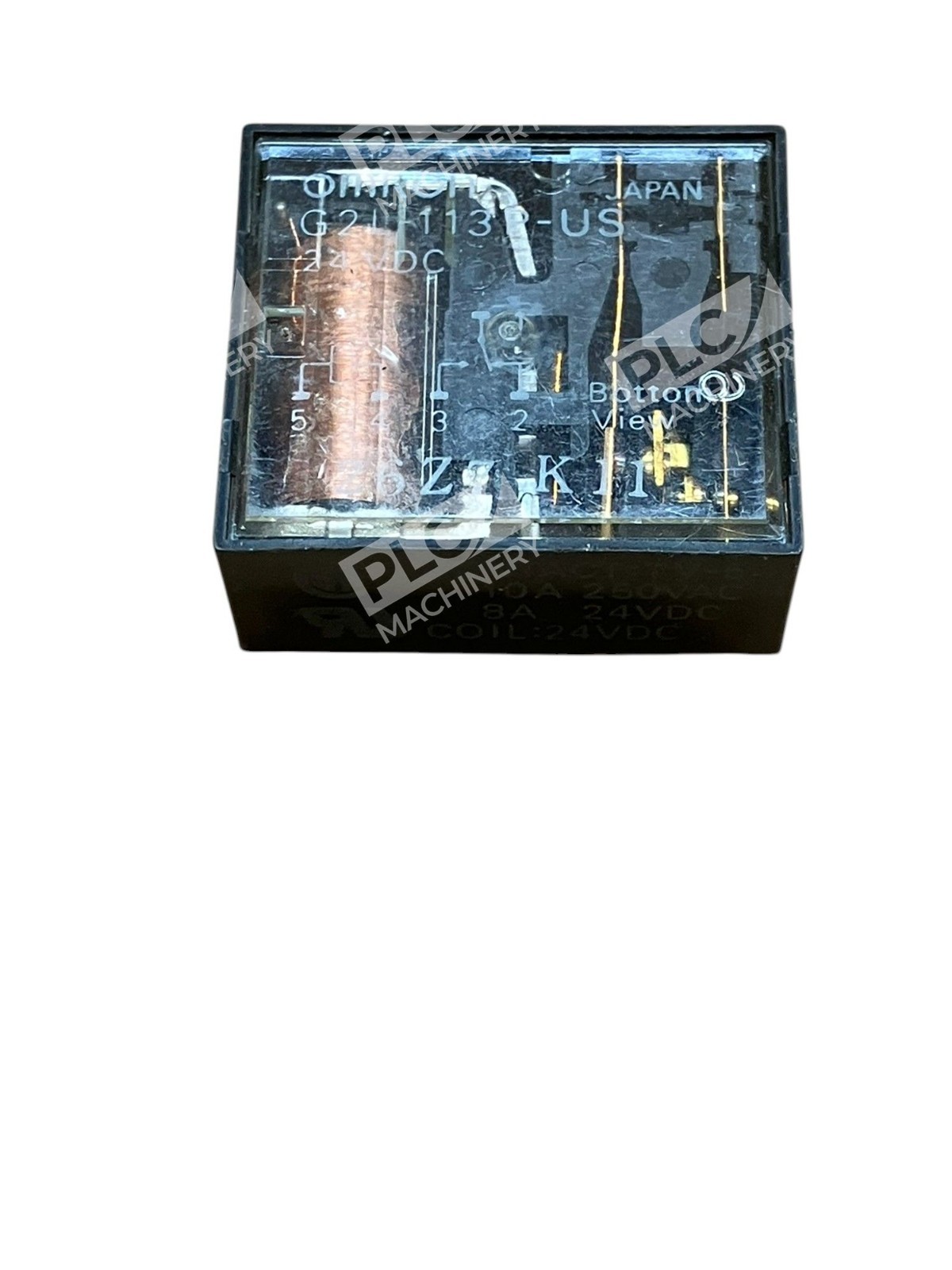

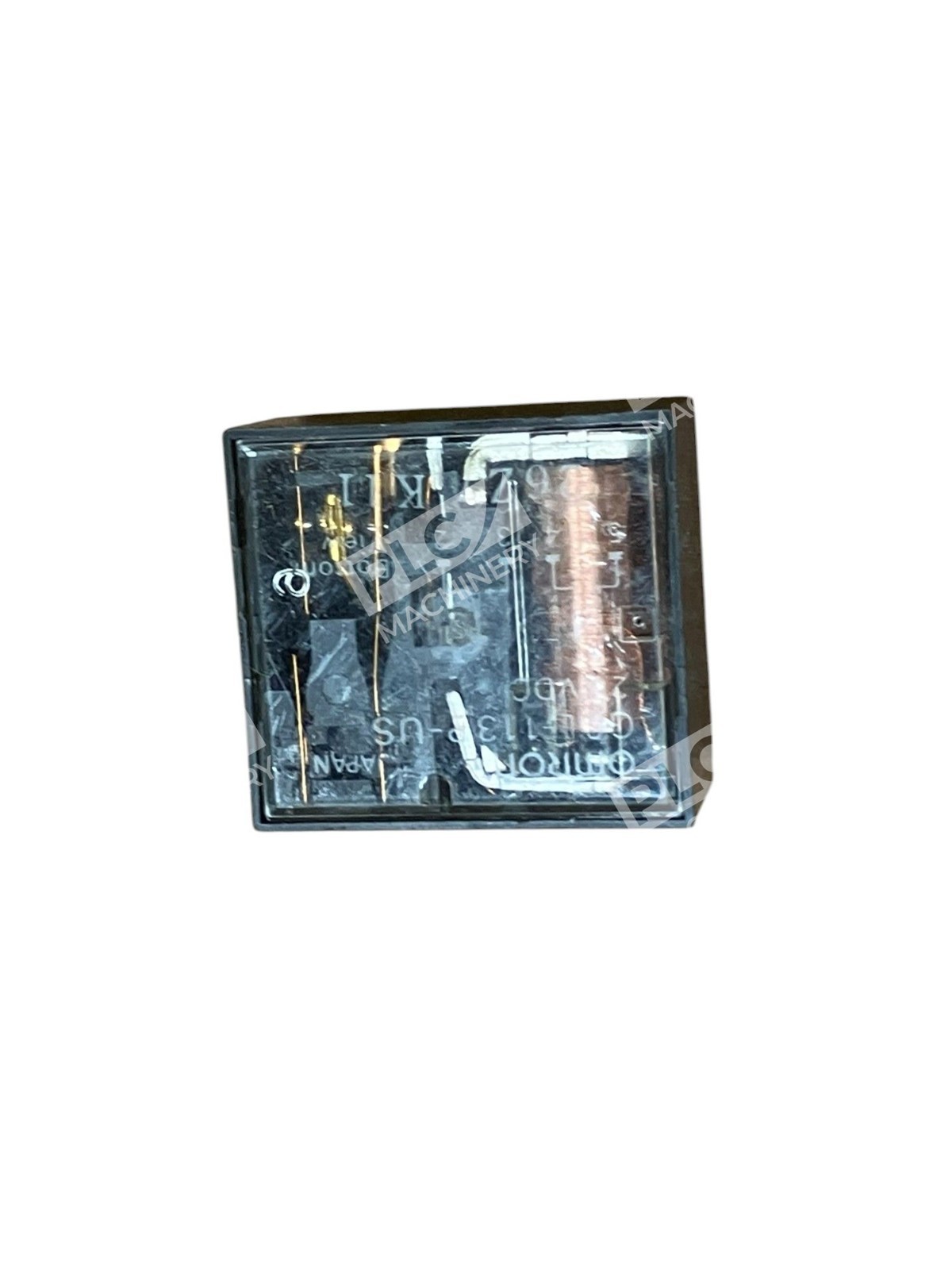

The Omron G2L-113P-US 24VDC relay is a miniature printed circuit relay designed for general-purpose switching applications in industrial control and automation systems. This lot contains two new, open-box units rated for 24VDC coil operation, delivering reliable contact switching across standard control voltages and loads.
Key Features
- Miniature printed relay with high breaking capacity

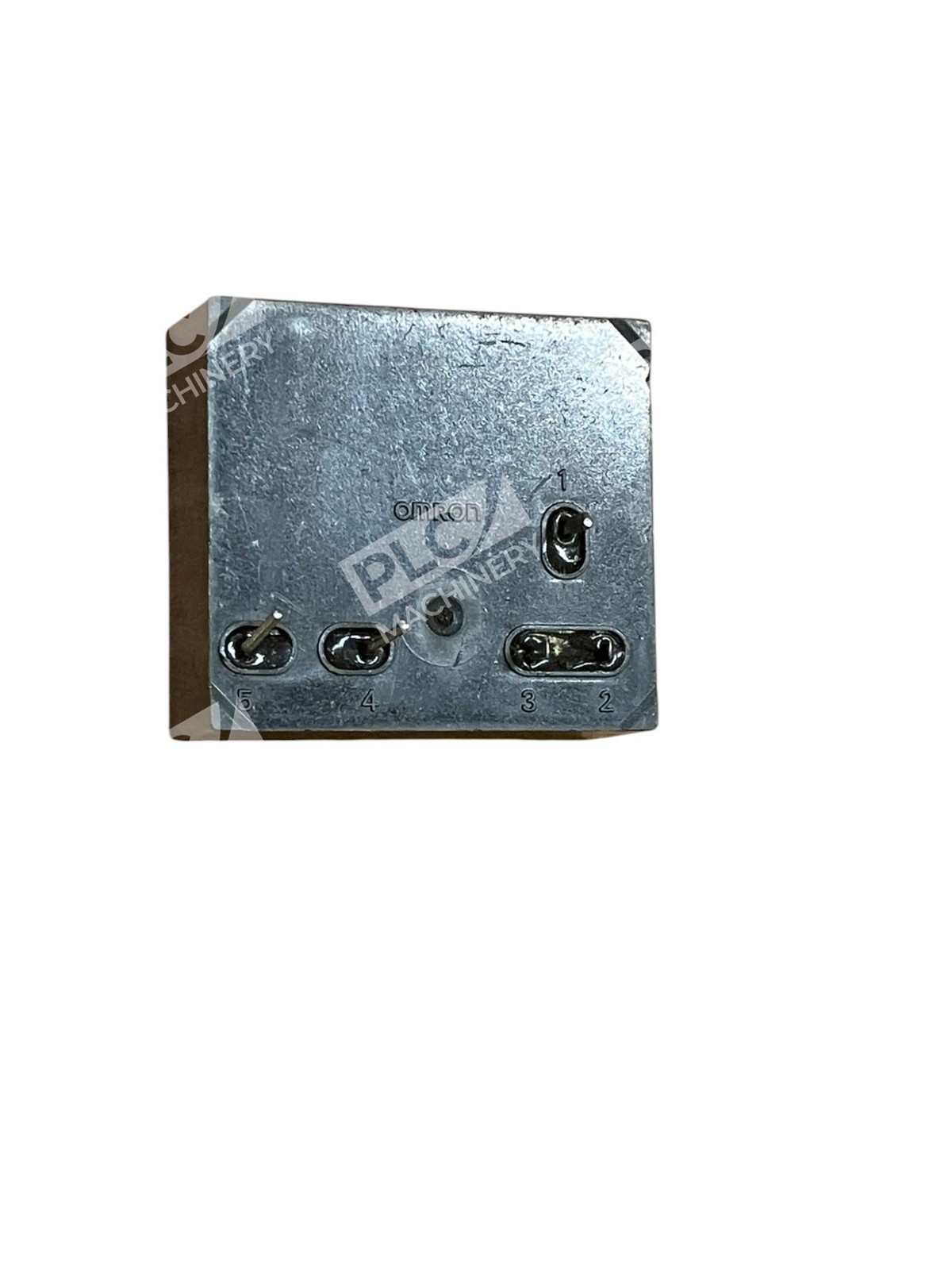

- 5-pin through-hole configuration for standard PCB mounting
- 24VDC coil voltage for direct compatibility with industrial DC control circuits
- Contact rating: 8A at 24VDC / 10A at 250VAC
- Compact form factor ideal for space-constrained panel and embedded applications
Technical Specifications
- Coil Voltage: 24VDC
- Coil Power: Typical nominal consumption
- Contact Configuration: 5-pin through-hole
- Contact Rating (DC): 8A at 24VDC
- Contact Rating (AC): 10A at 250VAC
- Breaking Capacity: High
- Package Type: Miniature printed relay
- Operating Temperature Range: -40°C to 105°C
- Mounting Style: PCB through-hole
- Quantity: Lot of 2 units
- Condition: New, open box
Typical Applications
- Industrial automation control systems and PLCs
- Motor starters and solenoid control circuits
- General-purpose switching in power distribution panels
- Logic control and signal relay applications
- HVAC and facility automation circuits
- Emergency stop and interlock safety circuits
Compatibility & Replacements
Compatible With
- Industrial control circuits rated for 24VDC coil operation
- Standard PCB relay sockets (5-pin DIP/through-hole)
- Automated assembly equipment using relay modules
- AC and DC load switching applications within rated specifications
Replaces / Drop-In Replacement For
The G2L-113P-US may serve as a replacement for legacy Omron G2L-series general-purpose relays with matching 5-pin configurations and 24VDC coil specifications. Verify specific contact load ratings and switching requirements with your system integrator before ordering to ensure compatibility.
Works With
- Relay logic controllers and hardwired control systems
- PLC discrete I/O modules and expansion cards
- Standard PCB-mounted relay bases and sockets
- Industrial DC power supplies (24VDC standard)
