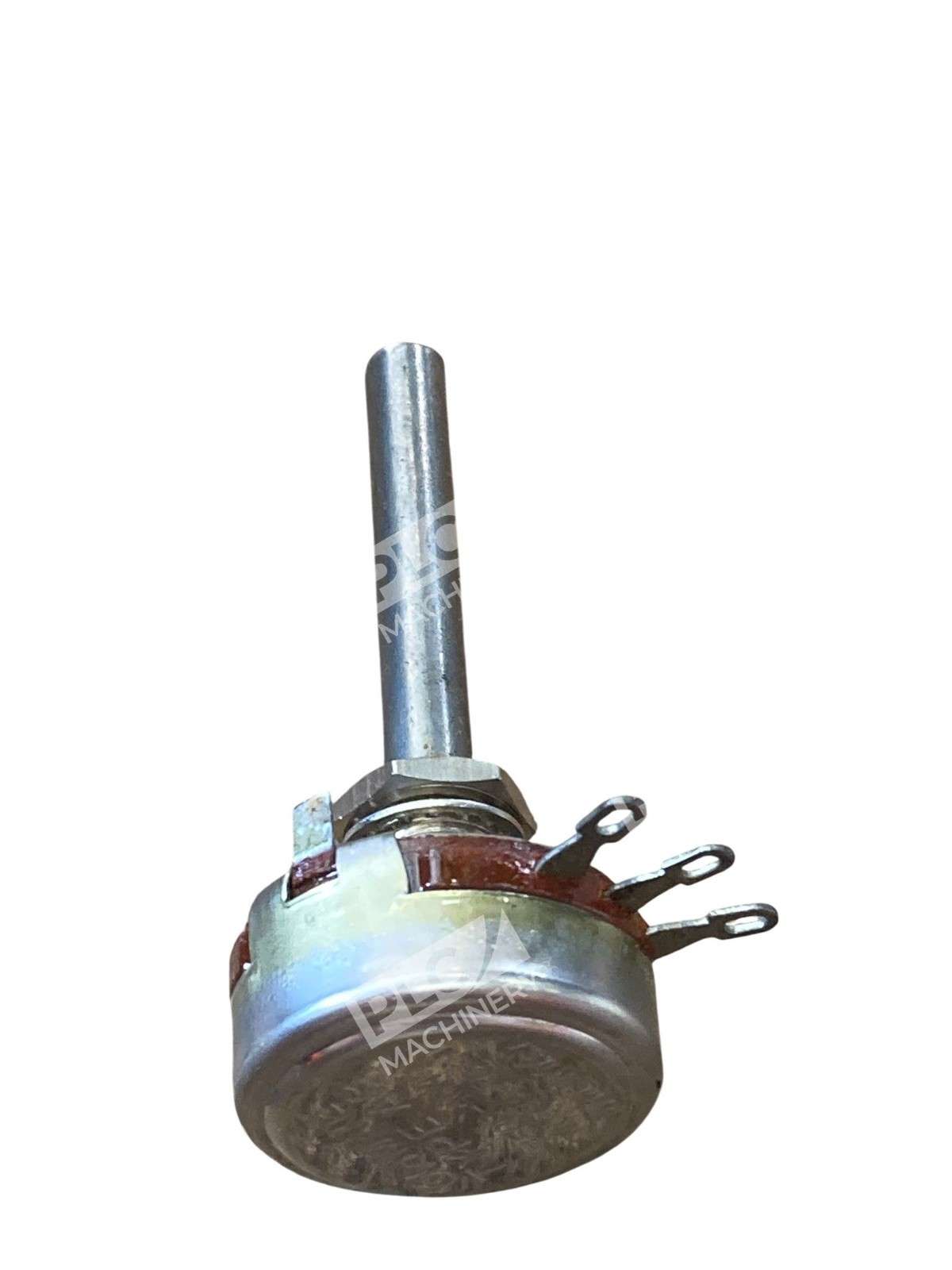

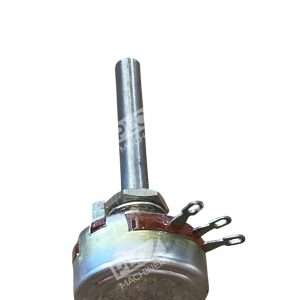

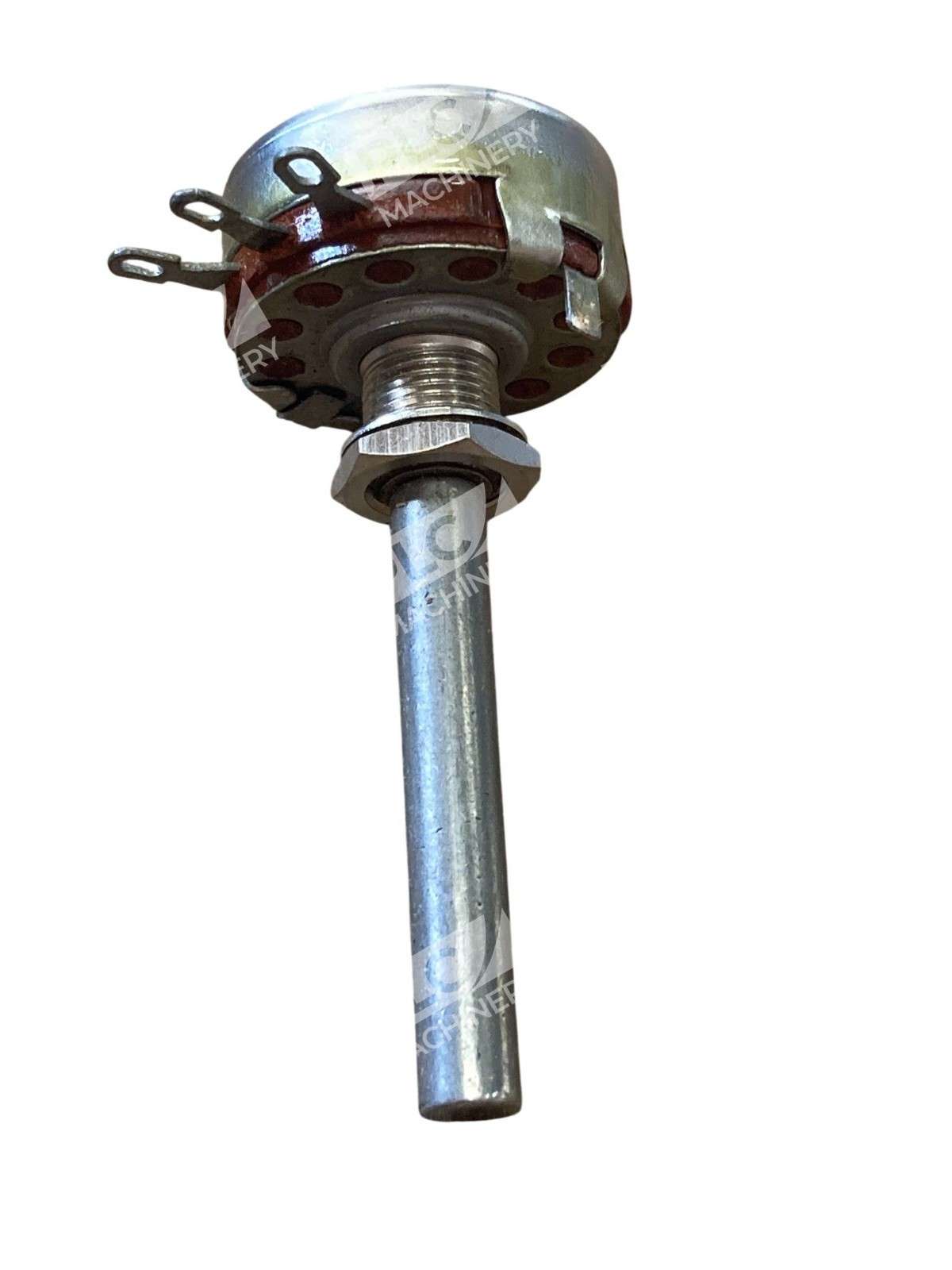

Ohmite Type AB CU-7521 Potentiometer 7.5K Ohm 2W U-Linear Wirewound Panel Mount
The Ohmite Type AB CU-7521 is a high-quality potentiometer designed for precise resistance control in various electronic applications. With a resistance of 7.5K Ohms and a power rating of 2 watts, this potentiometer offers reliable performance and durability.
Key Features
- Resistance: 7.5K Ohms
- Power Rating: 2 Watts
- Tolerance: ±10%
- Technology: Molded Composition
- Mounting Type: Panel Mount
- Rotation: 312° ±3%
- Voltage Rating: 500V
- Taper: Linear
- Termination Style: Solder Lug
Design and Dimensions
The CU-7521 features a robust design with a round shaft measuring 0.25 inches (6.35mm) in diameter and a length of 2 inches (50.8mm). The bushing thread is 0.375-32, ensuring secure panel mounting. The potentiometer’s body has a diameter of 1.16 inches (29.4mm) and extends 0.625 inches (15.9mm) behind the panel, making it suitable for various enclosure sizes.
Applications
This potentiometer is ideal for applications requiring precise resistance adjustments, such as in audio equipment, instrumentation, and industrial controls. Its linear taper ensures consistent performance across the entire adjustment range.
For detailed technical specifications, please refer to the manufacturer’s datasheet.
