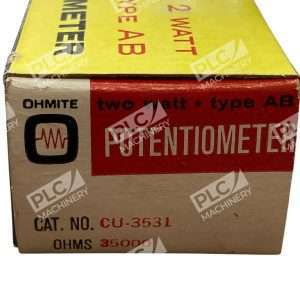

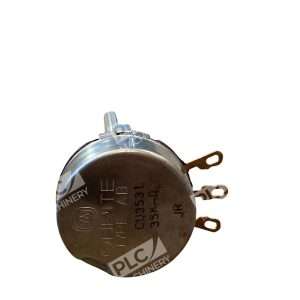

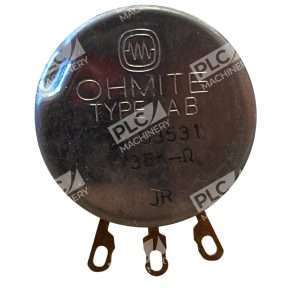

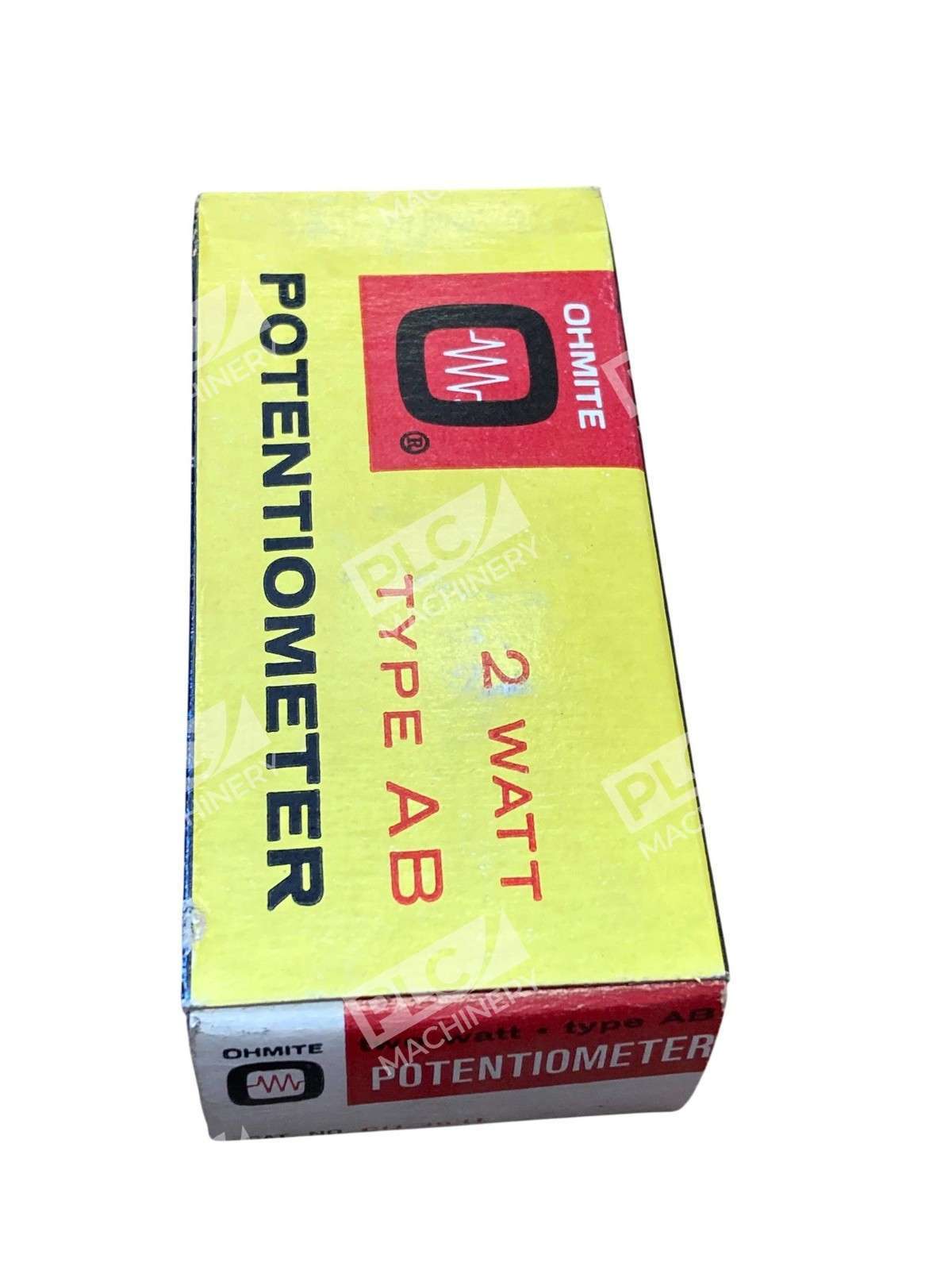

Ohmite CU-3531 Type AB 3.5k Ohms 2W Potentiometer
The Ohmite CU-3531 Type AB potentiometer is a high-quality, 2-watt carbon composition variable resistor designed for precise control in electronic circuits. With a resistance value of 3.5k ohms and a linear taper, it offers smooth and accurate adjustments suitable for various applications.
Key Features
- Power Rating: 2 watts, ensuring reliable performance in demanding environments.
- Resistance Value: 3.5k ohms, ideal for applications requiring moderate resistance levels.
- Taper: Linear, providing consistent and predictable resistance changes across the adjustment range.
- Construction: Molded carbon composition, offering durability and low noise operation.
- Mounting: Panel mount with a 3/8-32 bushing thread, facilitating secure installation.

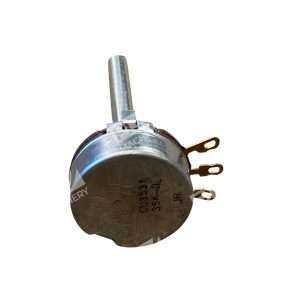

- Actuator: Round shaft with a diameter of 0.25 inches (6.35mm) and a length of 2 inches (50.8mm), suitable for various knob attachments.
- Rotation: 312 degrees, allowing for a wide range of adjustments.
- Termination Style: Solder lug terminals for reliable electrical connections.
- Operating Temperature Range: -55°C to +120°C, accommodating a broad spectrum of operating conditions.
Applications
The CU-3531 potentiometer is suitable for use in military devices, industrial equipment, and other applications requiring precise resistance control. Its robust construction and reliable performance make it a preferred choice for engineers and designers.
Dimensions
- Body Diameter: 1.16 inches (29.4mm)
- Body Depth Behind Panel: 0.625 inches (15.9mm)
For detailed technical specifications and installation guidelines, please refer to the product datasheet.
