Overview

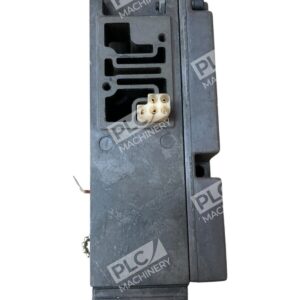

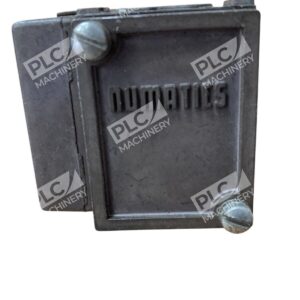

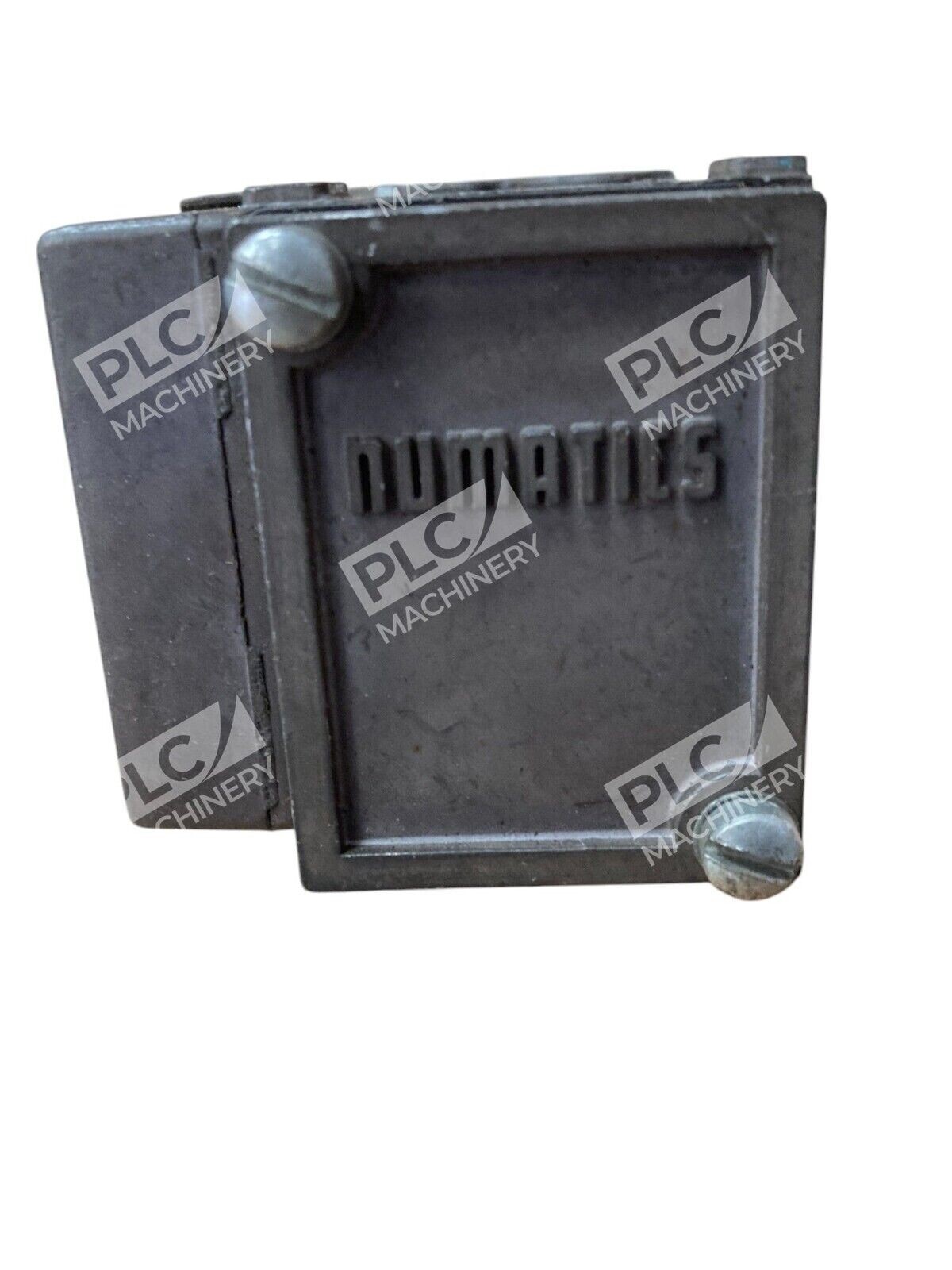

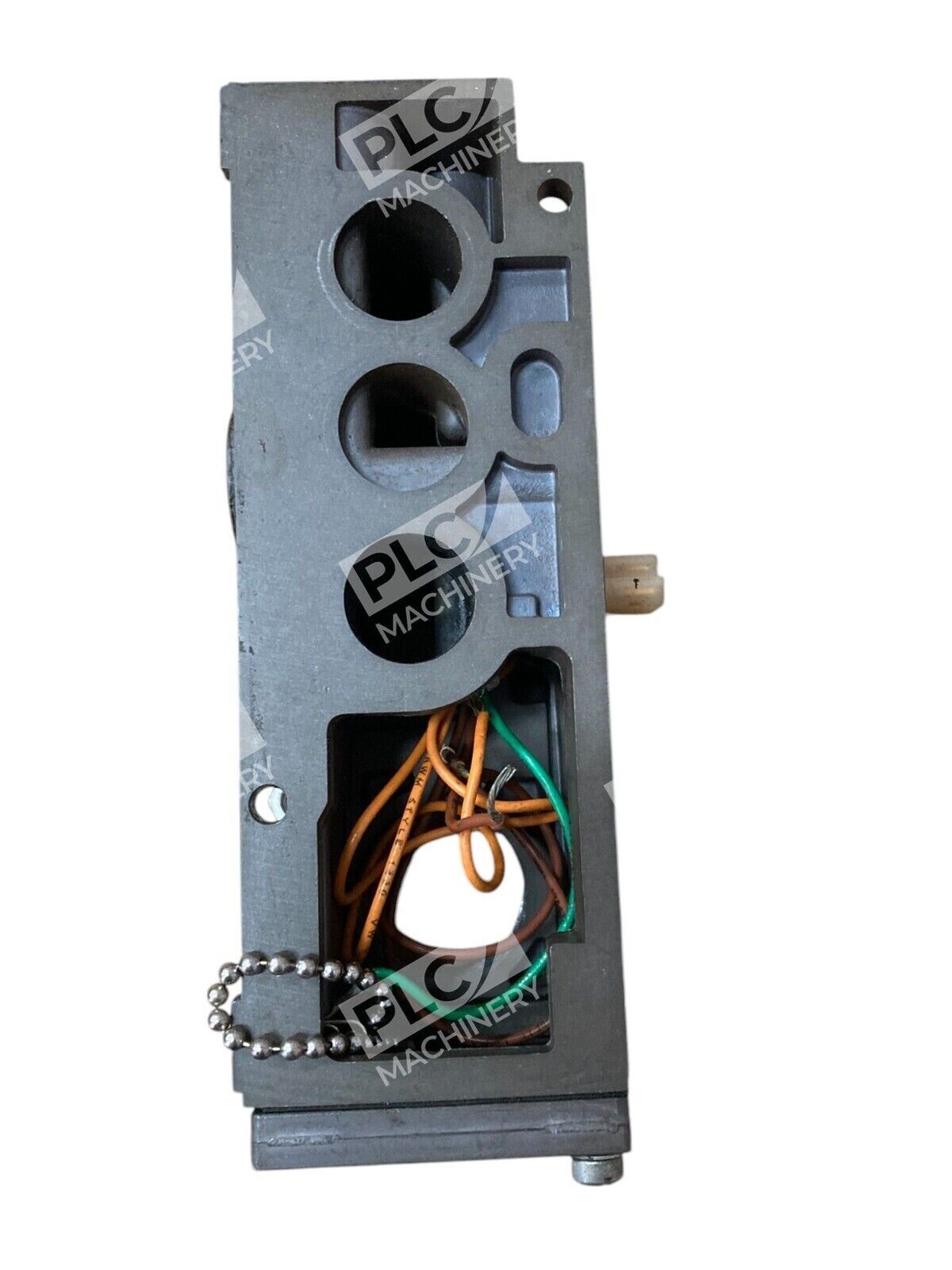

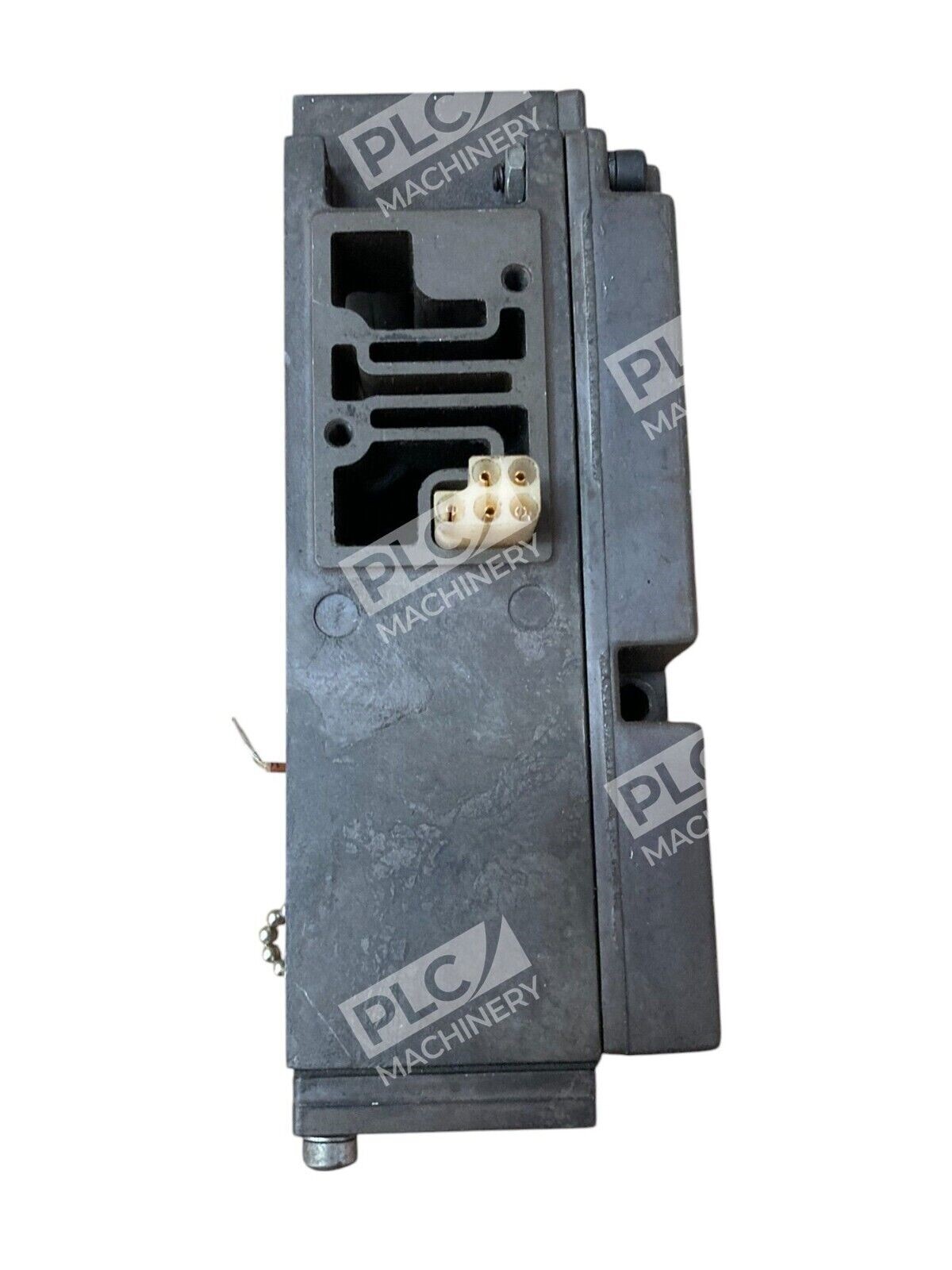

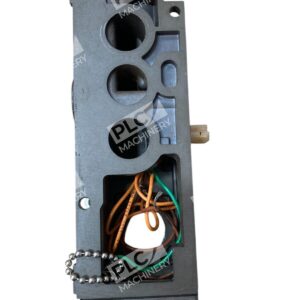

The Automatic Valve B6882 is a pneumatic valve plate designed for manifold-based pneumatic systems. The EA-P-EB variant is a proven component for directing and controlling compressed air flow in industrial automation, manufacturing, and process control applications. This valve plate integrates seamlessly into existing manifold blocks and provides direct-acting flow control without external pilot complexity.
Key Features
- Direct-acting pneumatic valve plate for compact manifold integration
- Black finish for corrosion resistance in standard shop environments
- Compact form factor: 5.25″ × 2.25″ mounting surface
- Suitable for compressed air and inert gas applications
- Drop-in compatibility with matching Automatic Valve manifold blocks
- Minimal leakage path design for efficient system operation
Technical Specifications
- Manufacturer: Automatic Valve
- Model: B6882

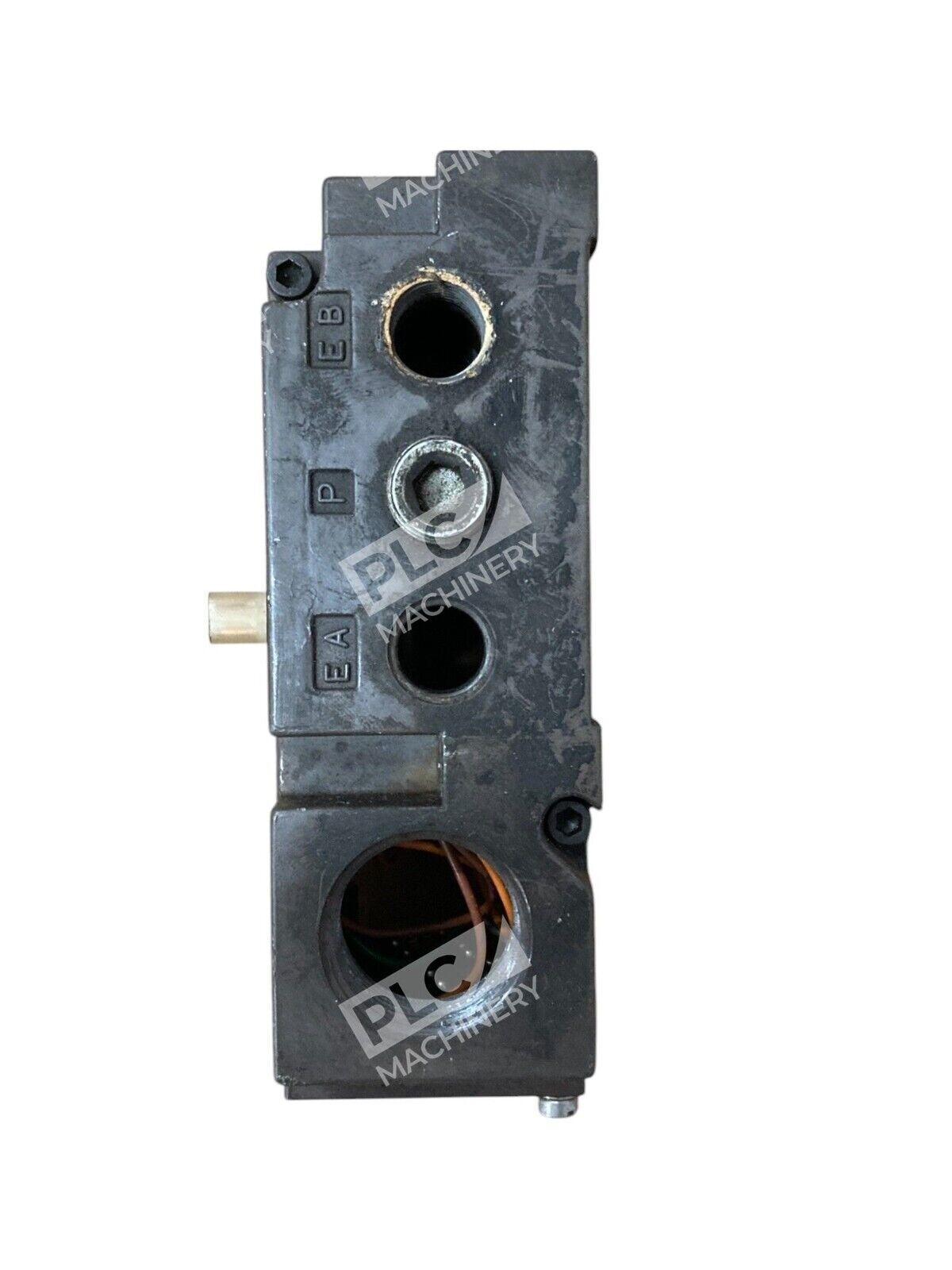

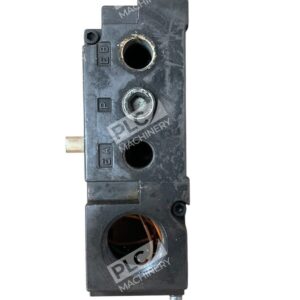

- Variant: EA-P-EB (Black)
- Mounting Dimensions: 5.25″ × 2.25″
- Connection Type: Pneumatic (compressed air)
- Material: Cast ductile iron body with black finish
- Valve Type: Direct-acting spool valve plate
- Medium: Compressed air, inert gases
- Typical Operating Pressure: 0–100 PSI (standard pneumatic range)
Typical Applications
- Pneumatic automation and material handling systems
- Manufacturing process control and directional control
- Assembly line pneumatic circuits
- Air-powered actuator control (cylinders, motors)
- OEM equipment replacement components
- Refurbishment and retrofit of legacy pneumatic systems
Compatibility & Replacements
Compatible With
- Automatic Valve pneumatic manifold blocks
- Standard pneumatic circuits (0–100 PSI)
- ISO 1219 and ANSI valve mounting standards
- Compressed air systems with filtration (ISO cleanliness ≥18/16/13)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Original valve plate part number: B6882 EA-P-EB.
Works With
- Pneumatic solenoid valve coils (24 VDC standard)
- Manual pilot actuation
- Air pilot control (pneumatic actuation)
- Automated pneumatic manifold systems
- PLC-controlled directional control circuits
