Numatics ASCO 5-120VDC/VAC 10W 500mA LR91470 Reed Switch SR6-014

Numatics ASCO 5-120VDC/VAC 10W 500mA LR91470 Reed Switch SR6-014

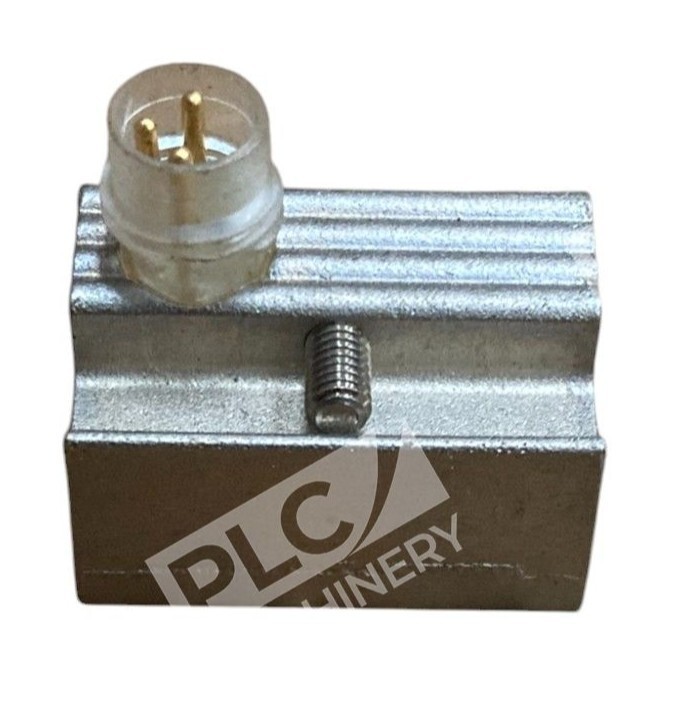

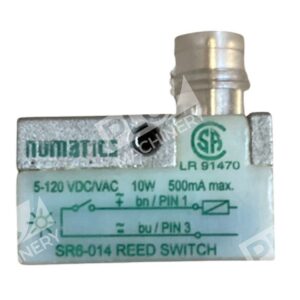

The Numatics ASCO SR6-014 Reed Switch is a reliable and efficient solution for position sensing in pneumatic applications. Designed to operate within a voltage range of 5 to 120 VDC/VAC, this switch ensures versatility across various industrial environments.

Key Features

• Operating Voltage: 5-120 VDC/VAC
• Power Rating: 10 Watts
• Current Rating: 500 mA
• Output Configuration: Normally Open (NO)
• Design: Reed switch technology for precise position sensing

Applications

Ideal for integration with pneumatic cylinders and actuators, the SR6-014 Reed Switch provides accurate position feedback, enhancing system automation and control.

Installation and Compatibility

Featuring a user-friendly design, the SR6-014 is compatible with a wide range of Numatics pneumatic components, ensuring seamless integration into existing systems.

For detailed specifications and installation guidelines, please refer to the manufacturer’s documentation.
