<h2>Overview</h2>

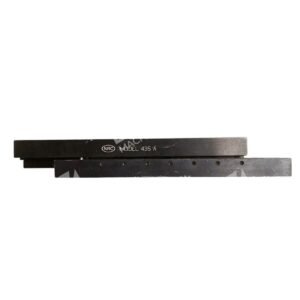

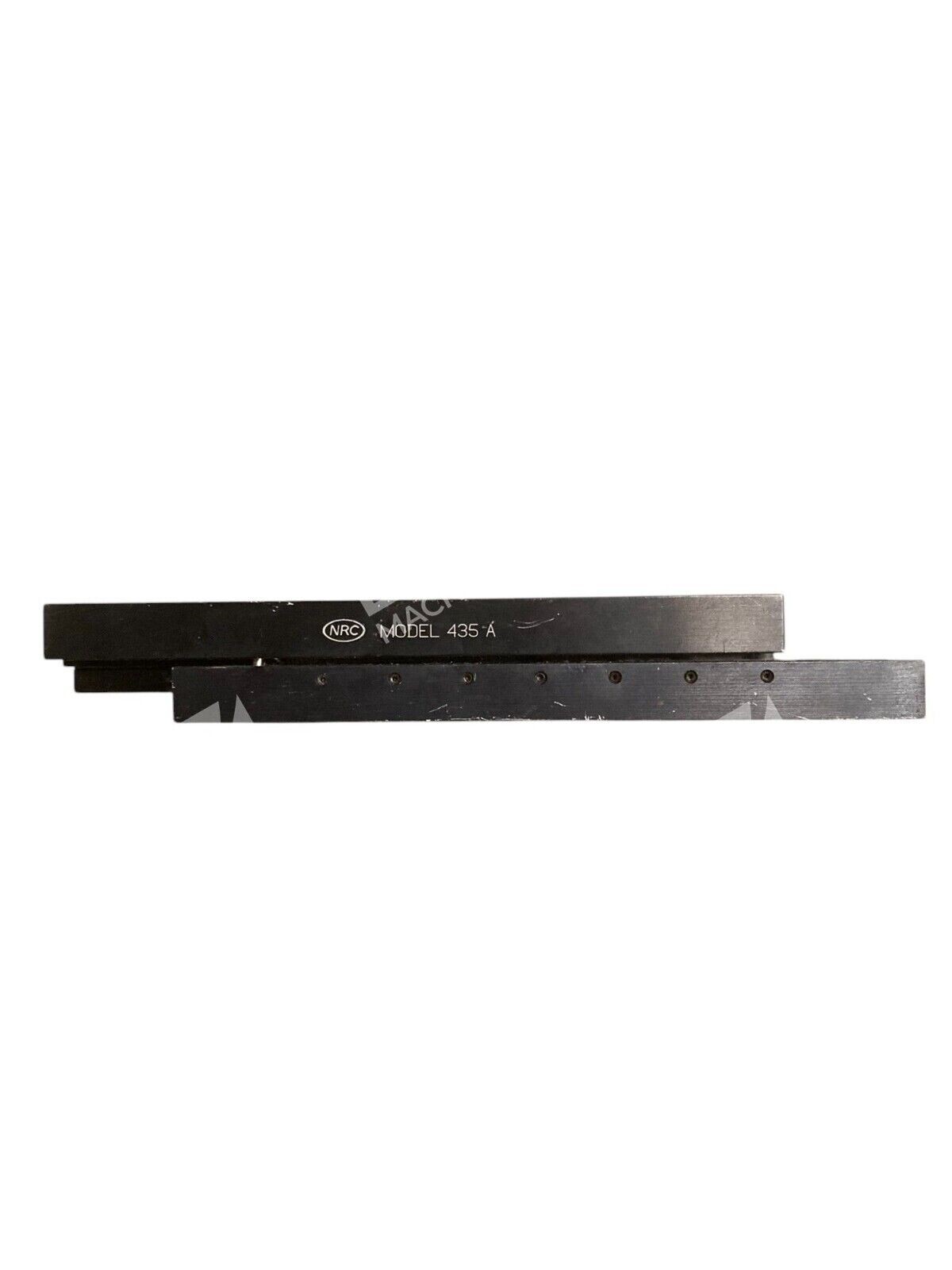

<p>The <strong>Newport NRC Model 435A linear translation stage</strong> is a precision manual positioning component designed for demanding laboratory and industrial applications. Built with crossed-roller bearing construction running on ground steel V-ways, this stage delivers consistent, accurate linear motion with minimal drift. The 435A generation predates the modern 436 model, differing primarily in micrometer mount design, and remains a reliable choice for optical alignment, semiconductor inspection, and materials testing.</p>
<h2>Key Features</h2>
<ul>
<li>Crossed-roller bearing design for smooth, low-friction linear motion</li>
<li>Extended platform with large, apertured surface for flexible mounting</li>
<li>Preloaded springs eliminate actuator backlash and support smooth travel</li>
<li>Precision-ground steel V-ways for optimal stiffness and thermal stability</li>
<li>Low angular deviation (<150 µrad) ensures reliable positioning accuracy</li>
<li>Reconfigurable for left- or right-hand applications</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Maximum Stage Travel:</strong> 50 mm</li>
<li><strong>Load Capacity:</strong> 556 N</li>
<li><strong>Thread Type:</strong> 1/4-20</li>
<li><strong>Bearing Type:</strong> Crossed-roller</li>
<li><strong>Actuator Backlash:</strong> Preloaded springs eliminate backlash</li>
<li><strong>Angular Deviation:</strong> <150 µrad</li>
<li><strong>Motion Type:</strong> Manual (micrometer-actuated)</li>
<li><strong>Platform Type:</strong> Extended apertured</li>
</ul>
<h2>Typical Applications</h2>
<p>The Newport 435A serves critical roles in precision positioning across multiple industries:</p>
<ul>
<li><strong>Optical Alignment:</strong> Fine-tuning laser, lens, and optical component placement</li>
<li><strong>Semiconductor Testing:</strong> Probe positioning and wafer alignment during test and inspection</li>
<li><strong>Laboratory Research:</strong> Precise sample positioning in microscopy and spectroscopy</li>
<li><strong>Materials Processing:</strong> Exact tool and workpiece placement for measurement and fabrication</li>
<li><strong>Medical Device Assembly:</strong> Component alignment in precision instrumentation</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Newport motorized positioner systems and micrometers</li>
<li>Standard optical benches and 1/4-20 threaded accessories</li>
<li>Custom-mount fixtures and holders compatible with 1/4-20 thread</li>
<li>Lab automation frameworks requiring manual or semi-automated stages</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Newport NRC Model 435 (same specifications, differs in micrometer mount design)</li>
<li>Original Newport 435A units</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Newport manual micrometers and actuators</li>
<li>Standard optical metrology and alignment tools</li>
<li>Custom mechanical mounting systems (verify 1/4-20 thread compatibility)</li>
<li>Manual positioning workflows and semi-automated setups</li>
</ul>
