Overview

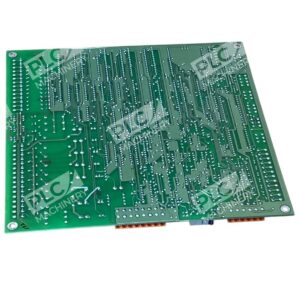

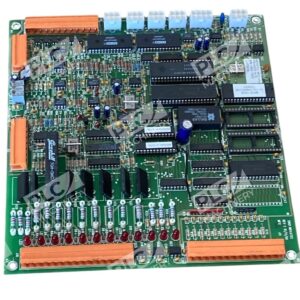

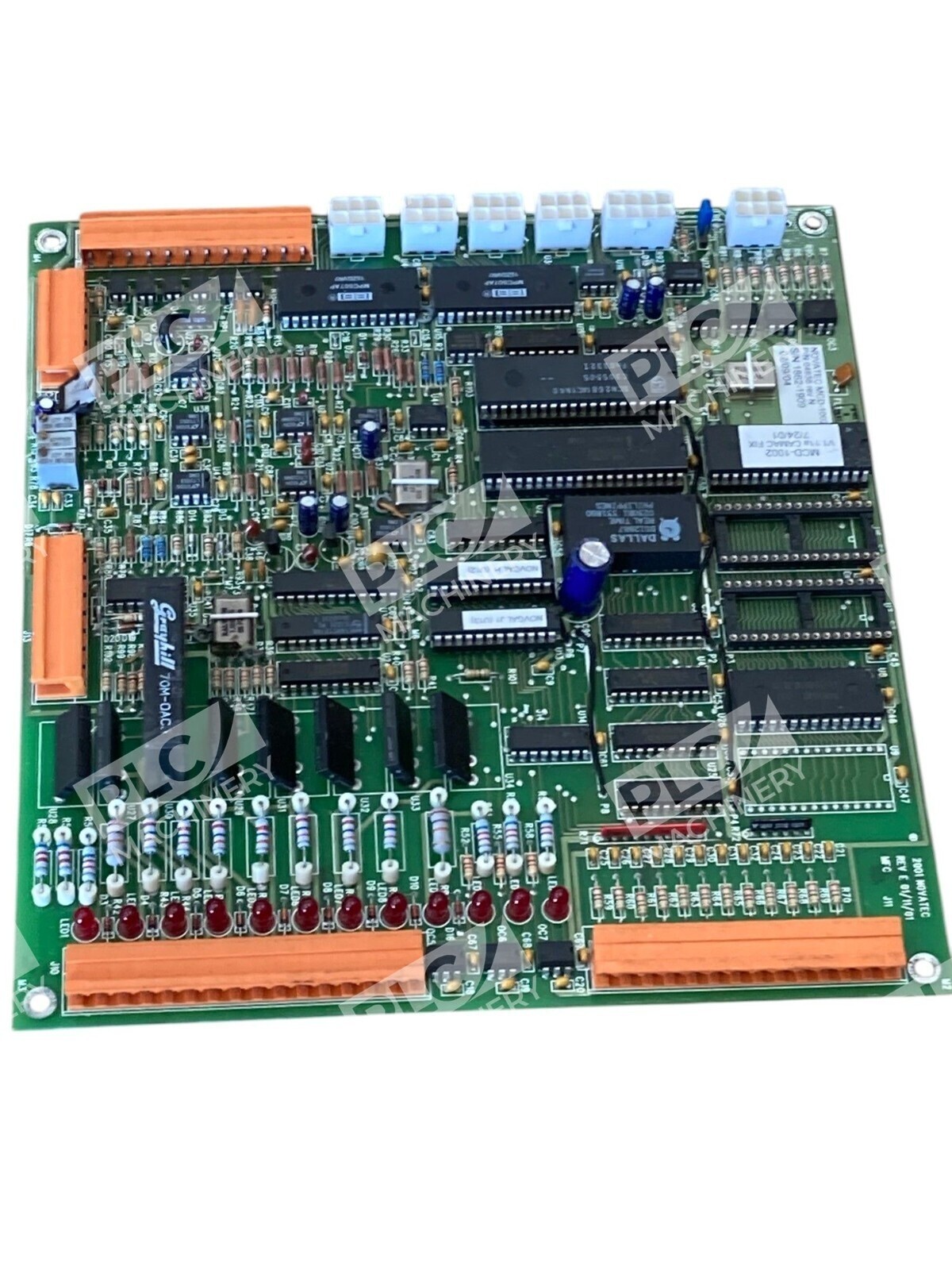

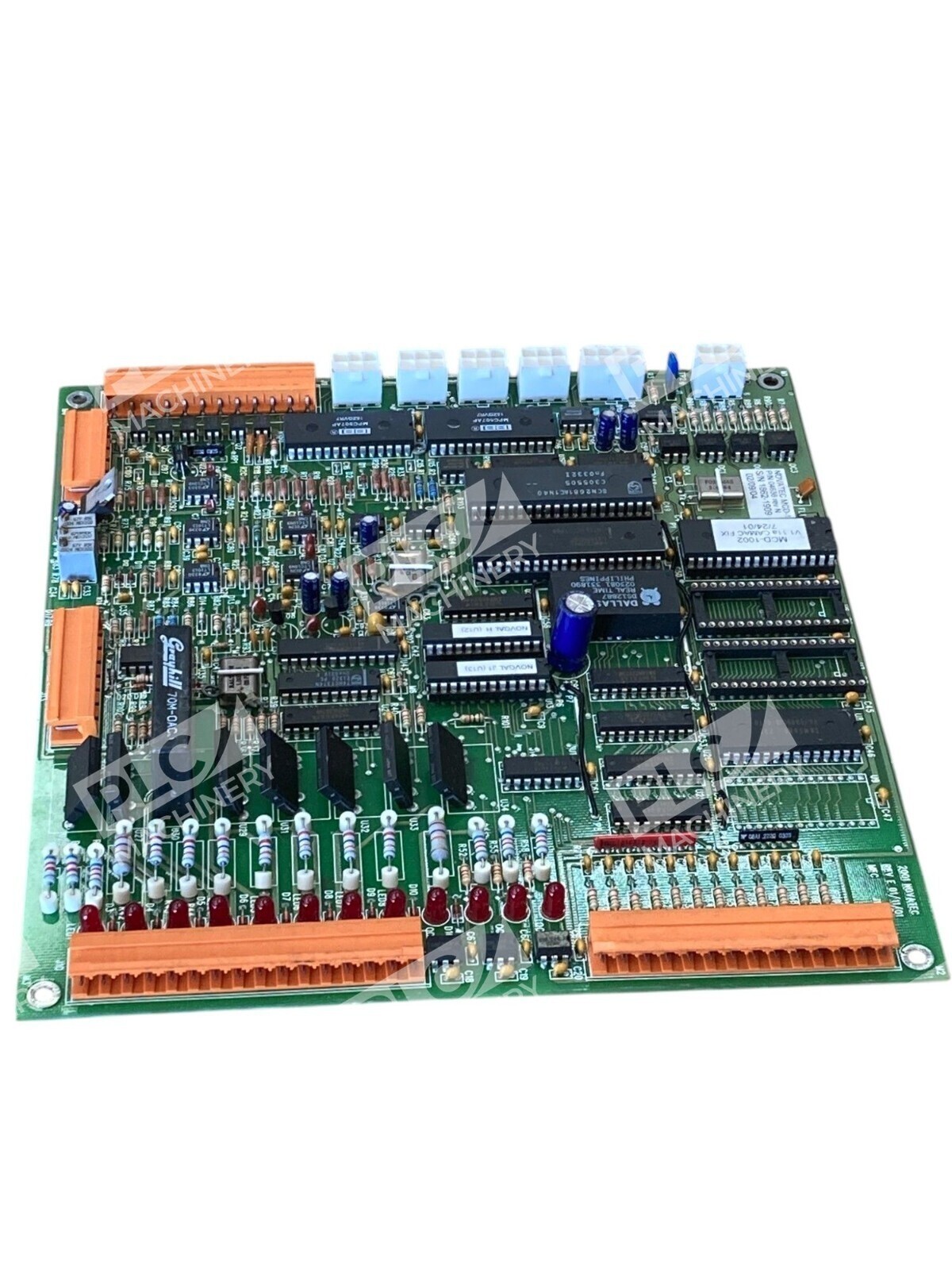

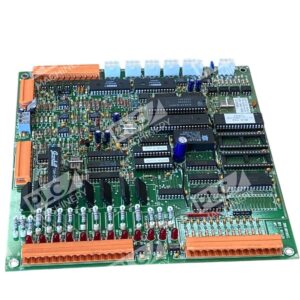

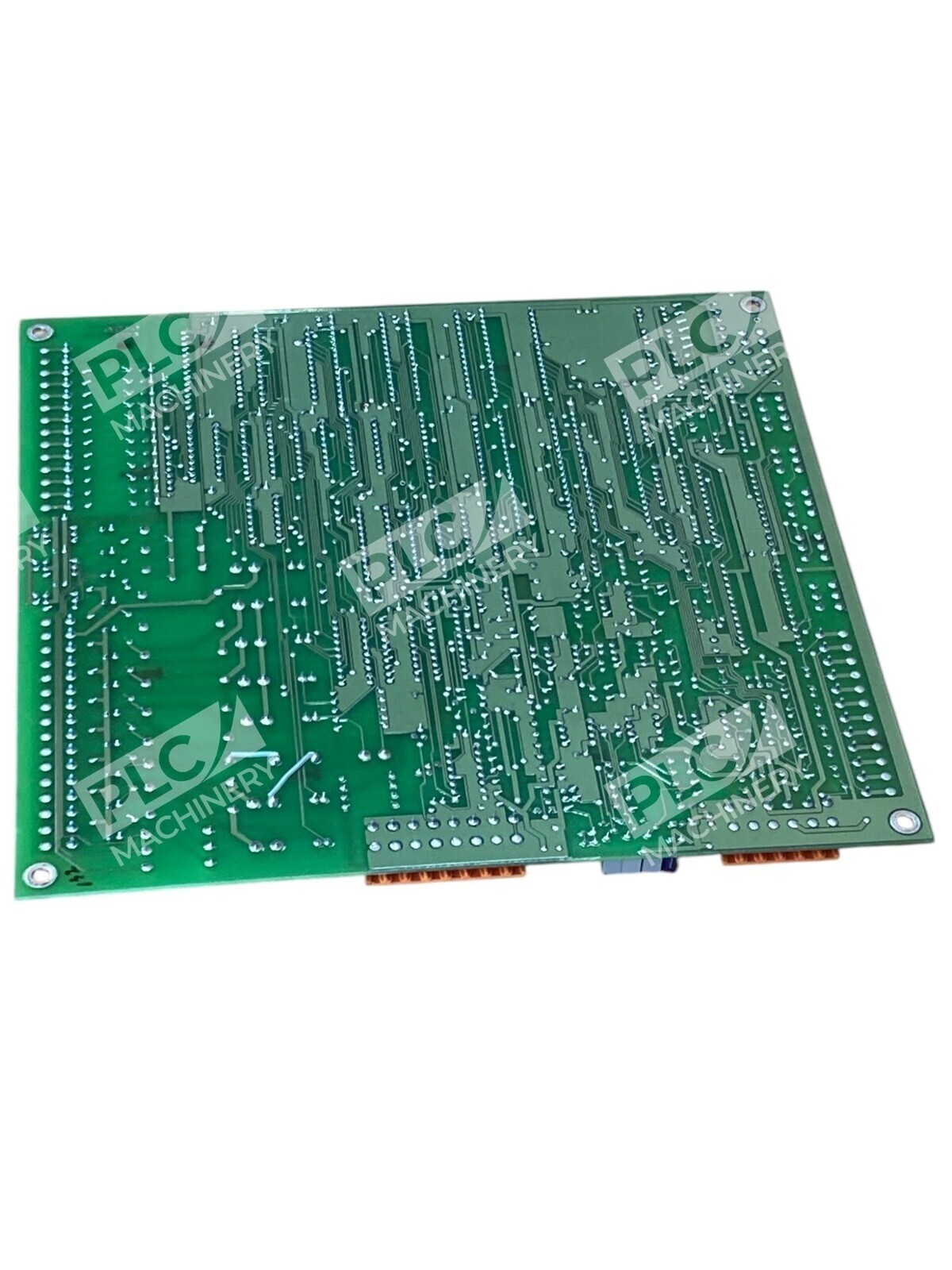

The Novatec 04636 Rev N MCD-1002 is a critical CPU control circuit board component for Novatec desiccant dryers deployed across the plastic injection molding industry. This board integrates microprocessor control logic and manages temperature, dewpoint, and humidity regulation within the MCD-1002 controller family. The 04636 revision N board delivers reliable performance and is a drop-in replacement for older or failed circuit board assemblies in compatible Novatec dryer systems.
Key Features
- CPU control board with integrated microprocessor logic for precision dryer operation
- Manages temperature, humidity, and dewpoint sensor inputs for consistent drying performance
- Compatible with Novatec MCD-1002 and MCD-2002 controller architectures
- Revision N PCB design with proven reliability in industrial plastic drying
- Direct replacement—no configuration or recalibration typically required
Technical Specifications

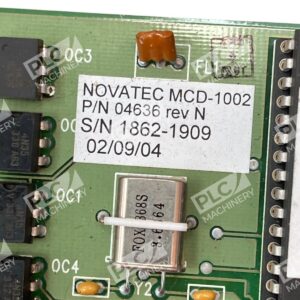

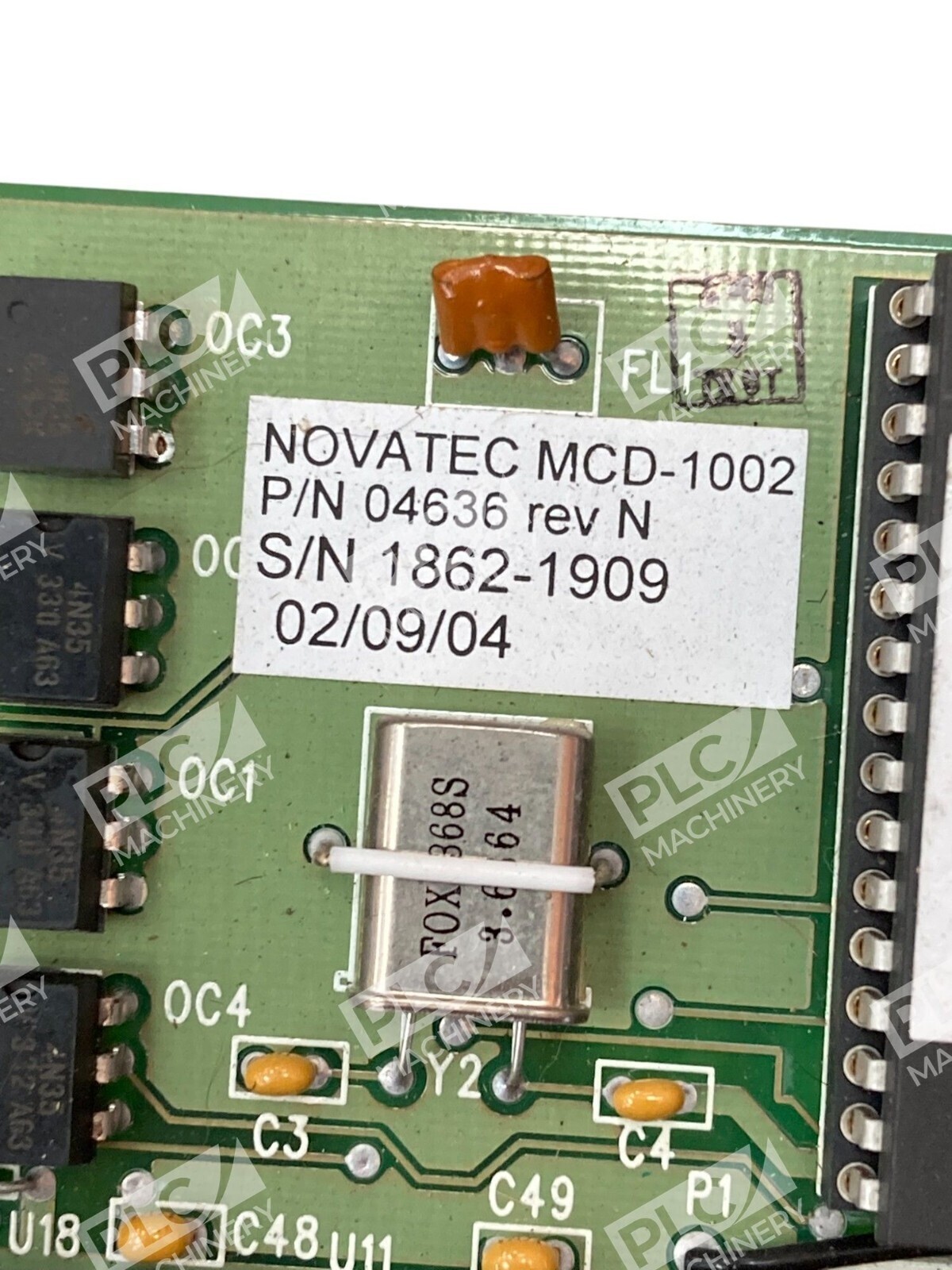

- Part Number: 04636
- Revision: N
- Controller Model: MCD-1002
- Board Type: CPU Control / Microprocessor Board
- Application: Novatec desiccant dryers (ND and NovaDryer series)
- Interface: Ribbon cable connection to main controller assembly
- Function: Manages digital sensor inputs, temperature regulation, and control outputs
- Certifications: Industrial equipment component
Typical Applications
The Novatec 04636 is specified for:
- Novatec ND series desiccant dryers (ND-5 through ND-150 and larger)
- Novatec MCD-1002 microprocessor-controlled dryer systems
- Plastic injection molding facilities requiring precision drying control
- Maintenance and repair of failed MCD-1002 controller assemblies
- Retrofit and upgrade scenarios for legacy Novatec dryer installations
Compatibility & Replacements
Compatible With
- Novatec MCD-1002 Dryer Controller
- Novatec MCD-2002 Microprocessor-Controlled Dryer
- Novatec ND series desiccant dryers (ND-5 through ND-150)
- Novatec NovaDryer family
- Ribbon cable connection to Novatec main controller assembly
Replaces / Drop-In Replacement For
- Novatec 04636 Rev A–M (earlier revisions)
- OEM replacement for failed or degraded MCD-1002 CPU boards
- Direct substitute in MCD-1002/MCD-2002 control cabinets
Works With
- Novatec temperature sensor assemblies
- Novatec dewpoint sensor boards (part #96-1325 / 1205-DM)
- Novatec 3-phase detector boards (parts #04673, #04674)
- MCD-1002/MCD-2002/MCD-3000 family control systems
- Plastic processing equipment control networks
