Overview

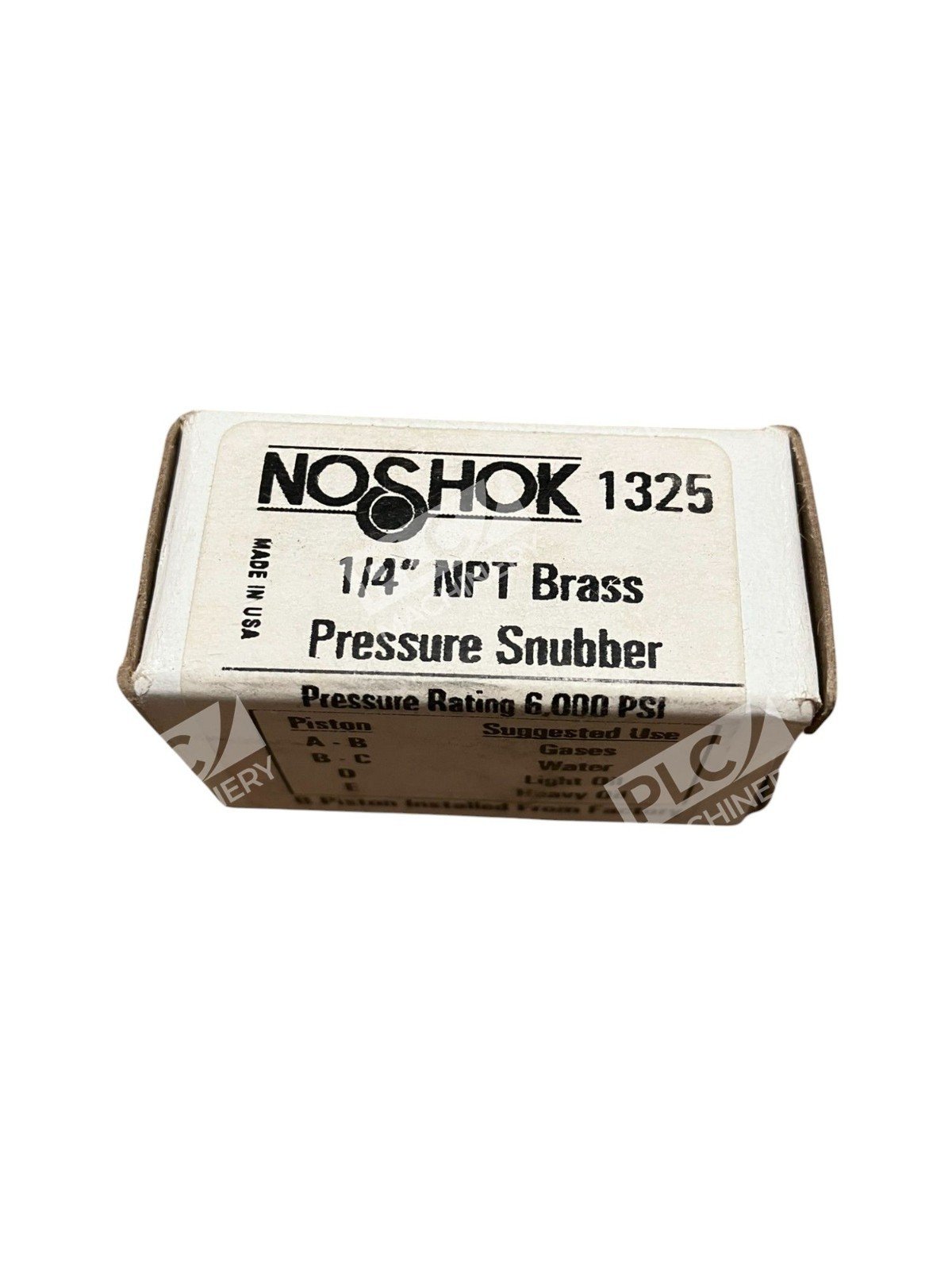

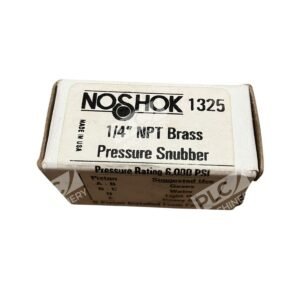

The NOSHOK 1325 pressure snubber is a self-cleaning, piston-type brass instrument designed to dampen pressure fluctuations and protect pressure gauges and transducers. Engineered for industrial measurement applications, the 1325 resists clogging and delivers reliable snubbing action across a wide range of fluids and operating conditions. Its 6,000 psi maximum pressure rating and 1/4″ NPT process connection make it ideal for hydraulic, pneumatic, and utility pressure circuits.
Key Features
- Self-cleaning piston design — resists clogging and minimizes maintenance

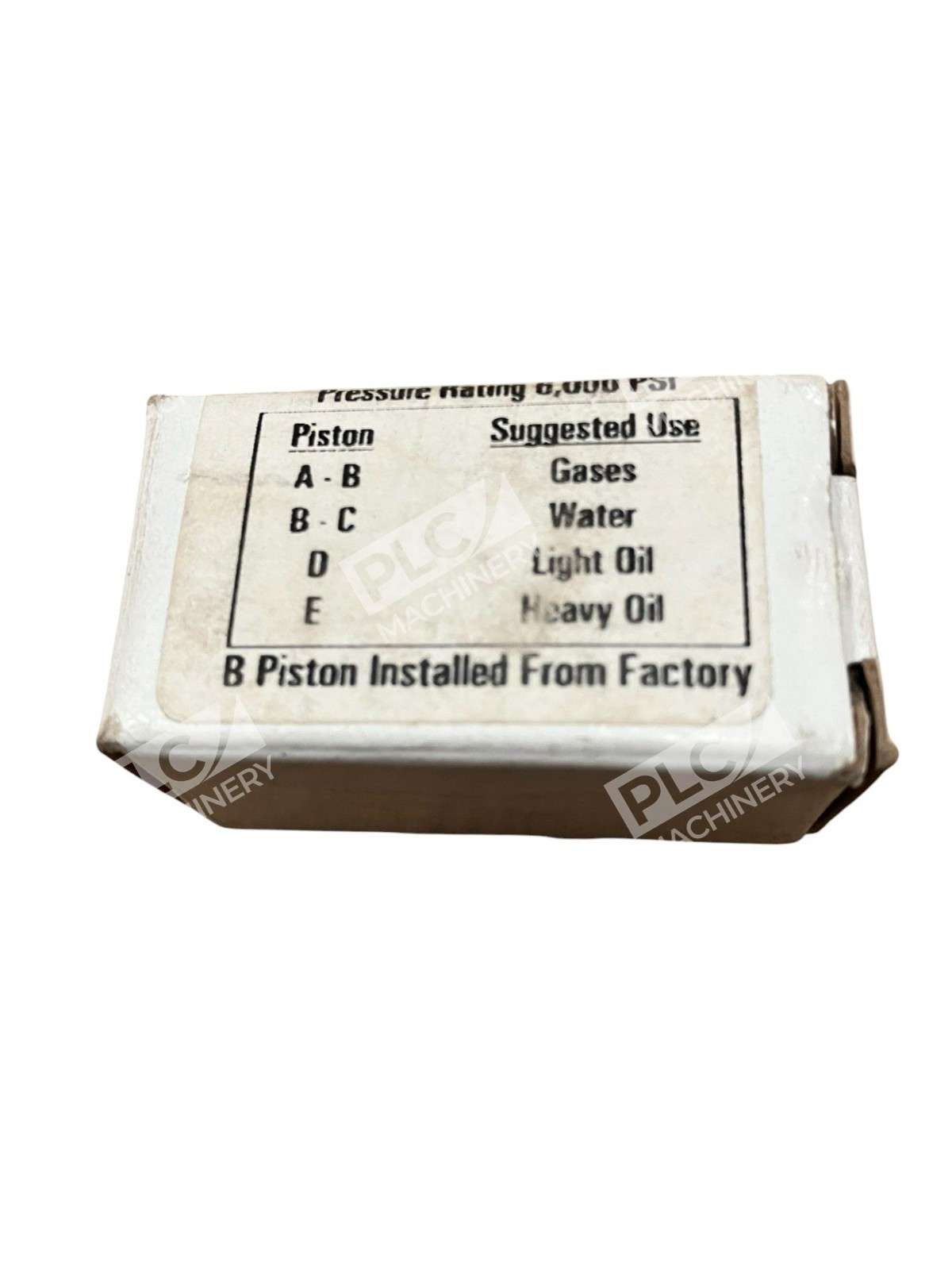

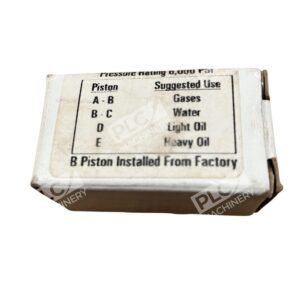

- Five interchangeable pistons included: grades A–E for gases, water, light oil, and heavy oil applications
- Brass construction — durable and corrosion-resistant for industrial environments
- 1/4″ NPT connections — male process port, female instrument port for standard gauge mounting
- 6,000 psi rated — handles high-pressure measurement circuits reliably
Technical Specifications
- Pressure Rating: 6,000 psi (maximum operating pressure)
- Connection Type: 1/4″ NPT male (process) × 1/4″ NPT female (instrument)
- Material: Brass
- Type: Piston-type snubber
- Included Pistons: 5 interchangeable sizes (grades A, B, C, D, E)
- Weight: 0.83 lbs
- Standard Assembly: Ships with Grade B piston installed
- Features: Self-cleaning, clog-resistant
Typical Applications
- Hydraulic pressure measurement and protection in industrial machinery
- Pneumatic gauge damping for air compressor circuits and pneumatic systems
- Water and utility pressure monitoring in municipal and industrial water systems
- Oil system measurement in lubrication and process control circuits
- Protecting digital and analog pressure transducers from spike and pulse damage
- OEM equipment pressure-side gauge protection in mobile and stationary equipment
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT gauge ports and transducer connections
- Any pressure measurement instrument with 1/4″ NPT female inlet
- Hydraulic, pneumatic, water, and light-to-heavy-oil circuits up to 6,000 psi
- Pressure gauges, digital pressure transmitters, and transducers rated for 6,000 psi
Replaces / Drop-In Replacement For
- Legacy piston-type snubber models with 1/4″ NPT threading (verify compatibility with OEM documentation)
- Non-branded brass snubber units of similar specification
Works With
- 1/4″ NPT pressure gauges (analog and digital)
- Pressure transducers and transmitters with 1/4″ NPT female connection
- Pressure switches and limit controls rated for snubbed sensor input
- Tubing and manifold blocks with 1/4″ NPT female ports
