Overview

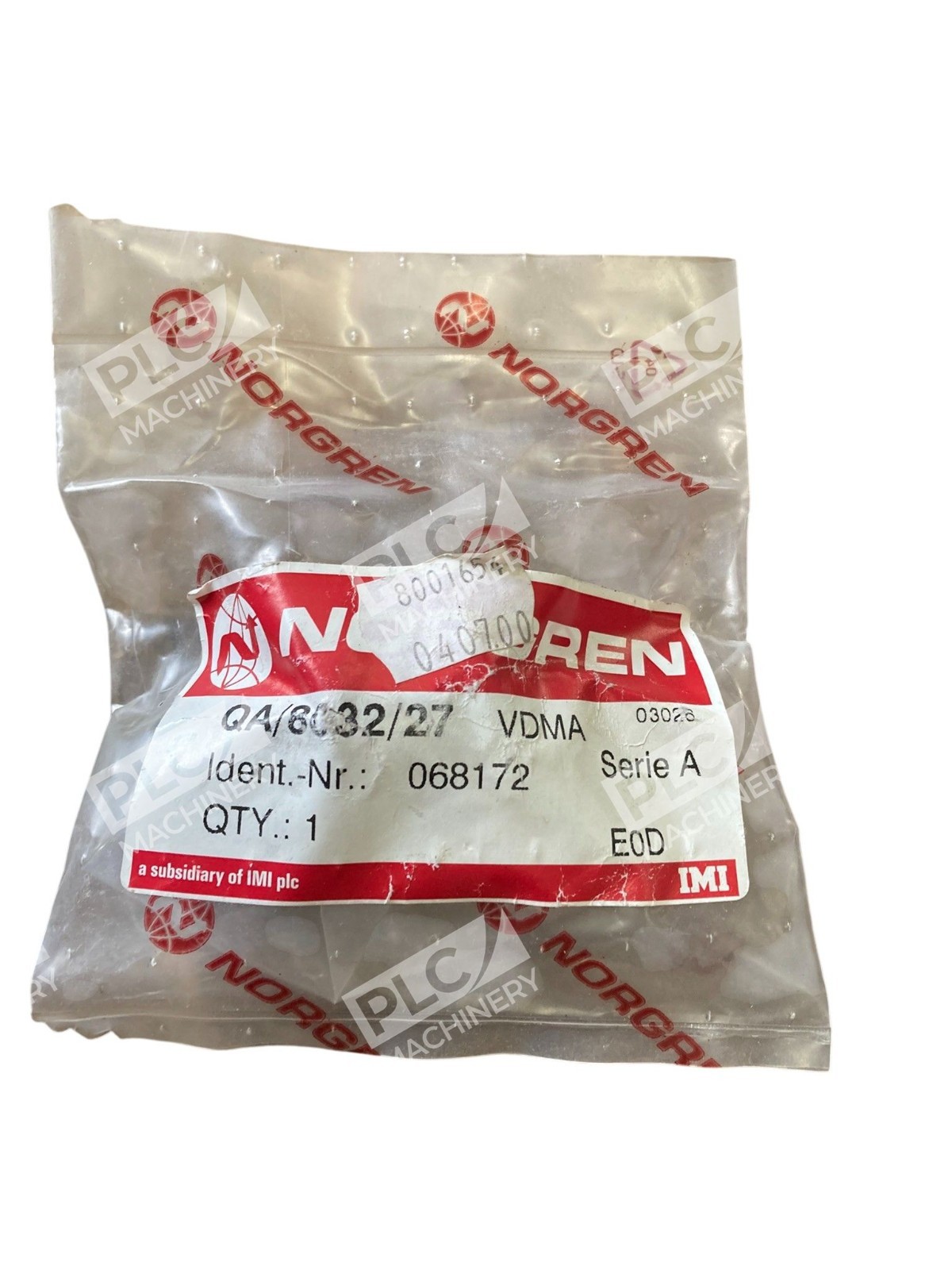

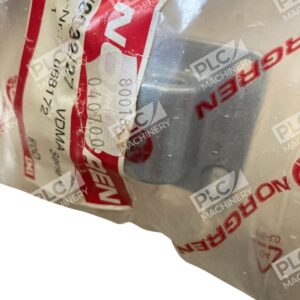

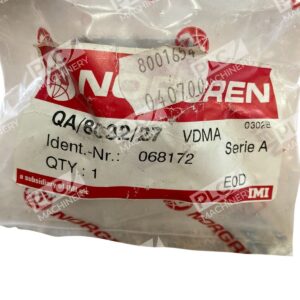

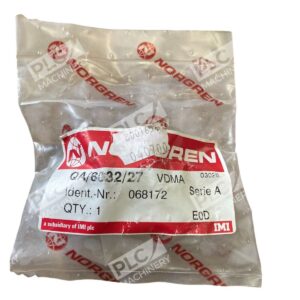

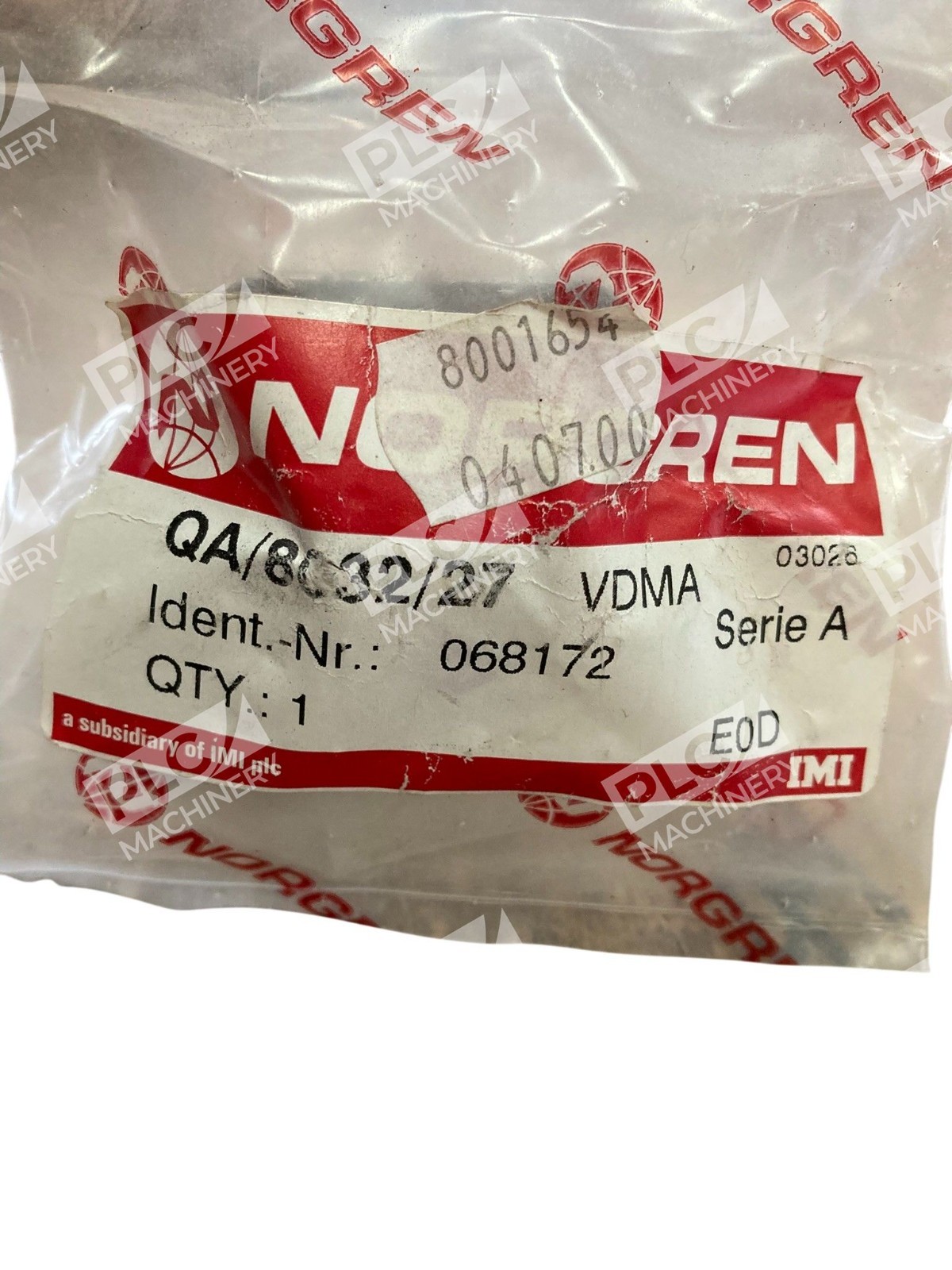

The Norgren QA/8032/27 rear eye cylinder mount is a precision-engineered accessory for pneumatic profile cylinders built to ISO 6431 and VDMA 24562 standards. This Norgren QA/8032/27 detachable eye provides secure, vibration-resistant mounting for 32mm bore cylinders in single and double-acting configurations. Part of the IMI Norgren VDMA Series A platform, it delivers proven durability in manufacturing, packaging, automotive, and material handling automation.
Key Features
- Rear eye mounting design for fixed-load cylinder applications
- ISO 6431 and VDMA 24562 compliant—ensures cross-platform compatibility
- Detachable construction for quick removal and cylinder replacement
- Lightweight aluminum/steel construction—minimal inertia load
- Non-magnetic option available for sensitive applications
- RoHS compliant, manufactured in Germany (DE origin)
Technical Specifications
- Bore Diameter: 32 mm
- Mounting Style: Rear eye (detachable)
- Width: 75 mm
- Outer Diameter: 32 mm
- Weight: 90 g
- Standards: ISO 6431, VDMA 24562, NFE 49-003-1
- Material: Aluminum/steel with polyurethane seals
- Operating Environment: Industrial automation, pneumatic control
- Country of Origin: Germany (DE)
Typical Applications
- Packaging machinery and conveyor systems
- Automotive assembly and press automation
- Material handling equipment and transfer systems
- Machine tool fixtures and clamping systems
- Industrial process control and PLC-integrated pneumatics
- Replacement mounting for worn or damaged cylinder eyes
Compatibility & Replacements
Compatible With
- IMI Norgren QA/8032 series pneumatic cylinders (all variants)
- ISO 6431 and VDMA 24562 standard pneumatic profile cylinders
- 32 mm bore single and double-acting cylinders
- Pneumatic control systems and PLC-managed automation
- Standard industrial compressed air networks (typically 6–10 bar)
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) rear eye mounts on 32 mm bore cylinders
- Damaged or worn QA/8032/27 eyes
- Generic ISO 6431 / VDMA 24562 rear eye accessories for 32 mm bore
Works With
- Norgren QA/8032 cylinder series (QA/8032/40, QA/8032/41, QA/8032/33, and others)
- Double-acting pneumatic cylinders with integrated magnetic piston (non-magnetic option available)
- PLC and industrial control systems with pneumatic I/O modules
- Industry-standard pneumatic valve manifolds and solenoid valves
