Overview

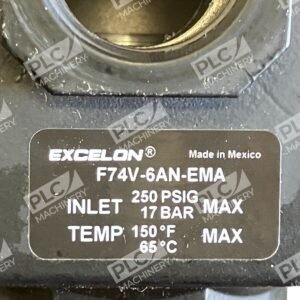

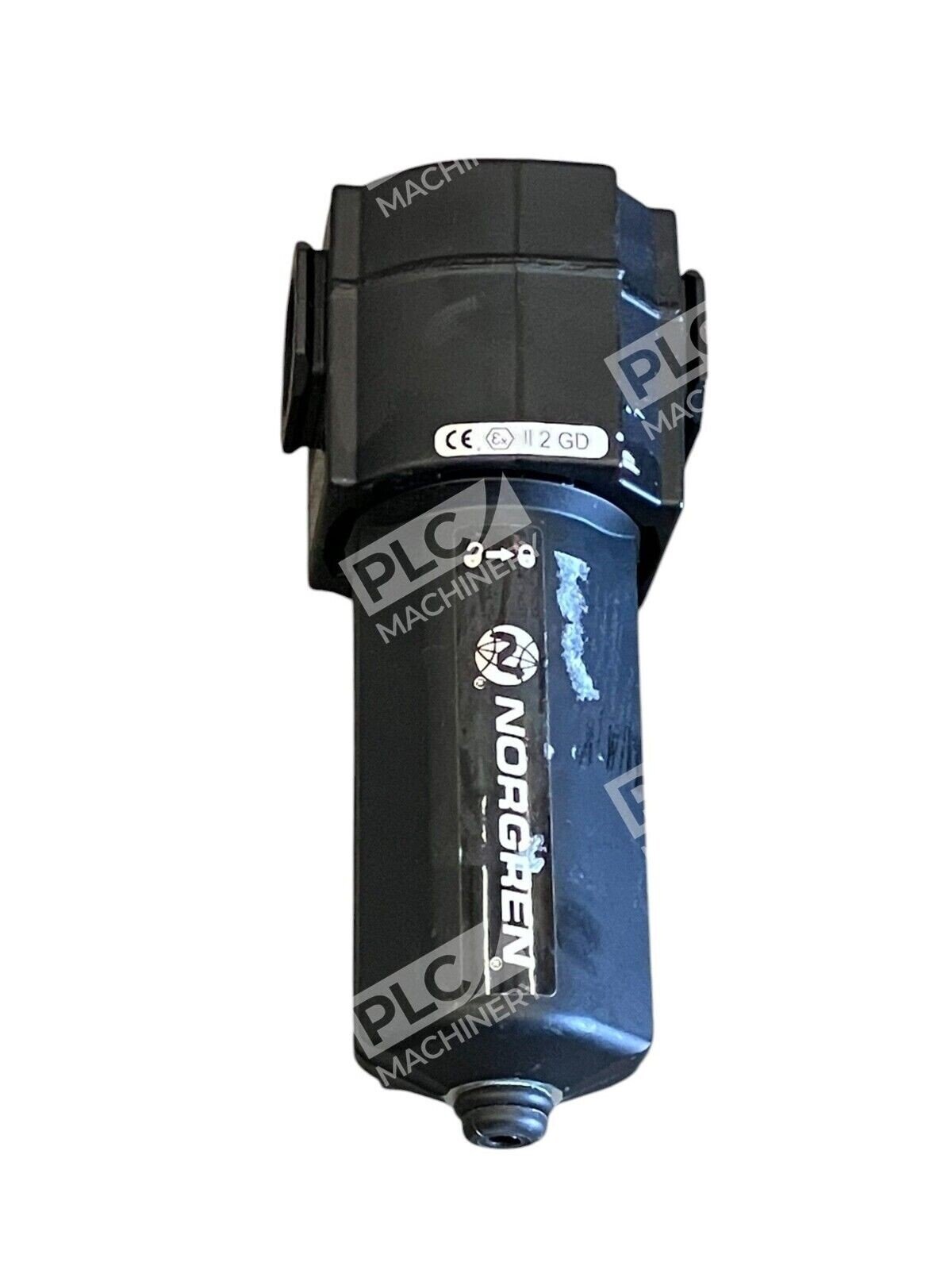

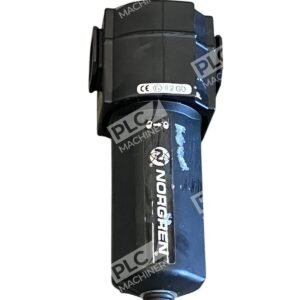

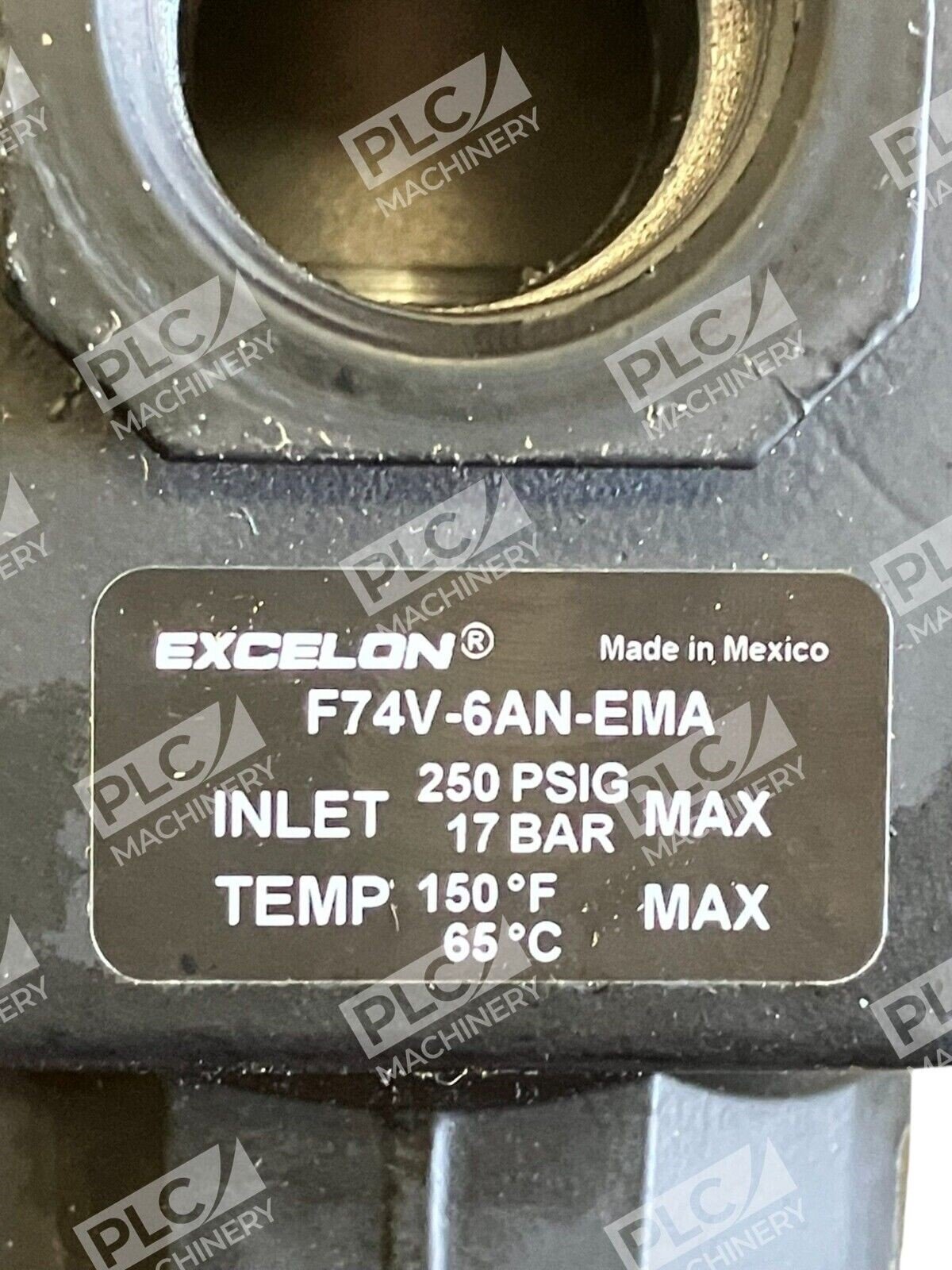

The Norgren F74V-6AN-EMA is a modular oil vapor removal filter engineered for compressed air preparation in industrial pneumatic systems. Part of Norgren’s Excelon product line, this unit combines high reliability with modular design flexibility. The F74V-6AN-EMA features 3/4″ PTF (Pipe Thread Female) ports, making it compatible with standard pneumatic piping and fittings across manufacturing, automotive, food processing, and packaging applications.
Key Features
- Activated carbon adsorption element removes oil vapors and hydrocarbon odors from compressed air
- Quick-release bayonet bowl design enables fast filter element replacement and maintenance
- Metal bowl construction provides durability in industrial environments
- High-intensity blue color-change indicator signals filter saturation
- Modular design allows in-line or side-mount installation with other Excelon components
- Rated for pressures up to 250 PSIG and temperatures to 150°F
Technical Specifications
- Port Size: 3/4″ PTF (female threads)
- Maximum Operating Pressure: 250 PSIG (17.2 bar)
- Maximum Temperature: 150°F (65°C)
- Maximum Flow Rate: 35 scfm (16.5 dm³/s) at 90 PSIG inlet
- Bowl Material: Metal (aluminum)
- Filter Element: Activated carbon adsorber
- Weight: 2.78 lb (1.26 kg)
- Installation Type: In-line or modular with Excelon system
- Indicator Type: High-intensity blue color-change
Typical Applications
The F74V-6AN-EMA is widely used in applications requiring removal of oil mists and hydrocarbon vapors from pneumatic systems:
- Manufacturing facilities with precision pneumatic tools and automation
- Food and beverage processing where air cleanliness standards mandate odor control
- Compressed air systems in pharmaceutical and laboratory environments
- Industrial packaging and labeling equipment
- Automotive assembly lines and paint booths
- Any system requiring Class 2 air per ISO 8573-1 air purity standards
Compatibility & Replacements
Compatible With
- Norgren Excelon modular air preparation systems
- 3/4″ NPT and PTF pneumatic piping and fittings
- Standard compressed air supply systems rated 0–250 PSIG
- Inline and manifold-mounted pneumatic circuits
Replaces / Drop-In Replacement For
The F74V-6AN-EMA is the current production version of Norgren’s 3/4″ oil vapor removal filter for the Excelon series. Verify compatibility with your system integrator before ordering if replacing an older filter model.
Works With
- Excelon F74G general-purpose filters (modular compatibility)
- Excelon F72V series filters (reduced port sizes)
- Norgren regulator and lubricator modules in the Excelon range
- Standard pneumatic actuators, valves, and tools rated 250 PSIG or below
