Overview

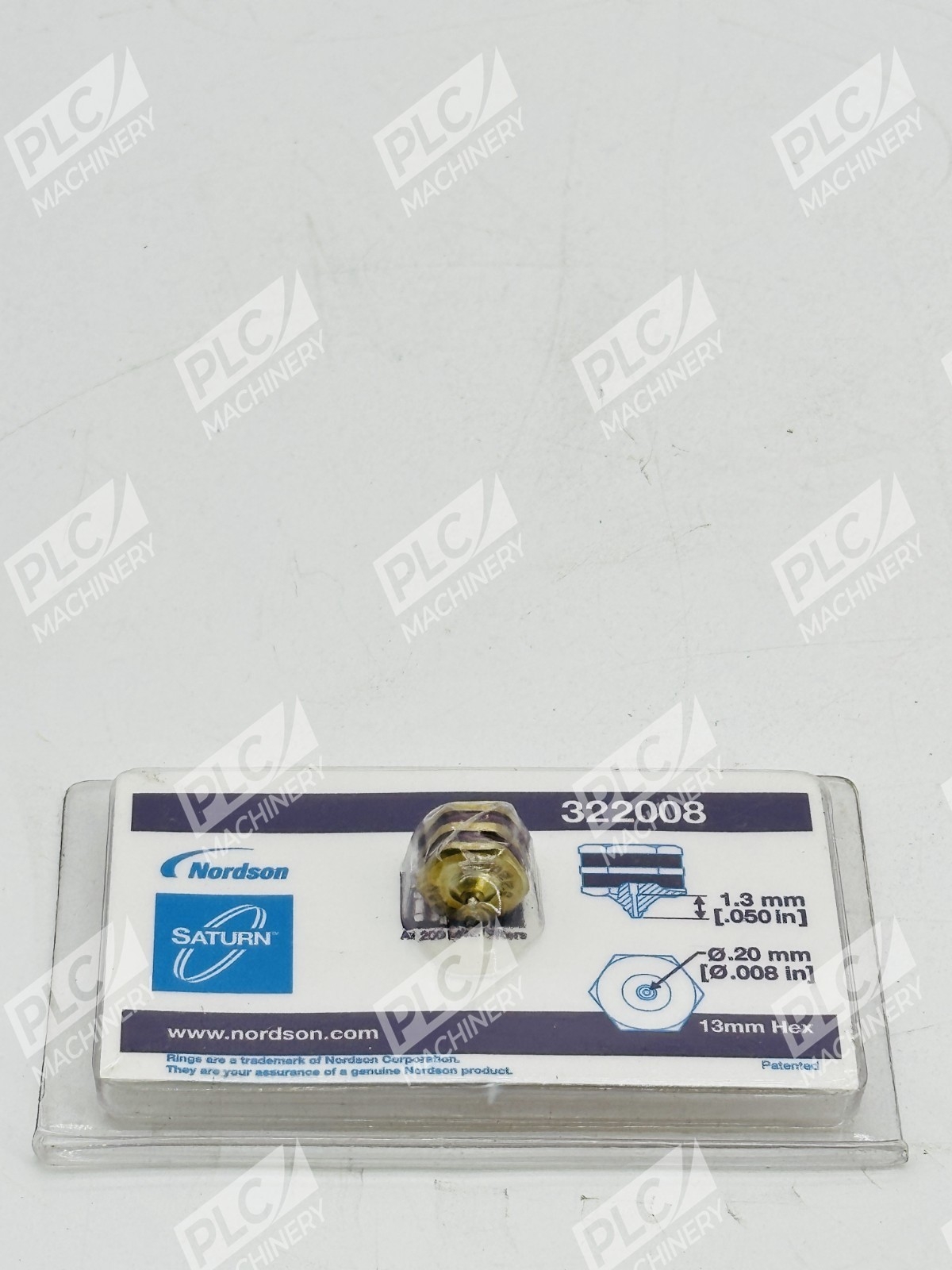

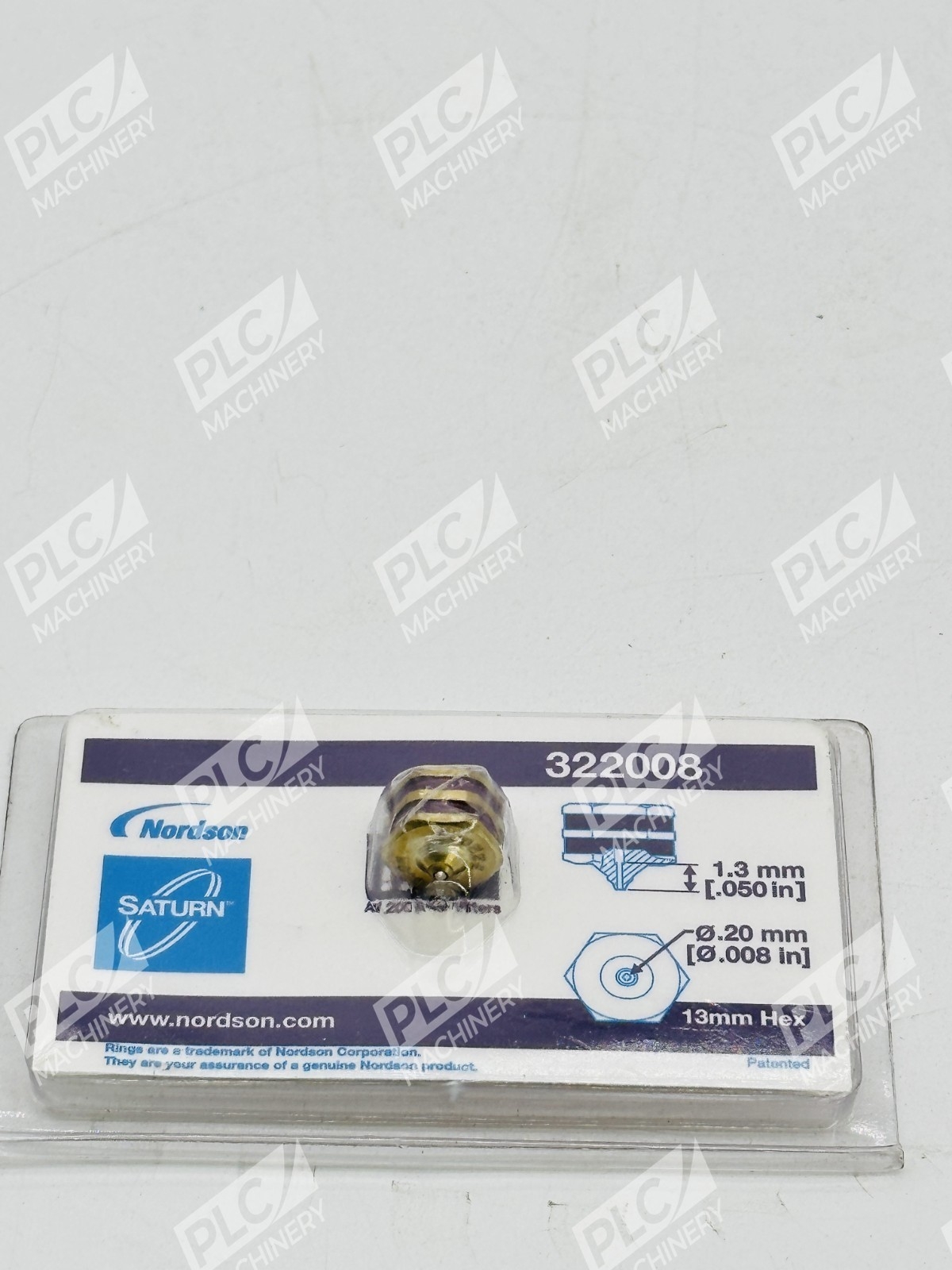

The Nordson Saturn 322008 is a precision hot melt nozzle designed for controlled, consistent adhesive dispensing. With its single-orifice straight-bead design and color-coded ring identification system, this nozzle enables fast, accurate selection and replacement in production environments. Nordson Saturn 322008 nozzles are manufactured to strict tolerances, delivering reliable performance in demanding industrial applications where adhesive pattern consistency directly impacts product quality.
Key Features
- 0.008 in. (0.20 mm) orifice diameter, identified with a purple ring
- 0.050 in. (1.3 mm) engagement length, also identified by a purple ring
- Color-coded rings streamline nozzle selection and replacement, ensuring the correct configuration for optimal adhesive flow and application control
- Constructed from durable brass with a stainless-steel insert, this nozzle provides exceptional wear resistance for demanding industrial applications
- Manufactured with strict tolerances, the Saturnâ„¢ Nozzle delivers consistent bead placement and flow rates, reducing adhesive waste and improving product quality
Technical Specifications
- Orifice Diameter: .008 in. (0.20 mm)
- Engagement Length: .050 in. (1.3 mm)
- Nozzle Type: Single-orifice straight bead
- Orifice Ring Color: Purple
- Engagement Ring Color: Purple
- Material: Brass body with stainless-steel insert
- Design: Straight nozzle for bead dispensing
Typical Applications
The Nordson Saturn 322008 is ideal for applications requiring fine, precise adhesive bead placement on substrates such as:
- Intricate electronics assembly and component bonding
- Woodworking and furniture joinery with narrow gap sealing
- Flexible packaging and laminate sealing
- Precision label and sticker application
- Small product assembly where adhesive bead width control is critical
Compatibility & Replacements
Compatible With
- SolidBlue® S, ClassicBlue, Blue Series, MiniBlue, MiniBlue II, MiniBlue II LP, E-350, and E-380 applicators
- Nordson Saturn hot melt dispensing systems
- Nordson standard modules with precision nozzle interfaces
Replaces / Drop-In Replacement For
- Older 237XXX series nozzles
- 237208 nozzle and equivalent configurations
- OEM equivalent part numbers for .008″ orifice Saturn nozzles
Works With
- Nordson adhesive dispensing modules with quick-change nozzle interfaces
- Precision hot melt applicator guns compatible with Saturn nozzle mounting
- Standard Nordson melter and pump systems (P15, P30, P50 melters and compatible sub-bases)
