Overview

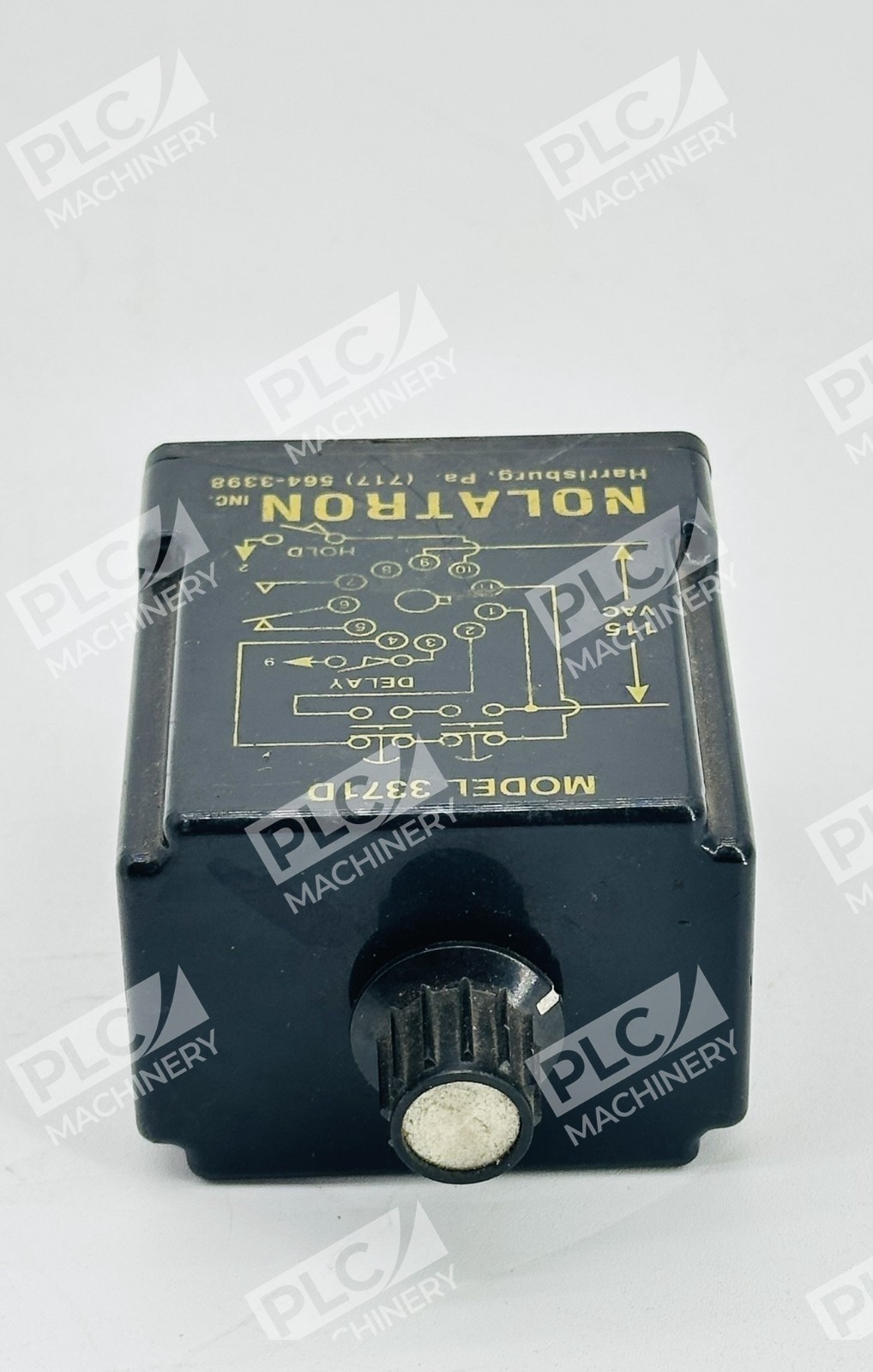

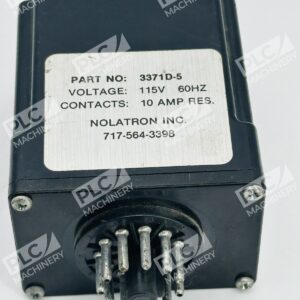

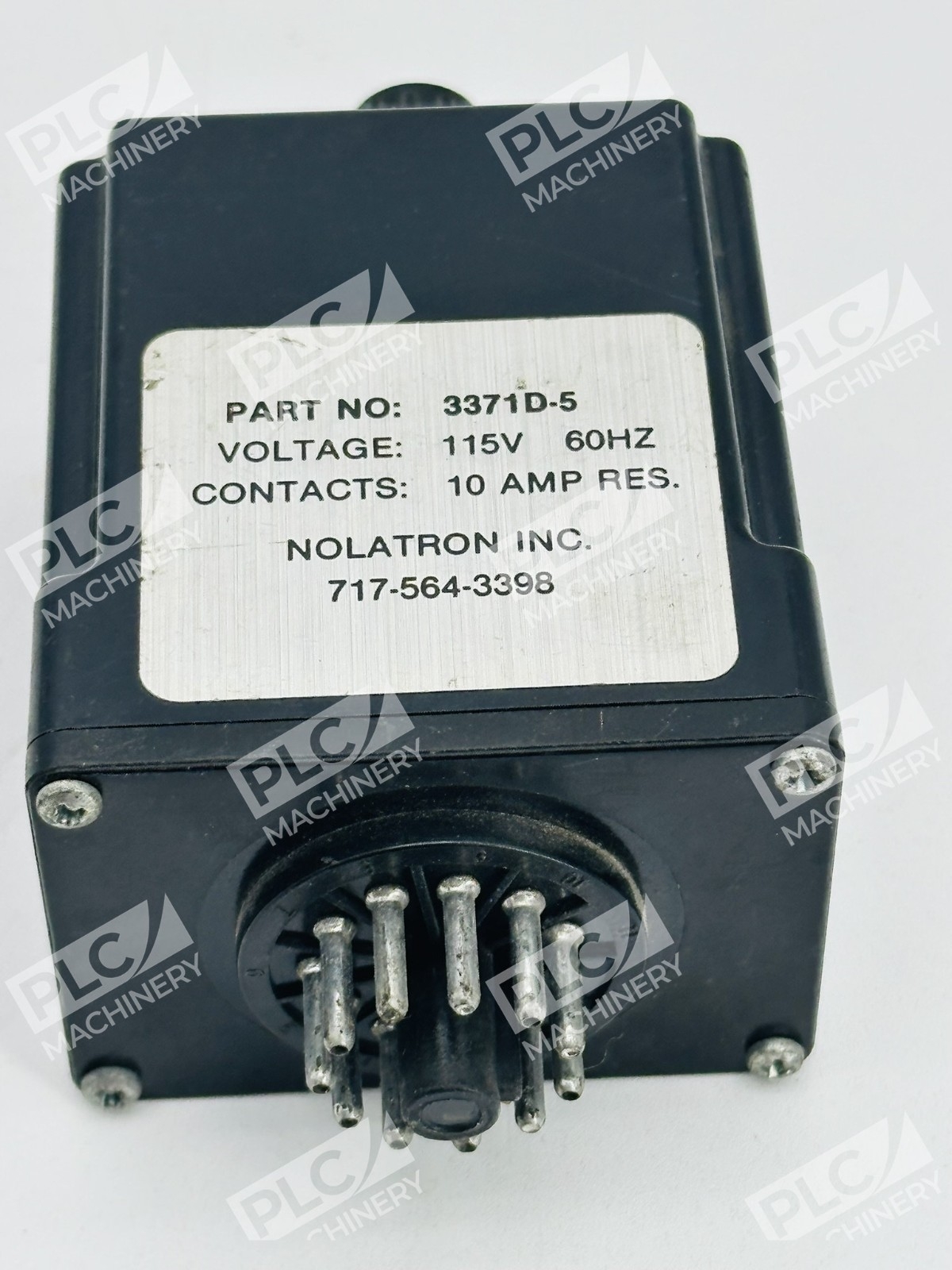

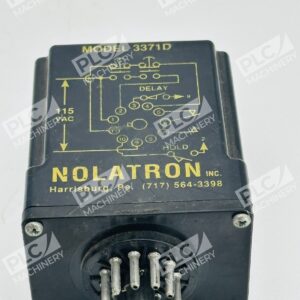

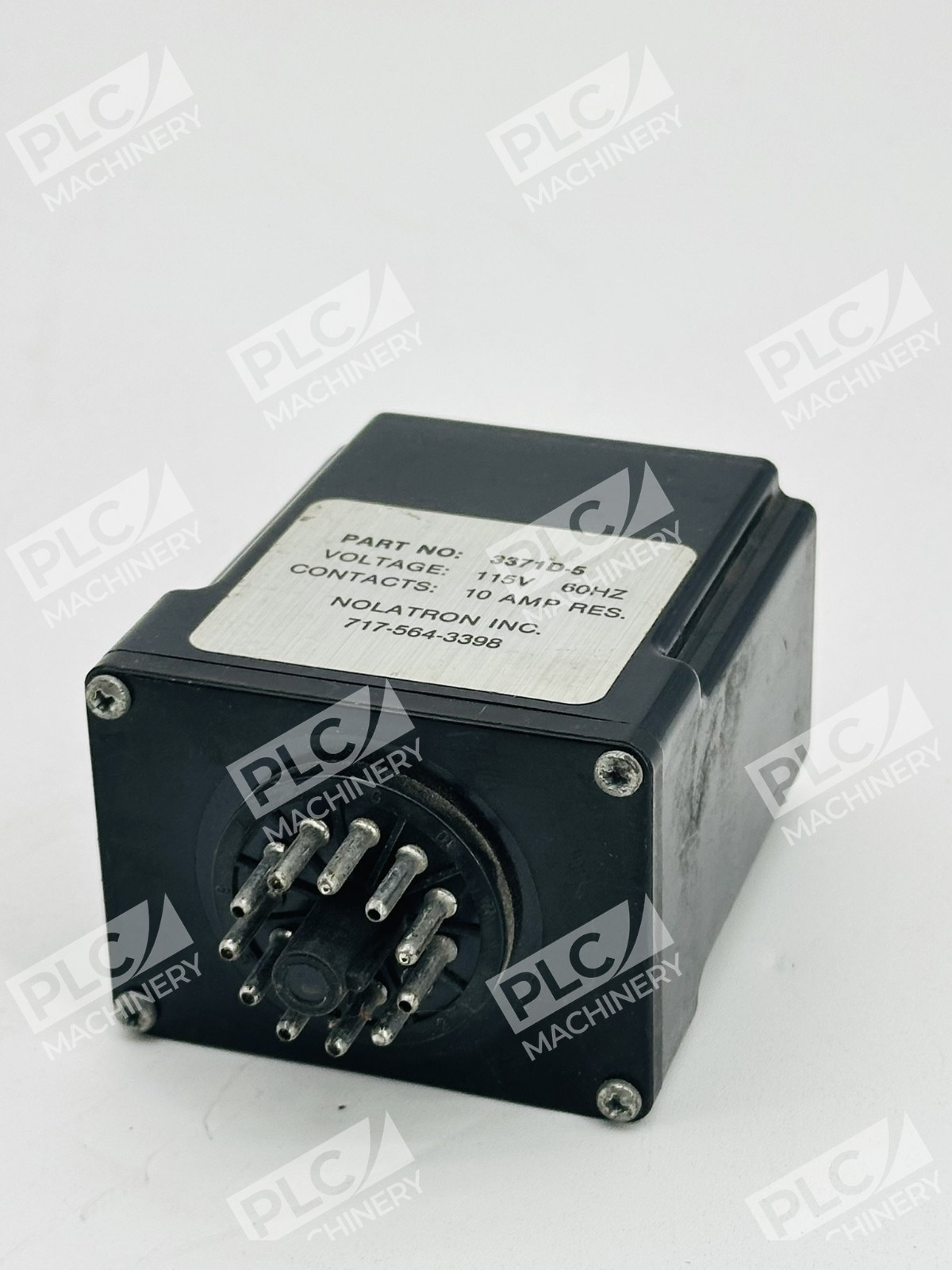

The Nolatron 3371D-5 is a proven anti-tiedown time delay relay for industrial machine control applications. Rated 115VAC, this relay enforces synchronized dual-switch operation to meet OSHA safety requirements. Anti-tiedown controls are used with two start switches to protect machinery operators and comply with OSHA regulations requiring operators to keep both hands on the start switches during machine cycles. The 3371D-5 delivers reliable timing and output control for press machines, automated assembly lines, and other hazardous equipment requiring operator protection.
Key Features
- Anti-Tiedown Protection: Prevents single-switch lock-down by requiring both switches to activate within a fixed time interval
- 115VAC Operation: Standard industrial control voltage for factory and plant environments
- 11-Pin Socket Configuration: Plug-in design for easy installation and replacement
- OSHA Compliance: Helps comply with OSHA regulations and minimizes the possibility of operators starting machines with a hand in the work area
- Time-Delay Output: Adjustable timing for synchronized control sequences
- Industrial-Grade Reliability: Built for harsh manufacturing environments with proven performance across decades of use
Technical Specifications
| Part Number | Nolatron 3371D-5 |
| Manufacturer | Nolatron |
| Control Type | Anti-Tiedown Time Delay Relay |
| Input Voltage | 115VAC |
| Configuration | 11-Pin Socket Plug-In |
| Output Contacts | 2 NO (Normally Open) |
| Typical Applications | Press Machines, Punch Presses, Assembly Equipment |
| Safety Classification | OSHA-Compliant Safety Control |
| Mounting Type | Socket-Mount (Plug-In Relay Base) |
Typical Applications
The Nolatron 3371D-5 is widely used in:
- Industrial presses and punch machines requiring two-hand startup control
- Automated assembly lines with operator safety interlocks
- Packaging machinery and labeling equipment
- Metal fabrication equipment with operator-guarding requirements
- CNC machine tool control panels
- Heavy machinery with OSHA-mandated dual-switch safety circuits
Compatibility & Replacements
Compatible With
- Standard 11-pin relay socket bases
- Industrial control panels using 115VAC logic circuits
- Relay racks and control enclosures rated for 115VAC operation
- OSHA-compliant machine safety circuits
- Two-hand machine control systems
Replaces / Drop-In Replacement For
The 3381 series can be used to replace 3371 series controls with no modification to wiring. Verify compatibility with your system integrator before ordering.
Works With
- Relay control logic systems
- Industrial electrical panels and control boards
- Standard 115VAC power distribution
- Two-hand push-button safety circuits
- Machine automation and guarding systems
