Overview

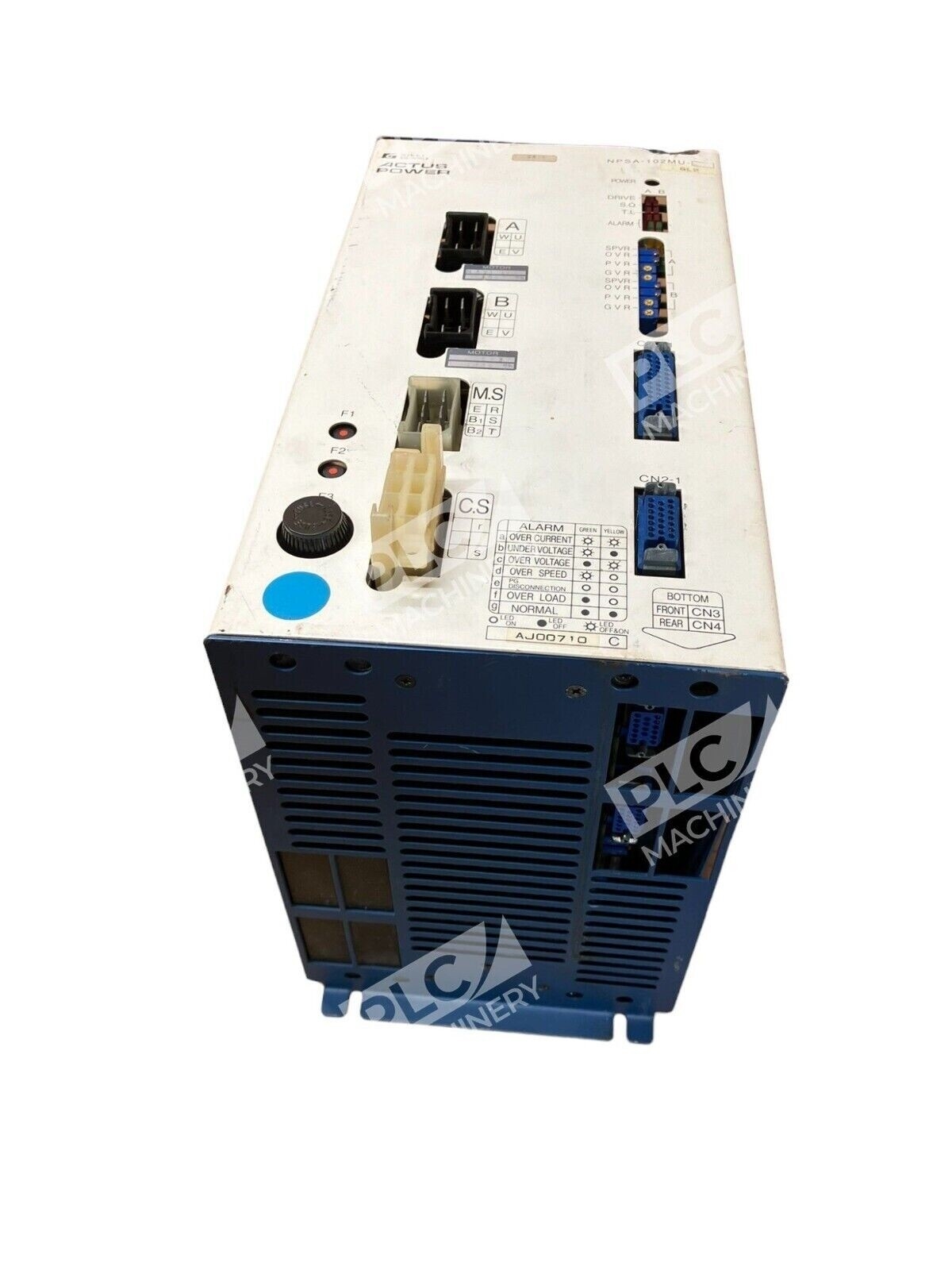

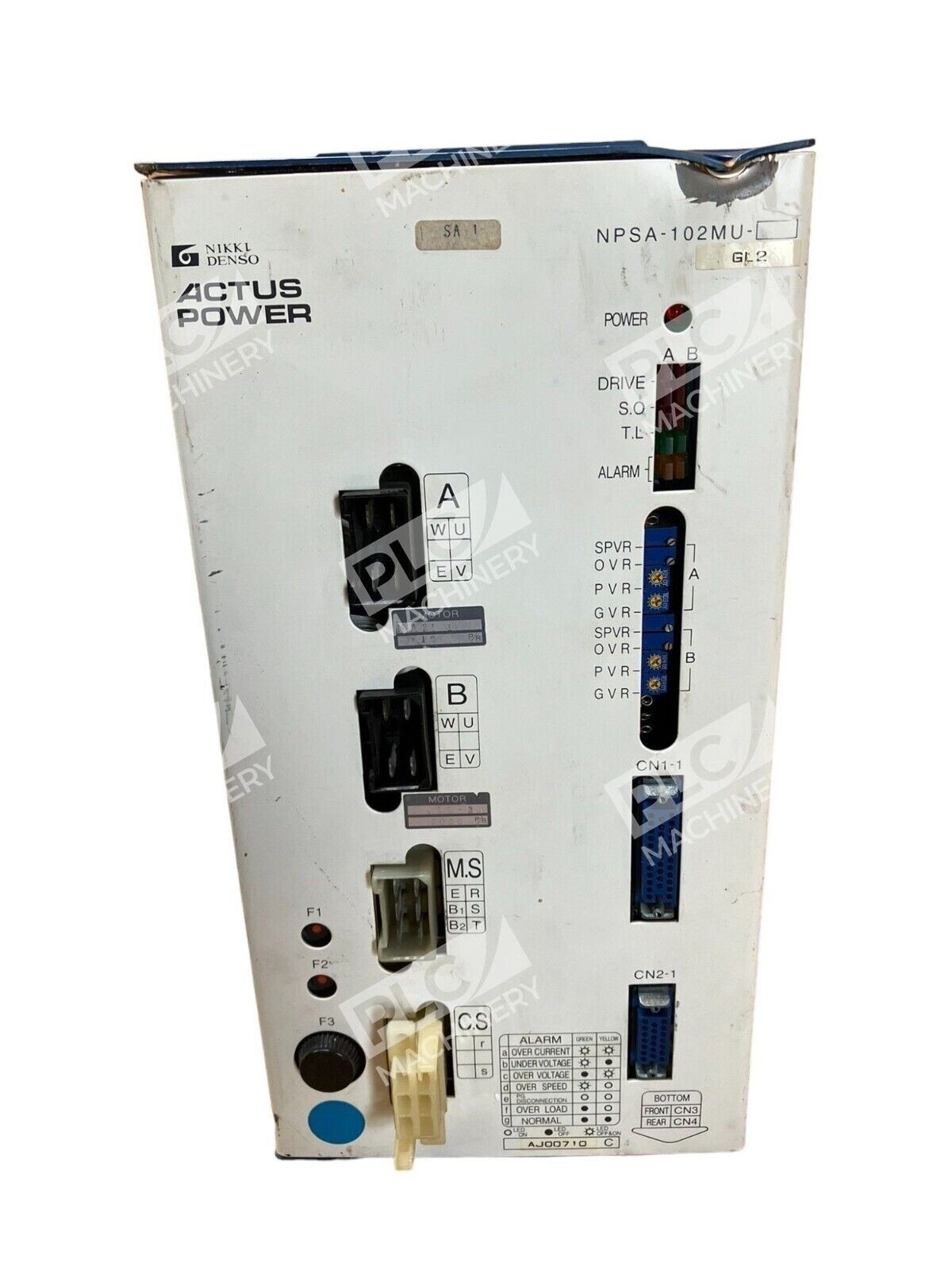

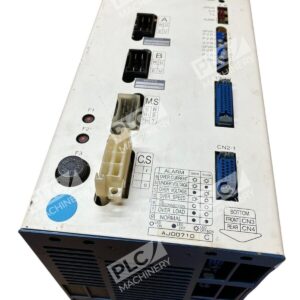

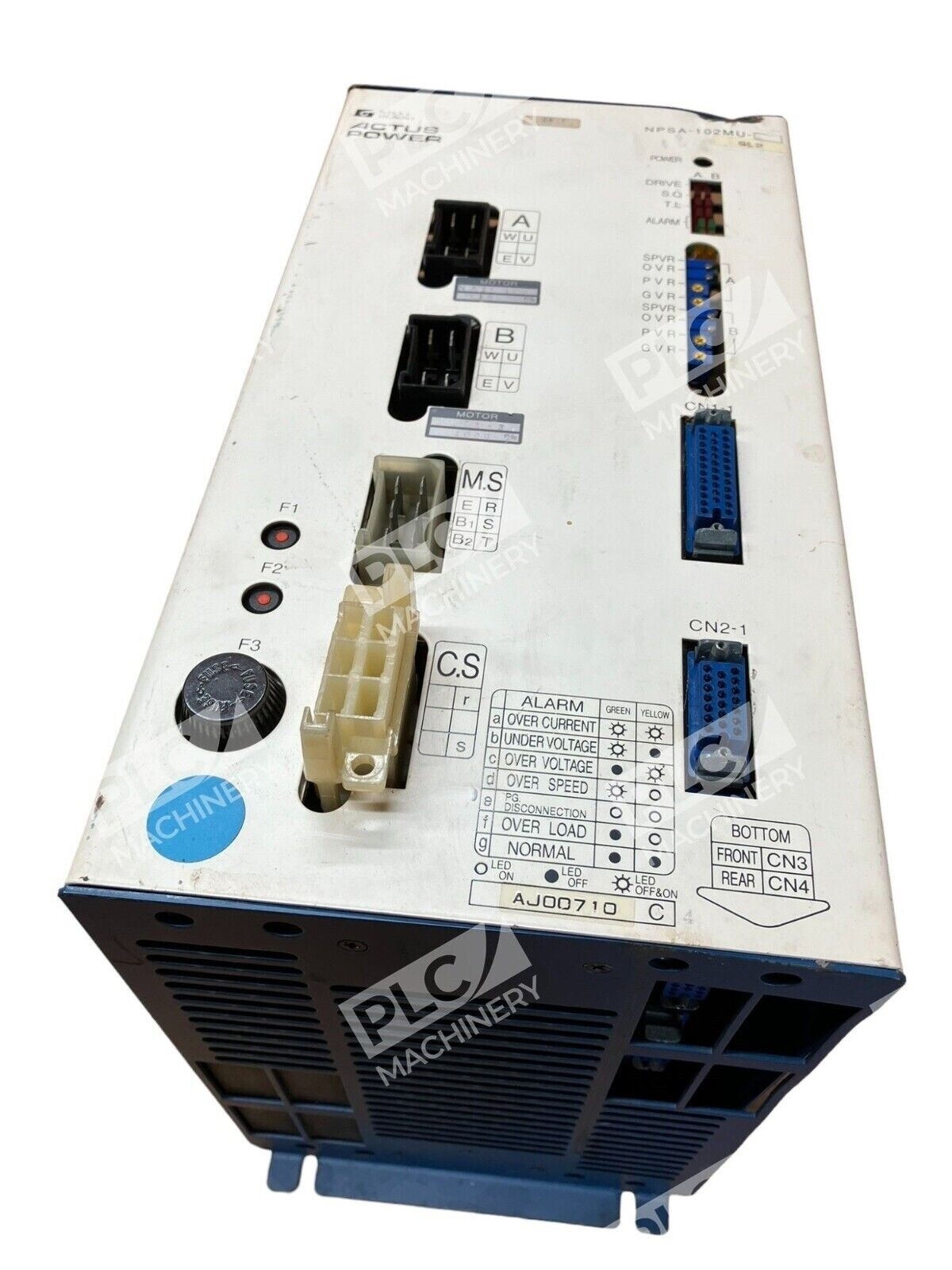

The Nikki Denso NPSA-102MU-GL2 is a dual-axis AC servo controller from the Actus Power series, engineered for accurate motion control in industrial applications. This servo drive operates on 200/220 VAC single or three-phase input at 50/60 Hz and is housed in a compact rack-mount chassis. The unit provides smooth, responsive control over servo motors with programmable parameters for speed, acceleration, and position feedback, making it ideal for machine tools, packaging machinery, and automation systems requiring precise repeatability.
Key Features
- Dual-axis servo control for coordinated multi-motor applications
- 200/220 VAC input at 50/60 Hz operation
- Continuous current rating of 1.33 A per axis with 4.88 A peak capacity
- Rack-mount form factor for integration into control panels
- Compact design suitable for space-constrained installations
- Compatible with Nikki Denso servo motors and standard automation networks
Technical Specifications
- Input Voltage: 200/220 VAC at 50/60 Hz
- Configuration: Dual-axis servo controller
- Continuous Current per Axis: 1.33 A
- Peak Current per Axis: 4.88 A
- Mounting: Rack-mount chassis
- Series: Actus Power NPSA
- Manufacturer: Nikki Denso (CKD Nikki Denso Co., Ltd.)
Typical Applications
- CNC machine tool spindle and axis control
- Packaging machinery with synchronized dual-axis positioning
- Textile and printing equipment servo drives
- Assembly line automation requiring precise speed control
- Industrial machinery requiring coordinated multi-motor operation
- Custom automation systems with retrofit servo requirements
Compatibility & Replacements
Compatible With
- Nikki Denso servo motors and encoder feedback systems
- Standard industrial AC power distribution (200/220V, 50/60 Hz)
- Rack-mount control panel layouts
- Industrial automation and machine control systems
- Mechanical and electrical servo applications requiring AC input
Replaces / Drop-In Replacement For
- Other NPSA-102MU variants (NPSA-102MU-E9BS, NPSA-102MU-E9CS with similar electrical specifications)
- Similar Nikki Denso Actus Power servo controllers in the NPSA-10 frame size
Works With
- Nikki Denso AC servo motors (standard coupling to servo encoders)
- Relay logic and PLC-controlled automation systems
- Standard industrial three-phase or single-phase AC mains
- Mechanical load feedback via servo encoder inputs
- Control systems requiring programmable servo parameters
