Newport Precision Linear Translation Stage M-423

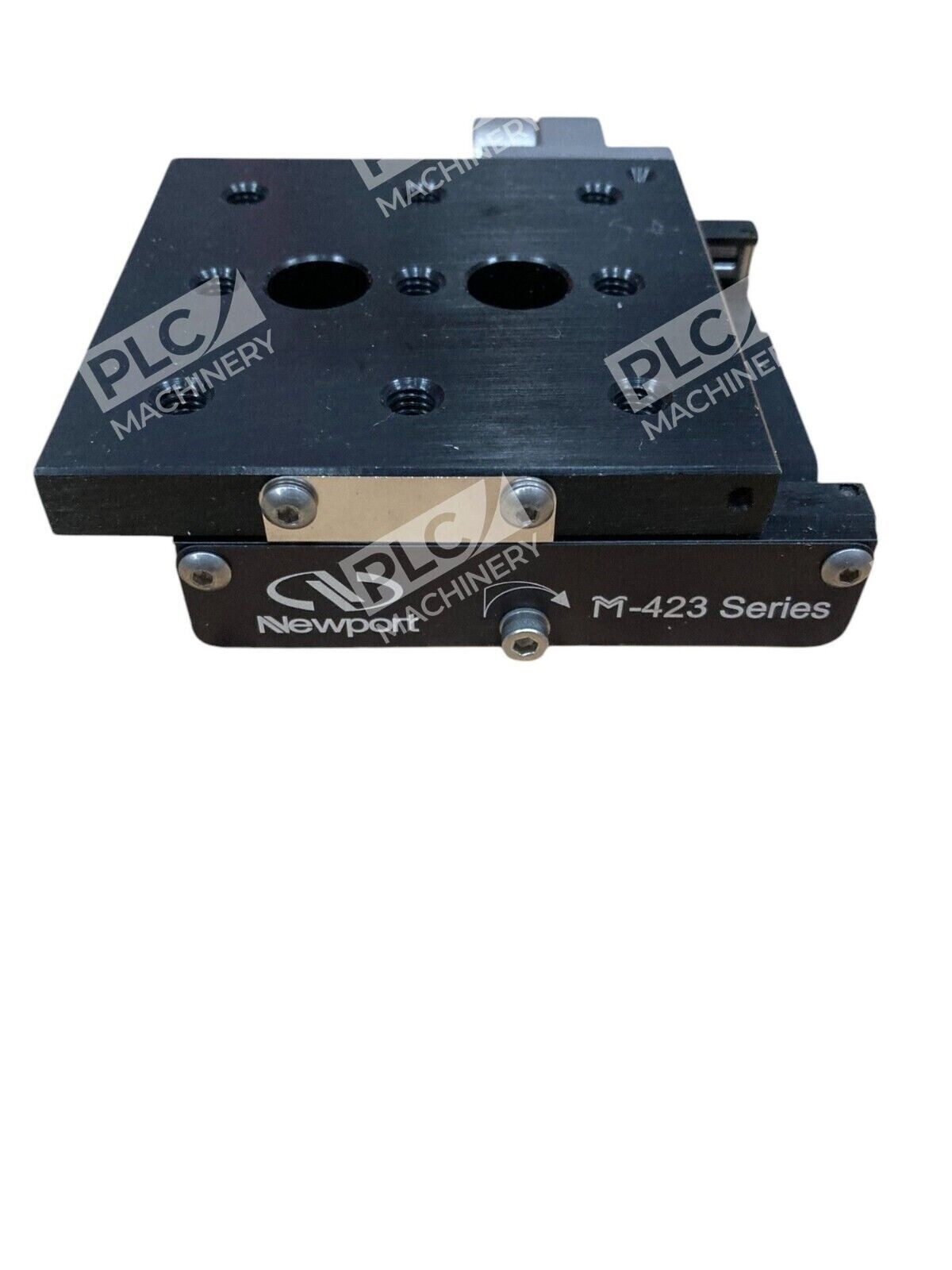

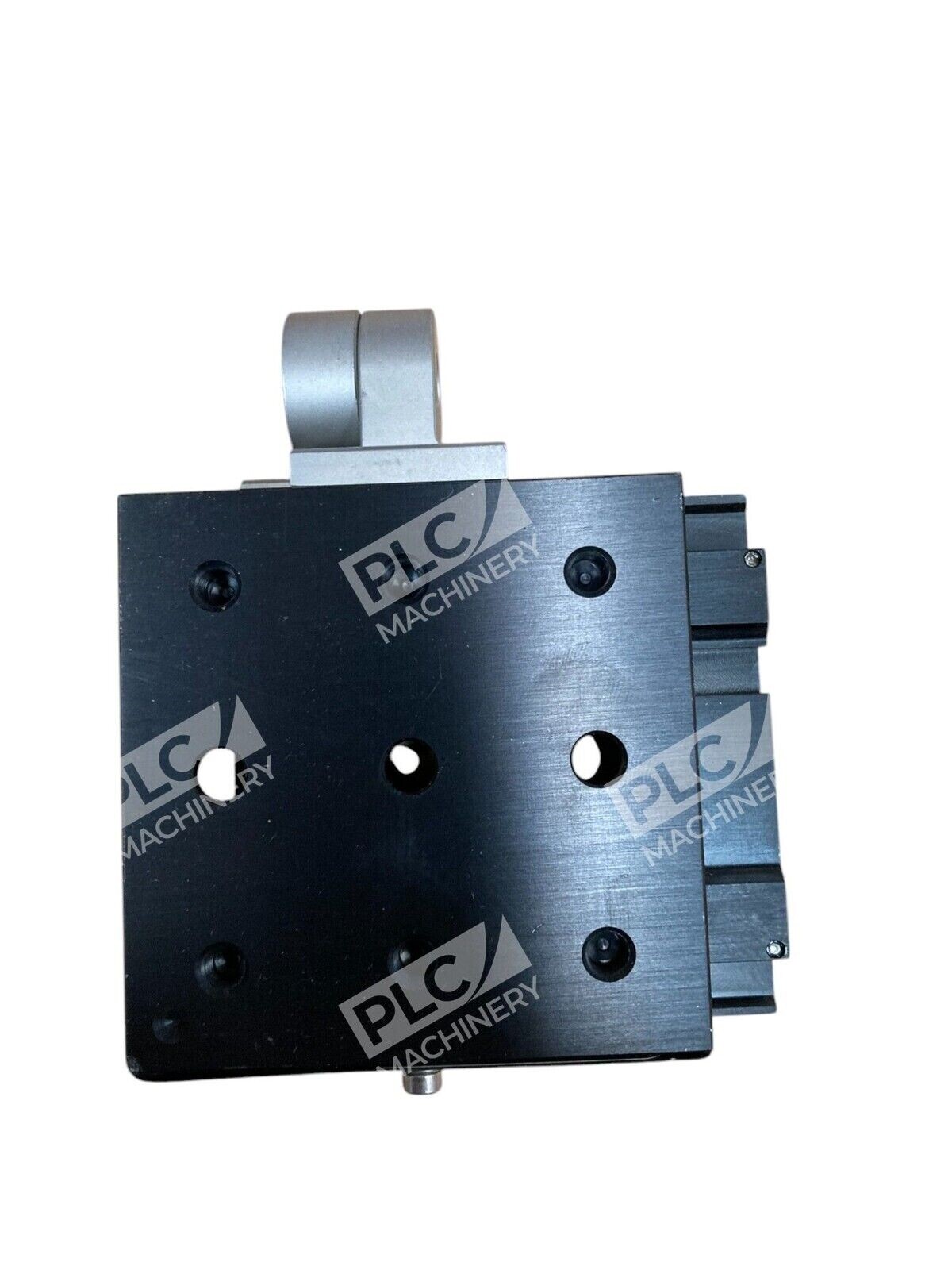

The Newport M-423 Precision Linear Translation Stage is a high-performance, low-profile solution designed for precise linear positioning applications. Its robust construction and versatile features make it ideal for a wide range of scientific and industrial uses.

Key Features

• Precision Ball Bearing Construction: Utilizes single-row ball bearings that roll between hardened and polished stainless steel rods, ensuring smooth and accurate linear motion with angular deviation less than 200 µrad.
• Extended Travel Range: Offers a maximum travel distance of 25 mm, accommodating various positioning requirements.
• High Load Capacity: Supports a centered normal load capacity of up to 156 N, providing stability for substantial loads.
• Versatile Actuator Compatibility: Compatible with multiple actuators, including the SM-25 micrometer for full-range travel and the SM-13 micrometer for shorter adjustments. Actuator mounting blocks can be repositioned to suit different drive lengths.
• Reconfigurable Design: Symmetrical features allow for easy reconfiguration between left-handed and right-handed operations, enhancing adaptability in various setups.
• Non-Influencing Lock: Incorporates a locking mechanism that secures the stage position without affecting alignment, preventing unintended adjustments.
• Stackable for Multi-Axis Systems: Designed to be easily configured into multi-axis stage stacks, facilitating complex motion setups.

Specifications

• Axes of Travel: X
• Maximum Stage Travel: 25 mm
• Centered Normal Load Capacity: 156 N
• Vertical Axial Load Capacity: 67 N
• Angular Deviation: <200 µrad
• Material: Aluminum
• Bearings: Single-Row Ball Bearings
• Drive Location: Side drive
• Platform Size: 76.2 x 76.2 mm
• Weight: 445 g
• Thread Type: M6
• Recommended Adjustment Screw: AJS100-1
• Recommended Vernier Micrometer: SM-25
• Recommended DM Differential Micrometer: DM-25L
• Recommended Digital Micrometer: DMH-1
• Recommended TRA Motorized Actuator: TRA25CC or TRA25PPD
• Recommended TRB Motorized Actuator: TRB25CC or TRB25PPD
• Recommended LTA Motorized Actuator: LTA-HS

The Newport M-423 Precision Linear Translation Stage combines precision, versatility, and durability, making it an excellent choice for applications requiring accurate linear positioning.
