Overview

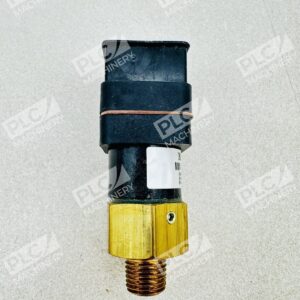

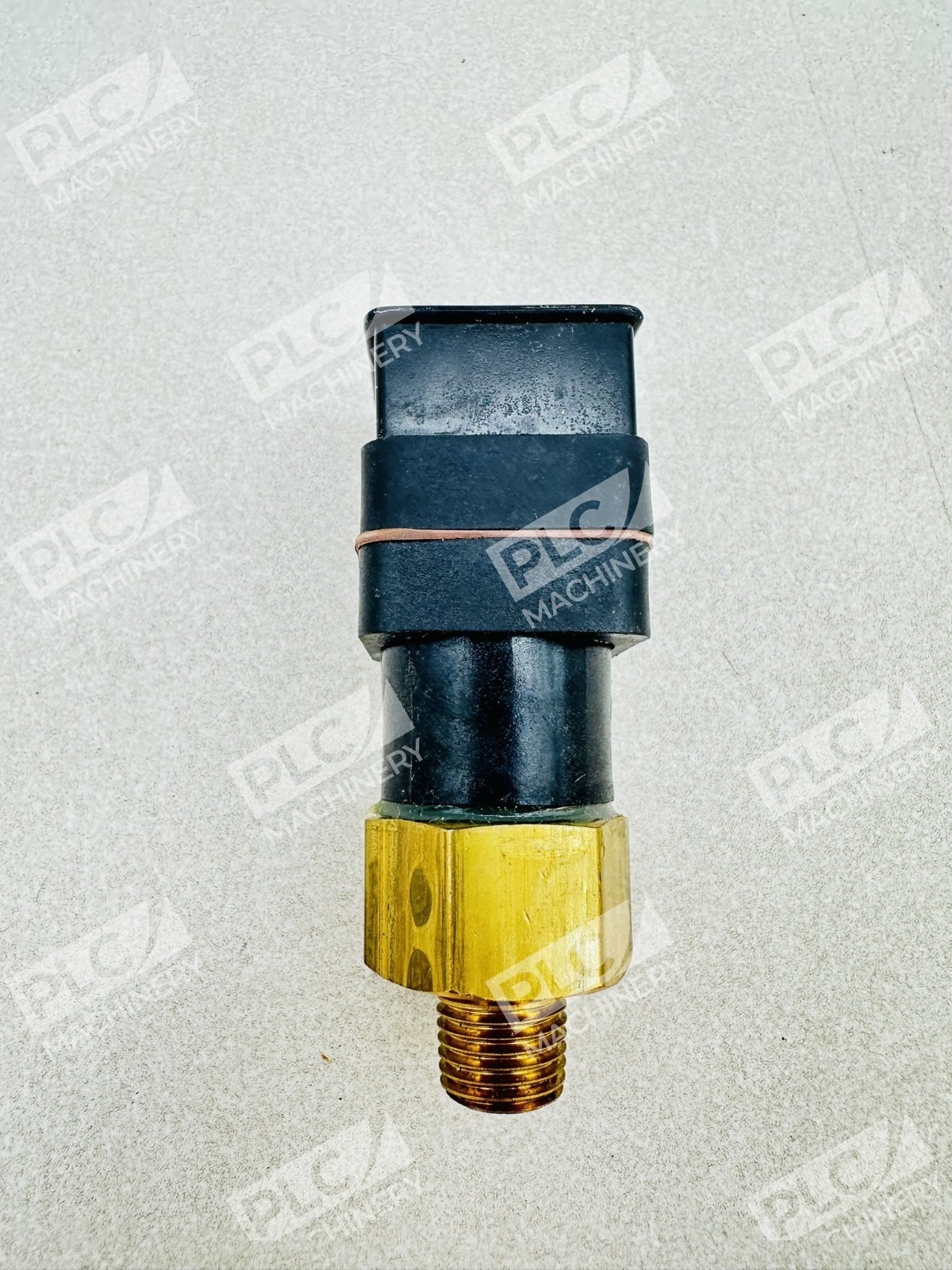

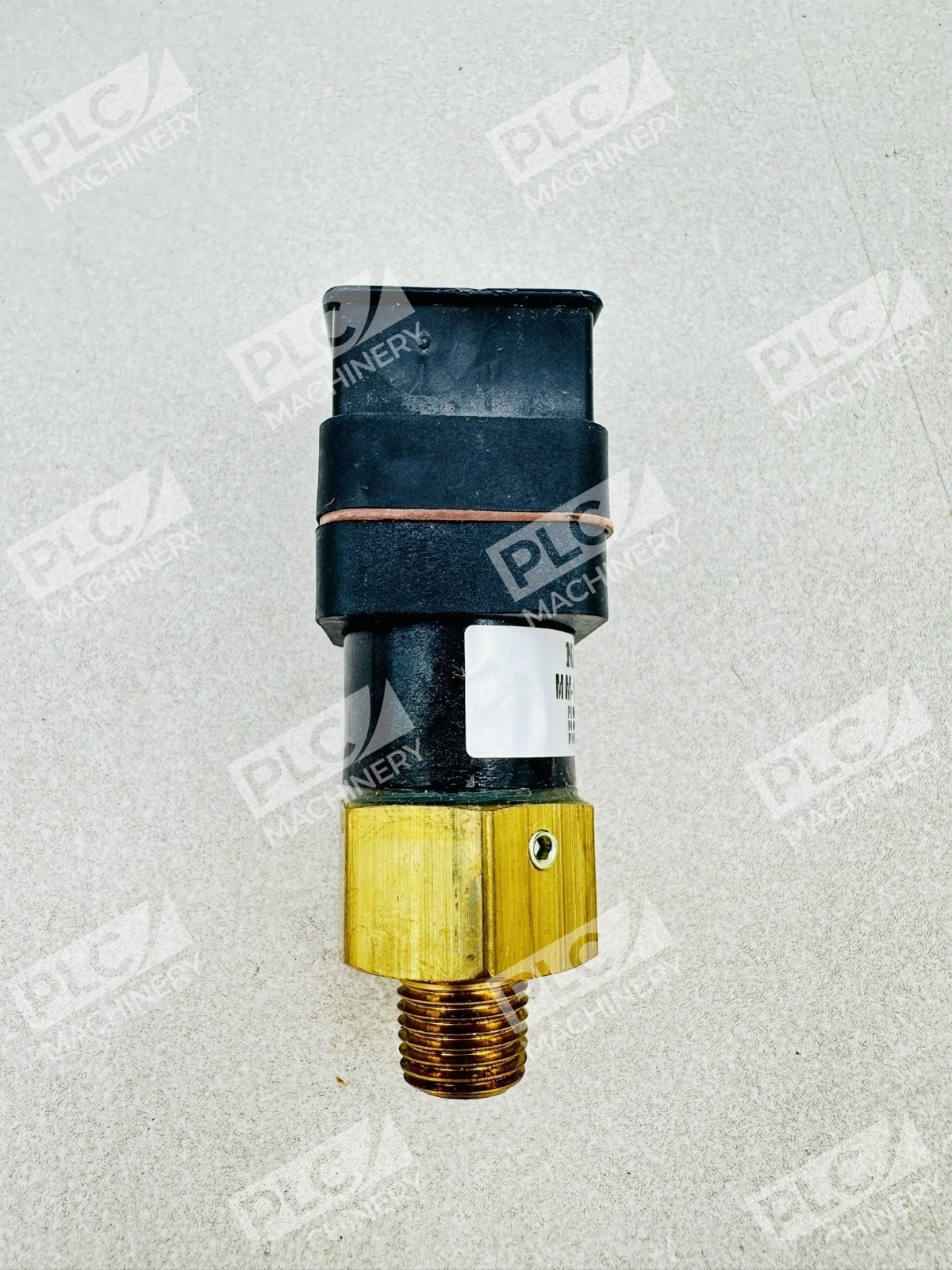

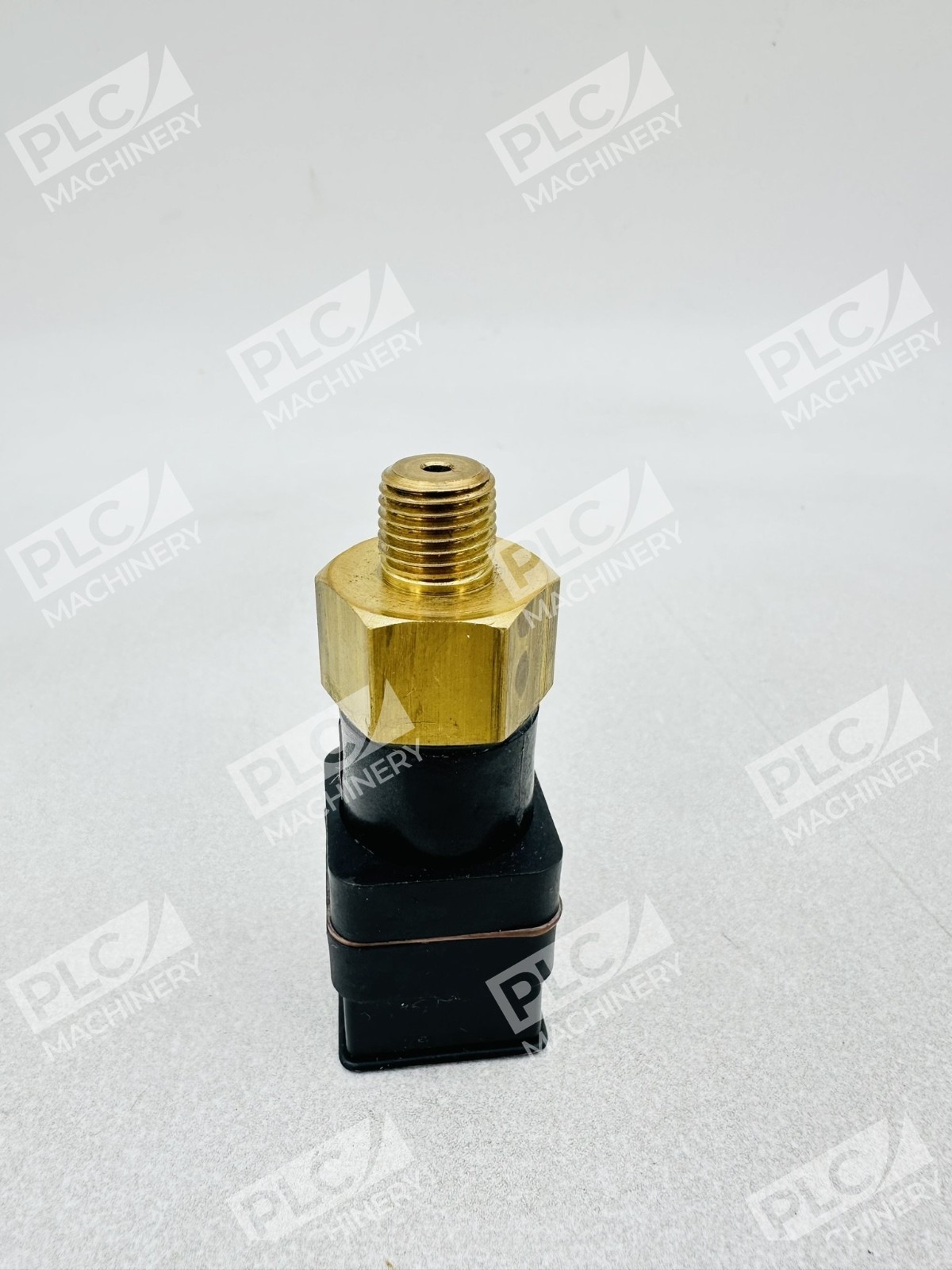

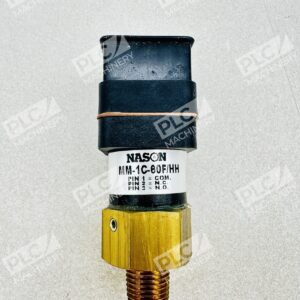

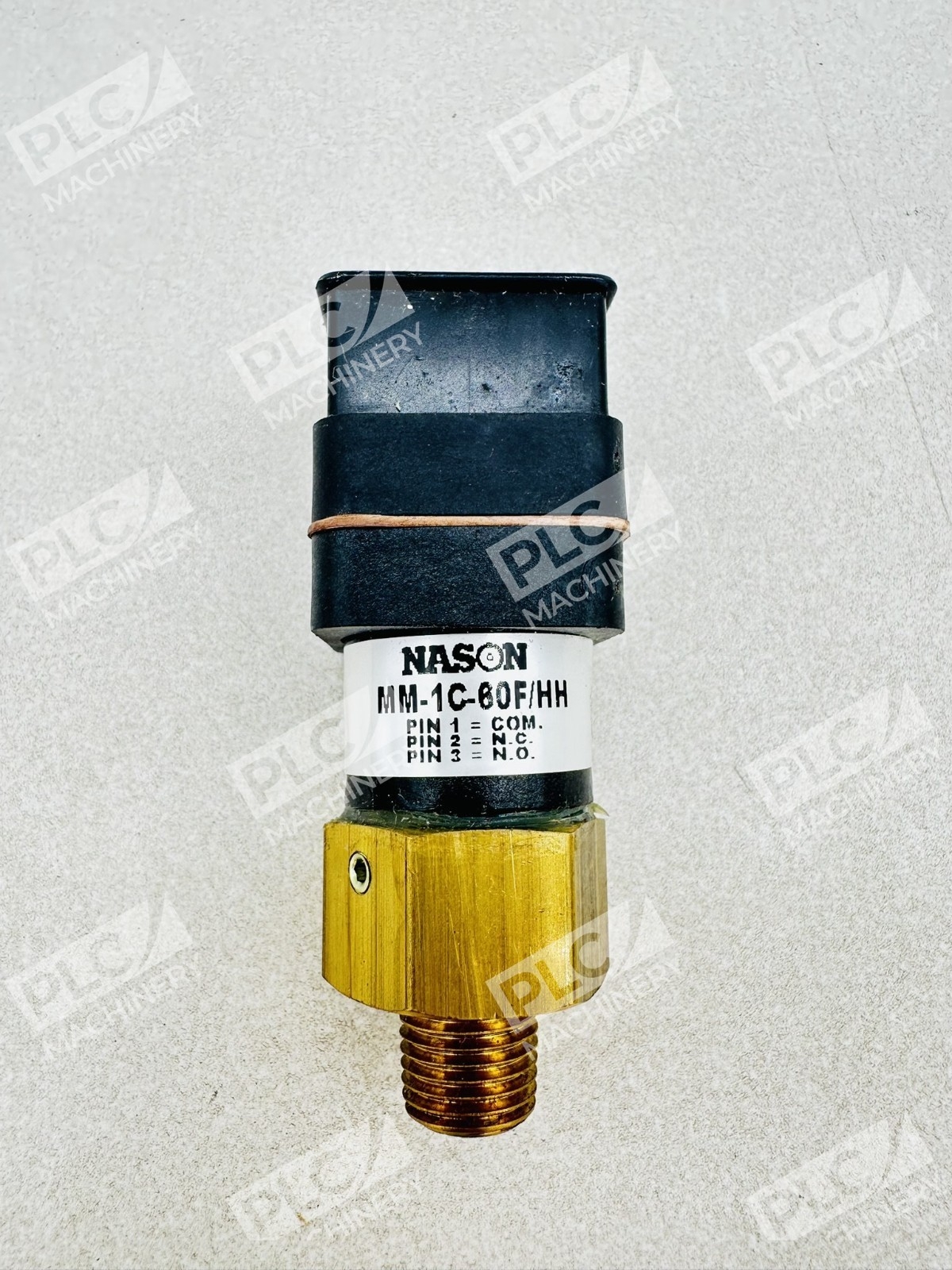

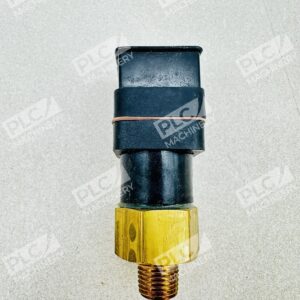

The Nason MM-1C-60F/HH pressure switch is a reliable low-pressure sensing and control device designed for industrial pneumatic and hydraulic applications. This lot includes two identical units, each featuring a 60 PSI falling set point configuration with SPDT (Single Pole Double Throw) contact output. The Nason MM-1C-60F/HH delivers consistent, accurate pressure monitoring and switching for equipment protection and process control in manufacturing, automotive, and general industrial environments.
Key Features
- 60 PSI Rating: Falling set point design for precise pressure cutoff and system protection
- SPDT Contact Configuration: Single pole double throw allows flexible circuit integration for open or closed loop control
- 1/4 Inch NPT Male Connection: Standard thread size compatible with most pneumatic and hydraulic manifolds
- Compact Design: 2-inch face diameter with 1/8-inch connection port minimizes installation footprint
- Two-Unit Lot: Redundancy and backup for critical systems or multi-station setups
- Industrial-Grade Construction: Nason manufacturing heritage ensures durability and long service life
Technical Specifications
- Pressure Rating: 60 PSI (4.1 bar)
- Set Point Type: Falling
- Contact Configuration: SPDT (Single Pole Double Throw)
- Connection Thread: 1/4 Inch NPT, Male
- Connection Diameter: 1/8 Inch
- Face Diameter: 2 Inches (50.8 mm)
- Weight: 1.0 lb per unit
- Fluid Medium: Pneumatic and Hydraulic Air
- Switch Type: Low Pressure
- Quantity: 2 Units
Typical Applications
The Nason MM-1C-60F/HH pressure switch suits a wide range of industrial control scenarios:
- Pneumatic System Control: Compressor load/unload switching and pressure relief integration
- Hydraulic Equipment Protection: System overpressure warning and shutdown circuits
- Manufacturing Automation: Air-powered actuator control and pressure validation on production lines
- Emergency Shutdown: Low-pressure cutoff to protect machinery from damage due to loss of air or fluid supply
- Dual-Unit Redundancy: Primary and backup switching in critical process applications requiring high availability
Compatibility & Replacements
Compatible With
- Pneumatic and hydraulic manifolds with 1/4 inch NPT ports
- Low-pressure air and fluid systems rated up to 60 PSI
- Standard industrial control circuits and PLC I/O modules
- Pressure monitoring and safety systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment documentation before ordering. The Nason MM-1C-60F/HH is a direct equivalent for other 60 PSI SPDT falling set point pressure switches with matching 1/4 inch NPT connections from similar manufacturers.
Works With
- Standard 24 VDC and 120 VAC control circuits
- Electro-pneumatic and electro-hydraulic valve control systems
- PLC and industrial controller inputs (SPDT contact closure)
- Pressure gauge assemblies and manifold blocks
- Relay modules and solid-state switching devices
