Overview

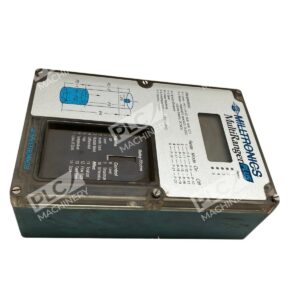

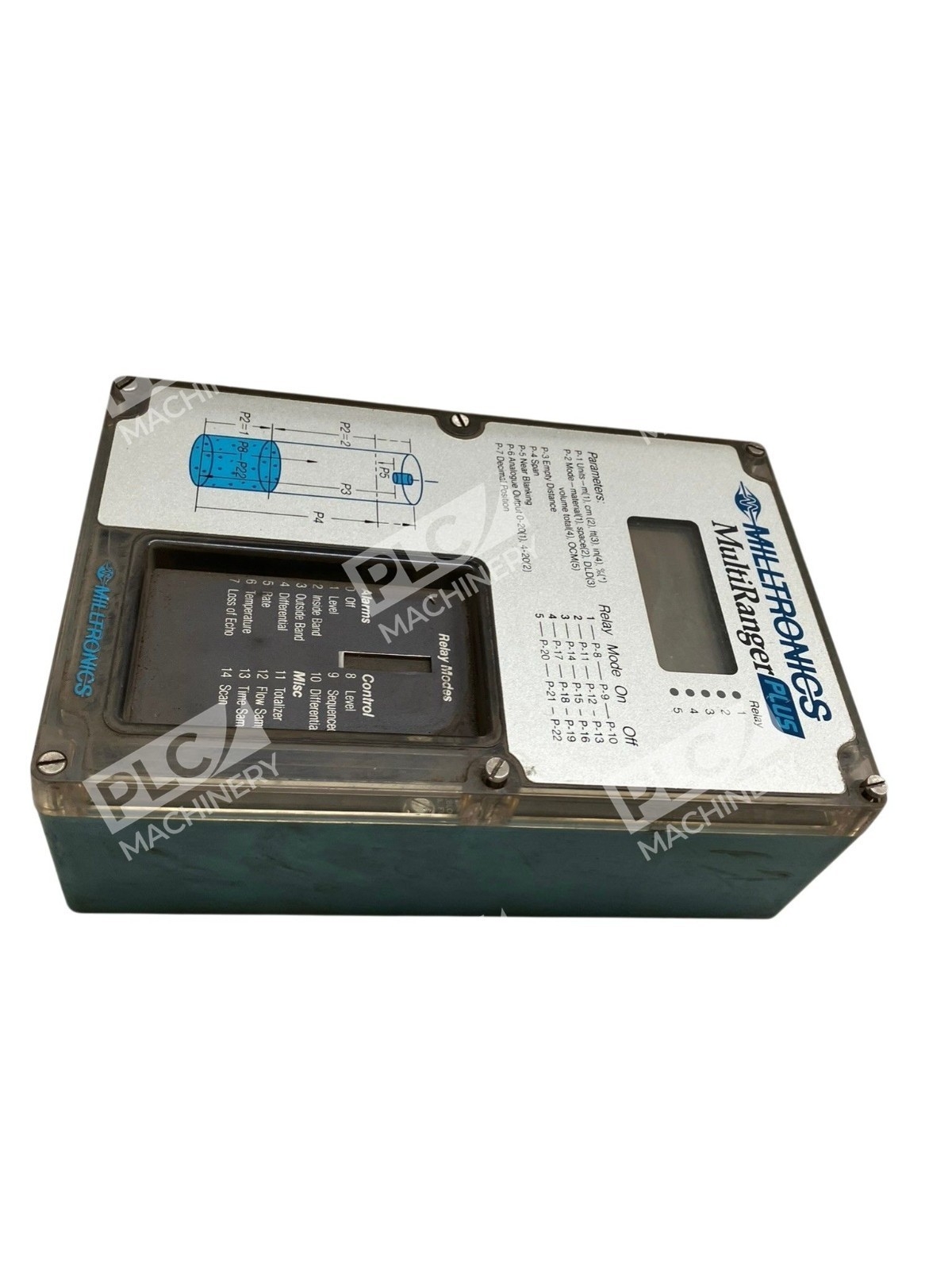

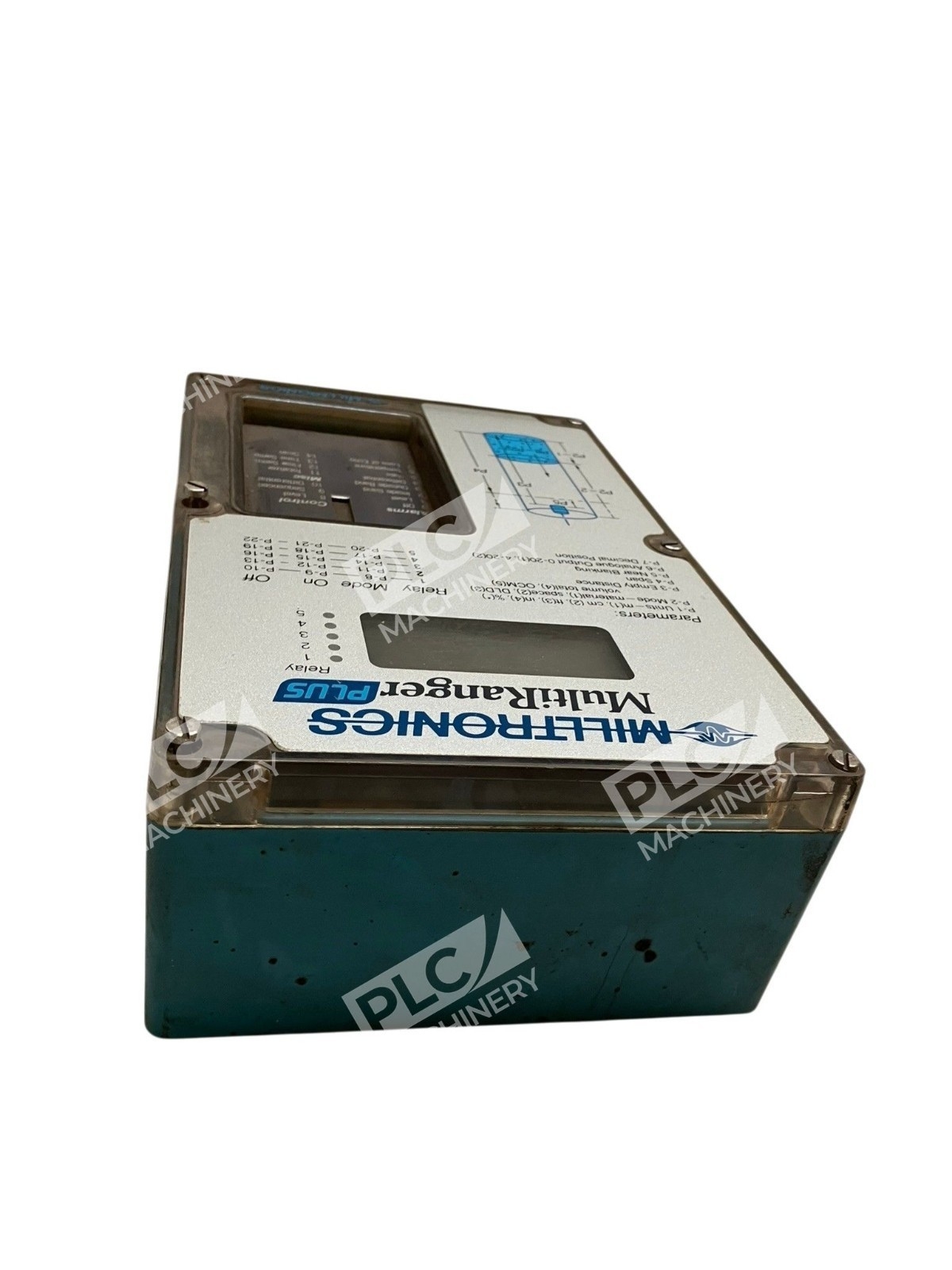

The Milltronics MultiRanger Plus is an ultrasonic level monitor and controller engineered for accurate measurement and control across diverse industrial applications. This programmable system provides single or dual-point level measurement with advanced echo processing and temperature compensation. The MultiRanger Plus supports multiple transducer types and operates with voltage inputs from 100 to 230 VAC at 50/60 Hz, making it adaptable to global installations.
Key Features
- Programmable dual-point or single-point level measurement
- Advanced Sonic Intelligence echo-processing for reliable readings in agitated or noisy environments
- Modbus RTU digital communications via RS-485 for SCADA integration
- Configurable relay outputs (typically 3 to 6 Form A/C relays) for alarm and pump control
- Full temperature compensation with integral temperature sensor
- Compatible with multiple transducers including XRS-5, ST-H, XPS-10, XPS-15, XCT-8, and XCT-12
Technical Specifications
- Manufacturer: Milltronics (Siemens)
- Product Type: Ultrasonic Level Monitor/Controller
- Input Voltage: 100–230 VAC, 50/60 Hz
- Measurement Range: 0.3 to 15 m (1 to 50 ft)
- Measurement Points: Single or dual-point configuration
- Output Relays: 3 relays (2 Form A, 1 Form C) or 6 relays (4 Form A, 2 Form C) depending on model
- Communications: Modbus RTU via RS-485
- Mounting: Wall-mount standard enclosure
- Operating Weight: Approximately 1.4 kg
- Approvals: CE, FM, CSA, UL, RCM, EAC, KCC
- Origin: Canada
Typical Applications
The MultiRanger Plus is widely deployed in water and wastewater treatment, chemical storage, fuel oil tanks, aggregate processing (hoppers, crushers), dry solids bins, and open-channel flow monitoring. Its short to medium-range ultrasonic signal and configurable alarming make it ideal for pump control, level alarming, and flow measurement in hostile or dusty environments. The system’s ability to handle high-temperature transducers (up to 145°C) and chemically resistant options extends its use in refineries, food processing, and pharmaceutical facilities.
Compatibility & Replacements
Compatible With
- XRS-5 ultrasonic transducers
- ST-H ultrasonic transducers
- XPS-10 and XPS-15 transducers
- XCT-8 and XCT-12 transducers
- Echomax chemical-resistant transducers
- SCADA systems via Modbus RTU RS-485
- Dolphin Plus configuration software
- SIMATIC PDM (Siemens process device manager)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The MultiRanger Plus is the successor to earlier Milltronics level systems and is compatible with standard Siemens ultrasonic transducer installations requiring single or dual-point measurement with relay-based control.
Works With
- Modbus RTU protocol over RS-485
- Siemens SIMATIC automation platforms
- Generic PLC systems via standard relay outputs
- Dolphin Plus and SIMATIC PDM for programming and commissioning
- Standard wall-mounted control enclosures and panel installations
