Overview
The Mule MXBRU LED exit sign is part of Mule Lighting’s MX Series, engineered for reliable emergency illumination in commercial, industrial, and institutional facilities. The MX Series combines an ultra-slim polycarbonate housing and dependable Mule LED performance to give you a versatile all-in-one design. Made from an ultra-slim polycarbonate housing, the exit sign installs using Mule’s unique Snap-Inâ„¢ design that requires no tools. It comes with a second face plate and included chevron directional indicators can be easily removed or reinserted as necessary.
Key Features
- Energy-Efficient LED: Signs consume less than 4 watts for low operating cost and extended lamp life
- Battery Backup: Standard battery will operate sign for a minimum of 90 minutes in the event of a power outage
- Code Compliant: The MX Series of LED exit signs by Mule Lighting meet all necessary code compliances, including NFPA 101 Life Safety Code, OSHA and NEC.
- Durable Construction: Injection molded, engineering-grade, UV-stable thermoplastic with UL94V-0 flame rating; impact, scratch, fade and corrosion-resistant
- Universal Design: Single or double face capability with included second face plate
- Simple Installation: Installation is accomplished in minutes with tool-less, Snap-Inâ„¢ design.
Technical Specifications
- Input Voltage: 120/277 VAC
- Power Consumption: Less than 4 watts
- LED Color: Red letters
- Battery Type: Nickel Cadmium (NiCad)
- Battery Runtime: Minimum 90 minutes (full discharge)
- Housing Material: Engineering-grade UV-stable thermoplastic with polycarbonate construction
- Flame Rating: UL94V-0
- Dimensions: 12 inches long × 1.5 inches wide × 7.5 inches high
- Weight: Approximately 4 lbs

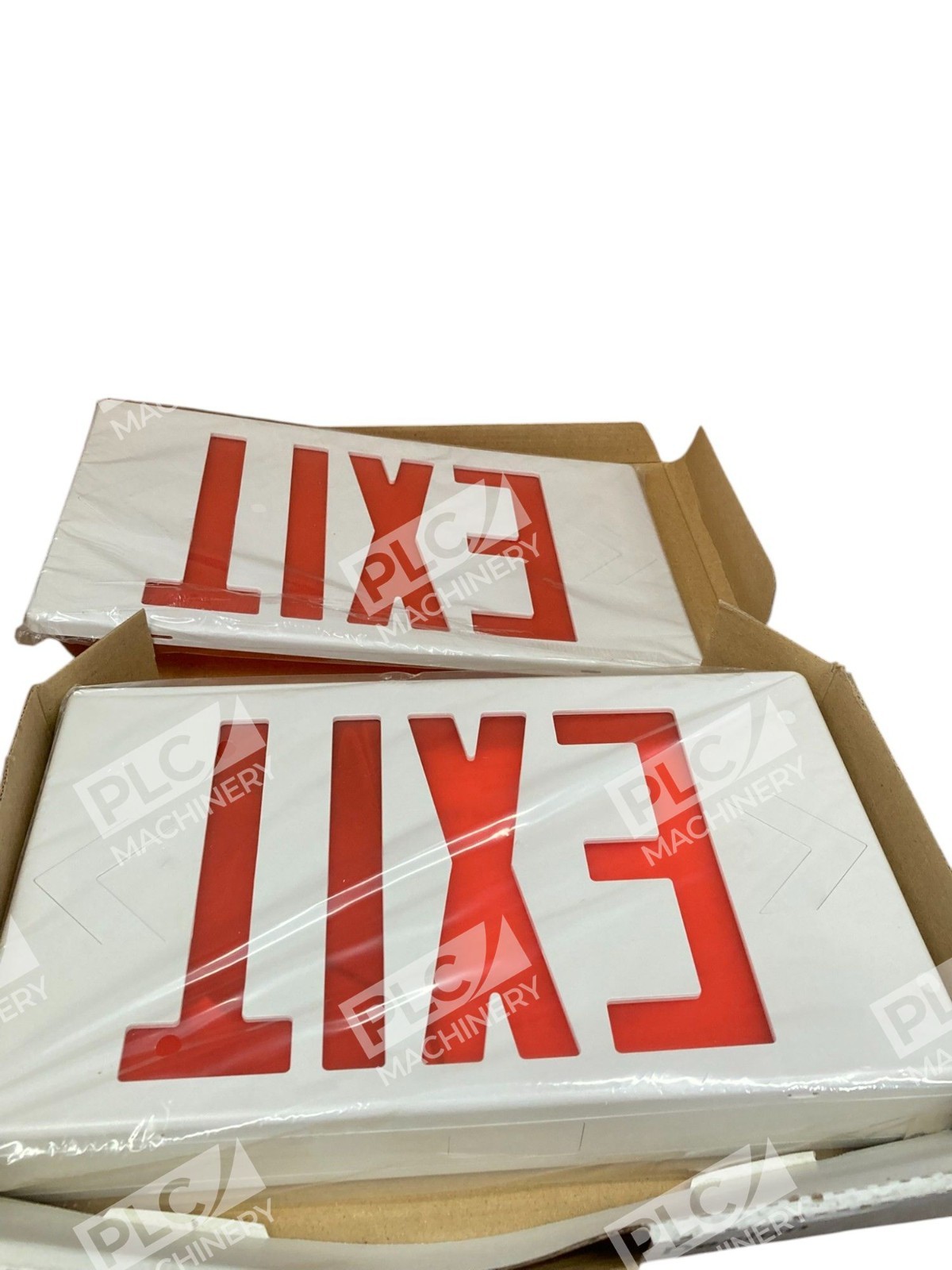

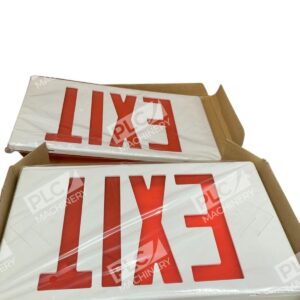

- Face Options: Single or double face (includes second face plate)
- Mounting: Universal, wall-mounted
- Control Features: AC power indicator, test switch
- Finish: White or black textured options
- Series: MX Series
Typical Applications
The MX Series combines an ultra-slim polycarbonate housing and this truly universal exit sign includes the canopy and extra faces for any application. Common installations include:
- Emergency exits in commercial office buildings
- Industrial manufacturing facilities and warehouses
- Educational institutions and hospitals
- Retail and hospitality environments
- Indoor and damp-location applications
- High-traffic corridors and stairwells
Compatibility & Replacements
Compatible With
- Standard 120/277V AC power systems
- Building emergency lighting circuits
- Code-required emergency lighting distribution
- UL and ETL listed installations
- Indoor and damp location environments per NEC standards
Replaces / Drop-In Replacement For

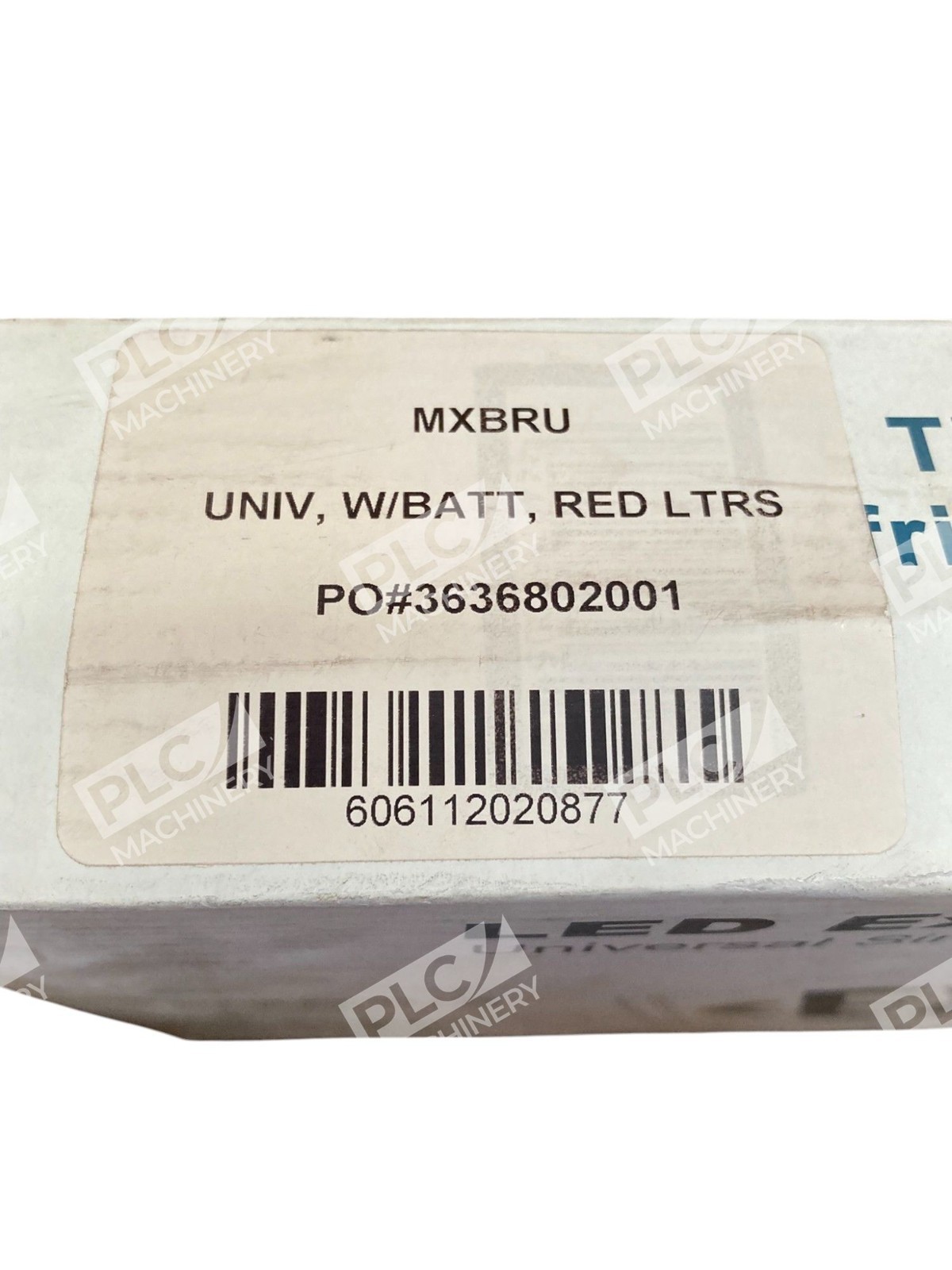

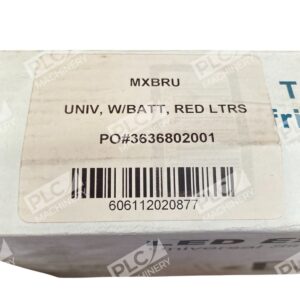

The MXBRU is the red-letter battery-backed variant of Mule’s universal MX Series platform. Related models in the series include MXBGU (green letters) and MXARU (AC-only, no battery). Verify compatibility with your specific facility requirements and local electrical code before ordering.
Works With
- Standard electrical branch circuits (120/277V)
- Emergency lighting distribution panels
- NFPA 101 Life Safety Code compliant systems
- NEC (National Electrical Code) installations
- OSHA-compliant emergency egress lighting
