Overview

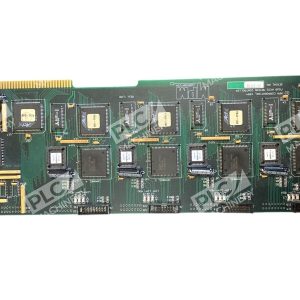

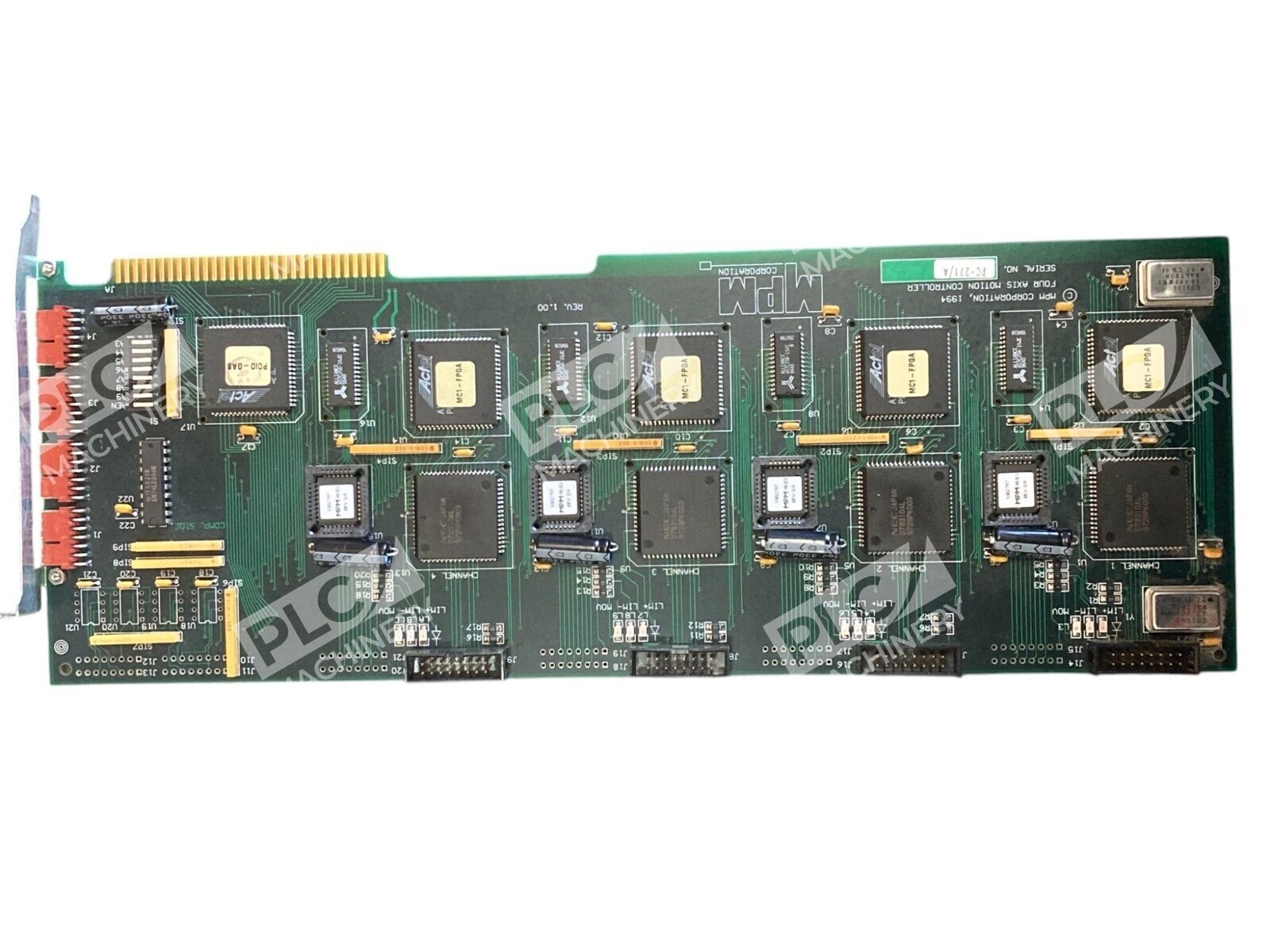

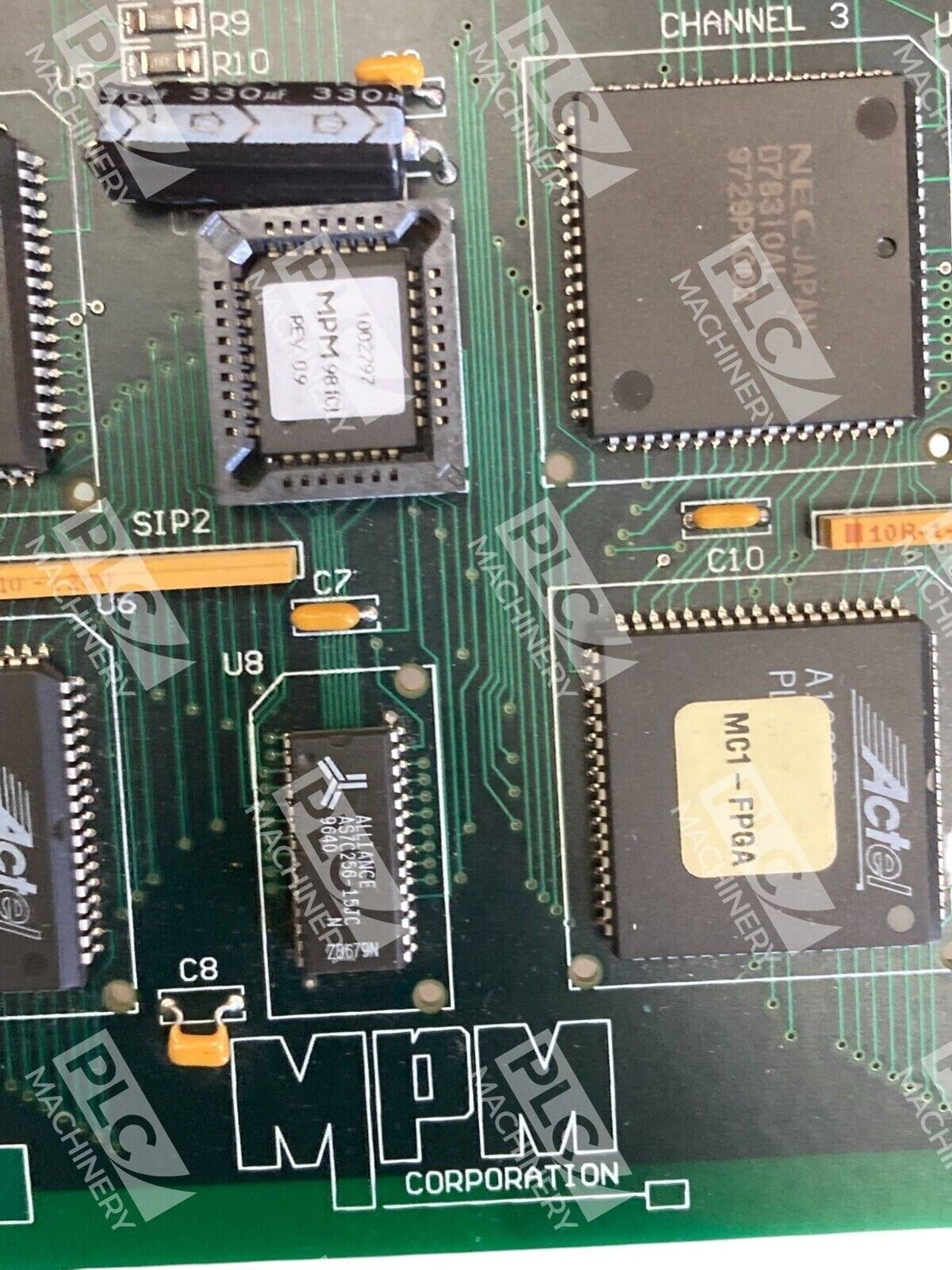

The MPM PC-271/A is a four-axis motion controller circuit board designed for precision motion control in industrial manufacturing equipment. This board provides coordinated control across four independent axes, enabling complex multi-axis positioning operations. Originally applied in high-speed PCB printers and similar equipment, the PC-271/A is a proven solution for applications requiring reliable, simultaneous motion across multiple axes.
Key Features
- Four independent axes of motion control capability
- Designed for use in PCB printers and manufacturing automation
- Supports coordinated multi-axis positioning operations
- Established control architecture for legacy industrial equipment
- Available in used condition with verified functionality
Technical Specifications

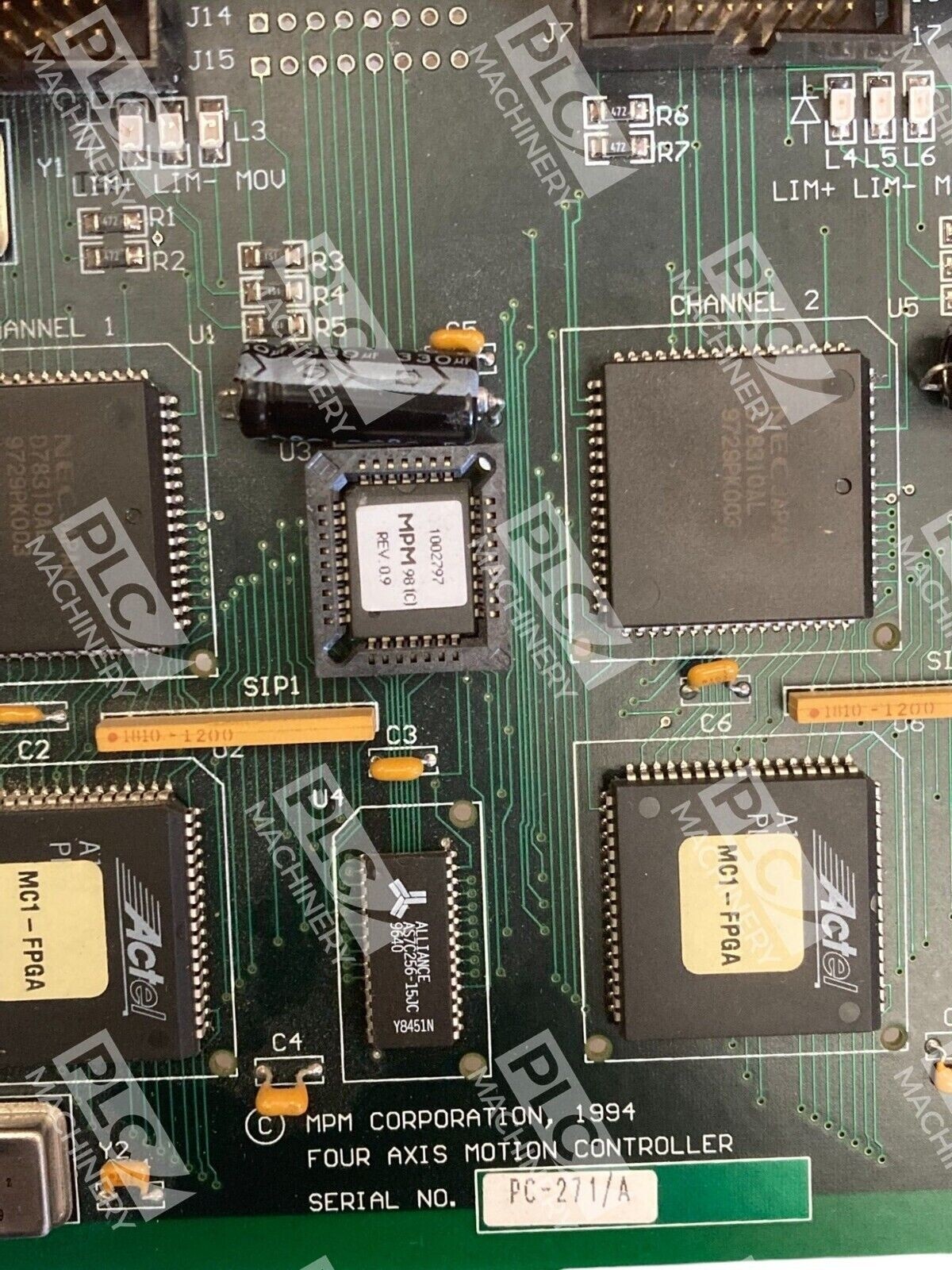

Limited detailed specifications are available from the original manufacturer. The board was produced in multiple revisions (e.g., REV 1.00) and carries the part number PC-271/A or variants such as PC-271/C. For specific electrical, communication, or interface requirements, consult equipment documentation or contact the system integrator familiar with your application.
Typical Applications
- PCB printer motion control systems
- Multi-axis positioning equipment
- Industrial assembly machinery
- CNC and precision manufacturing equipment
- Legacy automation system replacements
Compatibility & Replacements
Compatible With
- MPM Corporation equipment and legacy PCB printing systems
- Multi-axis motion control architectures requiring four independent channels
- Industrial automation systems using four-axis command protocols
Replaces / Drop-In Replacement For
The PC-271/A is direct replacement for MPM systems requiring the four-axis motion controller. Variant models such as PC-271/C and PC-271/8 exist in the same product family. Verify compatibility with your system integrator before ordering, as board revisions and hardware configurations may affect interchangeability.
Works With
- Legacy PCB printer control systems from the MPM platform
- Multi-axis stepper and servo drive interfaces
- Industrial motion control software compatible with four-axis command protocols
- Retrofitted automation systems requiring legacy motion controller boards
