Overview

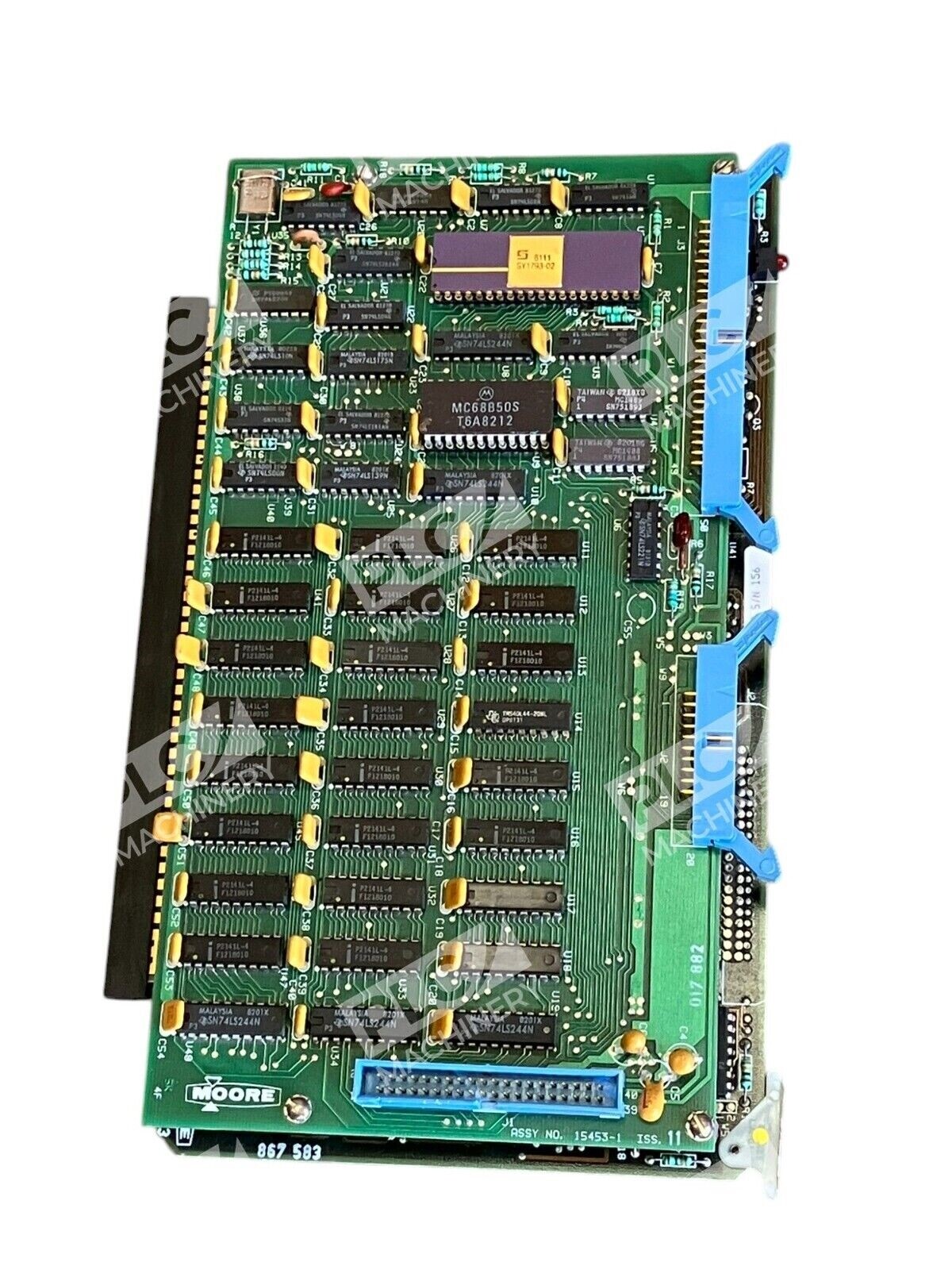

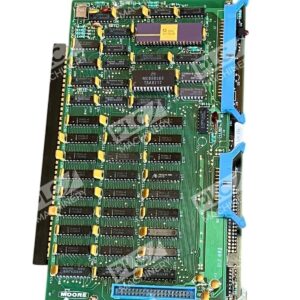

The Moore 15482-1 PLC PC Board is a printed circuit board module used in Moore industrial control systems. This board functions as a core component in distributed control architectures, designed for reliable operation in manufacturing and process automation environments. The Moore 15482-1 features BDB (Baud Digitized Bus) technology for inter-module communication within Moore PLC platforms.
Key Features
- BDB (Baud Digitized Bus) PCB architecture for Moore PLC systems
- Paired with top card module 15510-1 for complete functionality
- Compact form factor suitable for tight cabinet installations
- Industrial-grade construction for harsh environments
- Compatible with legacy Moore automation equipment
Technical Specifications
- Dimensions: Approximately 10″ L × 6″ W × 1.5″ H
- Top Card: 15510-1

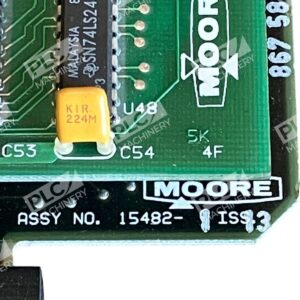

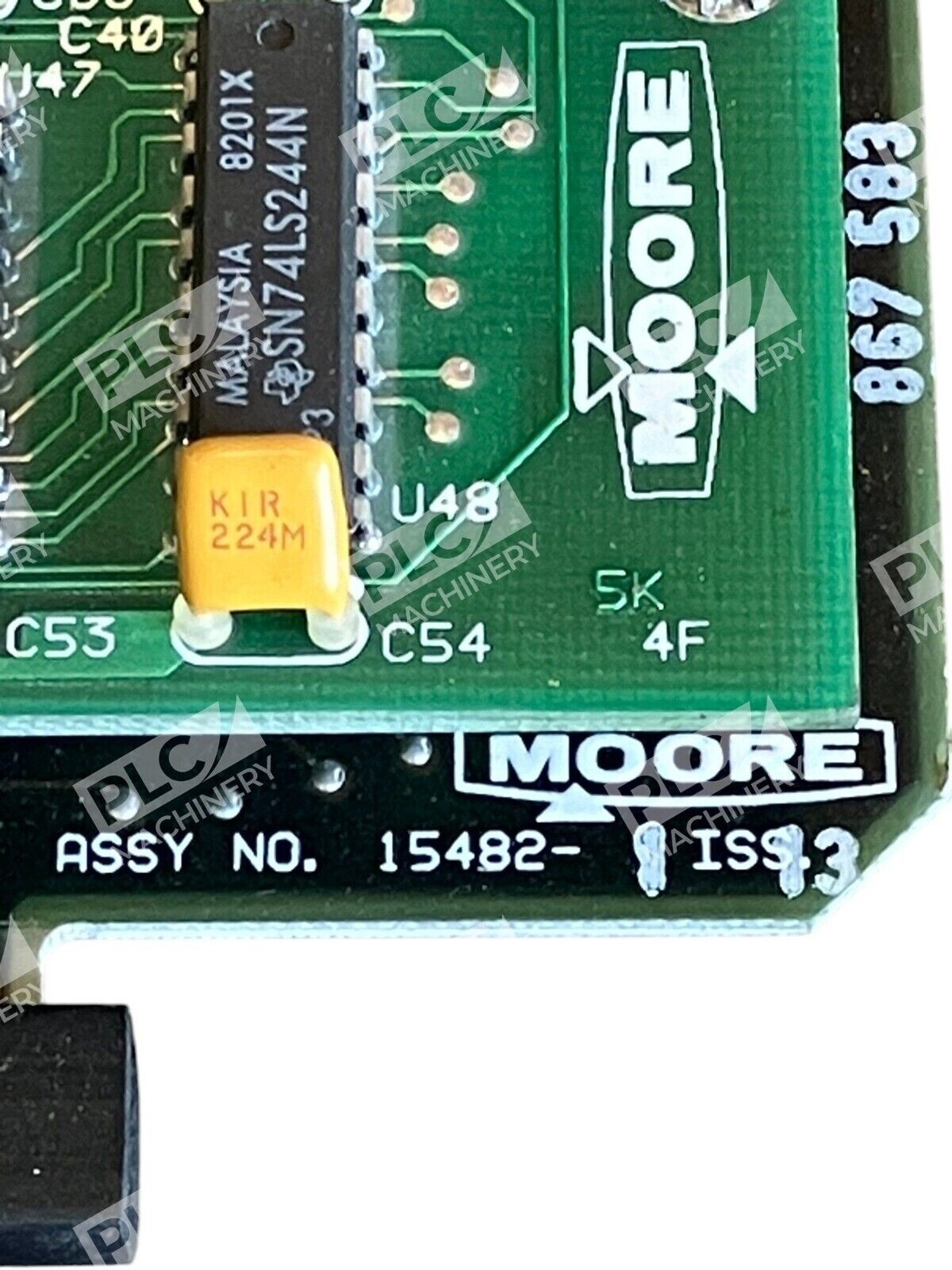

- Bottom Card: 15482-1
- Type: Printed Circuit Board (PCB)
- Technology: BDB (Baud Digitized Bus)
- Category: PLC/Machine Control Board
Typical Applications
The Moore 15482-1 is deployed in:
- Legacy Moore PLC control systems requiring board-level replacement
- Industrial automation and process control
- Batch and continuous manufacturing environments
- Distributed control architectures
- Equipment upgrades and maintenance on discontinued systems
Compatibility & Replacements
Compatible With
- Moore PLC systems using BDB architecture
- Moore 15510-1 top card module
- Legacy Moore distributed control platforms
Replaces / Drop-In Replacement For
- Original equipment Moore 15482-1 boards in legacy systems
- Applications requiring Moore BDB PCB modules
Works With
- Moore automation platforms from the 1980s–2000s era
- BDB-based distributed I/O and control networks
- System integrators specializing in legacy Moore equipment maintenance
