Overview

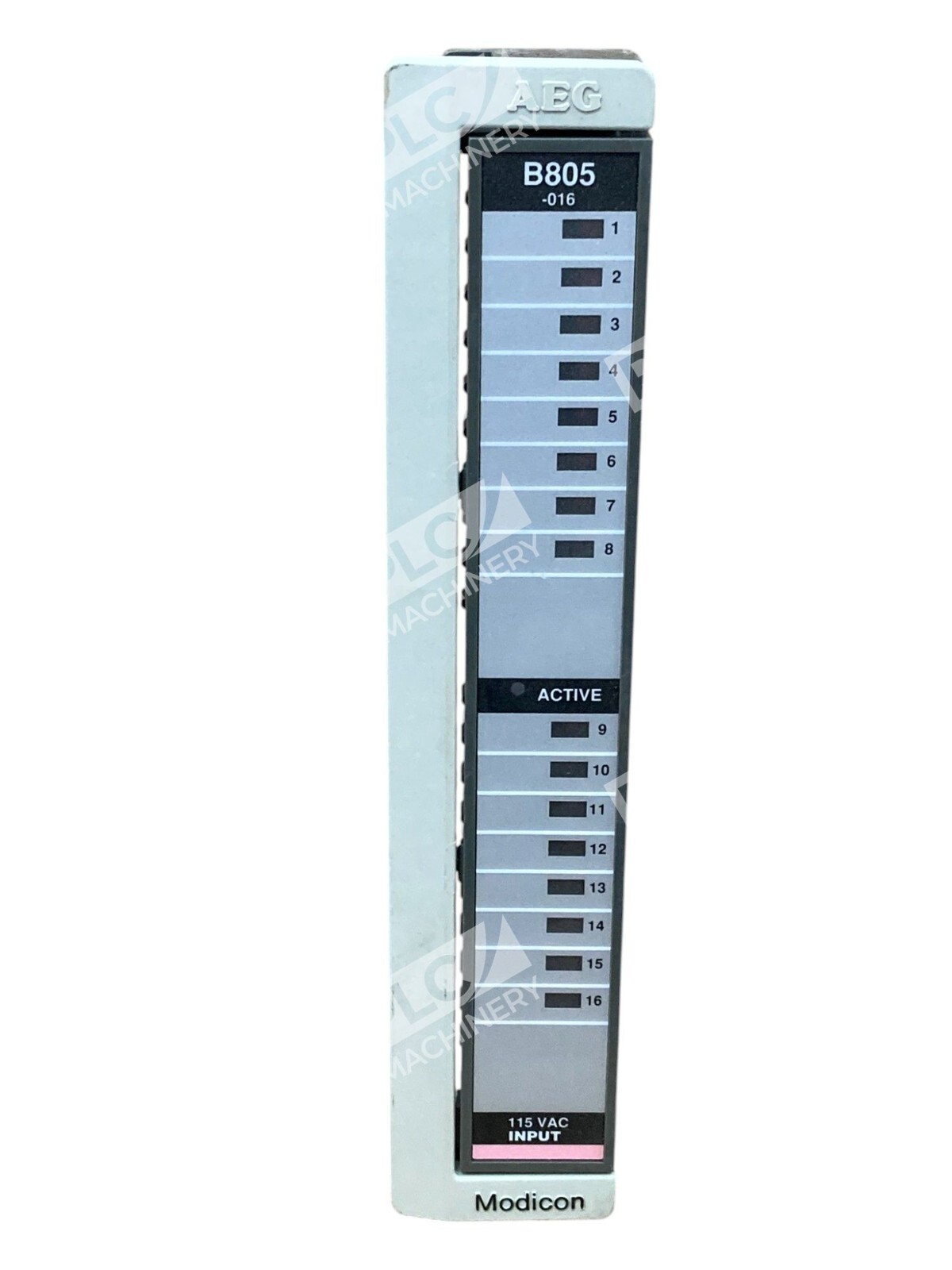

The Modicon AS-B805-016 is a 115VAC 16-point input module designed for the Modicon Automation 800 I/O system. This module interfaces between field devices (push buttons, limit switches, proximity sensors, and other 115VAC sources) and the PLC, converting AC input signals into digital logic levels that the controller can process. The AS-B805-016 is commonly found in legacy Modicon/Gould automation systems and remains in active use across manufacturing, process control, and machine automation applications.
Key Features

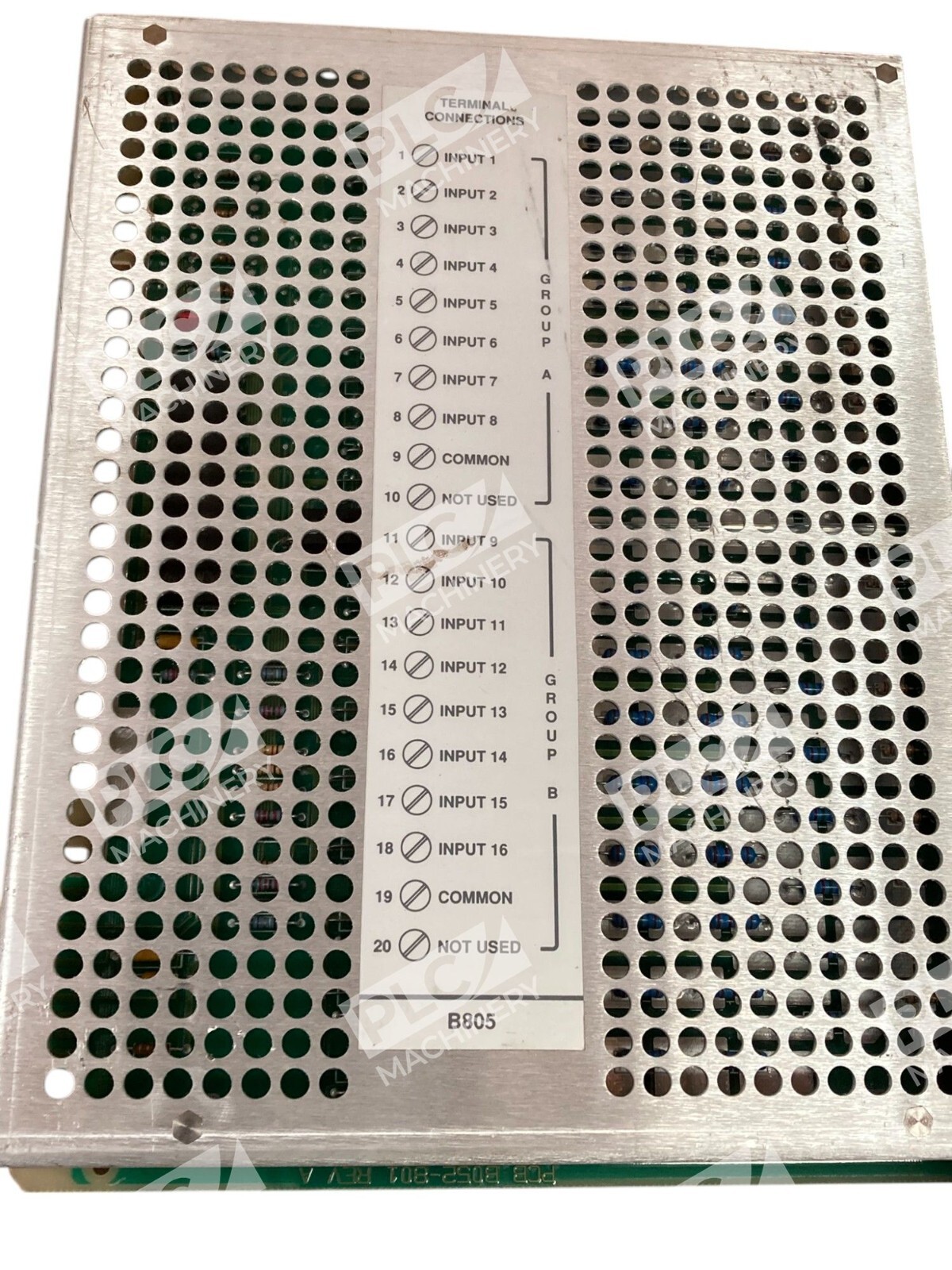

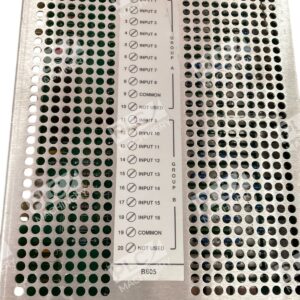

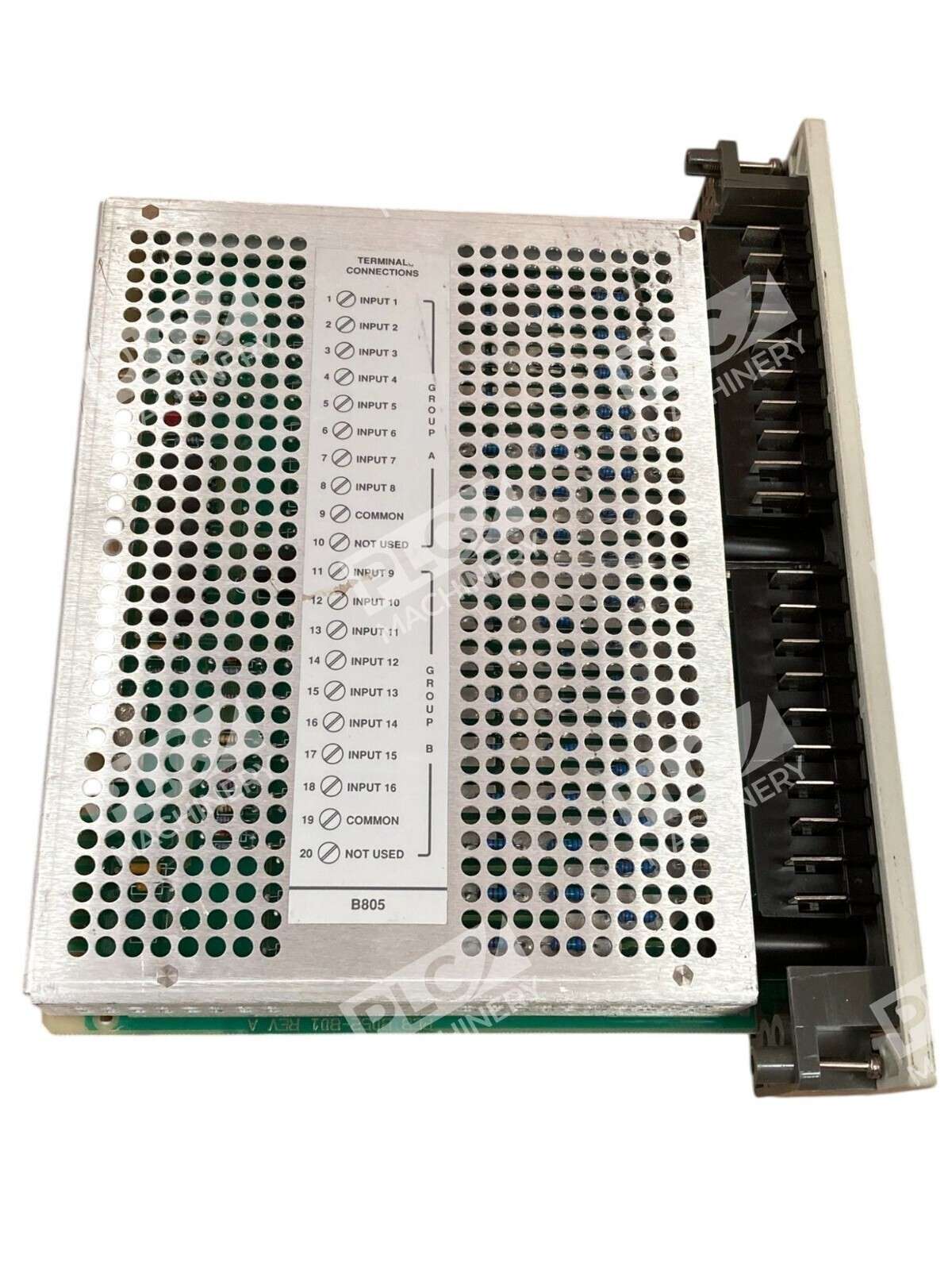

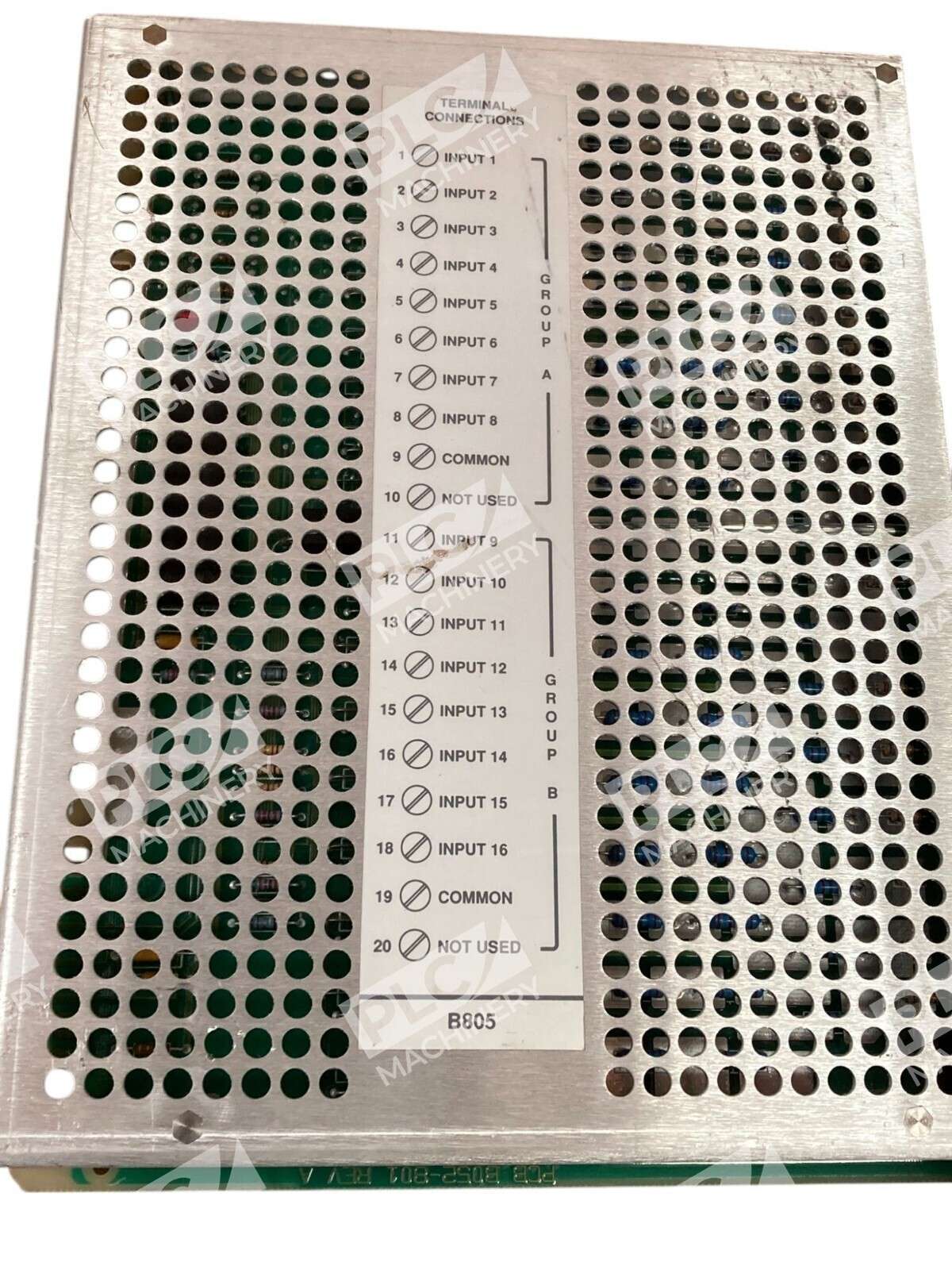

- 16 input points organized in two groups of 8 channels
- 115VAC input voltage compatibility
- Senses and converts switched input signals to PLC logic levels
- Compact module form factor for B805 backplane mounting
- Reliable performance in industrial environments
- Drop-in replacement for equivalent Modicon B805 input modules
Technical Specifications
| Specification | Value |

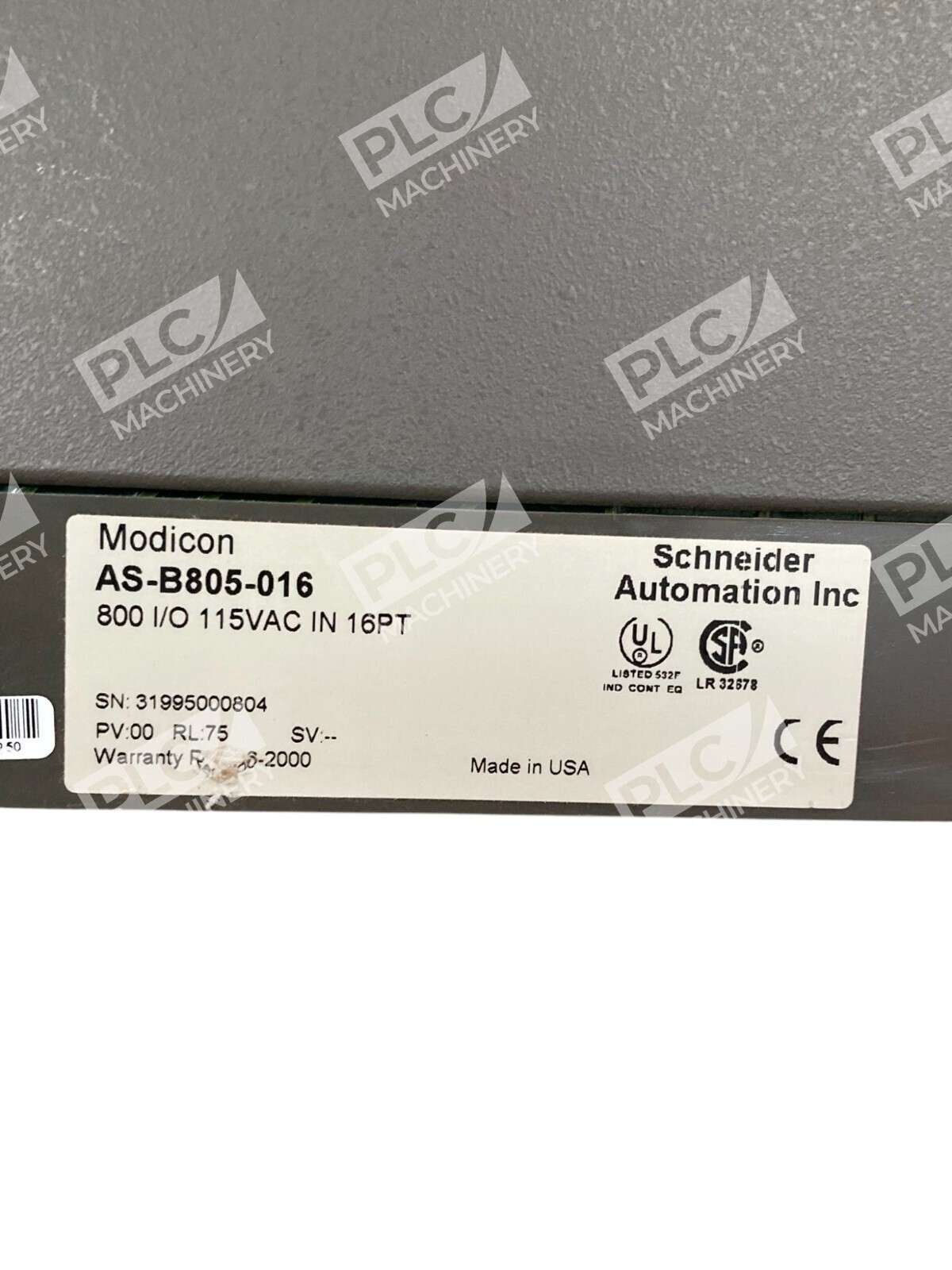

| Part Number | AS-B805-016 |
| Manufacturer | Modicon (Gould, AEG) |
| System | Modicon Automation 800 |
| Module Type | AC Input Module |
| Input Voltage | 115VAC |
| Input Points | 16 |
| Input Groups | 2 groups of 8 points |
| Input Sources | Push buttons, limit switches, proximity switches, AC sources |
| Mounting | B805 backplane |
| Overall Dimensions | 9″ L × 3″ W × 11″ H (approximately) |
Typical Applications
- Legacy Modicon Automation 800 PLC systems
- Manufacturing process control and monitoring
- Machine automation and sequencing
- Industrial equipment with 115VAC field device inputs
- Replacement module for retired or non-functioning B805-016 units
- Facility upgrades requiring compatible spare parts
Compatibility & Replacements
Compatible With
- Modicon Automation 800 PLC controllers
- Modicon/Gould B805 I/O backplane systems
- Legacy automation systems using Modicon standard I/O configurations
- Industrial field devices: push buttons, limit switches, proximity sensors, 115VAC control signals
Replaces / Drop-In Replacement For
- Equivalent Modicon B805 16-point 115VAC input modules
- Gould Modicon AS-B805-016 units (OEM part)
- Verify compatibility with your system integrator before ordering.
Works With
- Modicon Automation 800 programming environments
- Legacy industrial control software compatible with B805 modules
- Standard 115VAC industrial control circuits and field device networks
- Industrial automation systems requiring AC input sensing
