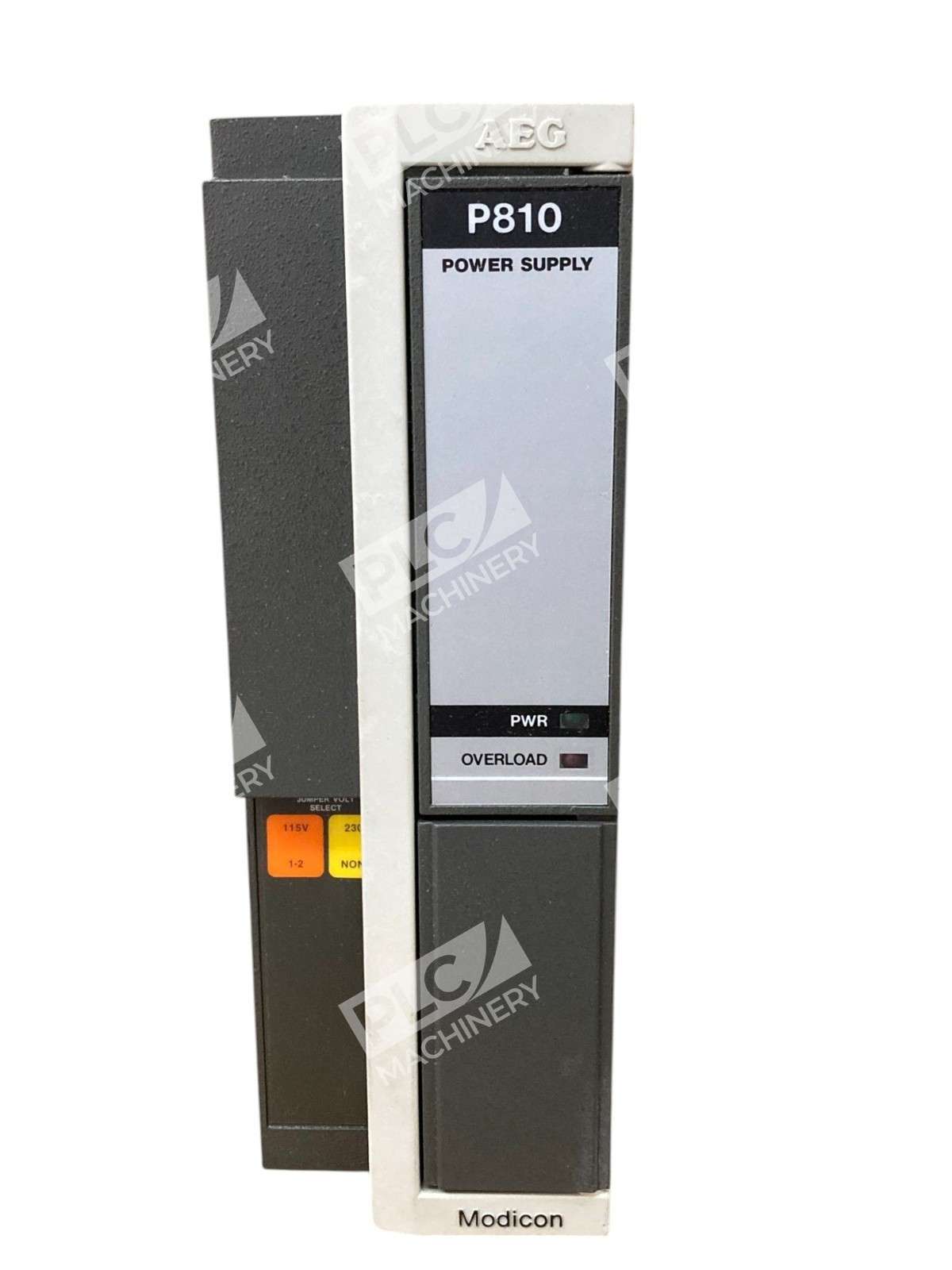

Overview
The Modicon AS-P810-000 is a power supply module engineered to deliver reliable, regulated power to Modicon 984 Series programmable logic controllers (PLCs) in industrial automation applications. Designed to provide reliable power to Modicon 984 Series PLCs, ensuring uninterrupted operation in critical industrial processes, this unit combines robust power delivery with compact form factor, making it suitable for control cabinets and retrofit installations where space is at a premium.
Key Features
- Input voltage range of 115/230V AC offering flexibility and compatibility with various electrical systems
- Output ratings: 5V/12A, 12V/0.1A, -12V/0.1A, 4.3V/5A, -5V/0.3A for powering PLC CPU and I/O modules
- Built-in overvoltage protection, short circuit protection, and thermal shutdown mechanisms ensure safe operation
- Compact and space-saving design, ideal for installations where space is limited
- 50/60Hz dual-frequency operation supports both North American and international installations

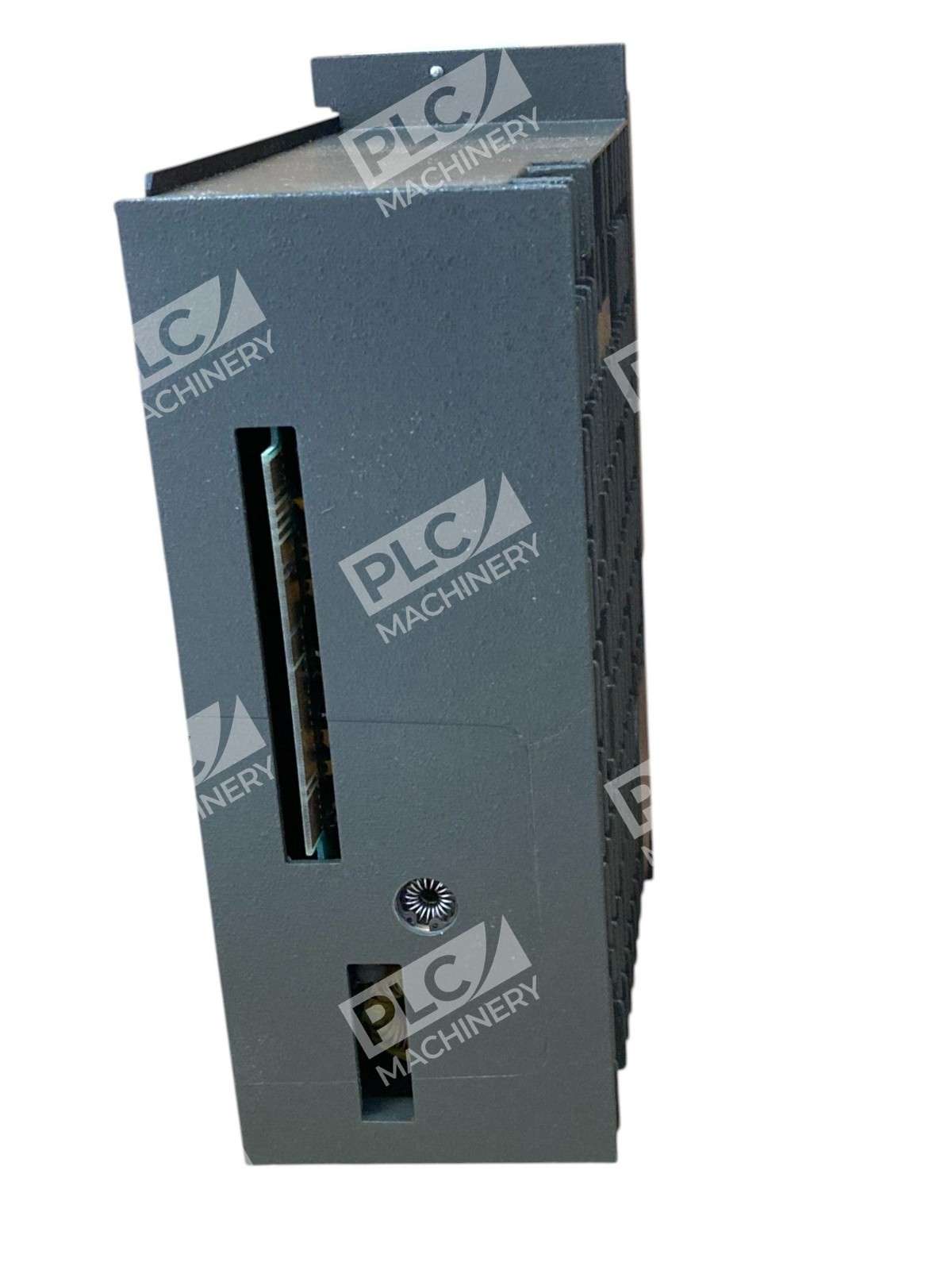

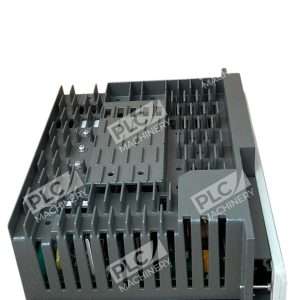

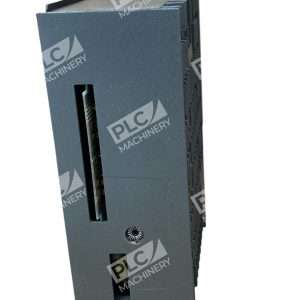

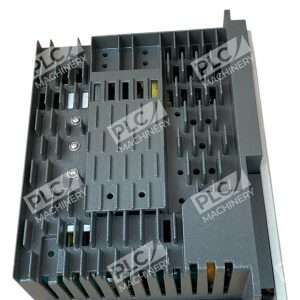

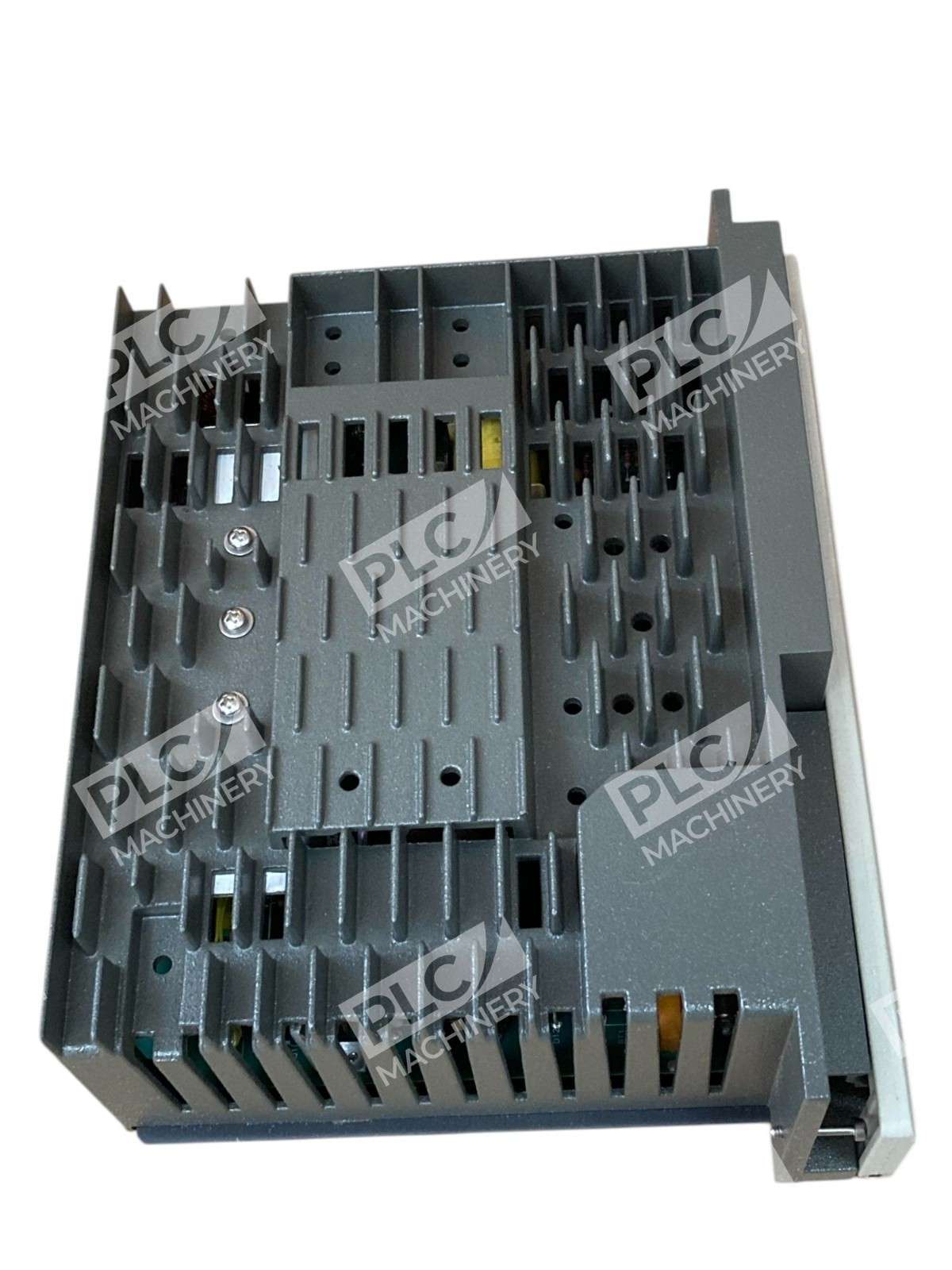

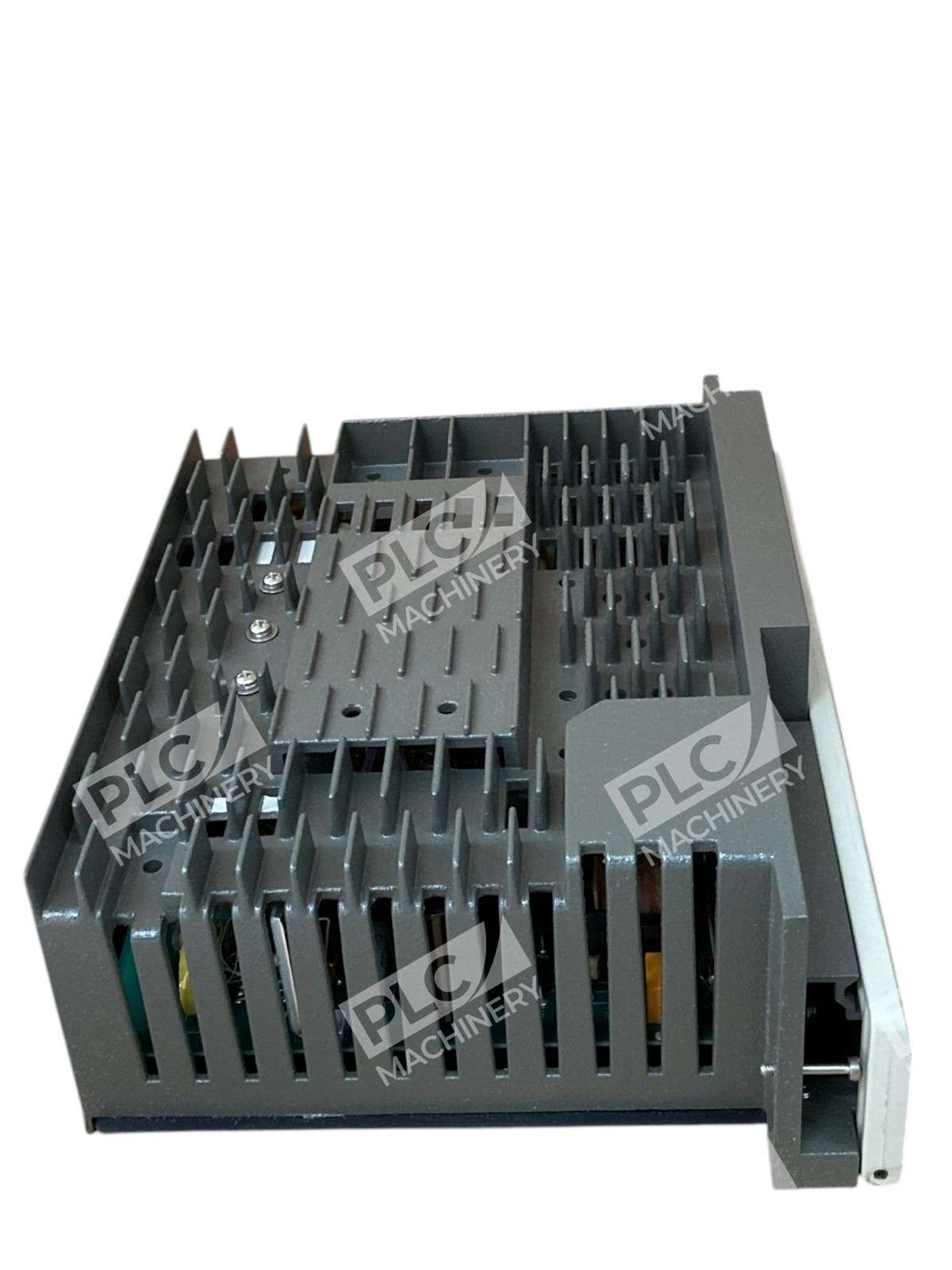

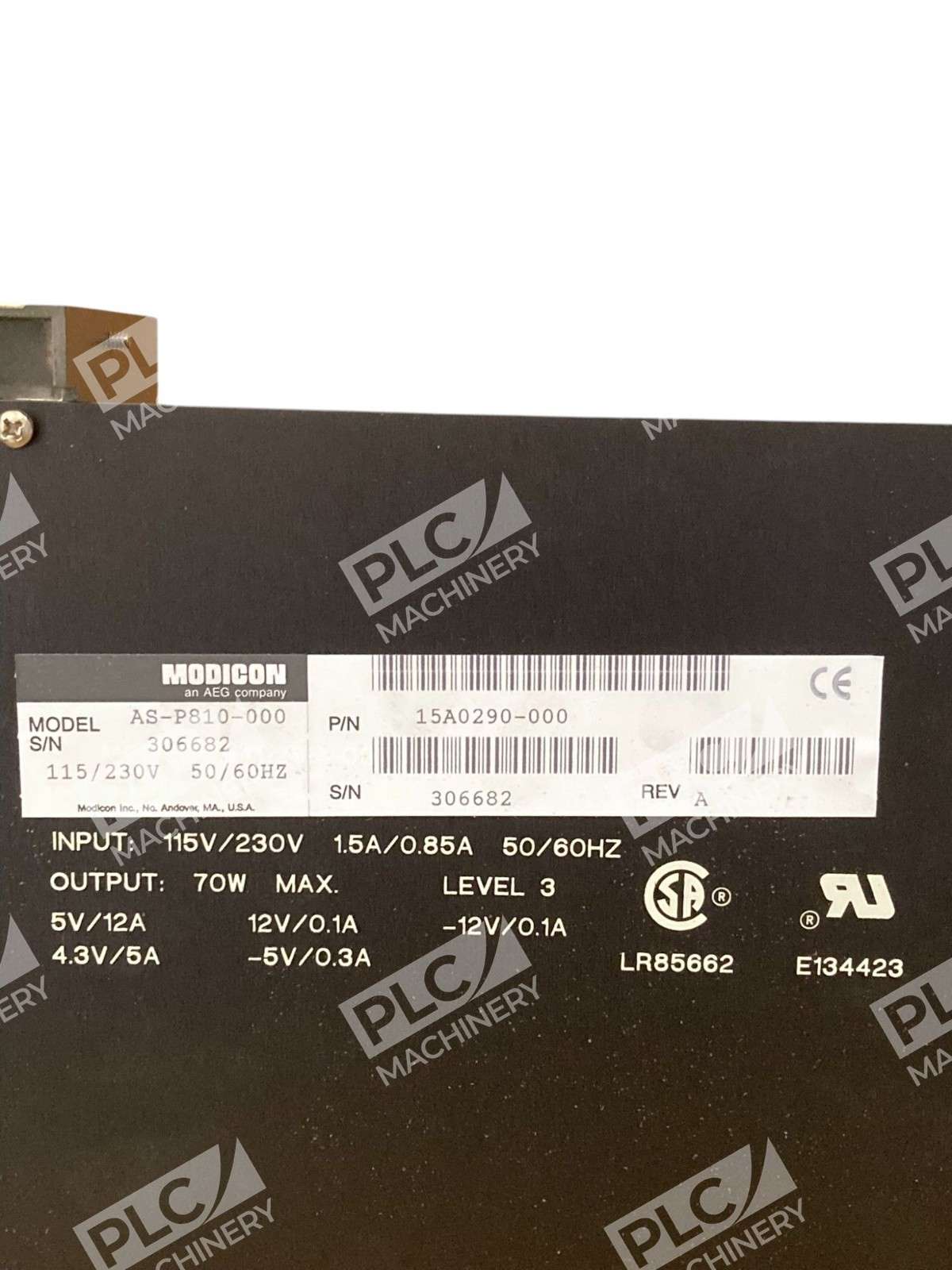

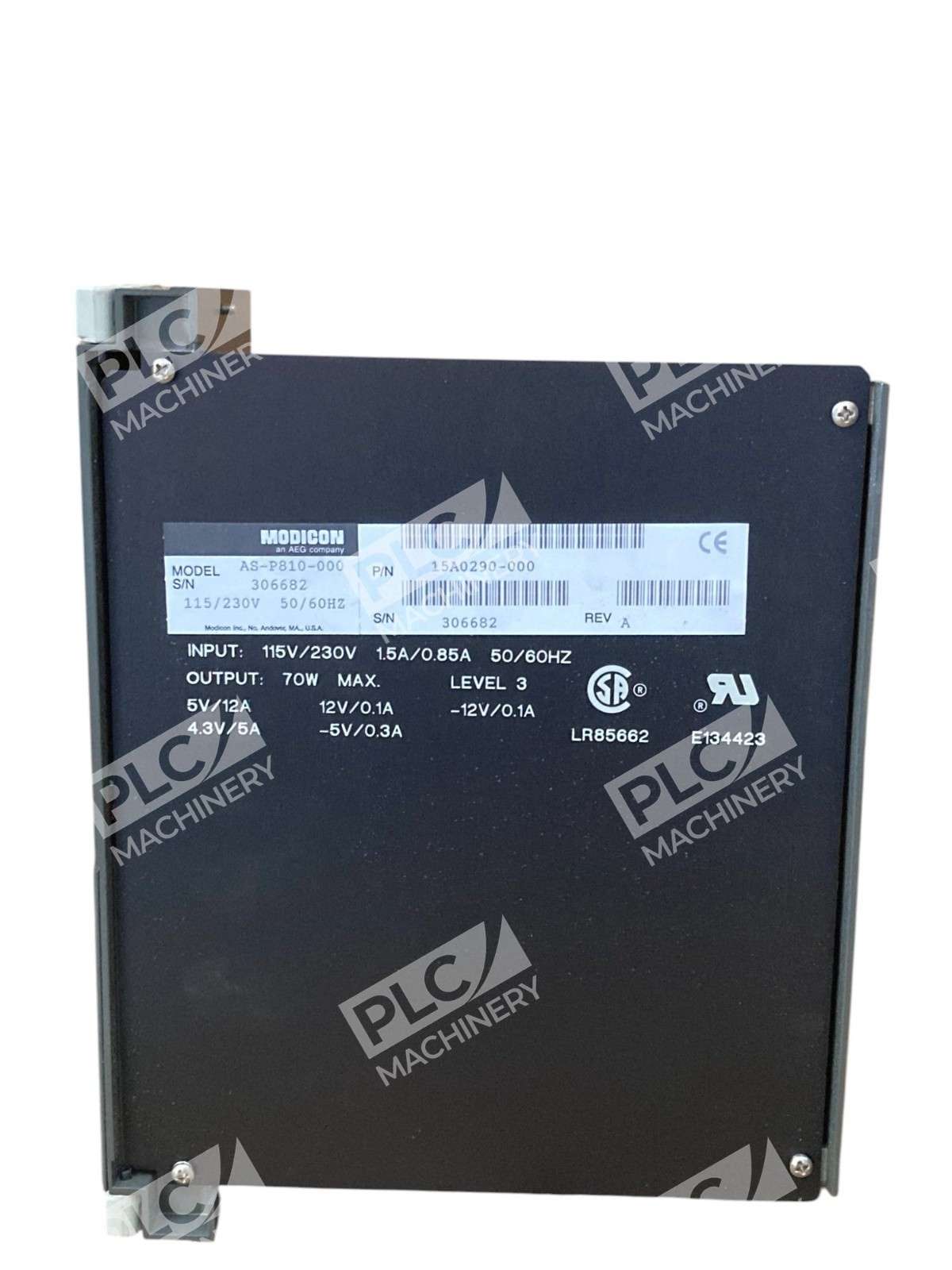

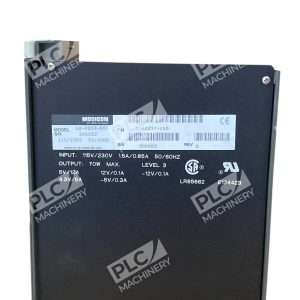

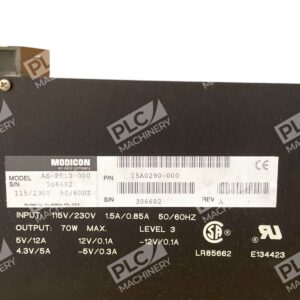

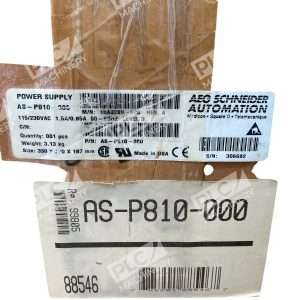

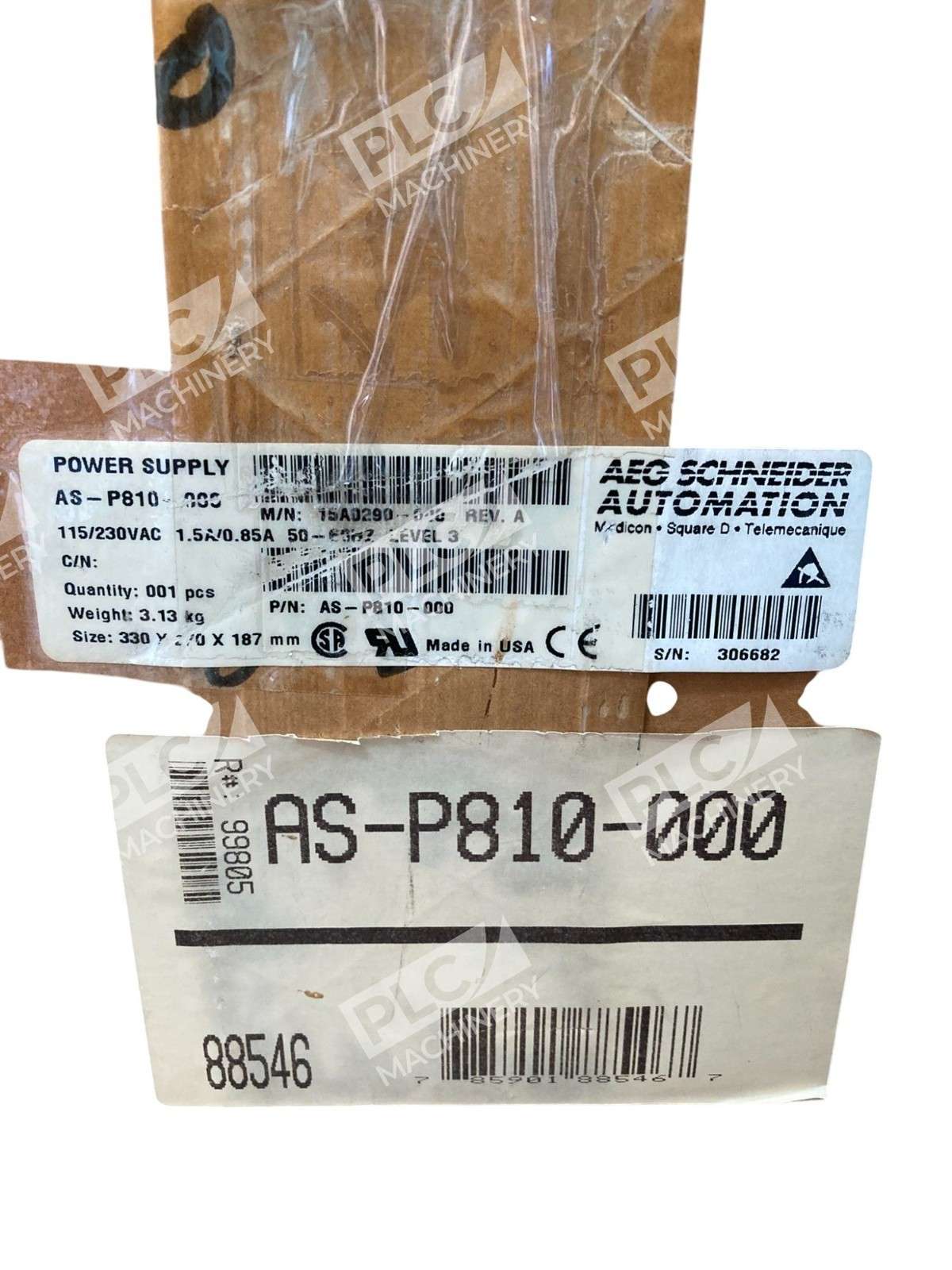

Technical Specifications
- Maximum Output: 70W
- Input Voltage: 115/230VAC selectable or auto-sensing
- Input Current: 1.5A @ 115V, 0.85A @ 230V
- Frequency: 50/60Hz
- Output Voltages & Current:
- +5V @ 12A
- +12V @ 0.1A
- -12V @ 0.1A
- +4.3V @ 5A (logic supply)
- -5V @ 0.3A
- Weight: 5.00 lbs
- Series: Modicon 984 Series
- Status: Discontinued by manufacturer
Typical Applications
The AS-P810-000 is commonly deployed in:
- Modicon 984 Series PLC processor cabinets requiring dual-voltage AC input capability
- Industrial machinery control and sequencing
- Process automation in manufacturing and discrete industries
- Retrofit and replacement power supply installations in legacy automation systems
- Factory automation and material handling equipment
Compatibility & Replacements
Compatible With
- Modicon 984 Series PLCs (984A, 984A-Plus, 984-L90, 984-L191)
- Modicon 984 Series I/O modules and expansion racks
- Industrial cabinets requiring ±5V, ±12V, and logic supply rails
- Dual-voltage AC distribution systems (115V or 230V)
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) Modicon/Schneider Electric AS-P810-000 units
- Verify compatibility with your system integrator before ordering
Works With
- Modicon M84 processor family
- Modicon I/O rack and module architecture
- Industrial control systems requiring modular 70W power management
- Legacy PLC platforms requiring multiple isolated output voltages
