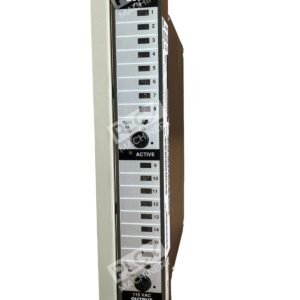

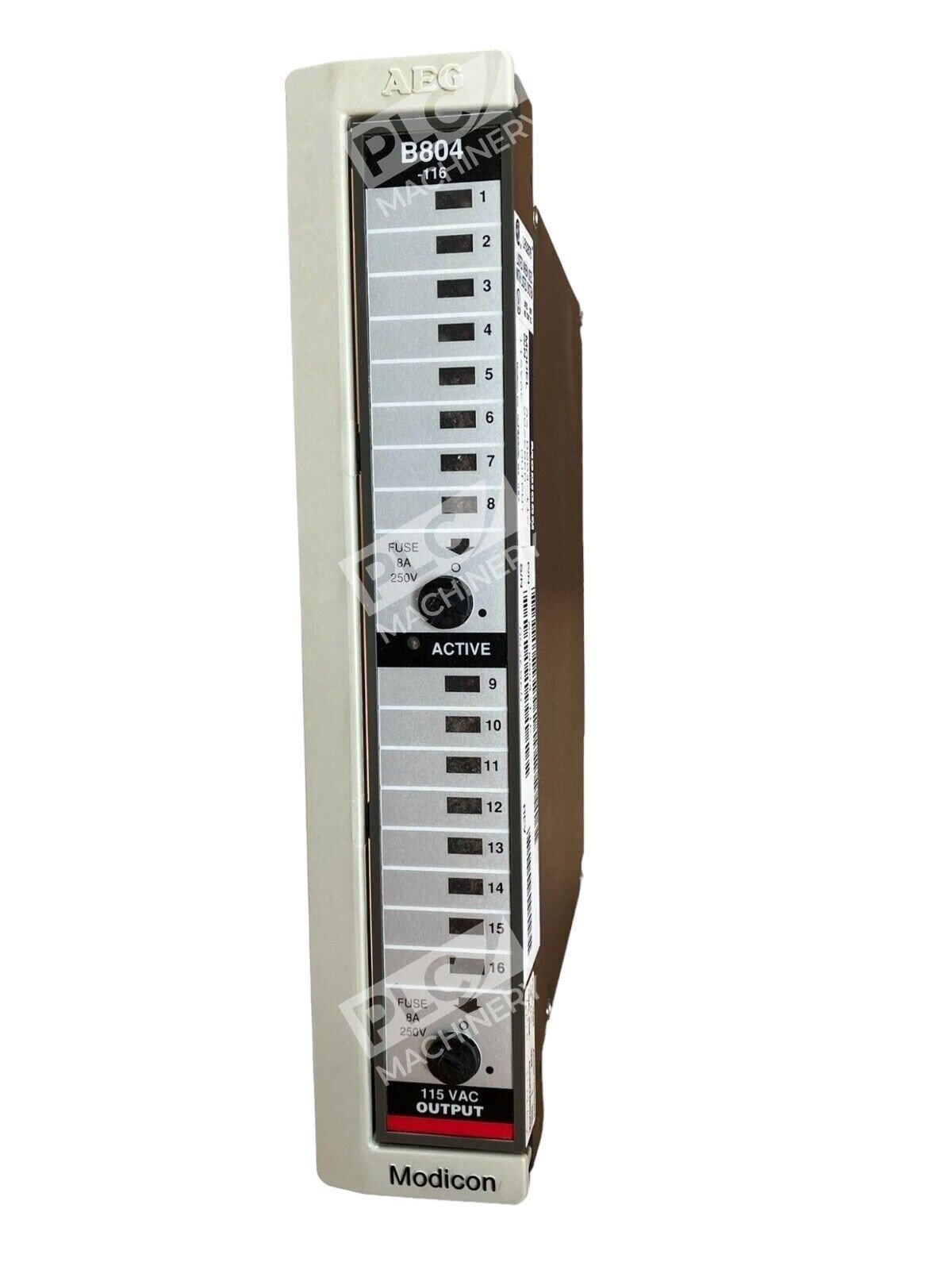

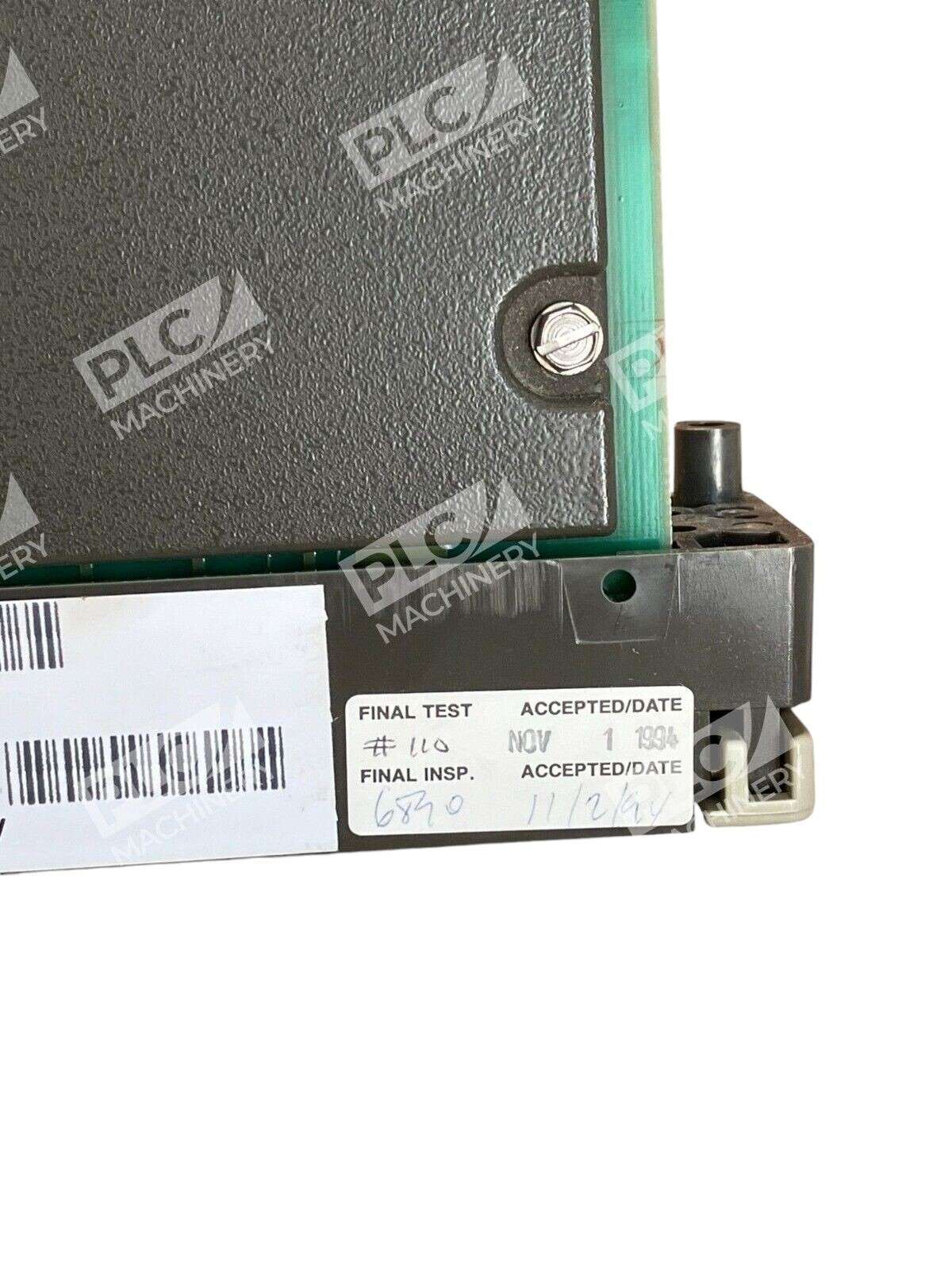

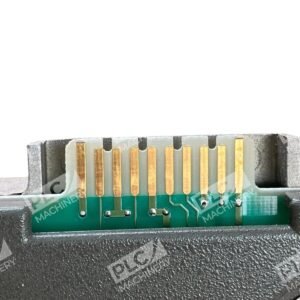

Modicon AS-B804-116 Output Module 16 Point 115VA

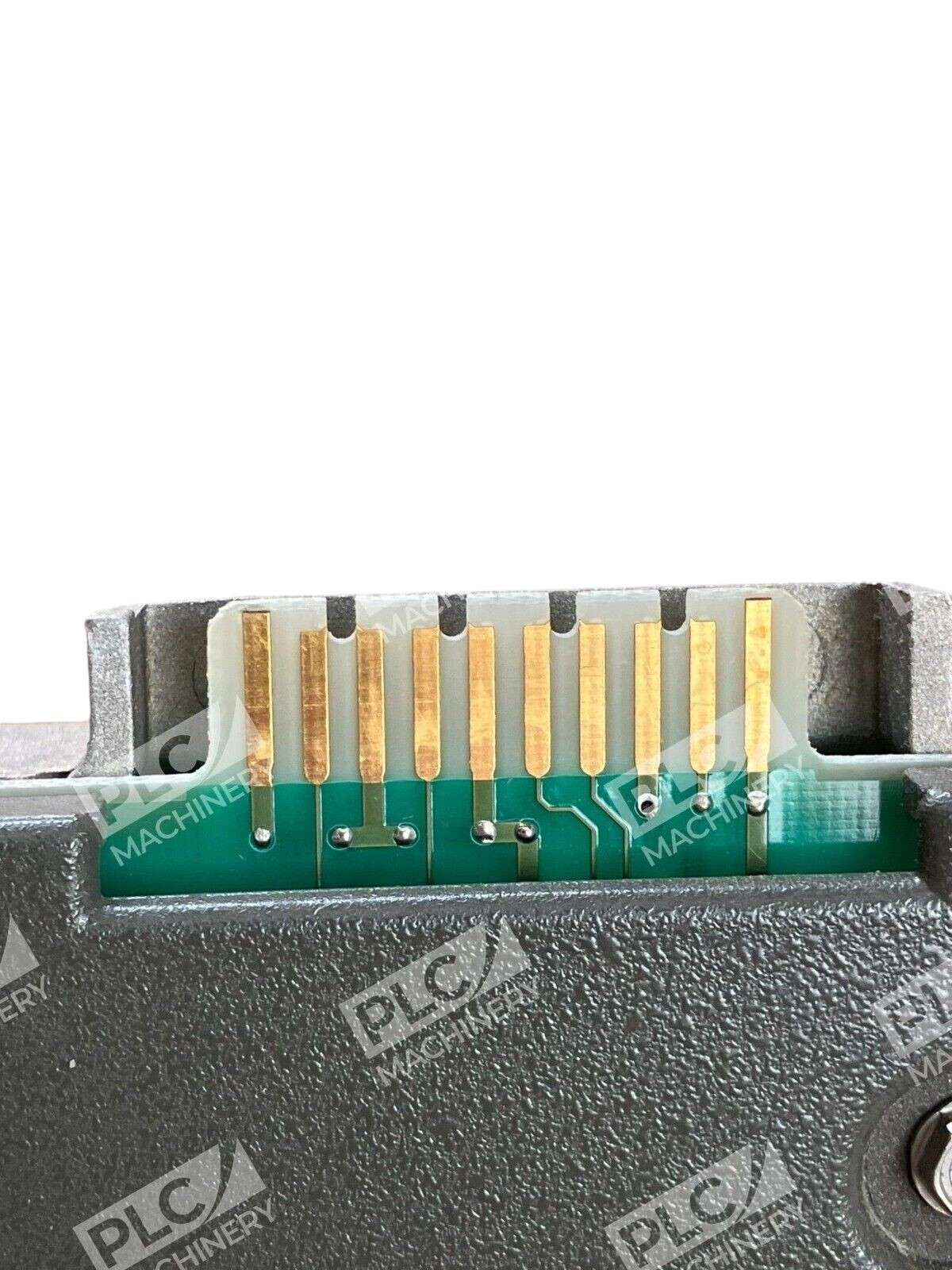

Modicon AS-B804-116 Output Module: 16-Point 115VAC

The Modicon AS-B804-116 is a 16-point discrete output module designed for industrial automation systems. Operating at 115VAC, this module efficiently converts PLC logic signals into independent AC outputs, making it suitable for controlling devices such as relays, pilot lamps, motor starters, and solenoids.

Key Features

• Output Capacity: Each of the 16 outputs can handle continuous currents up to 2.0 A, with a peak of 50 A for one cycle.
• Grouping: The module is organized into two groups, each containing eight outputs. Each group supports a total continuous current of 6 A, with the entire module accommodating up to 12 A.
• Response Time: The module offers a response time of 8.3 ms for both OFF to ON and ON to OFF transitions at 60 Hz.
• Power Requirements: It requires +5 V at 76 mA and +4.3 V at 480 mA for operation.
• Design: Utilizing triac switches, the AS-B804-116 is built to withstand high surge currents typical in industrial environments.

Specifications

• Operating Voltage: 80 to 130 VAC at 47 to 63 Hz
• Leakage Current: Maximum of 3 mA at 115 VAC
• Space Requirement: Occupies one slot in the PLC rack
• Weight: Approximately 2.75 lbs (1.25 kg)
• Terminal Connector: AS-8534-000

The Modicon AS-B804-116 output module is a reliable and efficient component for enhancing the functionality of your PLC system, ensuring precise control over various industrial devices.
