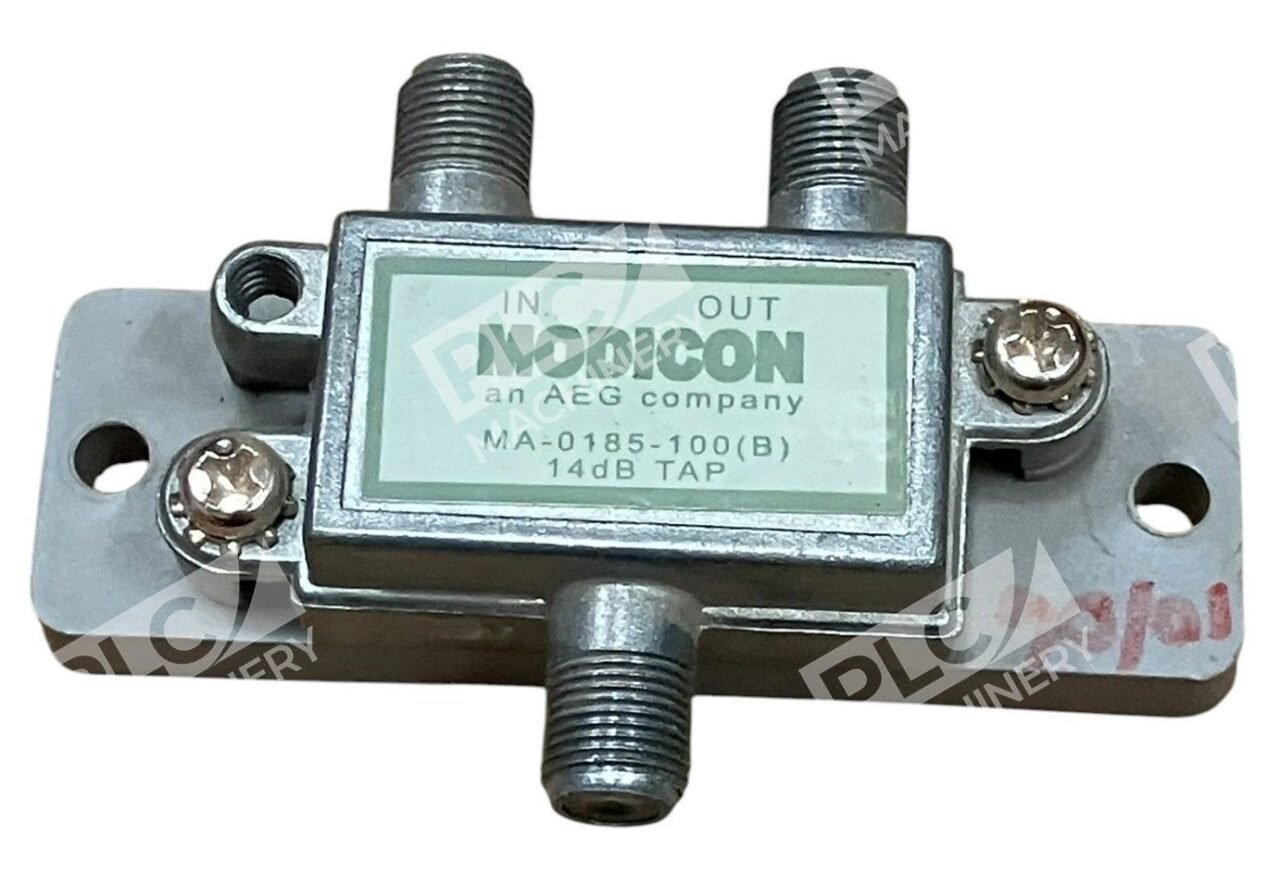

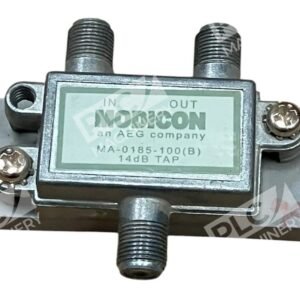

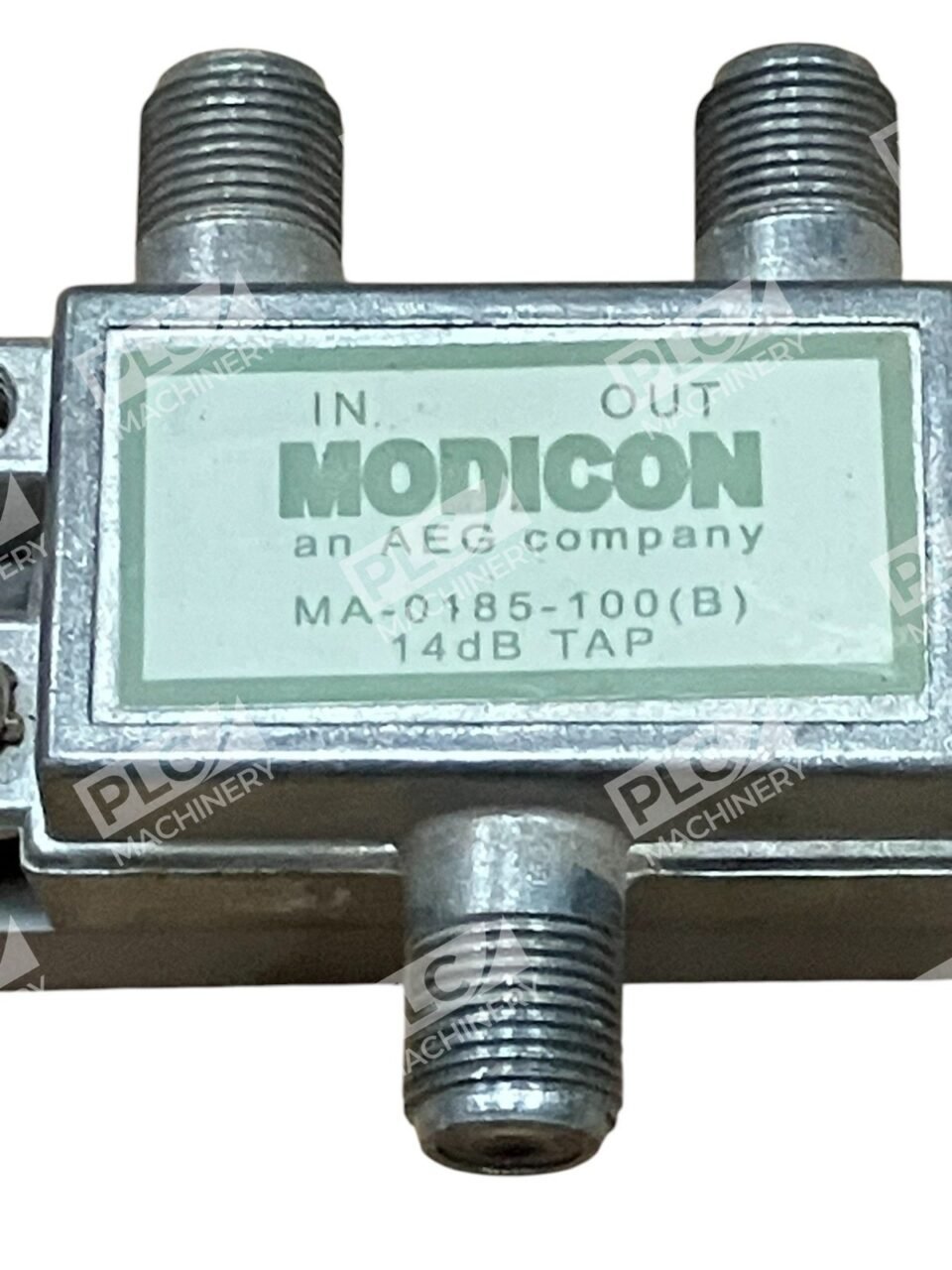

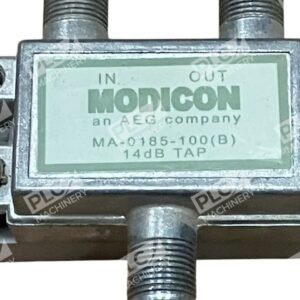

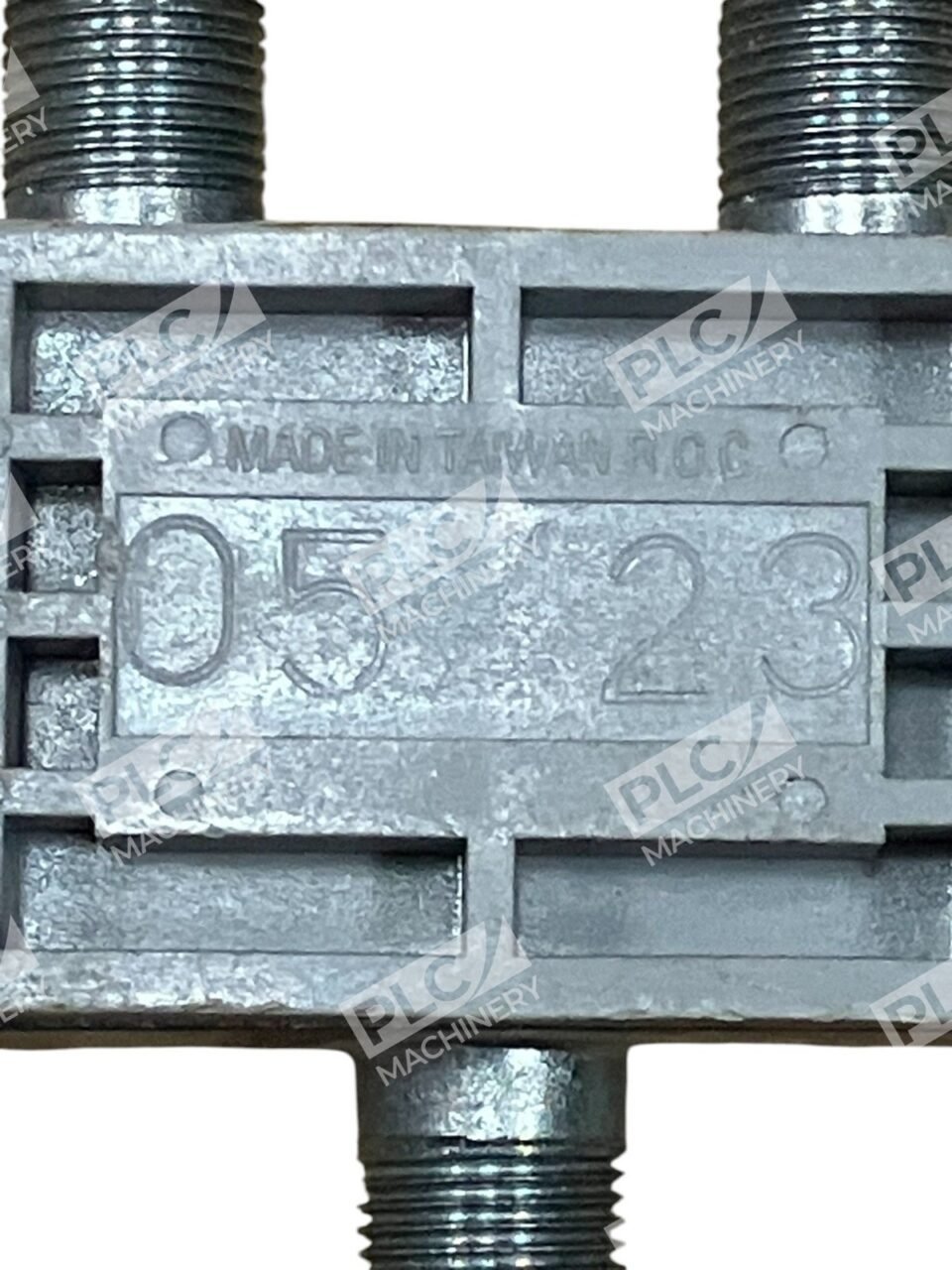

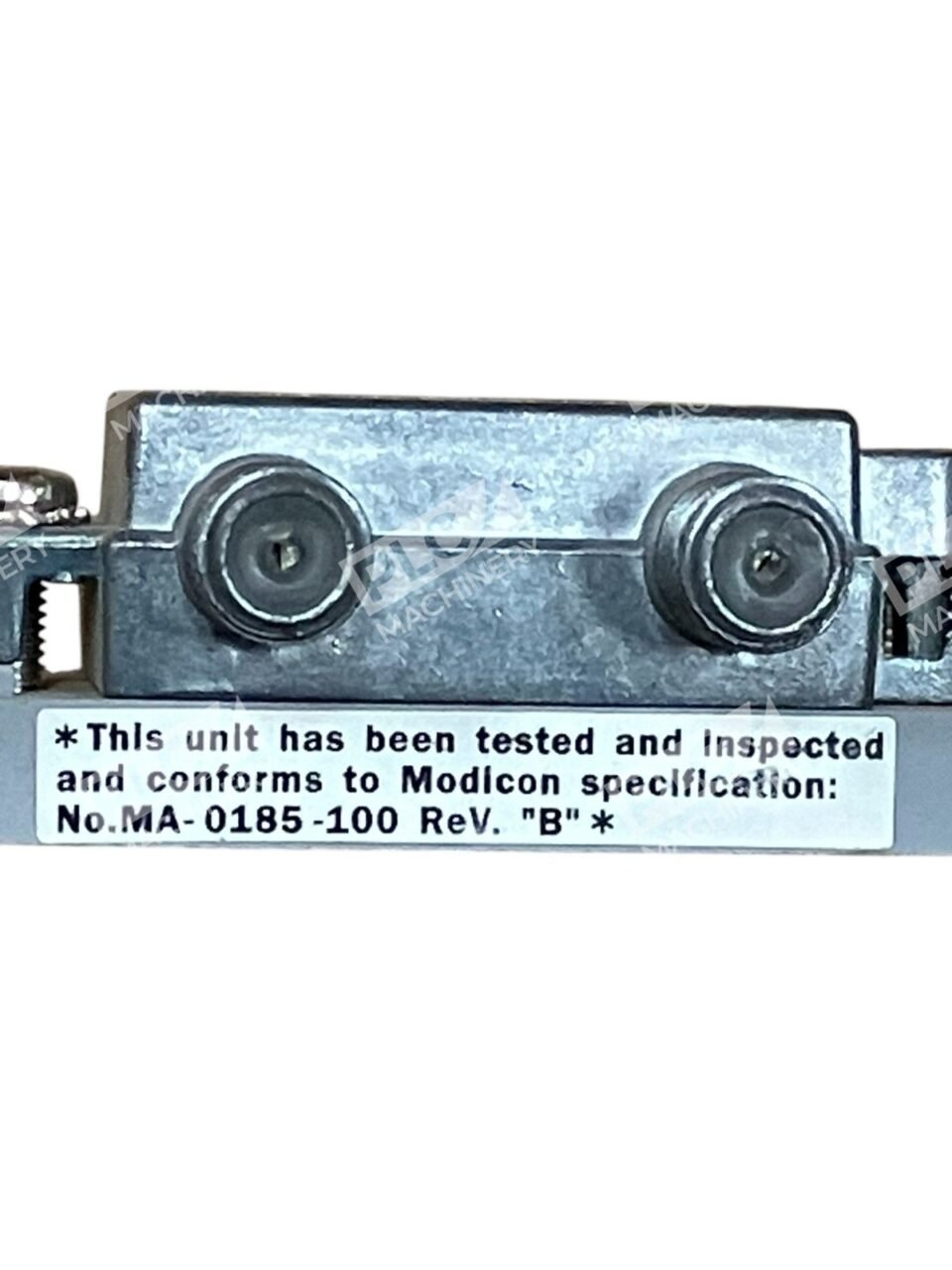

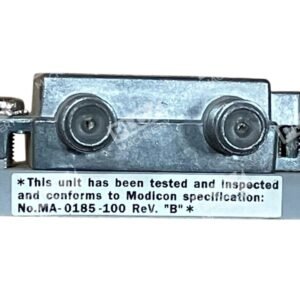

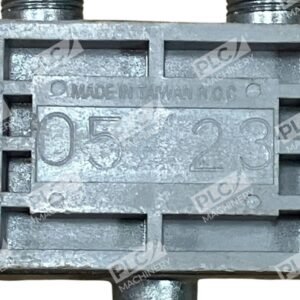

Modicon AEG MA0185100 14dB Tap MA-0185-100 (B)

The Modicon AEG MA0185100 14dB Tap (MA-0185-100) is a specialized component designed for the Modicon Quantum automation platform. This tap facilitates the connection between drop cables and trunk cables within a network, ensuring efficient signal distribution and system integrity.

Key Features

• Impedance Matching: Maintains a consistent 75 Ω impedance, optimizing signal transmission and reducing potential mismatches.
• Signal Isolation: Electrically isolates the drop from the trunk, protecting the system from impedance mismatches and cable disconnections.
• Non-Directional Design: Allows signals to propagate in both directions along the trunk cable, enhancing network flexibility.
• Durable Construction: Built with high-quality materials to withstand industrial environments.

Technical Specifications

• Impedance: 75 Ω
• Frequency Range: 100 kHz to 30 MHz
• Tap Loss: 14 dB (+0.5 dB)
• Trunk Insertion Loss: 0.8 dB maximum
• Trunk Return Loss: ≥26 dB
• Tap Return Loss: ≥18 dB
• Temperature Range: -40°C to +60°C
• Humidity: 95% at 85°C
• Sealing: RFI/EMI sealed
• Interconnections: F Connectors, torque up to 90 in/lb

Applications

The MA0185100 tap is ideal for industrial automation systems requiring reliable connections between I/O modules, drop cables, and trunk cables. Its design ensures minimal signal loss and robust performance in various environmental conditions.

Installation and Compatibility

Designed for easy installation, the tap supports both drop and trunk cables, offering flexibility in network design. It is compatible with the Modicon Quantum automation platform, ensuring seamless integration into existing systems.

Environmental Compliance

The MA0185100 adheres to environmental standards, being mercury-free and compliant with RoHS directives, reflecting Schneider Electric’s commitment to sustainability.

In summary, the Modicon AEG MA0185100 14dB Tap is a vital component for maintaining efficient and reliable network connections within industrial automation systems, offering durability, performance, and compliance with environmental standards.
