<h2>Overview</h2>

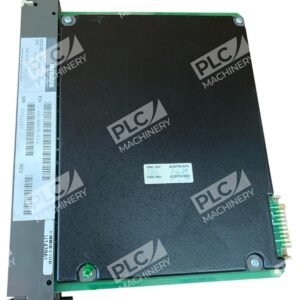

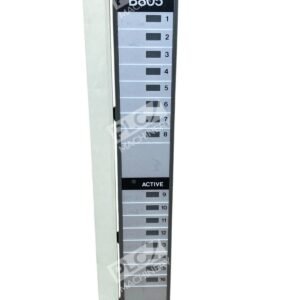

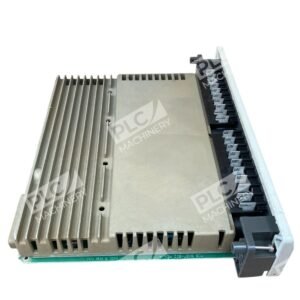

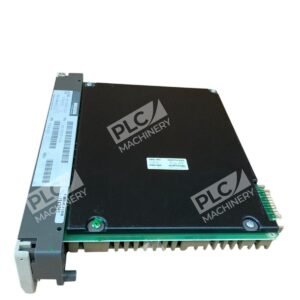

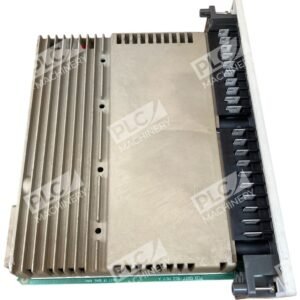

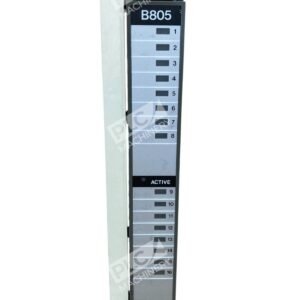

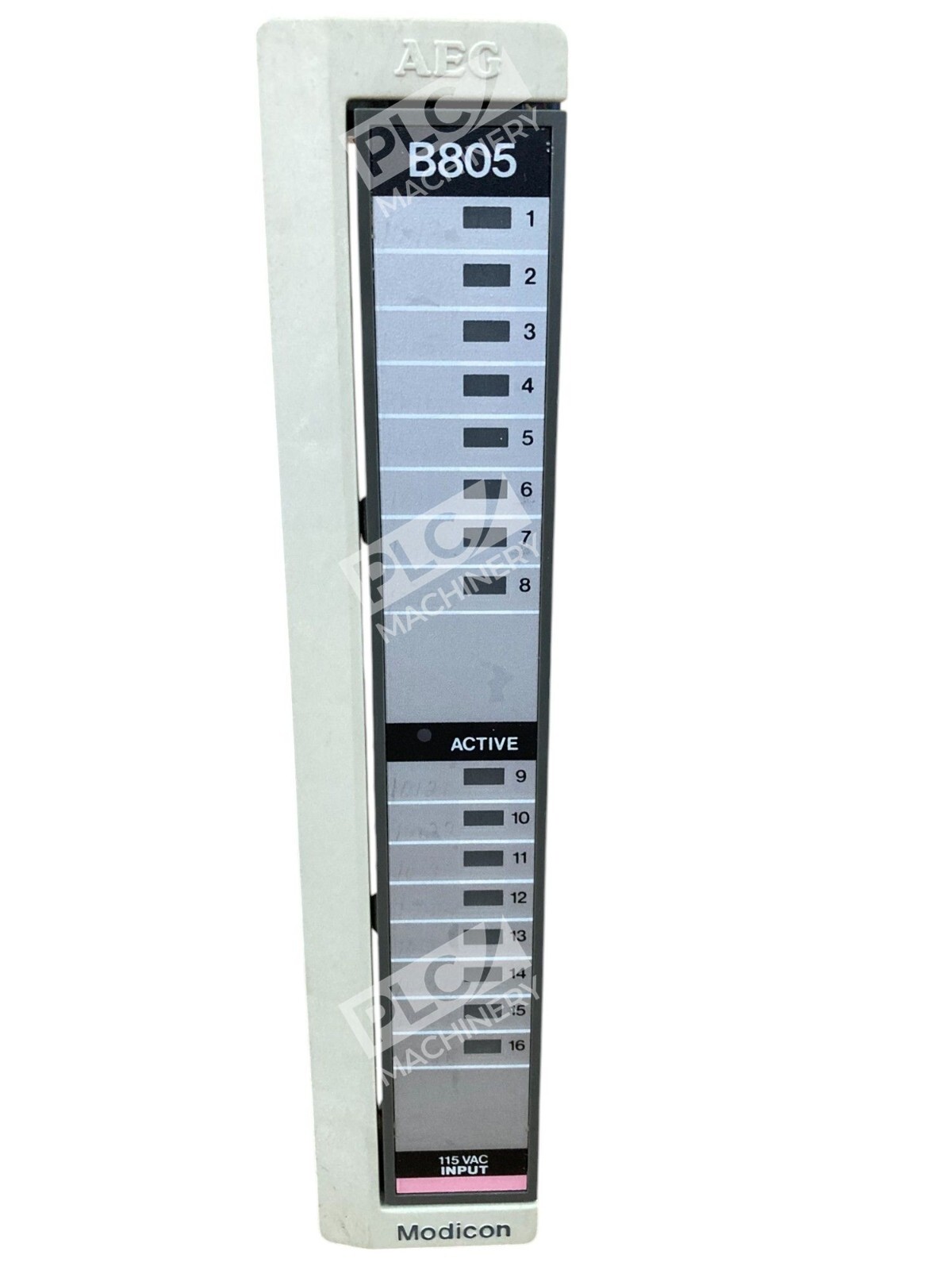

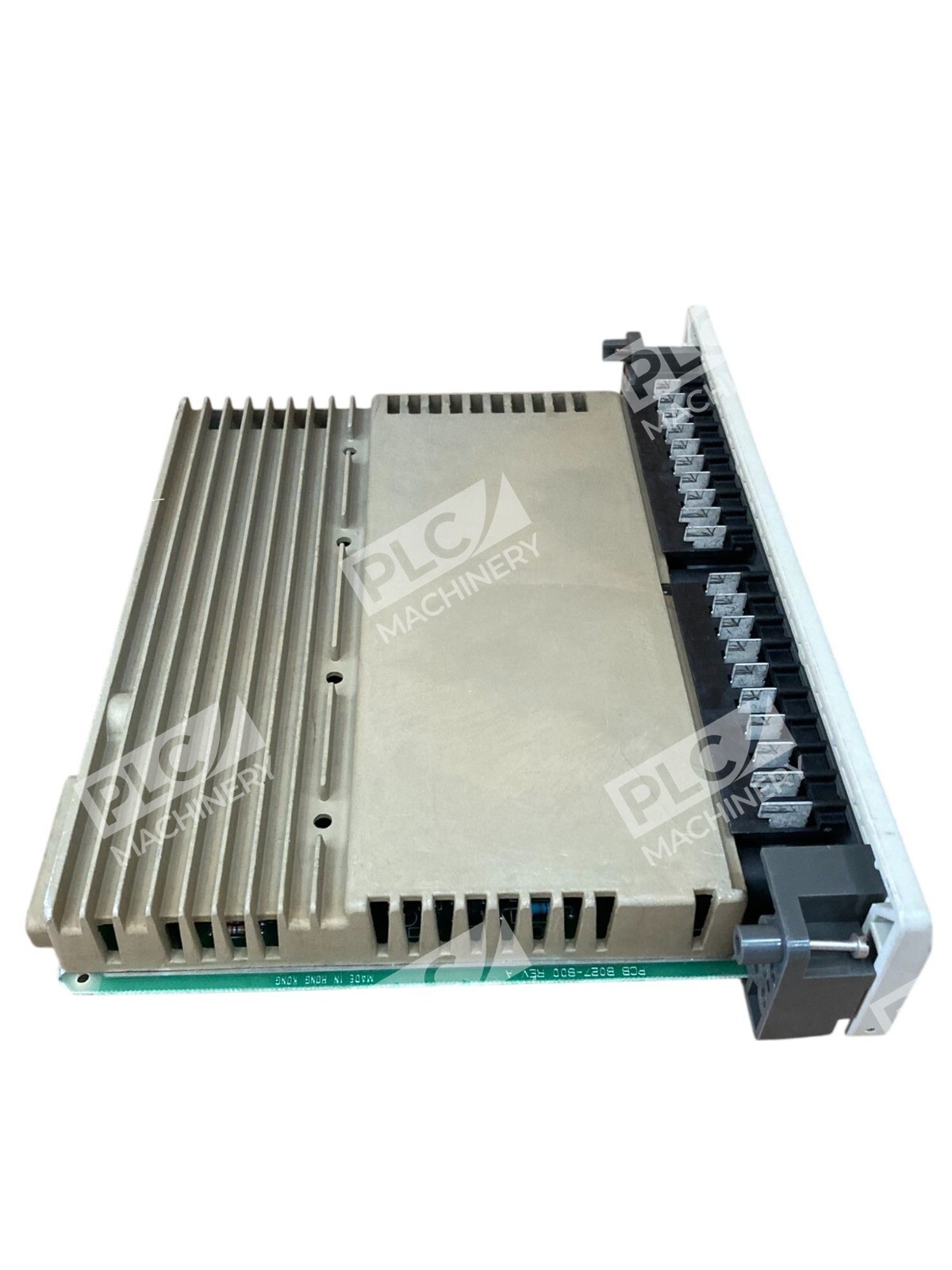

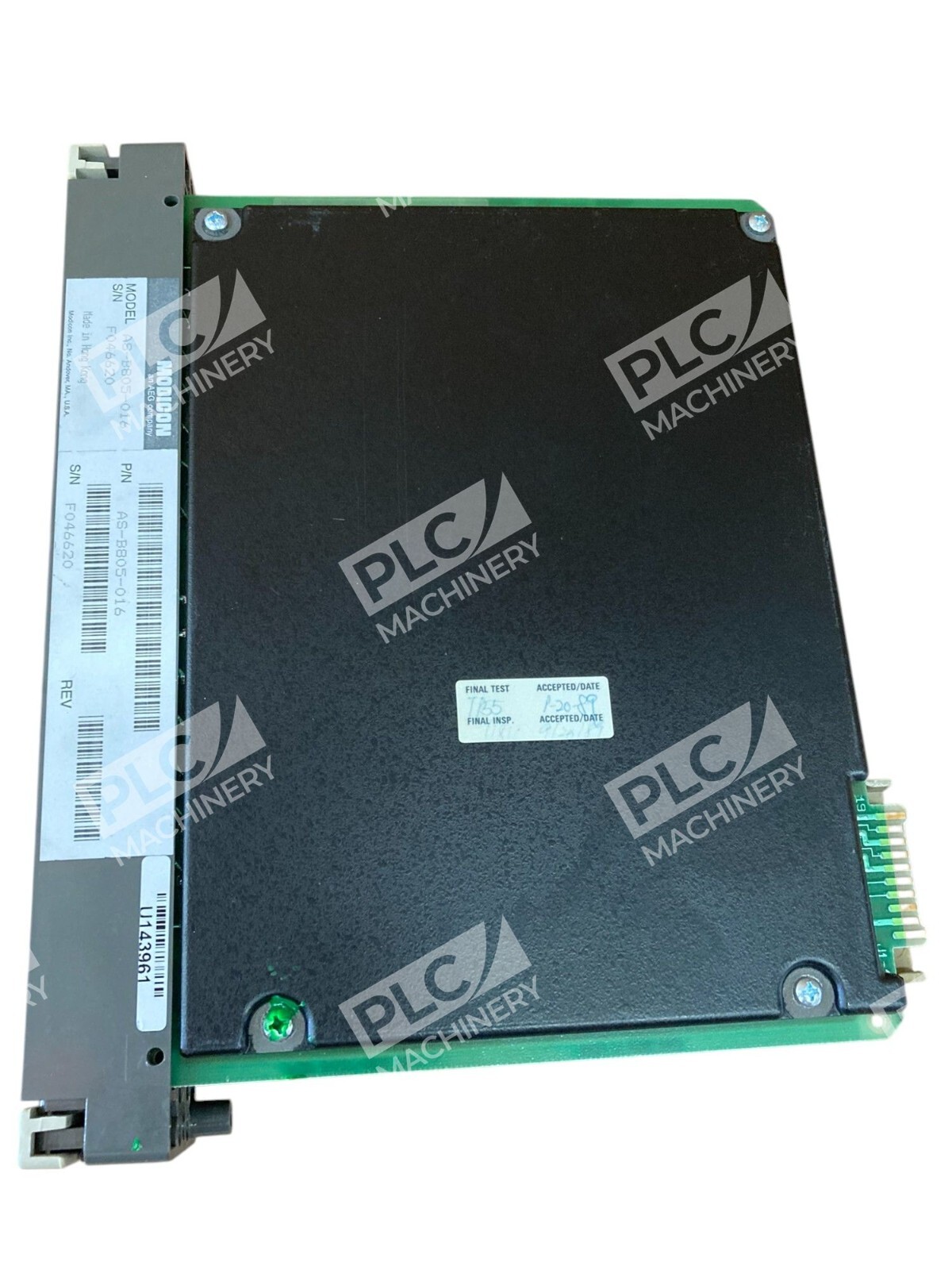

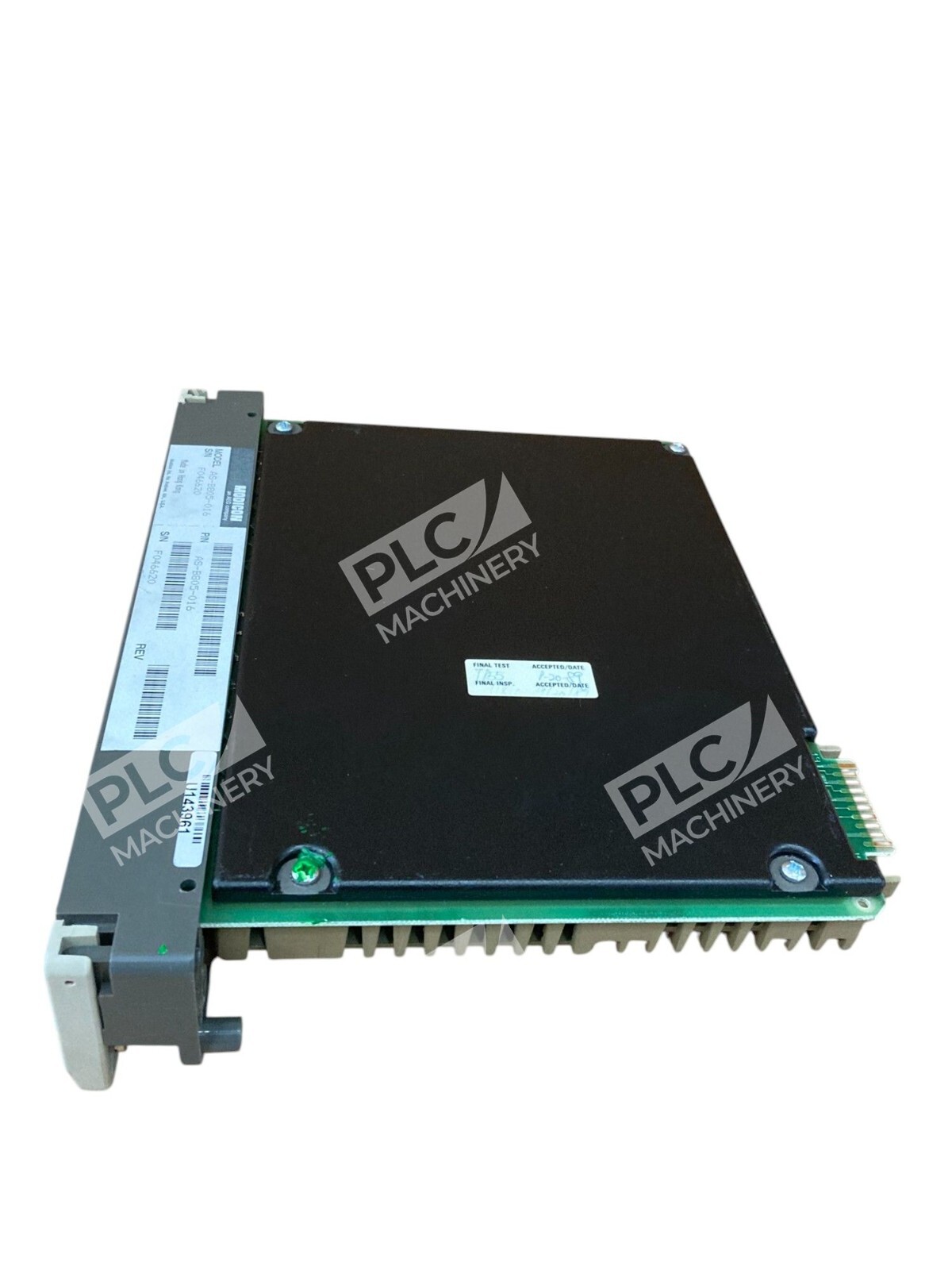

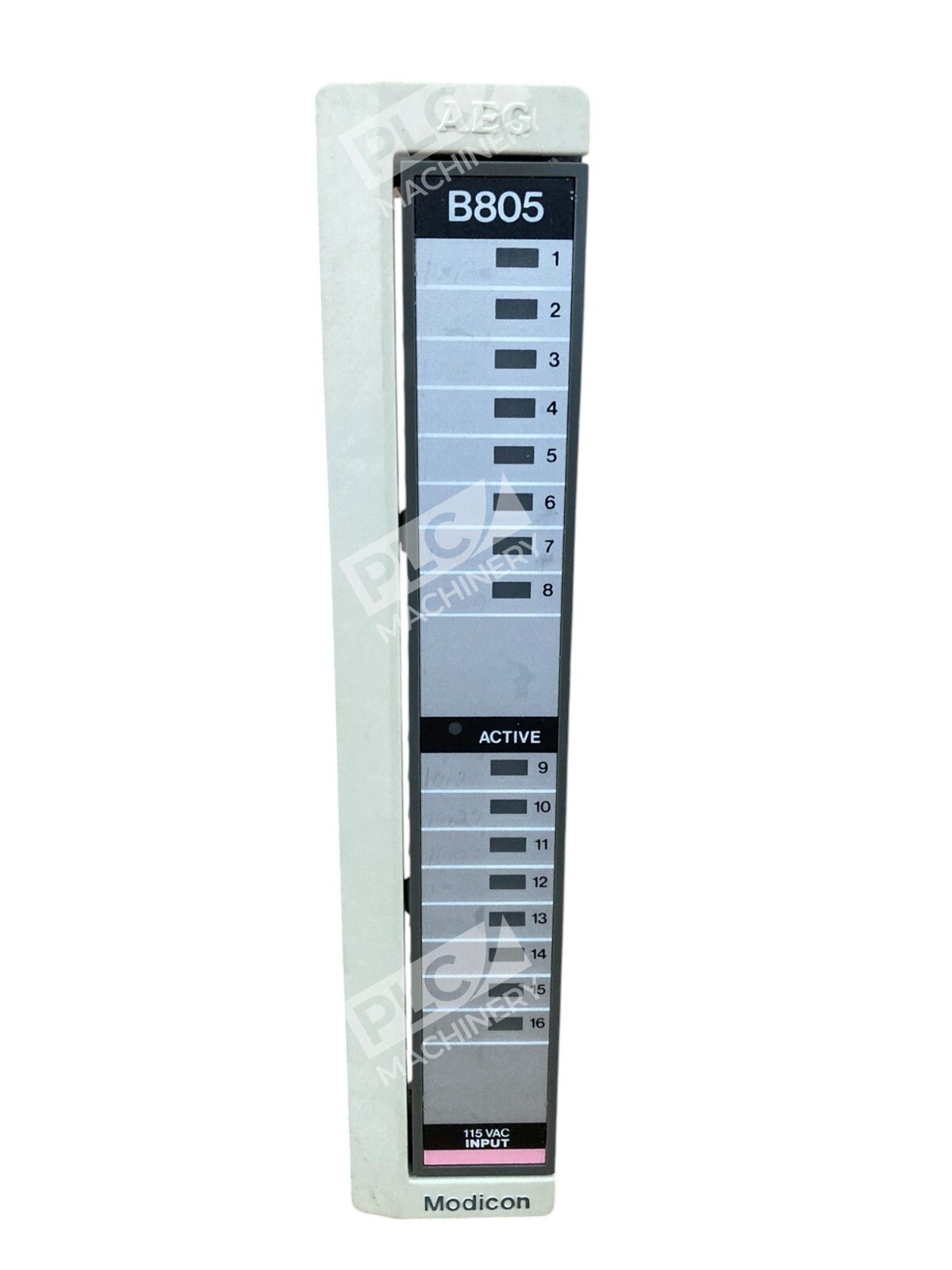

<p>The <strong>Modicon AS-B805-016</strong> is a 16-point AC input module engineered for seamless integration into industrial automation systems and PLCs. This module efficiently converts switched input signals into logic voltage levels, facilitating reliable communication with programmable logic controllers. Part of the Modicon 800 Series I/O family, it provides robust signal conditioning for standard industrial applications requiring 115VAC input sensing.</p>
<h2>Key Features</h2>
<ul>
<li><strong>16-Point Input Capacity</strong> — Organized into two groups of eight for structured signal management.</li>
<li><strong>Electrical Isolation</strong> — Each input point is electrically isolated from logic circuitry, enhancing system safety and reliability.</li>
<li><strong>Standard Screw Terminals</strong> — Simplifies user wiring and connection; supports rigid wiring system for maintenance-free module removal.</li>
<li><strong>Compact Form Factor</strong> — Single-slot I/O rack mounting optimizes space in control cabinets.</li>
<li><strong>Wide Input Voltage Range</strong> — Operates 80–130VAC at 47–63 Hz for compatibility with standard industrial power supplies.</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Input Voltage:</strong> 80–130VAC, 47–63 Hz</li>
<li><strong>Number of Input Points:</strong> 16 (two groups of 8)</li>
<li><strong>Input Sources:</strong> Push buttons, limit switches, proximity sensors, other 115VAC sources</li>
<li><strong>Electrical Isolation:</strong> Yes, per input point</li>
<li><strong>Mounting:</strong> Single-slot I/O rack</li>
<li><strong>Weight:</strong> 2.2 lbs (1.01 kg)</li>
<li><strong>Connection Type:</strong> Screw terminal strip</li>
<li><strong>Series:</strong> Modicon 800 Series I/O</li>
</ul>
<h2>Typical Applications</h2>
<p>The AS-B805-016 is widely used in industrial control systems for signal detection and conversion in:</p>
<ul>
<li>Manufacturing automation and process control</li>
<li>Material handling and conveyor systems</li>
<li>Machine tool and press automation</li>
<li>Facility management and HVAC controls</li>
<li>Building automation and safety interlocks</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Modicon / Gould programmable logic controllers (PLCs)</li>
<li>Modicon 800 Series I/O rack systems</li>
<li>Industrial automation systems requiring 115VAC input modules</li>
<li>Standard PLC communication and logic networks</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Gould Modicon AS-B805-016 (all revisions)</li>
<li>Schneider Electric Modicon AS-B805-016</li>
<li>Legacy Modicon B805-016 input modules</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Modicon programming software and logic platforms</li>
<li>Industrial automation control systems</li>
<li>Facility management and safety control networks</li>
</ul>
