Overview
The Minco CH102P2T6 connection head is a weatherproof enclosure that bridges probe-type resistance thermometers and thermocouples to remotely located readout or control instrumentation. This industrial-grade component provides a protected junction for connecting sensor leadwires to extension wires in harsh industrial environments.
Key Features

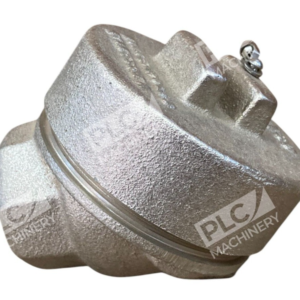

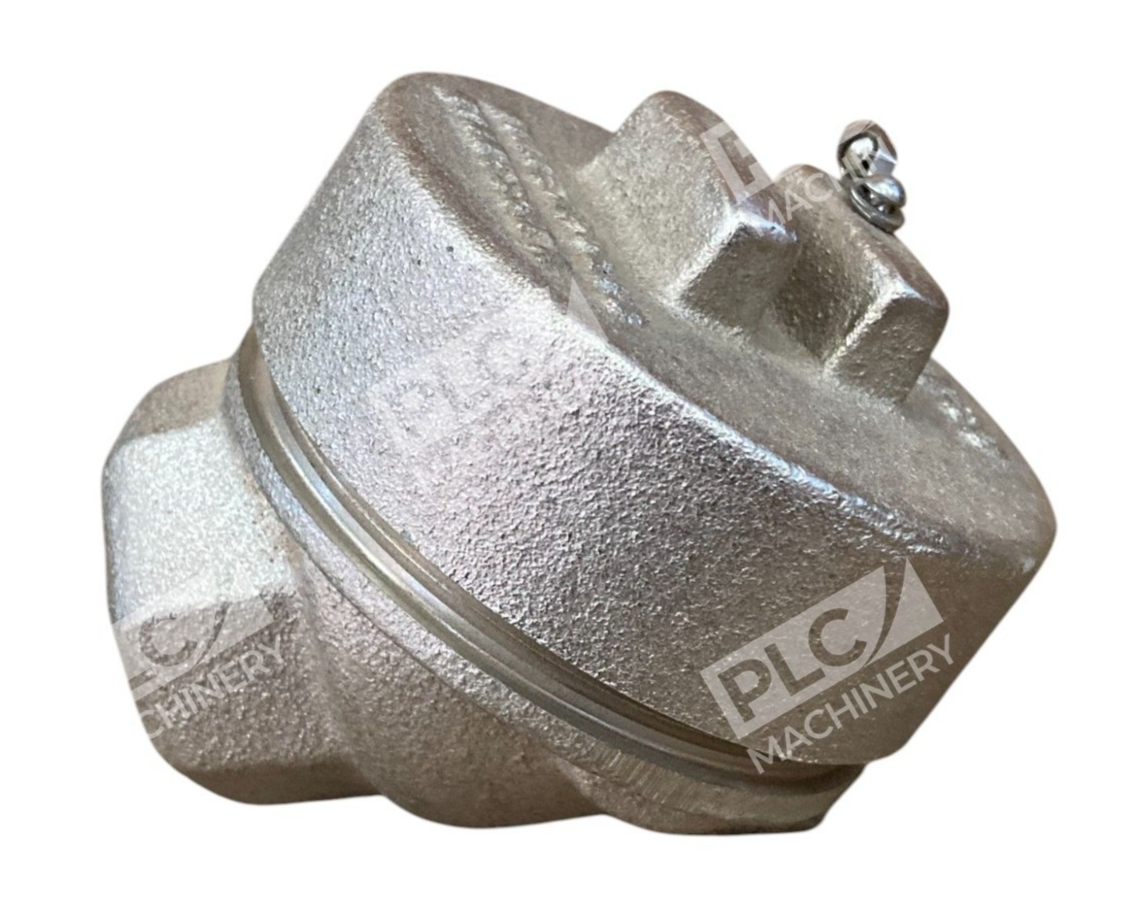

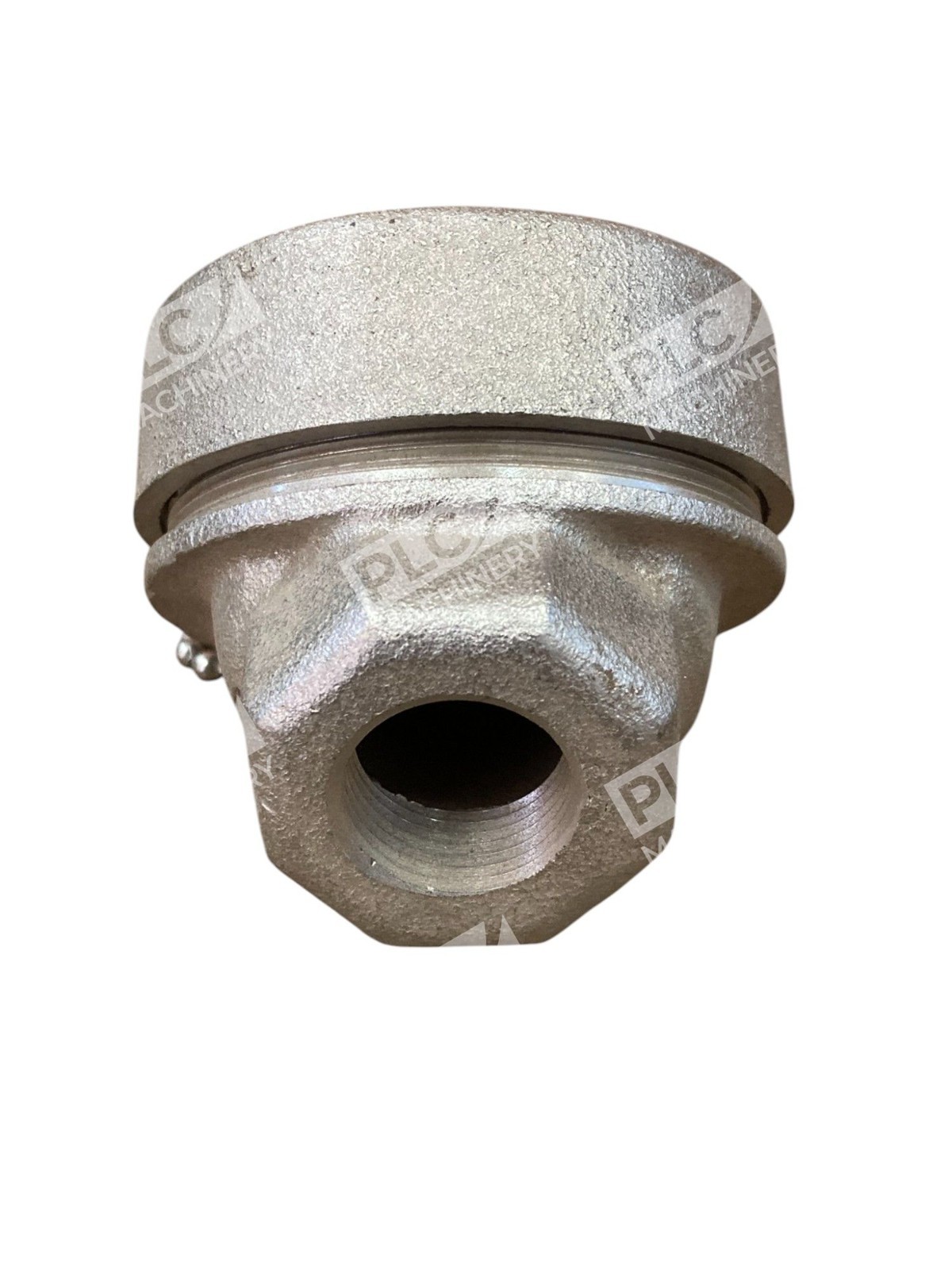

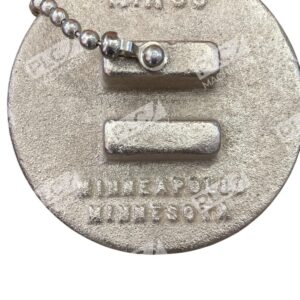

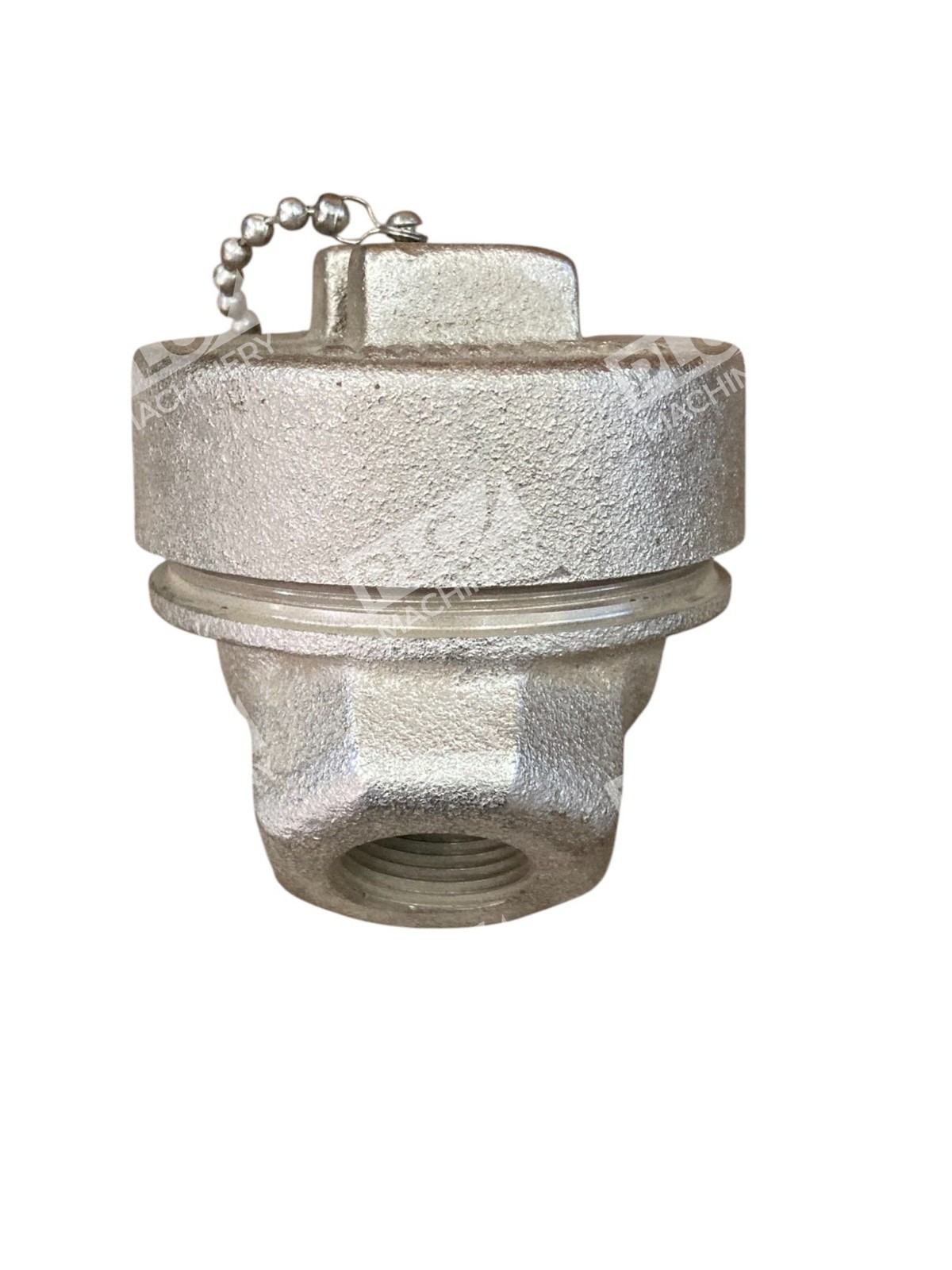

- Weatherproof cast iron or aluminum body construction for harsh environments

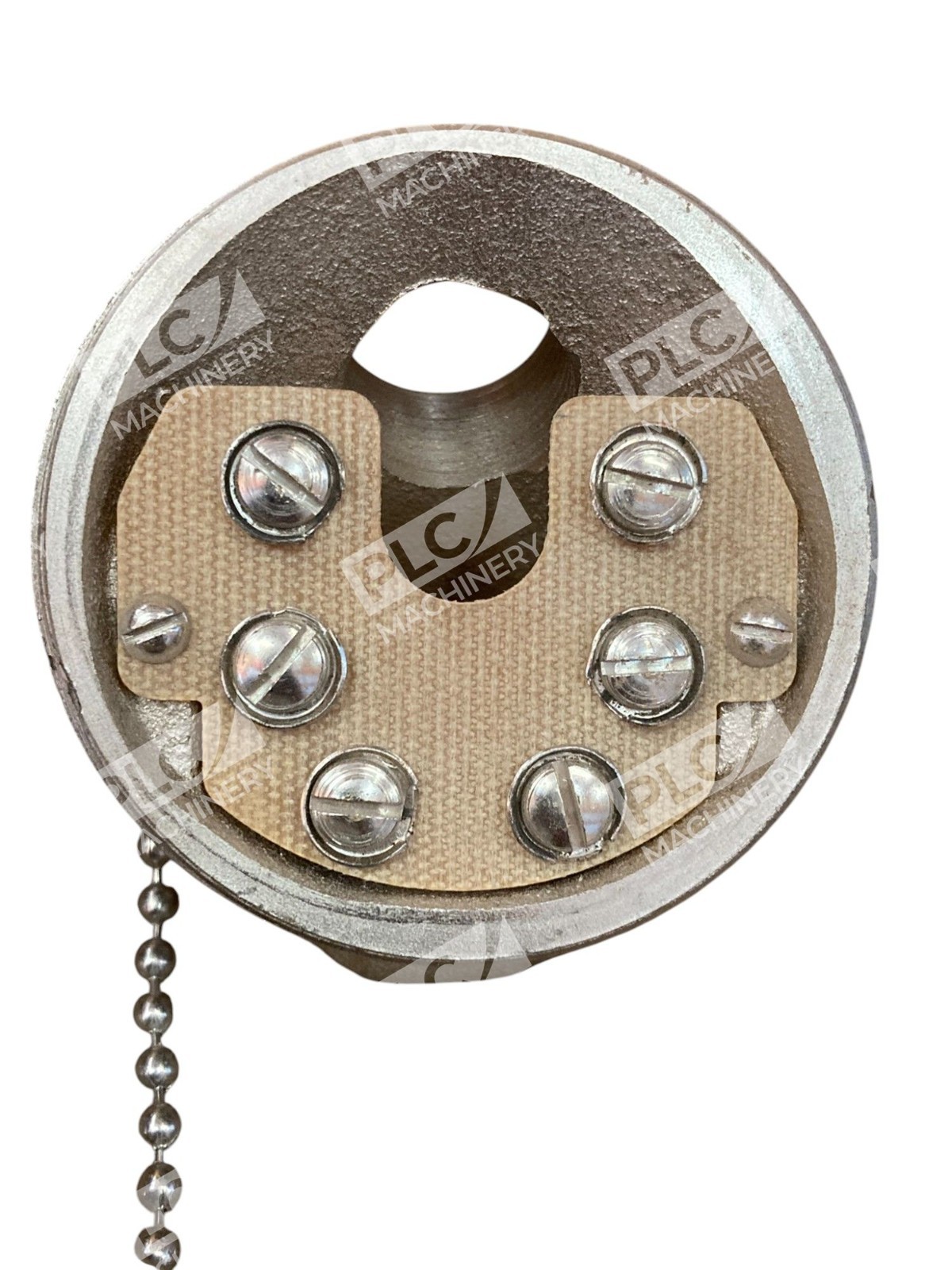

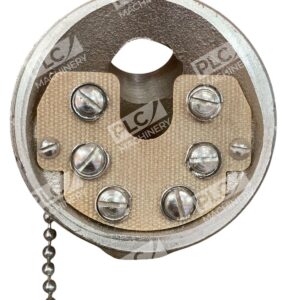

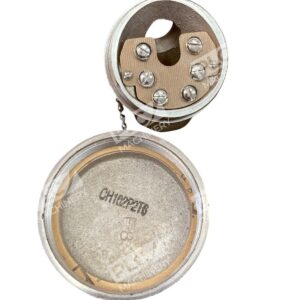

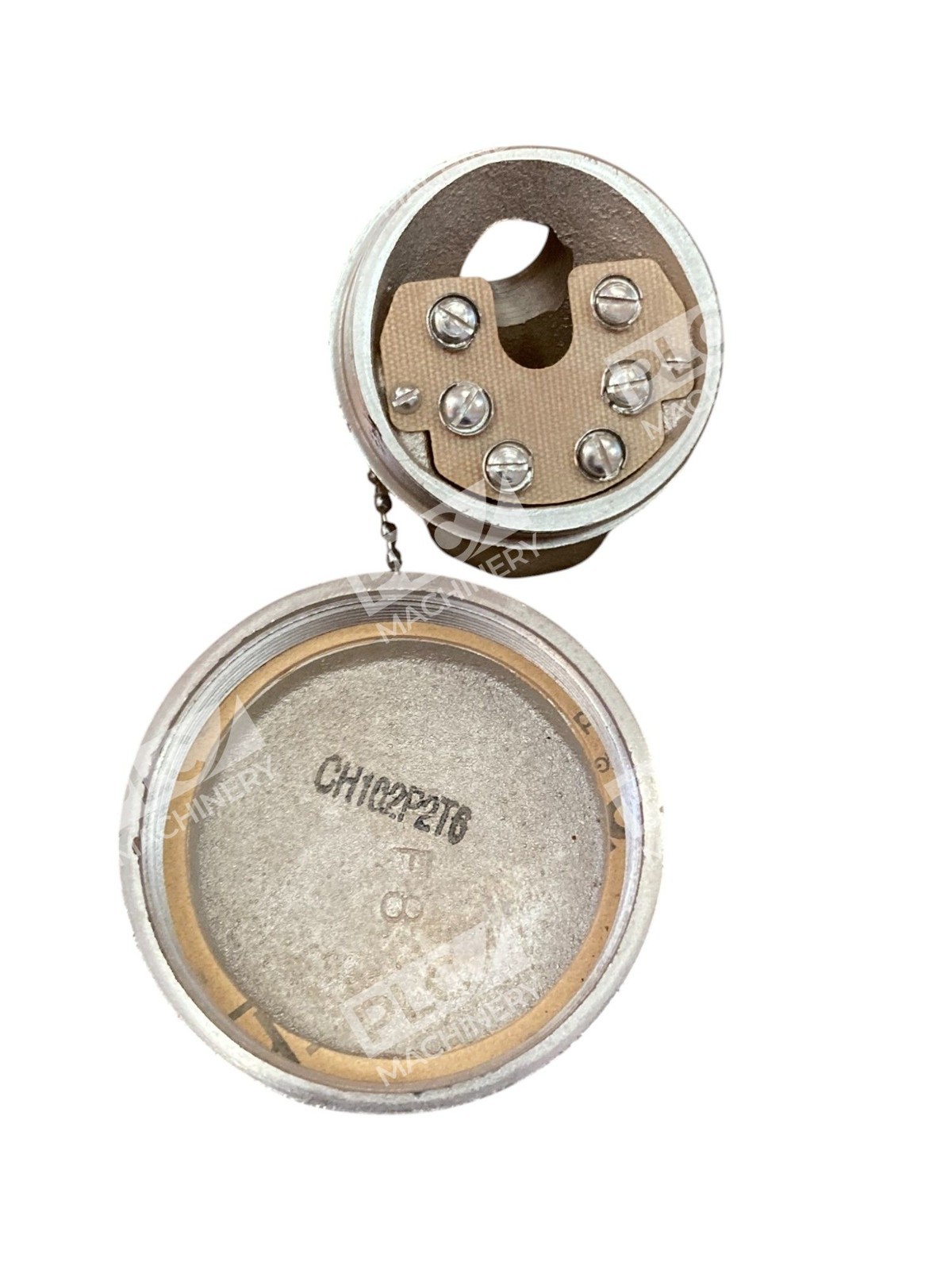

- 6-point terminal board for flexible lead-wire connections
- Dual 3/4″ NPT pipe thread connections (Thread A and Thread B)
- Supports both RTD and thermocouple probe assemblies
- Compact, field-proven design for industrial temperature monitoring
Technical Specifications

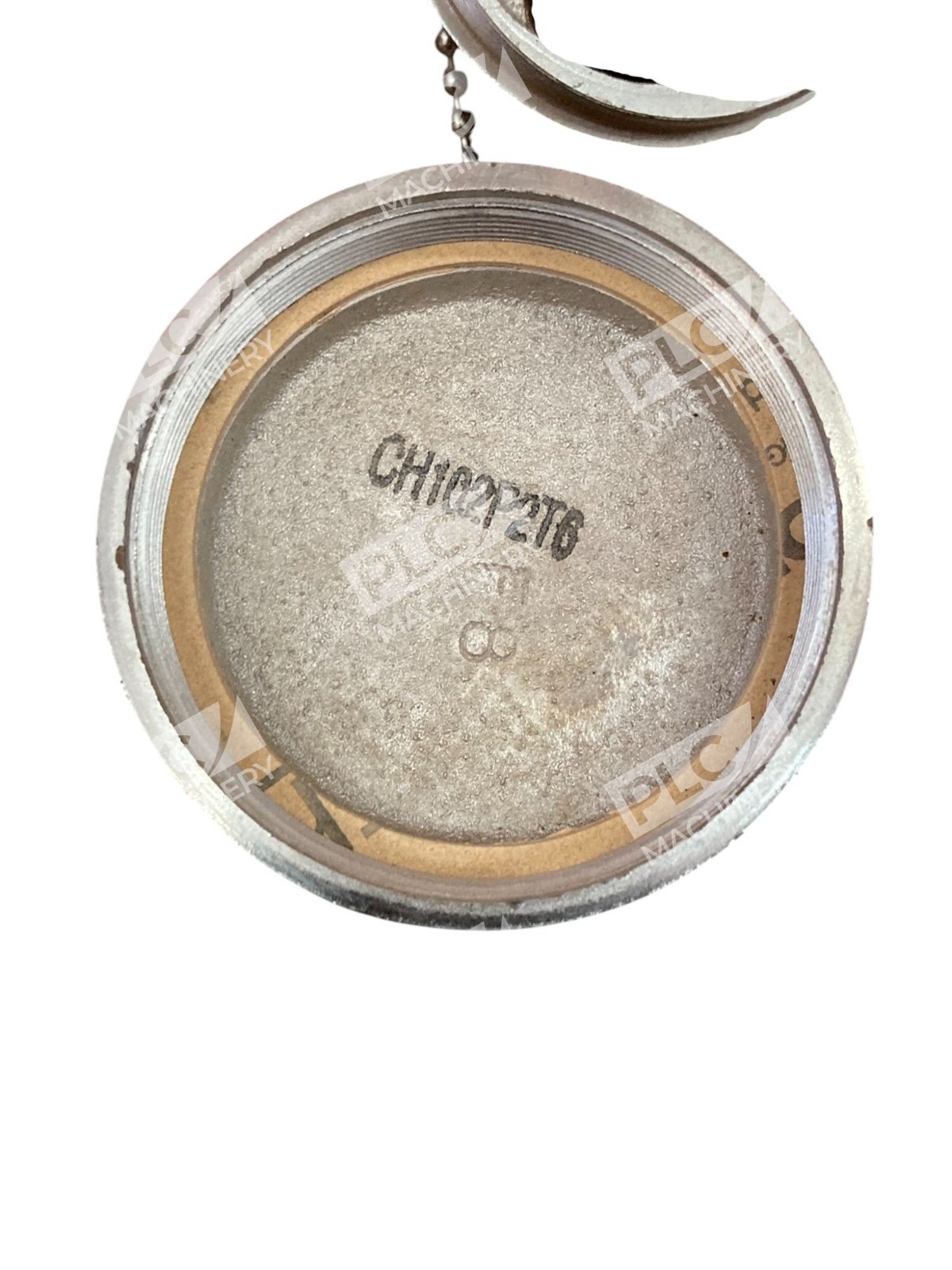

- Model: CH102P2T6
- Thread A: 3/4″ – 14 NPT
- Thread B: 3/4″ – 14 NPT
- Terminal Points: 6 connection points
- Wire Gauge Compatibility: AWG #14 maximum
- Wire Connector Type: Porcelain wire nuts
- Enclosure Type: Weatherproof
- Sensor Compatibility: RTD (Resistance Thermometer) and Thermocouple
Typical Applications
The Minco CH102P2T6 is commonly used in:
- Process control systems requiring remote temperature monitoring
- Industrial plants with multiple RTD or thermocouple sensor arrays
- HVAC and building automation systems
- Chemical processing and manufacturing facilities
- Equipment with centralized instrumentation panels
Compatibility & Replacements
Compatible With
- Minco RTD probe assemblies
- Minco thermocouple sensor assemblies
- Standard industrial temperature transmitters
- Remote readout and control instrumentation
- NEMA 3, 4, and 4X rated control systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Related Minco connection head models include CH102P1T6, CH102P3T4, CH102P4T4, CH103P1T6, CH103P2T6, and CH105P2T4, though direct replacement capability depends on thread configuration and terminal requirements.
Works With
- Minco temperature sensor probe assemblies
- Industrial RTD (Pt100, Pt1000) sensors
- Type J, K, and E thermocouple assemblies
- Extension-grade thermocouple wire
- Standard industrial control wiring and extension cables
