Overview

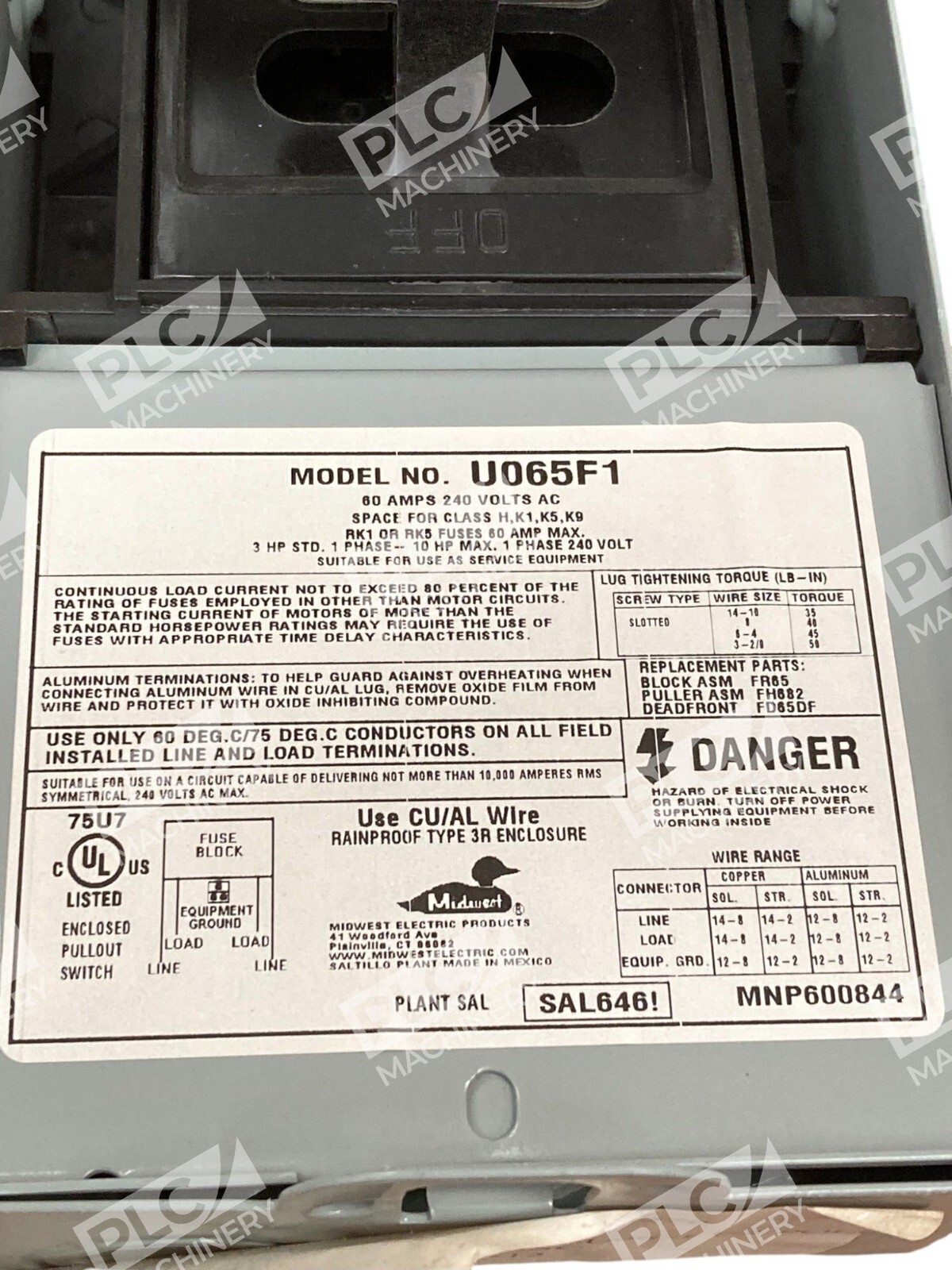

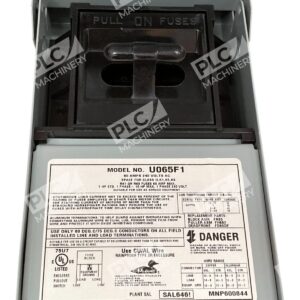

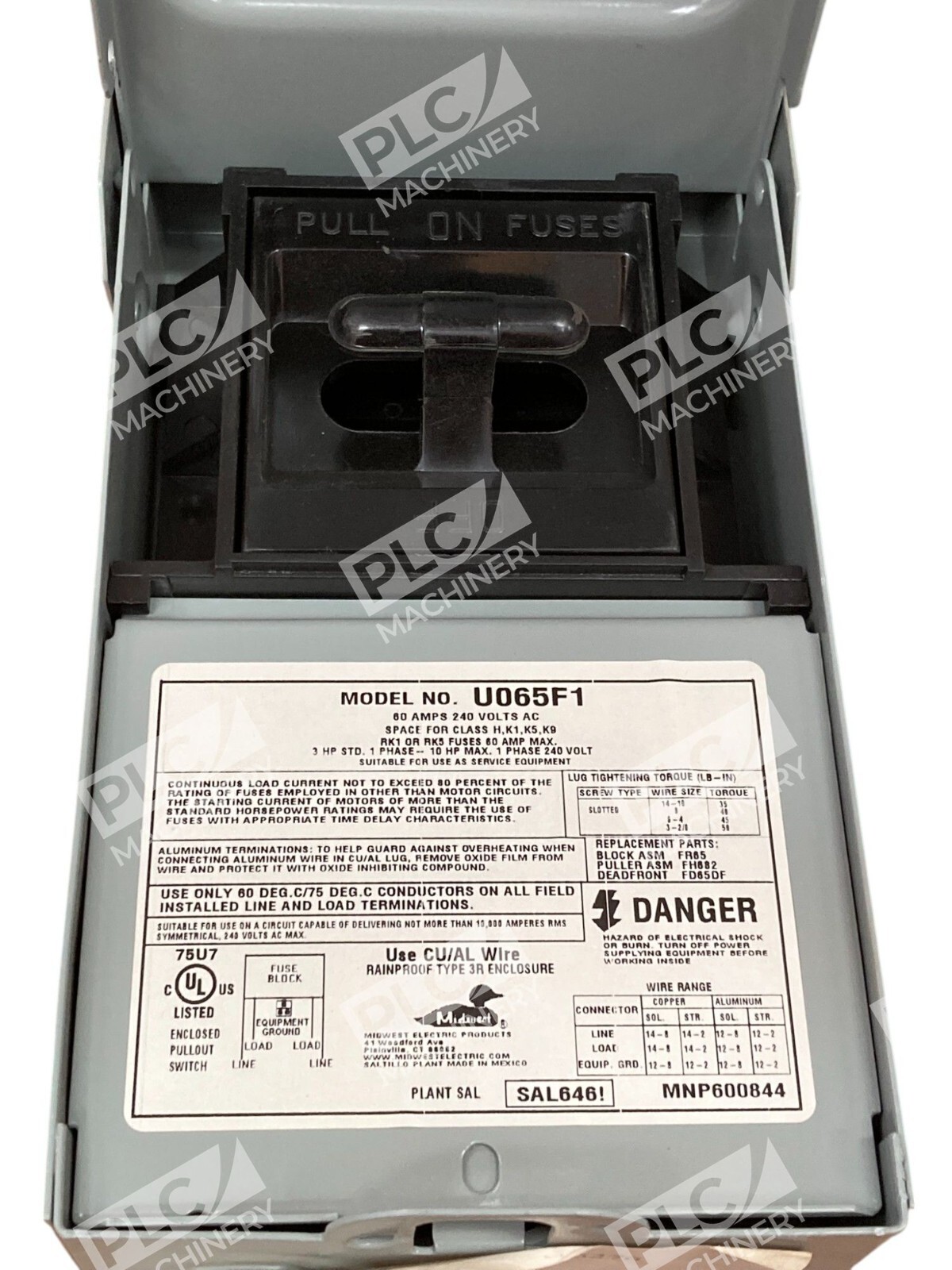

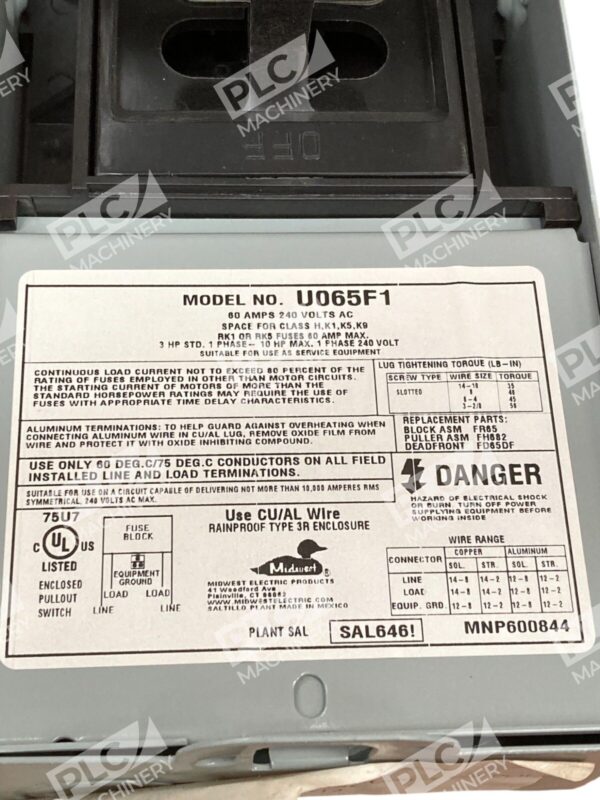

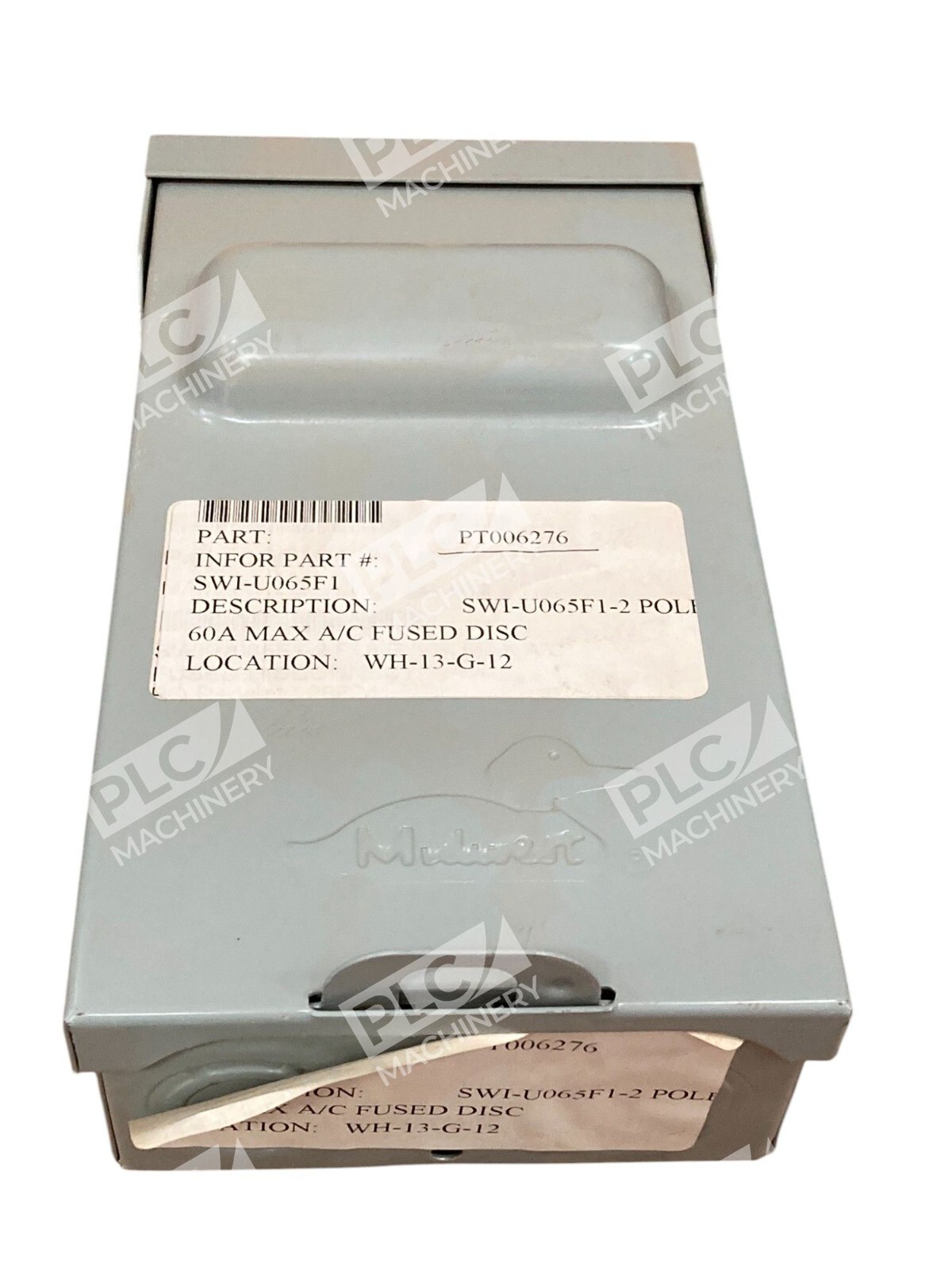

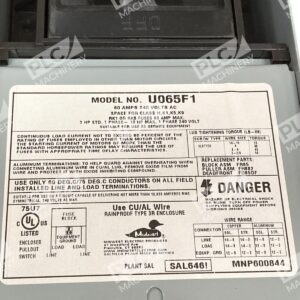

The Midwest U065F1 is a single-phase fusible disconnect switch rated for 60A at 240VAC. Midwest Electric’s fusible pull-out AC disconnect switch features steel construction for added durability, and is UL/cUL listed. This fusible, 1-phase switch has a maximum load capacity of 10 hp, making it suitable for HVAC systems, air conditioning units, and other residential/light commercial equipment requiring safe power isolation.
Key Features
- Pull-out design with 2-pole, 240VAC, 1-phase operation in NEMA 3R metallic enclosure
- Pullers are removable or reinstallable in the OFF position for user safety during equipment maintenance
- Compact cabinet dimensions of 5-inch × 2-3/4-inch × 9-inch
- Listed for use as service entrance in residential applications
- Accepts fuse class H, K1, K5, K9, RK1, and RK5 ratings up to 60A
Technical Specifications
- Voltage Rating: 240VAC
- Current Rating: 60A
- Horsepower: 10 hp
- Phase: 1-Phase (Single Phase)
- Poles: 2
- Enclosure Rating: NEMA 3R
- Enclosure Material: Galvanized Steel
- Switch Type: Fusible Pull-Out
- Contact Form: DPST
- Certifications: UL/cUL Listed
- Cabinet Dimensions: 5″ W × 2-3/4″ D × 9″ H
Typical Applications
The Midwest U065F1 is commonly deployed in:
- Air conditioning and HVAC system disconnects
- Residential service entrance applications
- Light commercial equipment power shutoff
- Outdoor and indoor installations requiring weather-resistant NEMA 3R rated enclosures
- Equipment maintenance and safety lockout/tagout procedures
Compatibility & Replacements
Compatible With
- Single-phase 240VAC power supplies
- HVAC compressors and air conditioning units rated up to 10 hp
- Fused distribution systems accepting Class H, K1, K5, K9, RK1, and RK5 fuses
- Outdoor metallic disconnect enclosures per NEMA 3R specifications
Replaces / Drop-In Replacement For
The Midwest U065F1 is a direct replacement for other single-phase, 60A, 240VAC fusible disconnect switches in the Midwest Electric U065 family. Verify compatibility with your specific system before ordering to ensure proper fit and electrical requirements are met.
Works With
- Standard AC circuit protection and fusing systems
- HVAC service entrance disconnect requirements (residential and light commercial)
- Lockout/tagout (LOTO) safety compliance procedures
- UL/cUL regulated electrical installations
