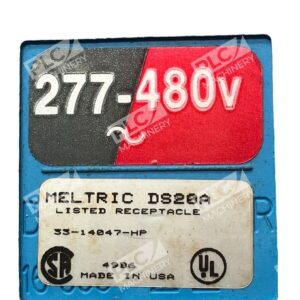

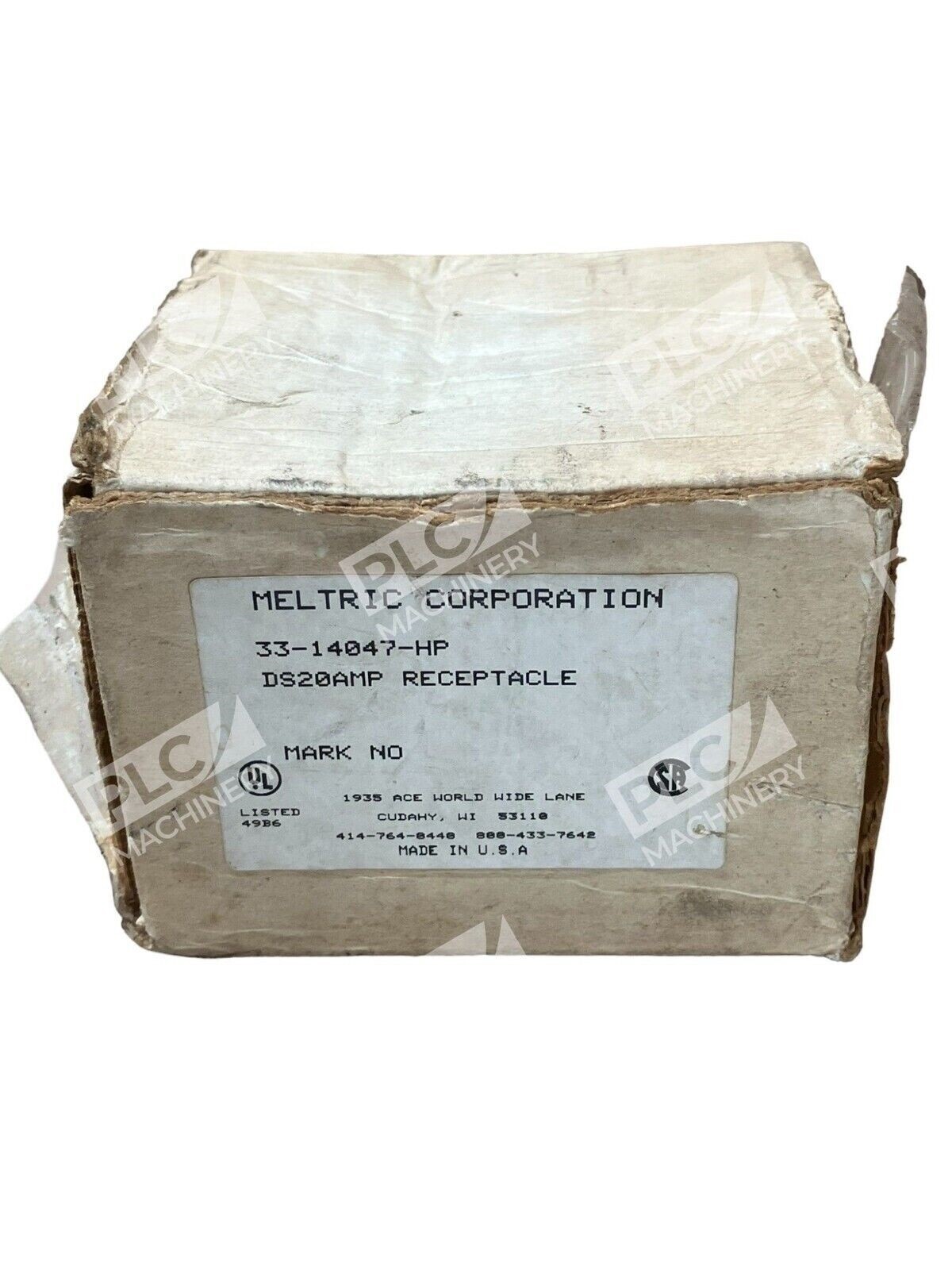

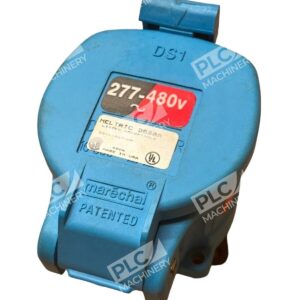

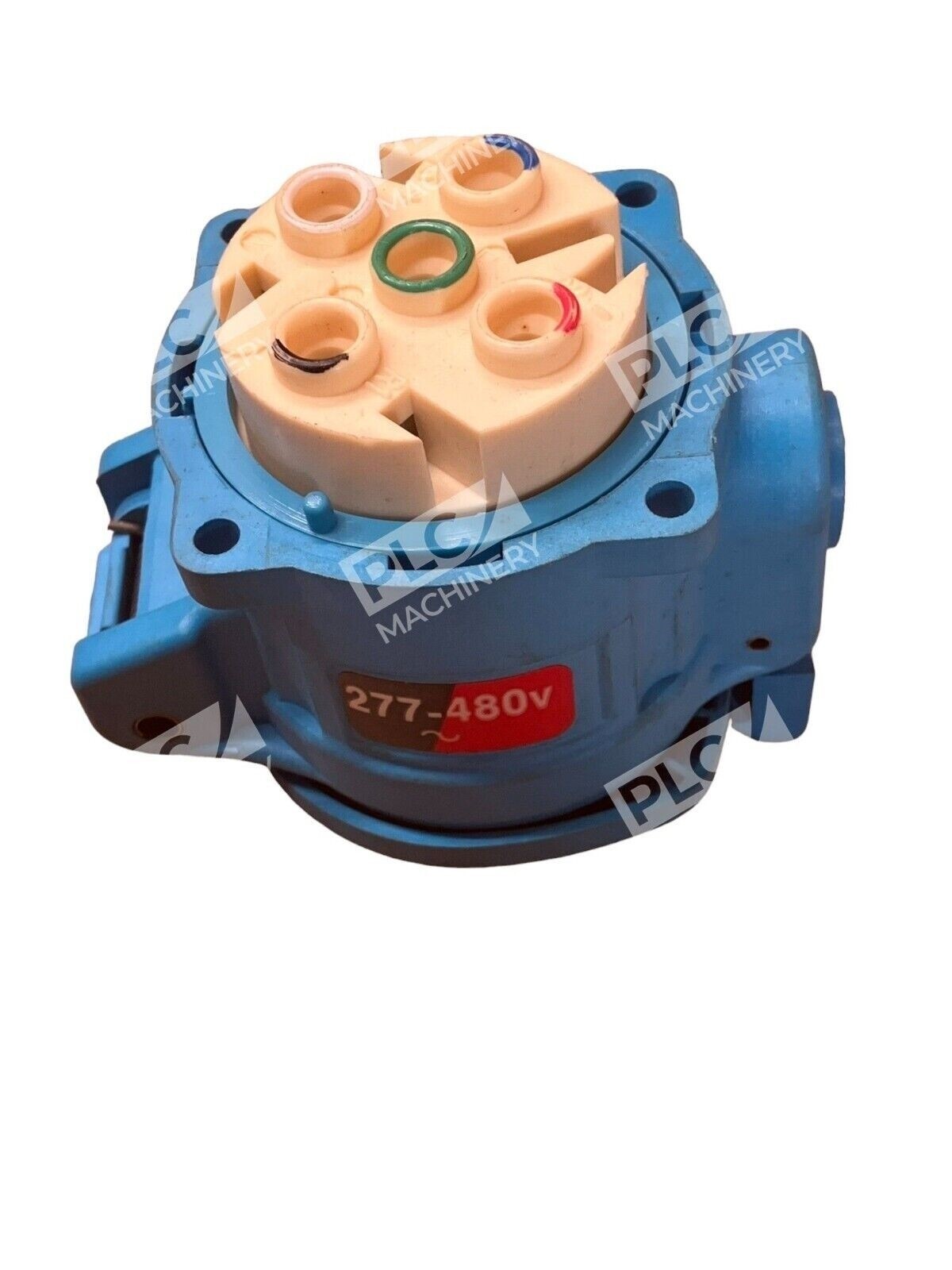

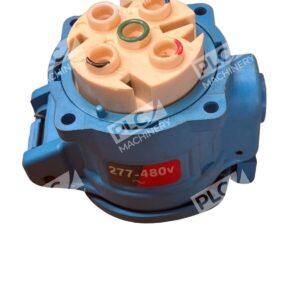

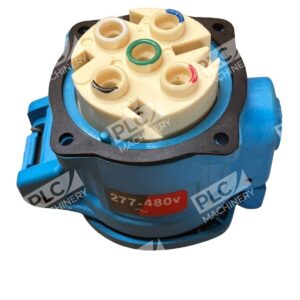

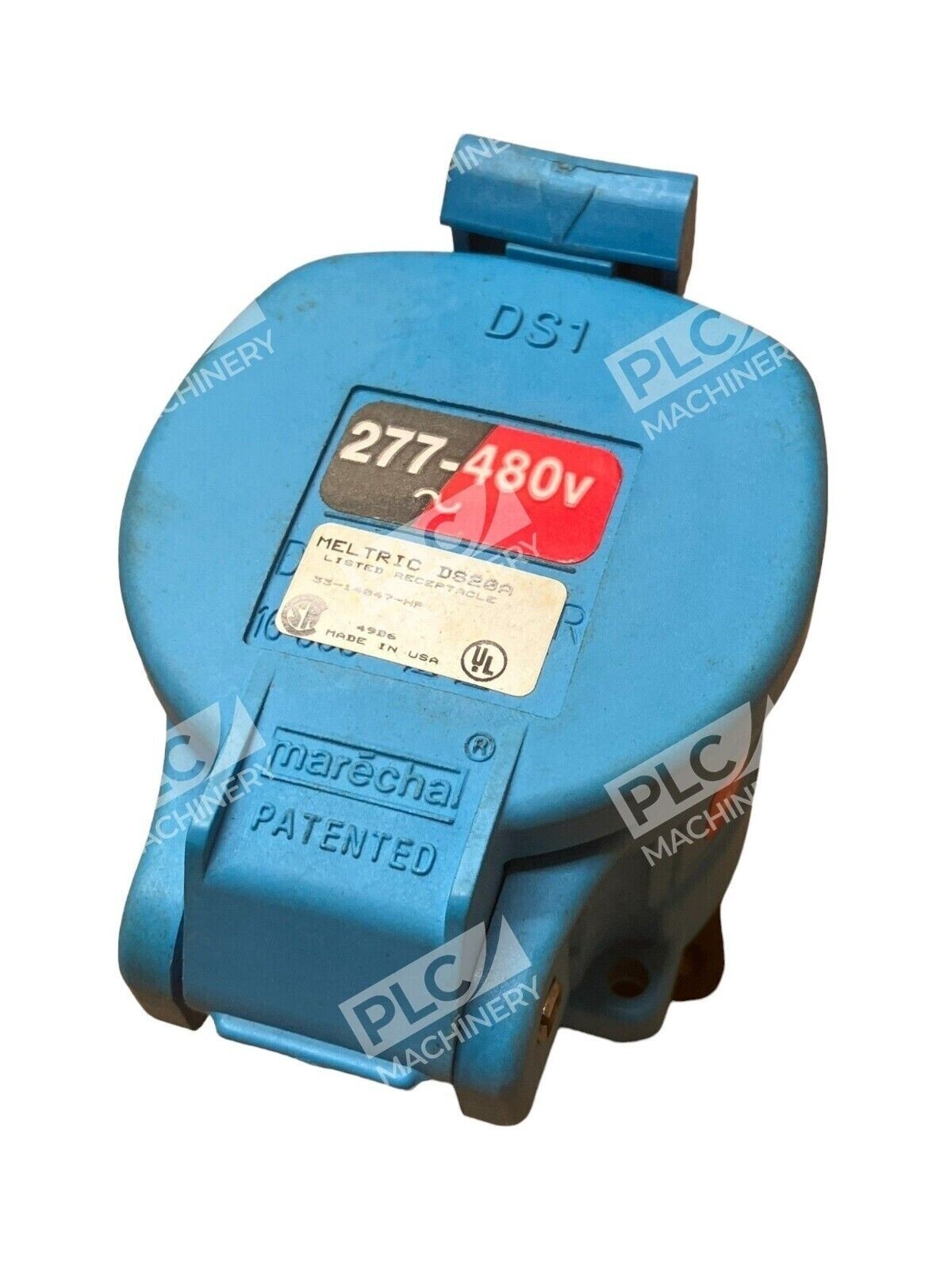

The Meltric 33-14047-HP DS20A is a 20A switch-rated receptacle designed for industrial applications requiring reliable and safe electrical connections.
Key Features

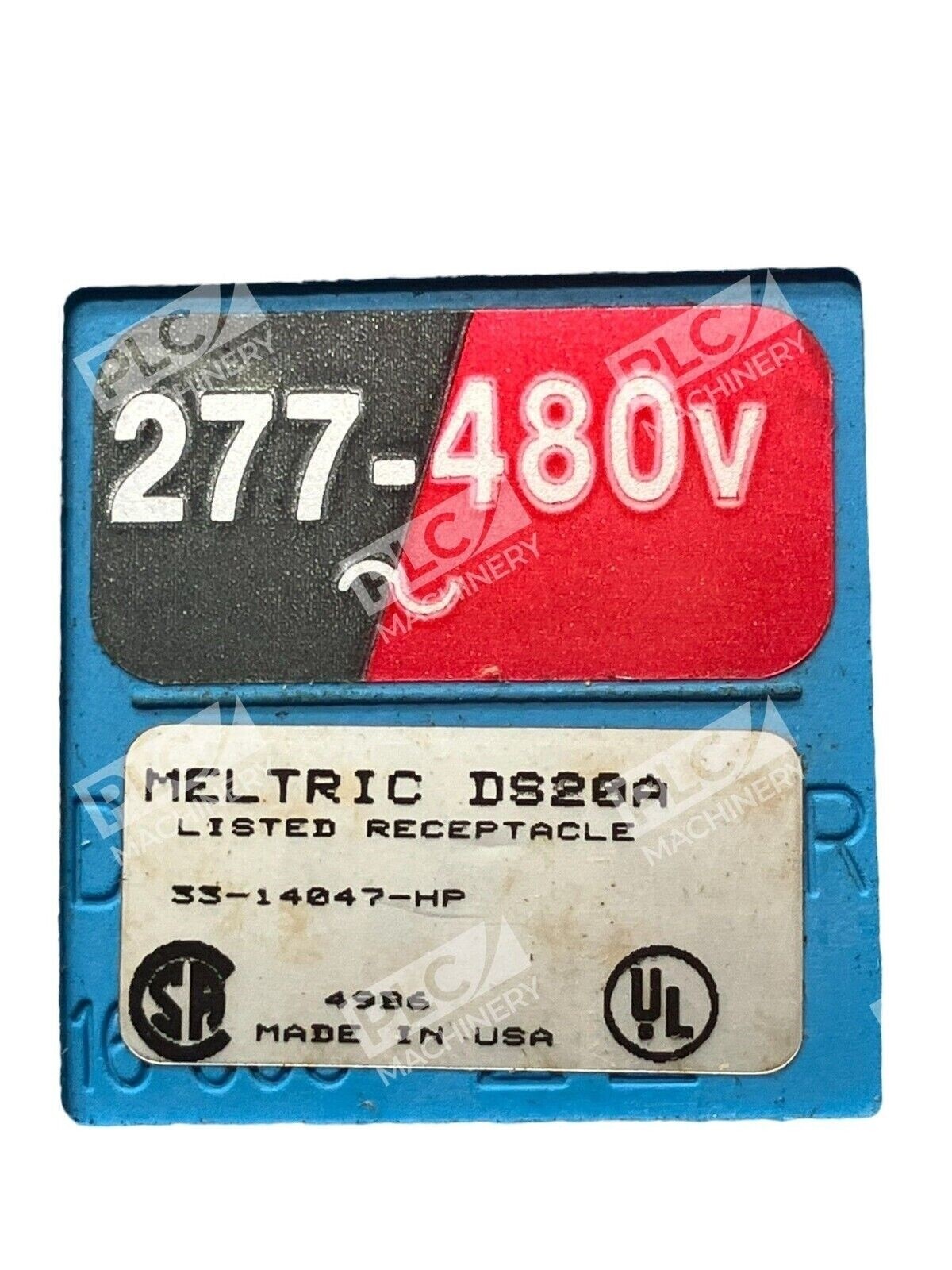

- Voltage and Current Ratings: Supports 255/277/440/480 VAC at 20A, suitable for various industrial power requirements.
- Horsepower Rating: Capable of handling up to 7.5 hp at 480 VAC, making it ideal for motor connections.
- Environmental Protection: Rated NEMA 3R and IP55, ensuring protection against dust and water ingress in harsh environments.
- Temperature Range: Operates efficiently between -40°F to 140°F, suitable for extreme conditions.
- Construction Material: Made from durable polyester, offering resistance to impact, corrosion, and UV exposure.

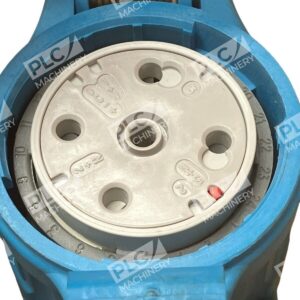

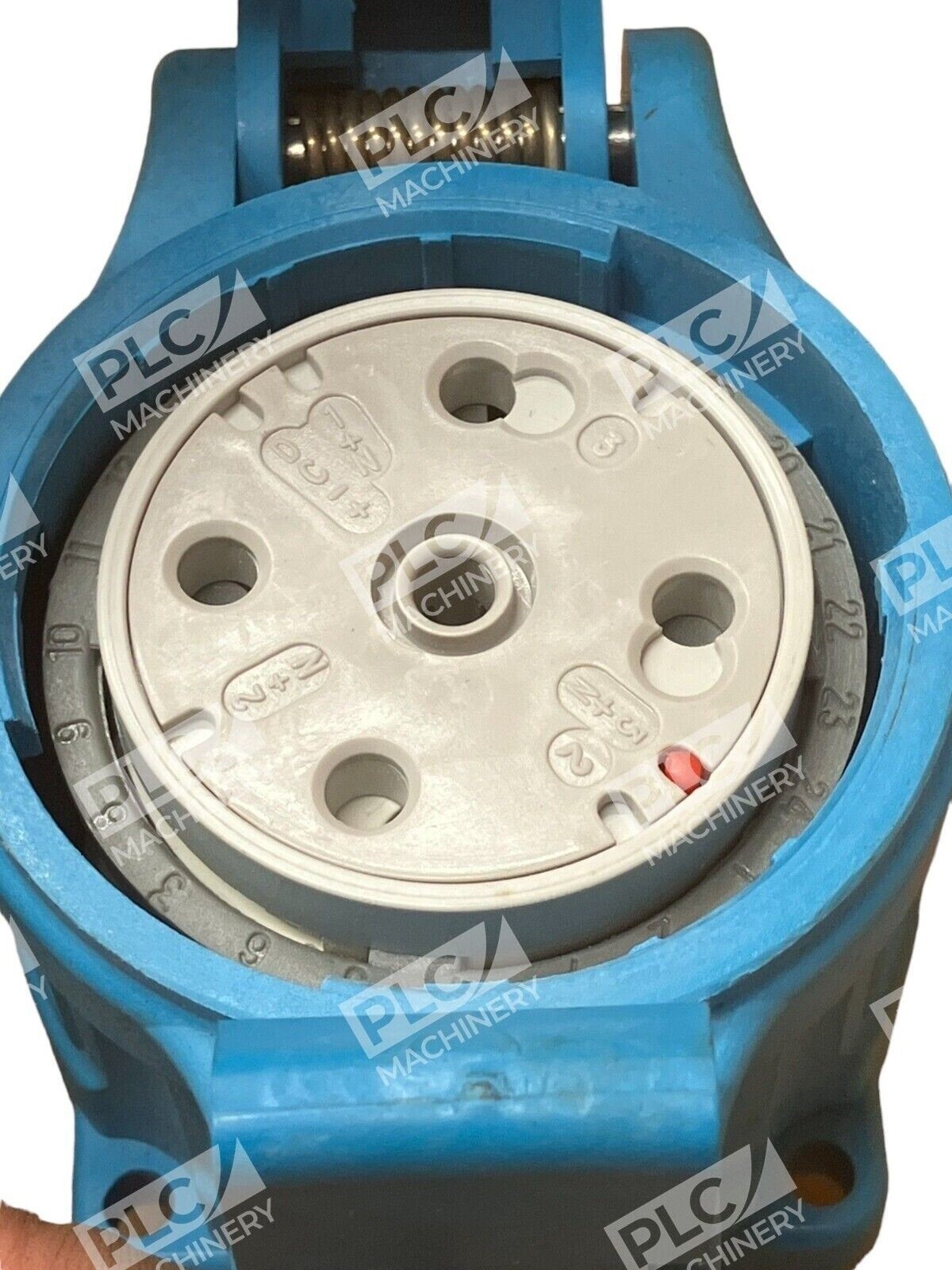

- Safety Mechanisms: Features a dead front safety shutter to prevent accidental contact with live parts and an OFF button for quick de-energization.
- Short Circuit Rating: Rated for 65 to 100 kA, providing high fault current protection.

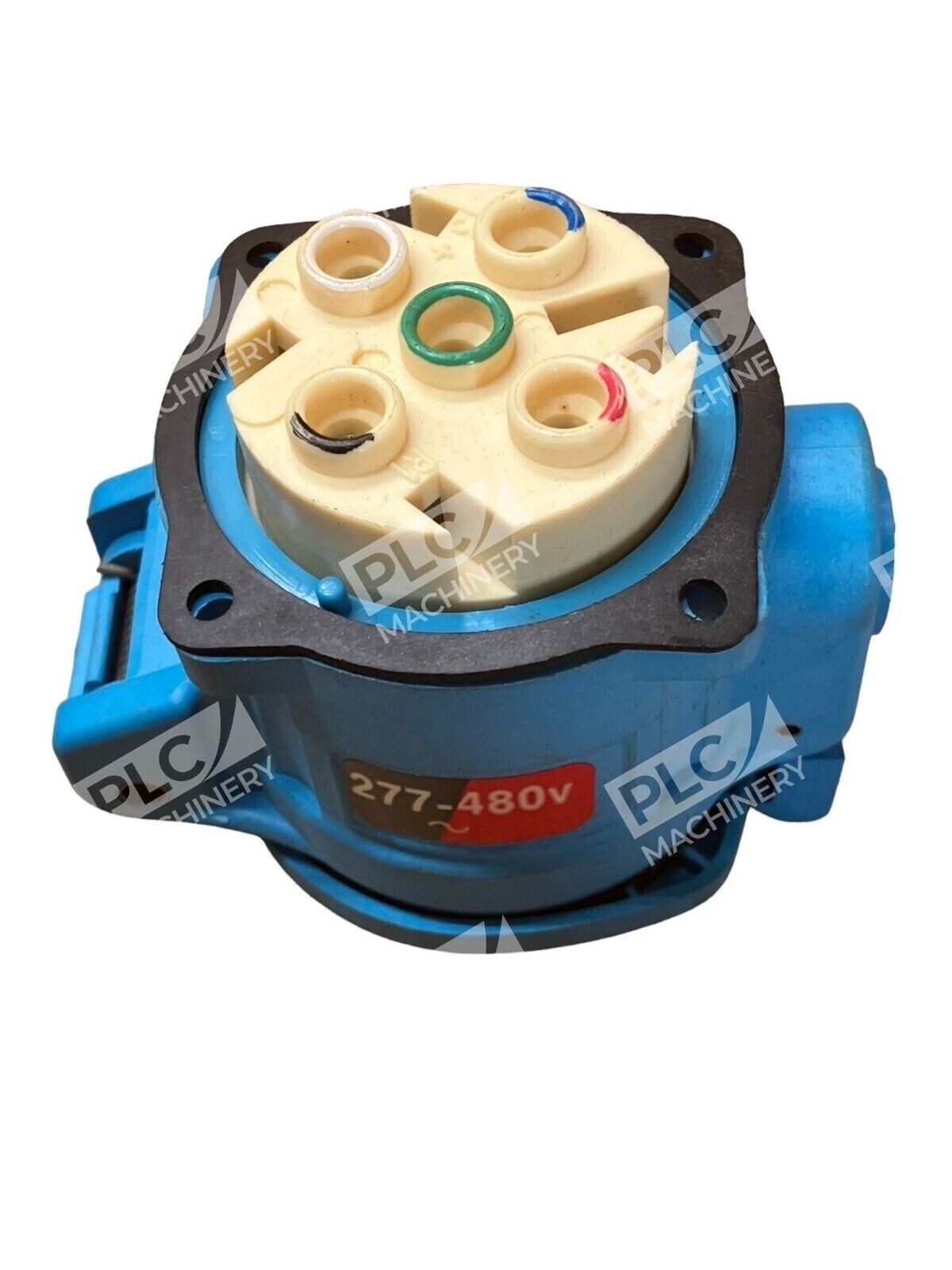

- Terminal Type: Equipped with spring-assisted screw terminals for secure and reliable connections.
Applications
The Meltric 33-14047-HP DS20A is ideal for use in industries such as metals, quarrying, automotive, and mining, where robust and safe electrical connections are essential. Its switch-rated design allows for safe disconnection of electrical equipment under load, enhancing operational safety and efficiency.
Dimensions
- Diameter: 2.72 inches
- Length: 3.15 inches
This compact design facilitates easy installation in various industrial settings.
Compliance and Standards
The receptacle complies with multiple standards, including UL, CSA, NOM, IEC, CE, and NFPA 70E, ensuring adherence to international safety and performance requirements.
In summary, the Meltric 33-14047-HP DS20A 20A Switch Rated Receptacle offers a combination of safety, durability, and performance, making it a reliable choice for demanding industrial applications.
