Overview

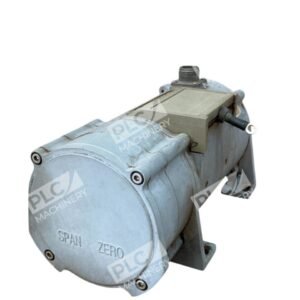

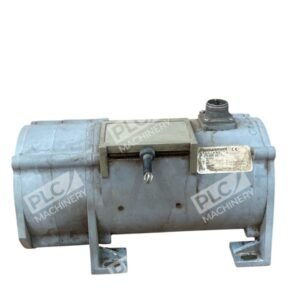

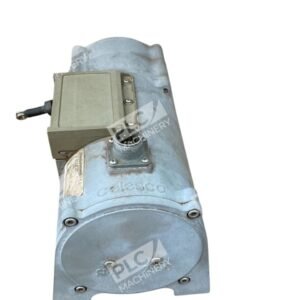

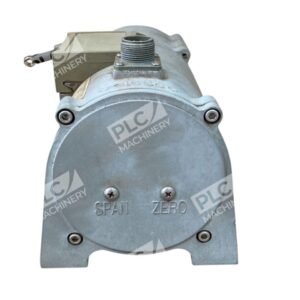

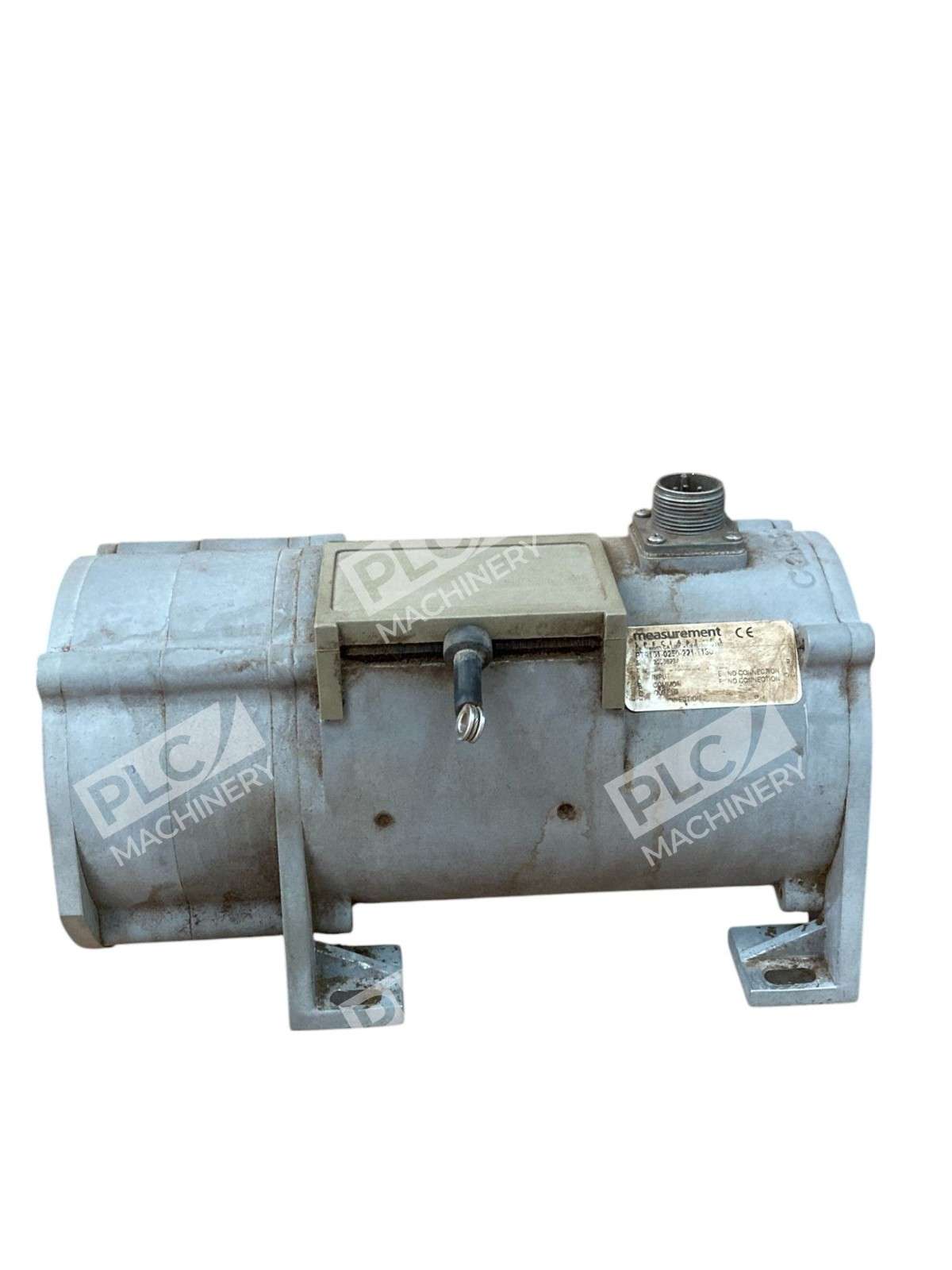

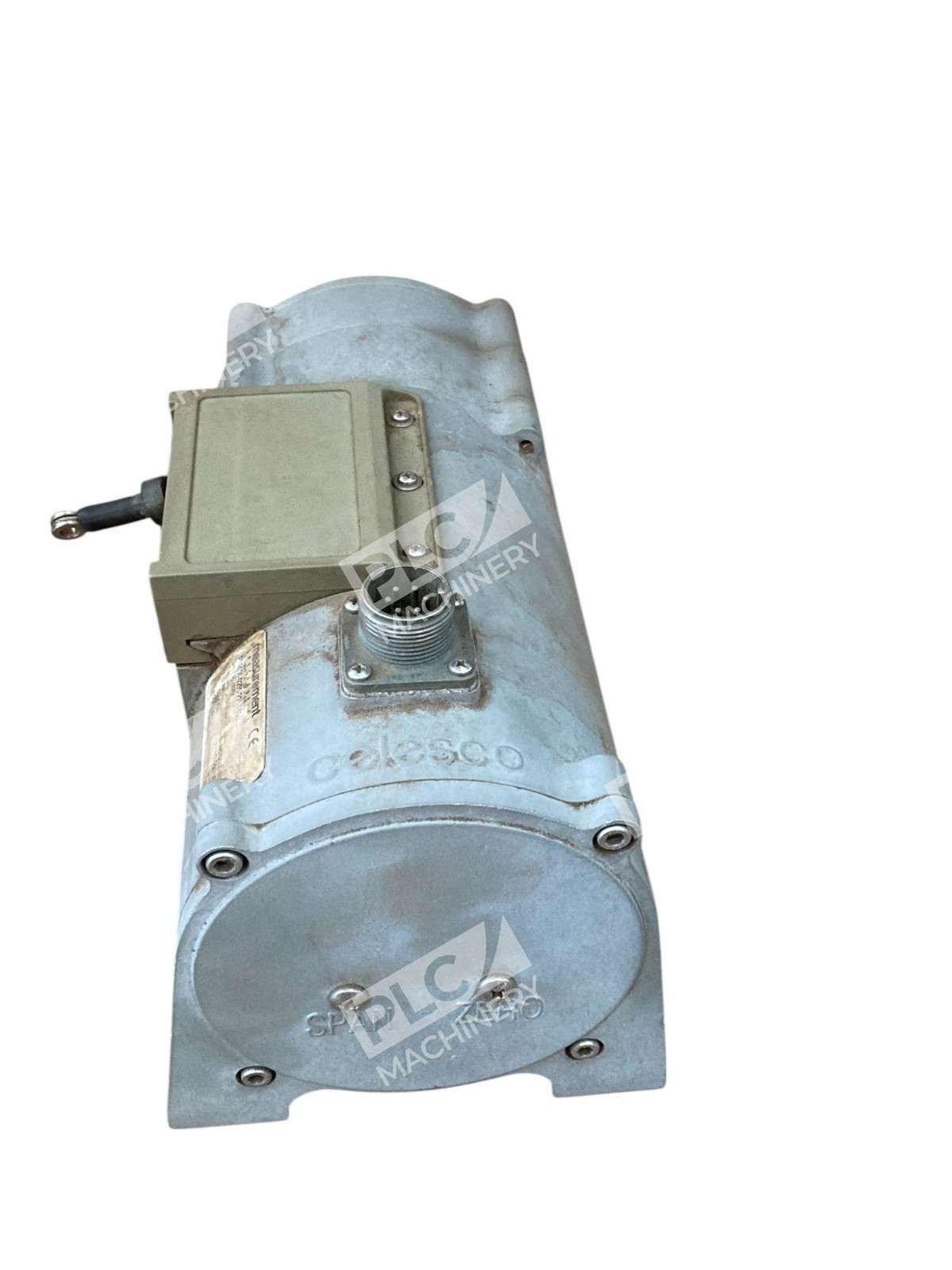

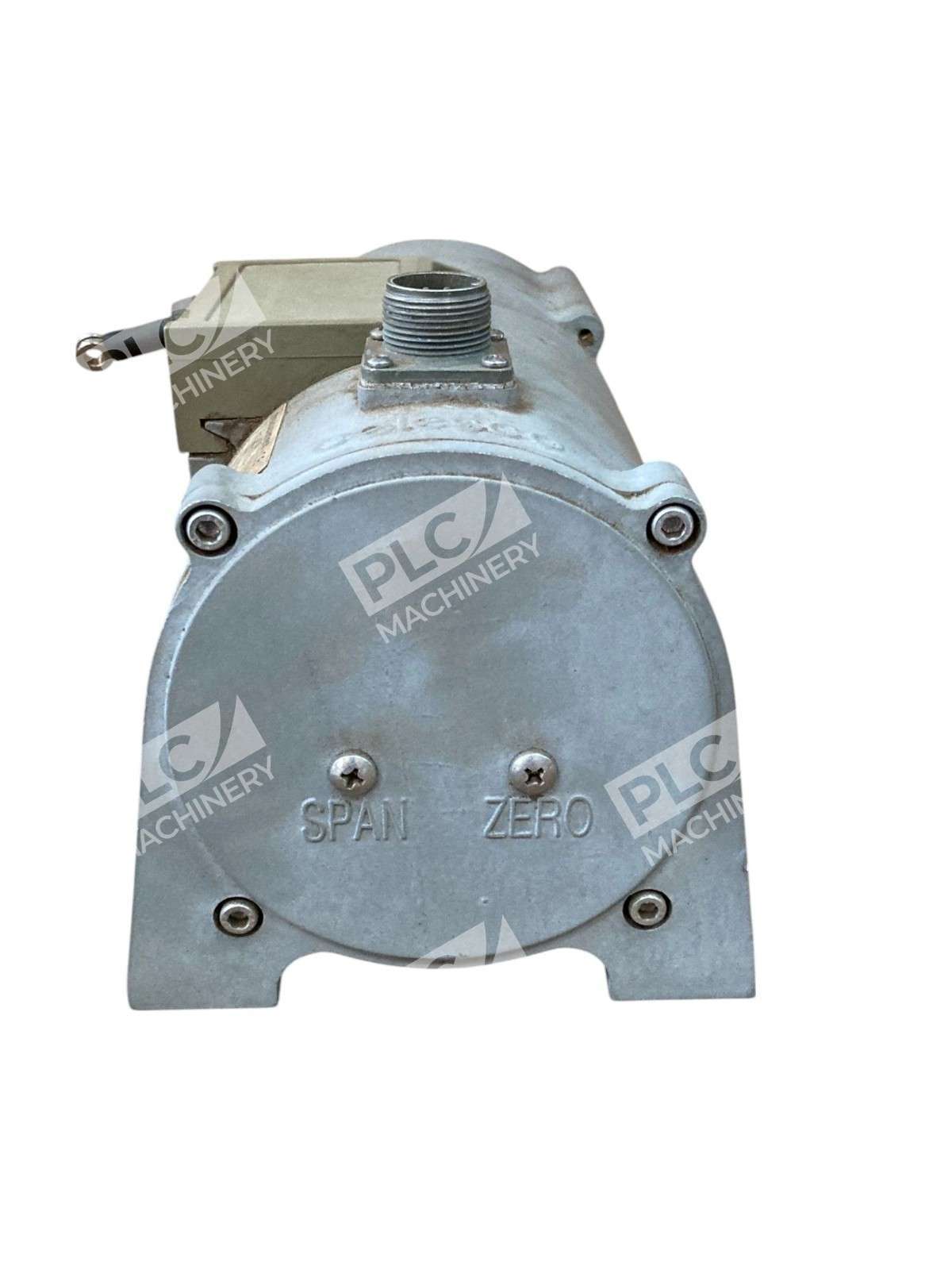

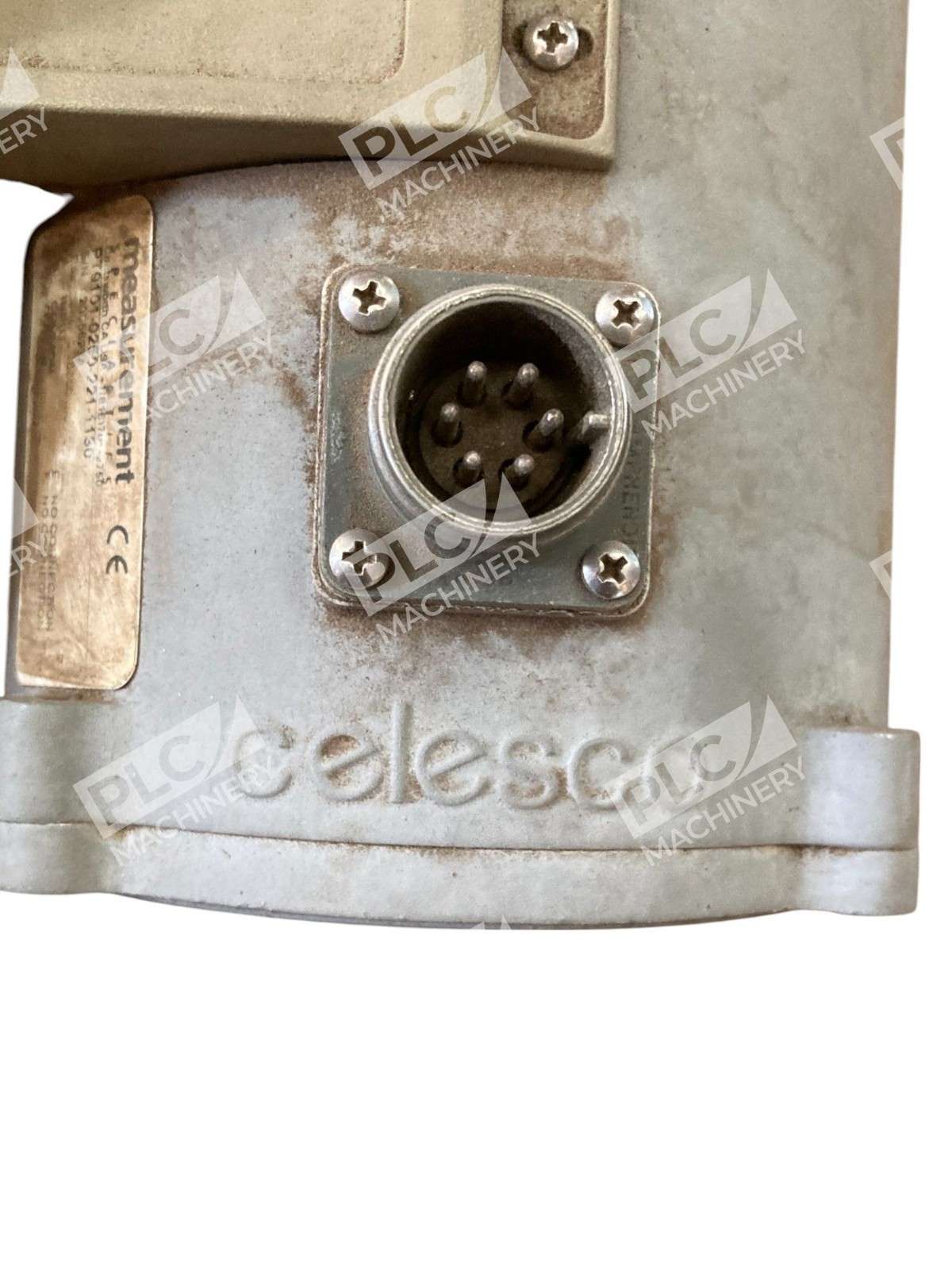

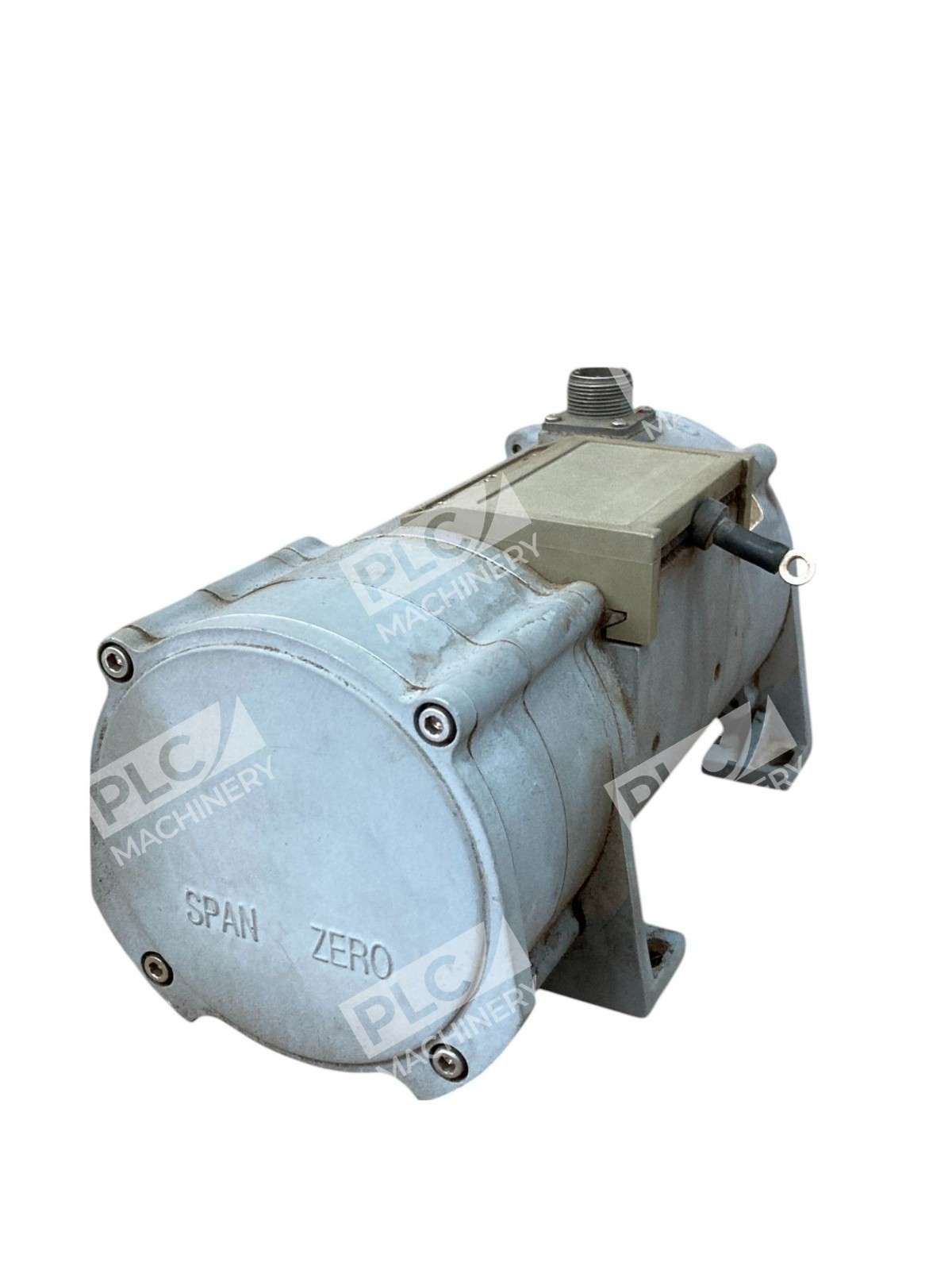

The Measurement Specialties PT9101-0250-221-1130 digital position transducer delivers precise position monitoring for manufacturing, metrology, and quality control applications. This unit combines proven Measurement Specialties engineering with a straightforward digital interface, making it suitable for retrofit into existing systems or as a replacement component. The PT9101 series is recognized for reliable performance in demanding industrial environments.
Key Features
- Digital output for direct integration with controllers and data acquisition systems
- PT9101 series proven design for industrial measurement applications
- Compact form factor for easy installation in confined spaces
- 0–250 measurement range capability
- Established compatibility with legacy and modern automation platforms
Technical Specifications
The following specifications represent the typical PT9101-0250-221-1130 configuration:
- Model: PT9101-0250-221-1130
- Manufacturer: Measurement Specialties
- Series: PT9101
- Output Type: Digital
- Measurement Range: 0–250 units
- Part Number Code: 0250 (range), 221 (output configuration), 1130 (connector/housing)
- Condition: Used, tested, fully functional
Typical Applications
- Precision linear or rotational position feedback in test stands
- Manufacturing process control and position verification
- Quality assurance and dimensional verification systems
- Retrofit into existing metrology equipment
- Industrial automation position monitoring
Compatibility & Replacements
Compatible With
- Industrial controllers with digital input modules
- Data acquisition and measurement systems
- PLC input cards with digital signal processing
- SCADA and process automation software
- Standard industrial cabinet enclosures and DIN rail systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The PT9101-0250-221-1130 may replace other Measurement Specialties PT9101 models with equivalent range and output configurations. Consult original equipment documentation for confirmed cross-references.
Works With
- Allen-Bradley ControlLogix and CompactLogix digital input modules
- Siemens S7-1200 and S7-1500 controllers
- National Instruments DAQ systems
- Beckhoff TwinCAT automation platforms
- Standard digital counter and frequency measurement circuits
