Overview

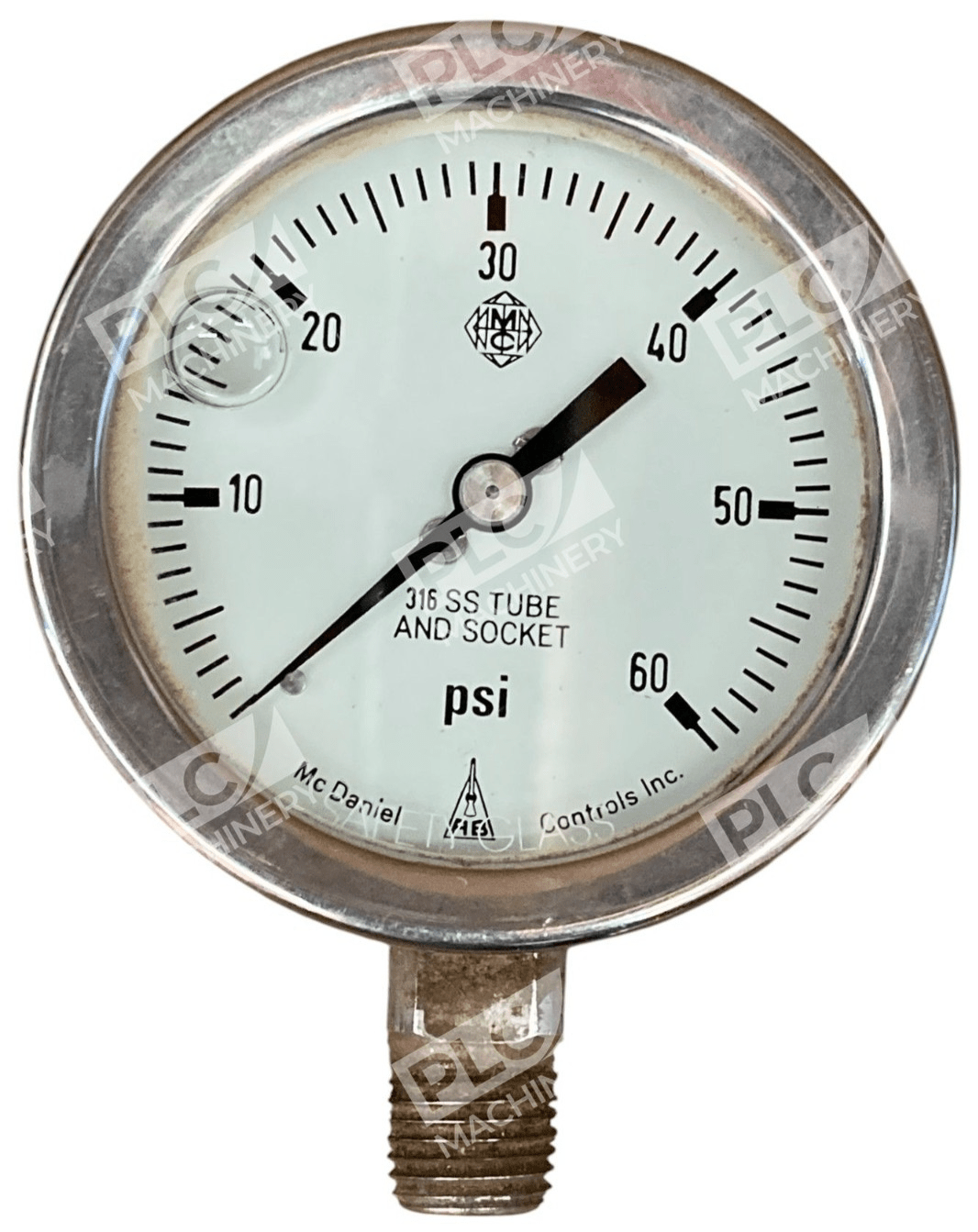

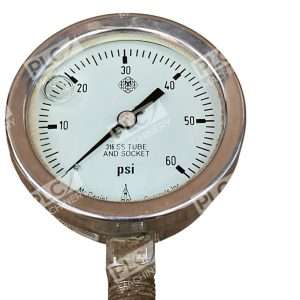

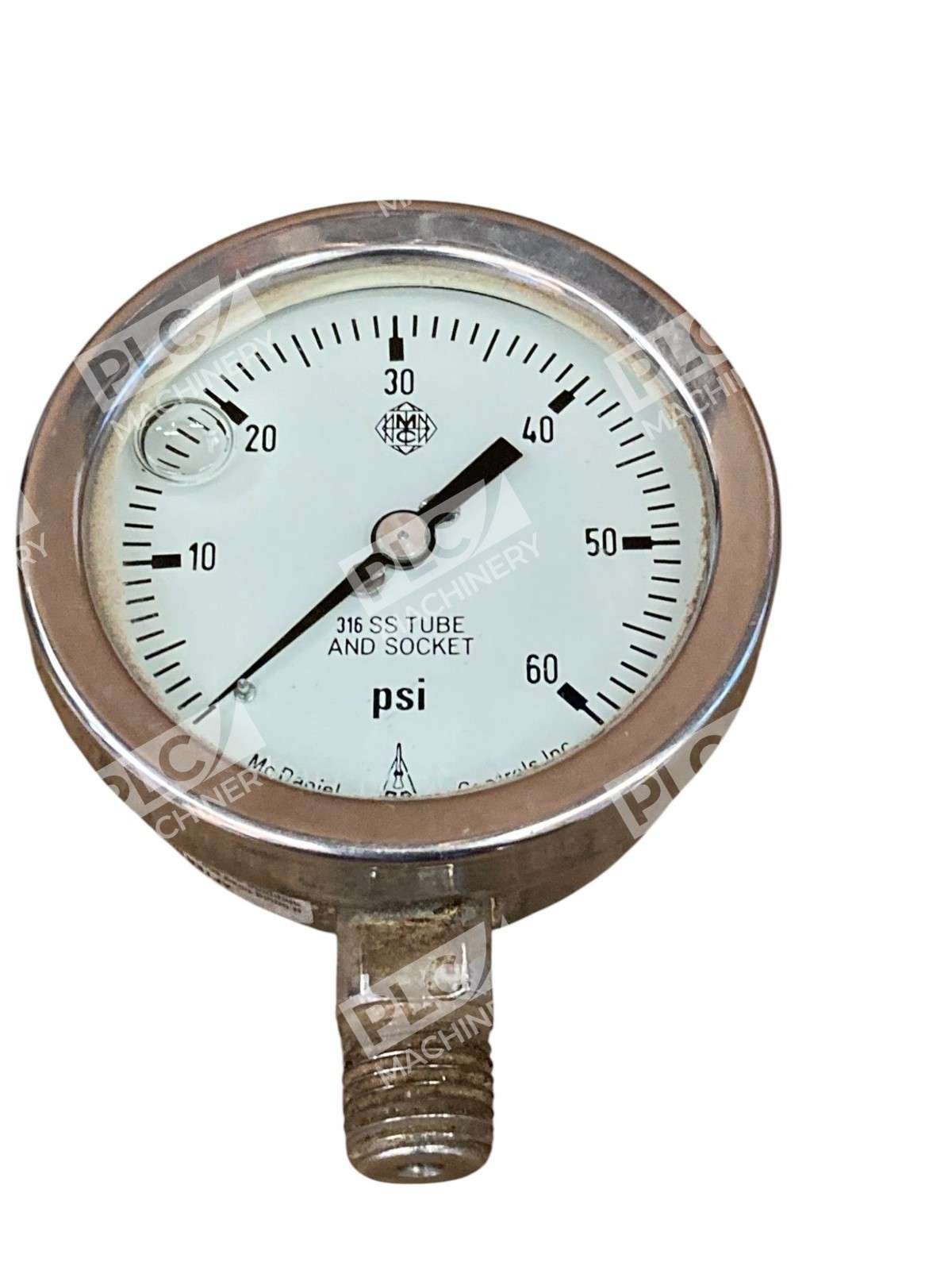

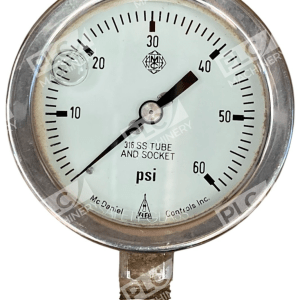

The McDaniel 251009AWL02B pressure gauge combines precision measurement with robust stainless steel construction. McDaniel Controls manufactures precision pressure gauges in stainless steel for oil & gas, petrochemical, and industrial applications. This 2.5″ dial unit features a 316 stainless steel case with liquid filling for vibration and pulsation dampening, making it suitable for demanding environments where corrosion resistance and accuracy are essential.
Key Features
- 2.5″ dial face for easy visibility in industrial settings
- 316 stainless steel construction for superior corrosion resistance
- 0-60 PSI measurement range

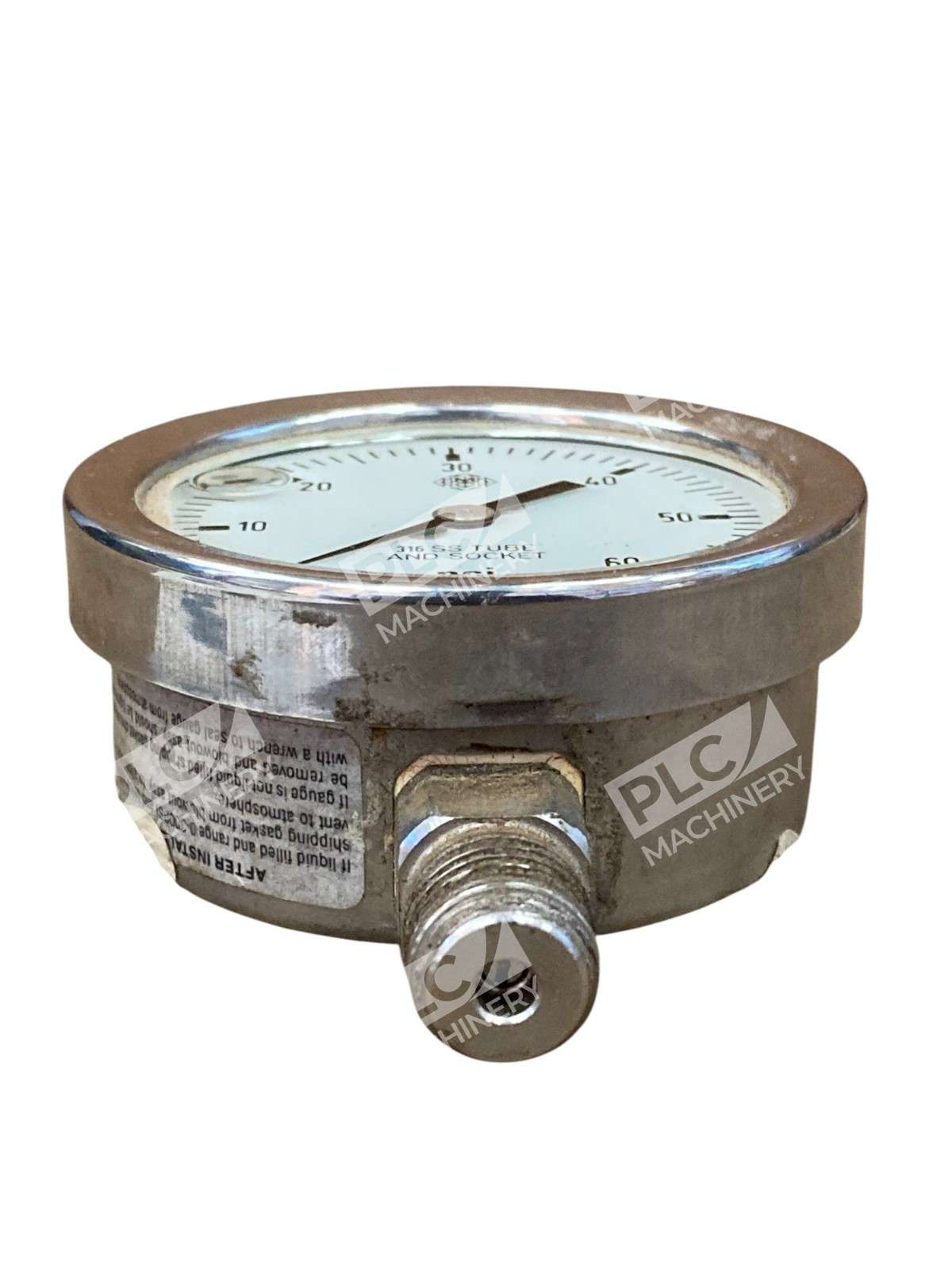

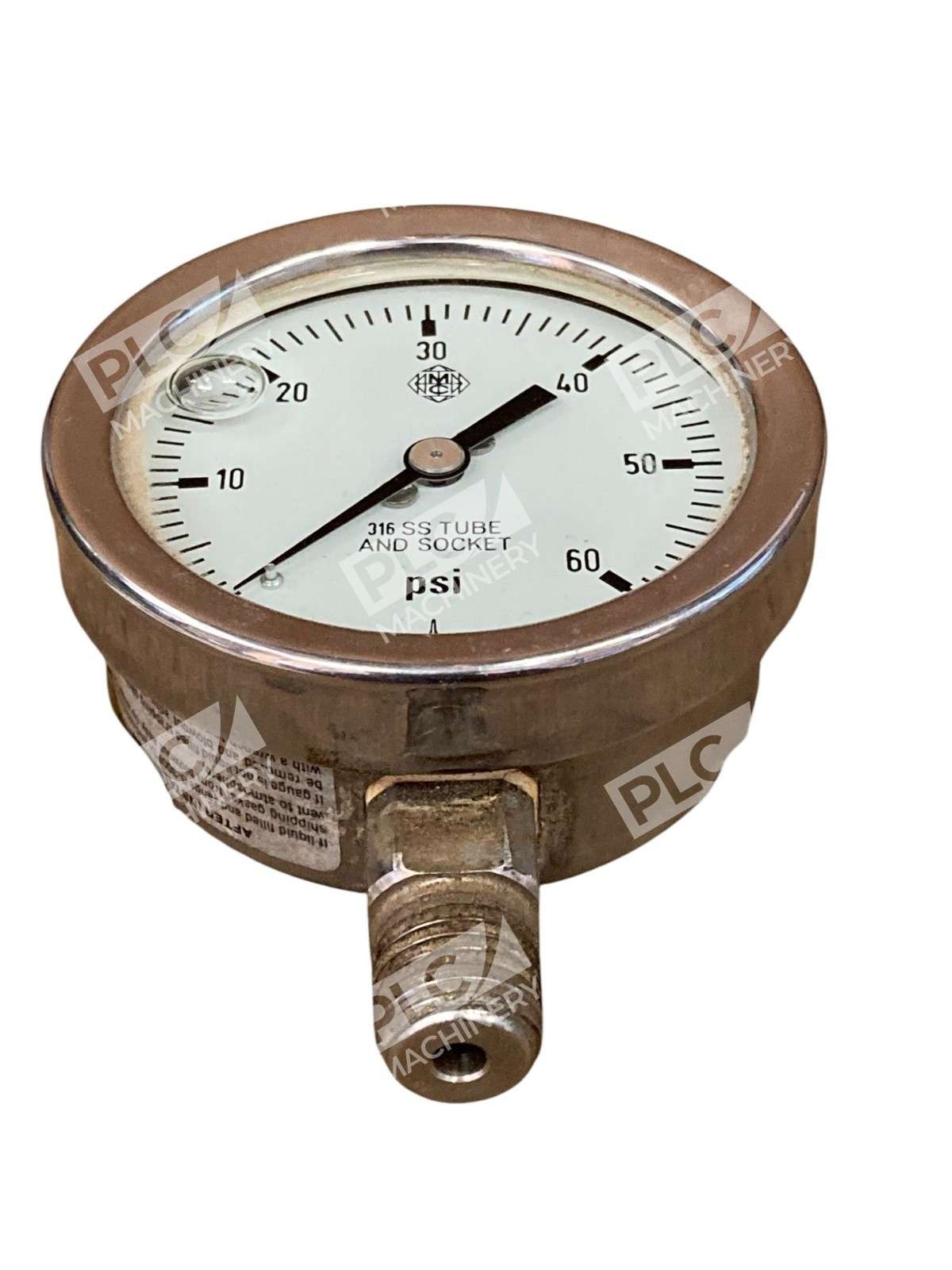

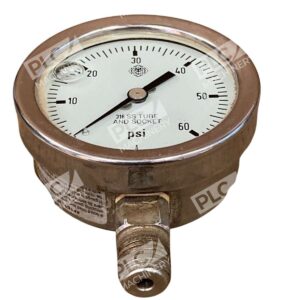

- Bottom-mount liquid-filled design for vibration and pulse protection

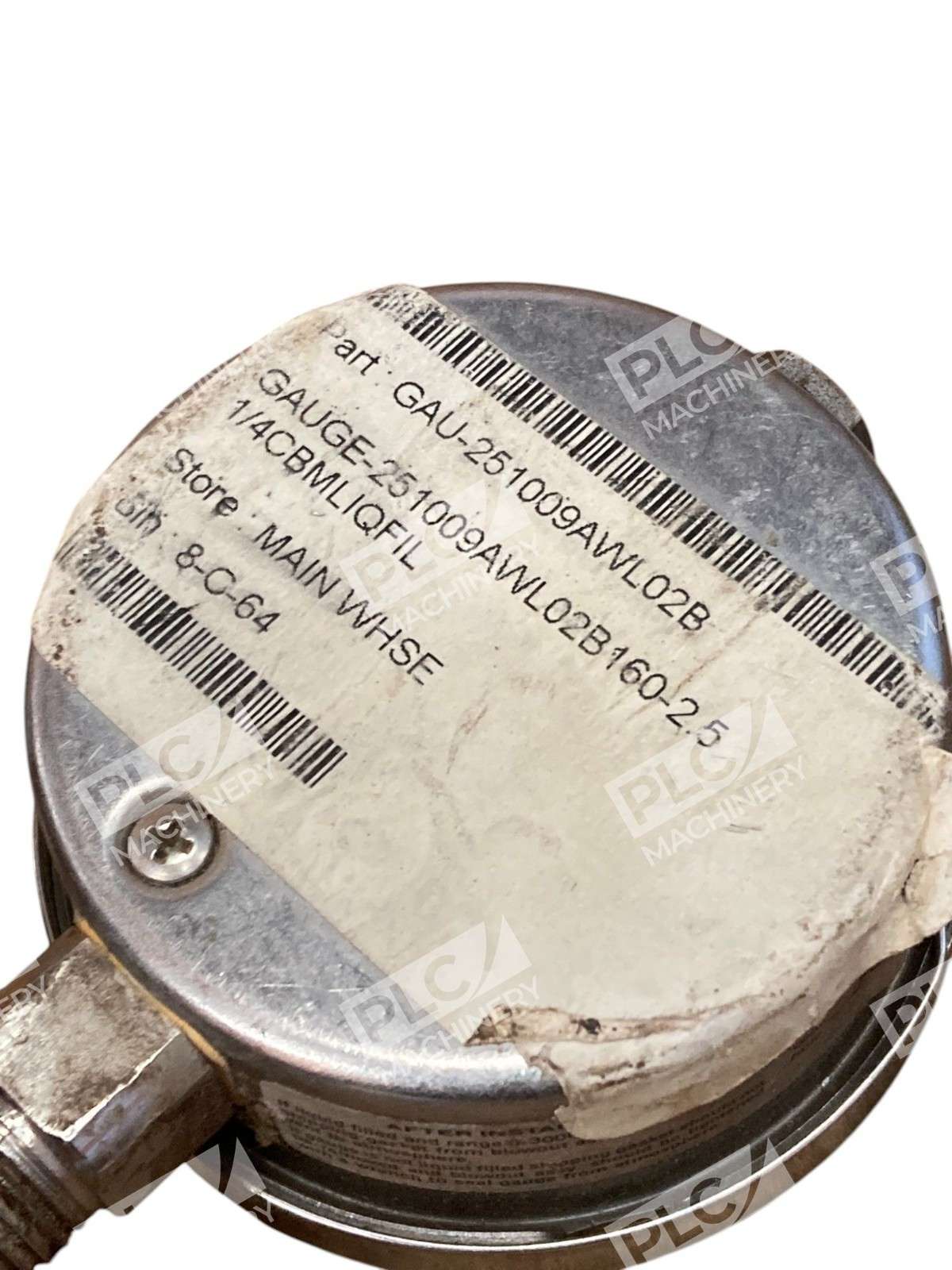

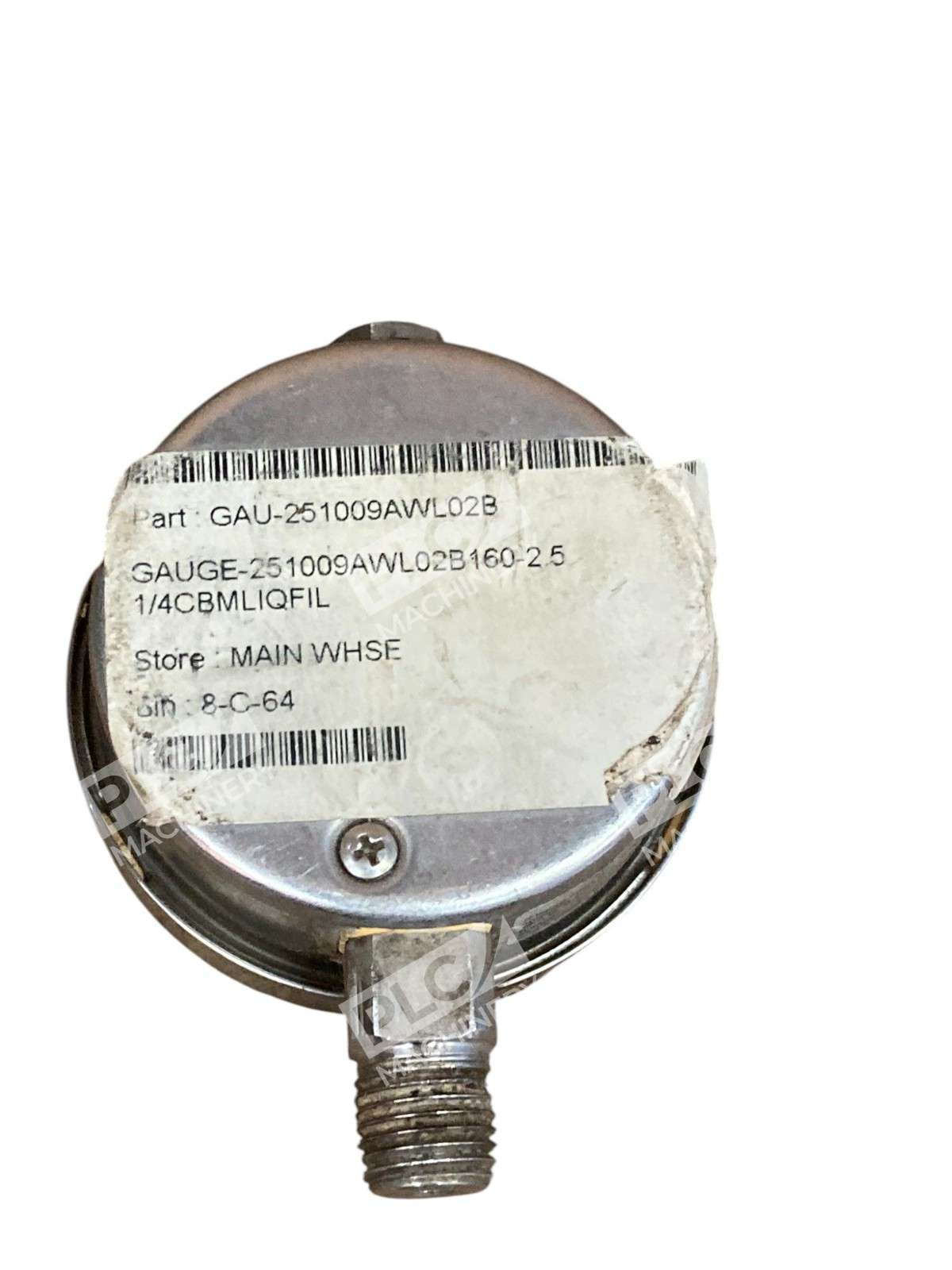

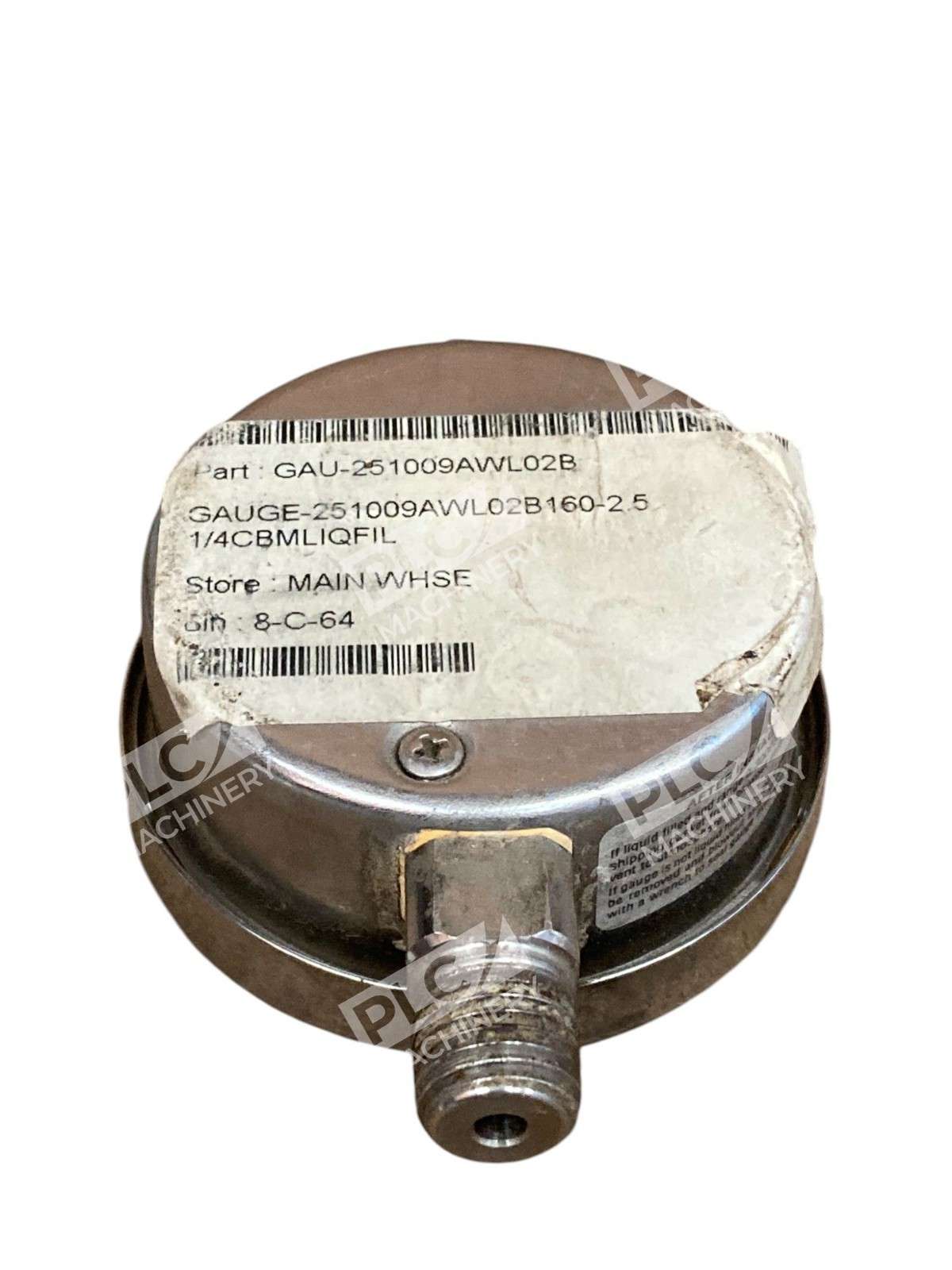

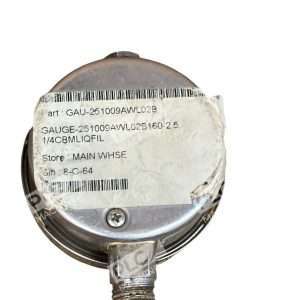

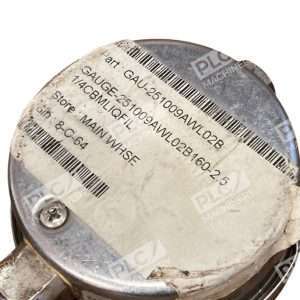

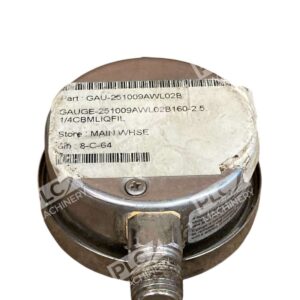

- 1/4″ CBMLIQFIL bottom connection
- Engineered to withstand 300% full scale pressure without rupture and 130% full scale pressure without loss of accuracy
Technical Specifications

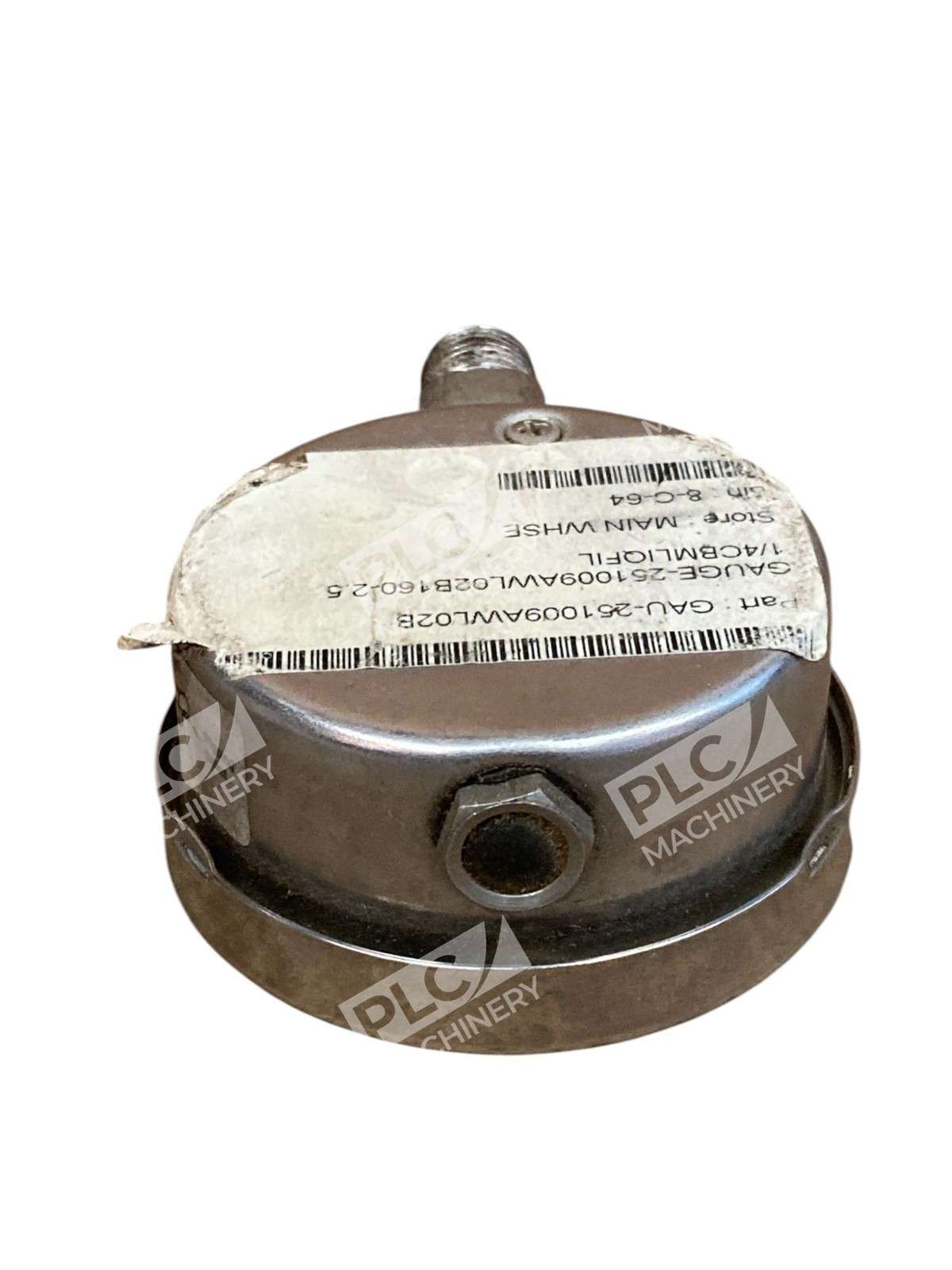

This gauge features all stainless construction with laminated safety glass lens, blow-out disc, fillable case, spiral bourdon tube, and pulse/vibration protection.
Typical Applications
- Oil and gas operations
- Petrochemical plant monitoring
- Industrial hydraulic and pneumatic systems
- Water treatment and processing facilities
- HVAC and refrigeration systems
- General industrial pressure measurement where corrosion resistance is required
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT bottom-mount connections
- Industrial pressure systems rated 0-60 PSI
- Liquid-filled gauge applications requiring vibration dampening
Replaces / Drop-In Replacement For
- Other 2.5″ dial, 0-60 PSI, 316 SS bottom-mount gauges with equivalent 1/4″ connections
- Verify compatibility with your system integrator or equipment OEM before ordering
Works With
- All standard 1/4″ female NPT threaded ports
- Pressure systems with liquid-filled gauge specifications
- Industrial automation and control systems using analog pressure indication
