Overview

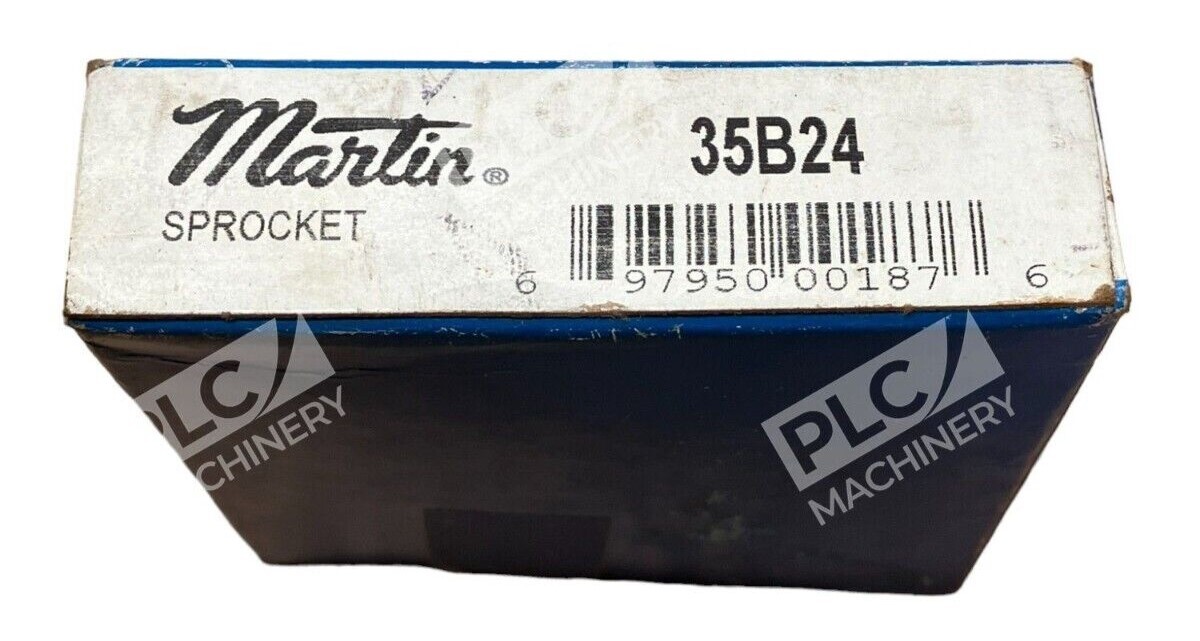

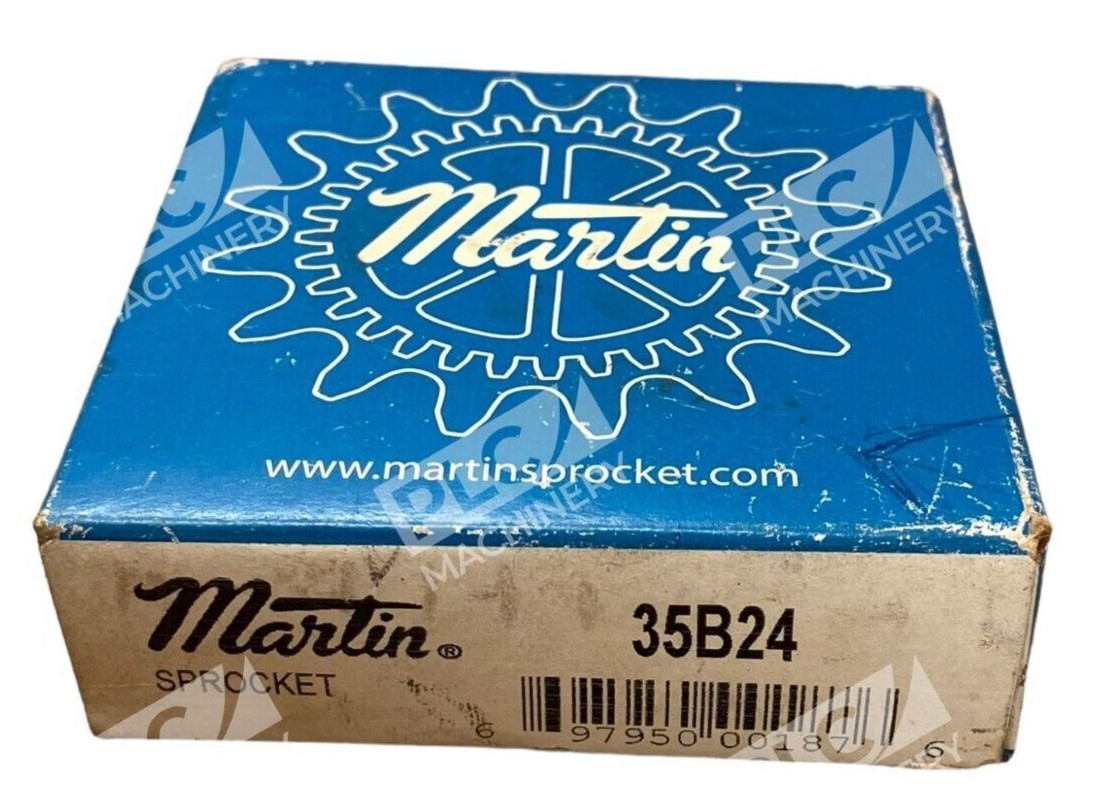

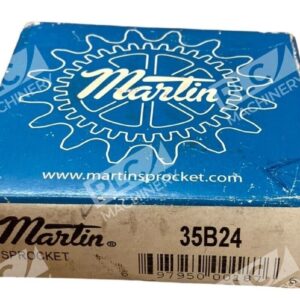

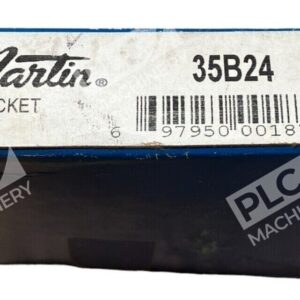

The Martin 35B24 is a precision roller chain sprocket engineered for industrial power transmission and motion control applications. This single-pitch Type B hub sprocket delivers reliable, efficient performance in conveyor systems, machinery drives, and automation equipment. Built from high carbon steel with non-hardened teeth and manufactured to ANSI standards, the Martin 35B24 provides consistent mesh with #35 roller chain while minimizing runout through concentric bore design.
Key Features
- 24 teeth, #35 chain pitch (3/8 inch) for standard ANSI roller chain compatibility
- High carbon steel construction with consistent finish and precise machining
- Type B hub with 2.000″ hub diameter for compact, efficient power transmission
- Concentric bores to pitch line — minimizes runout and ensures optimal chain engagement
- Reboreable stock bore design allows custom boring up to 1.375″ maximum diameter
- ANSI standard tolerances exceed industry specifications for proven reliability
Technical Specifications
- Part Number: 35B24
- Chain Number: 35 (3/8 inch pitch)
- Number of Teeth: 24
- Hub Style: Type B
- Material: High Carbon Steel
- Tooth Condition: Non-Hardened
- Bore Type: Reboreable stock bore (standard 0.5000″)
- Outside Diameter: 3.0730 inches
- Pitch Diameter: 2.873 inches
- Hub Diameter: 2.0000 inches
- Caliper Diameter: 2.673 inches
- Length Through Bore: 0.8750 inches
- Tooth Width: 0.168 inches
- Maximum Bore Diameter: 1.375 inches (accommodates standard keyseat and setscrew over keyseat)
- Strands Across: 1 (simplex)
Typical Applications
The Martin 35B24 is widely used in:
- Industrial conveyor systems and material handling equipment
- Textile machinery and production line drives
- Agricultural equipment and farm machinery
- General machinery drive trains requiring #35 chain engagement
- Equipment where standardized ANSI roller chain performance is essential
Compatibility & Replacements
Compatible With
- #35 roller chain (ANSI standard single-pitch)
- Standard roller chain drives operating at moderate speeds
- Industrial machinery equipped with 3/8″ pitch chain systems
- Conveyor and power transmission equipment using #35 chain
Replaces / Drop-In Replacement For
- 35B24 sprockets from other manufacturers meeting ANSI #35 specifications
- Equivalent 24-tooth, 3/8″ pitch Type B hub sprockets
- Note: Always verify your existing sprocket’s bore diameter and keyseat configuration before ordering a replacement.
Works With
- Any standard ANSI #35 roller chain (single-pitch 3/8″ pitch)
- Industrial drive systems using ISO 06B-1 metric equivalent chains
- Machinery with standard keyways, setscrews, or taper lock bushings (after reboring)
