Overview

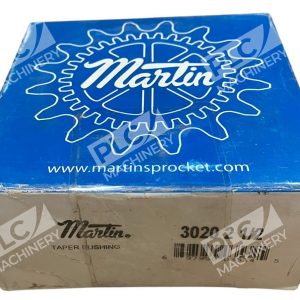

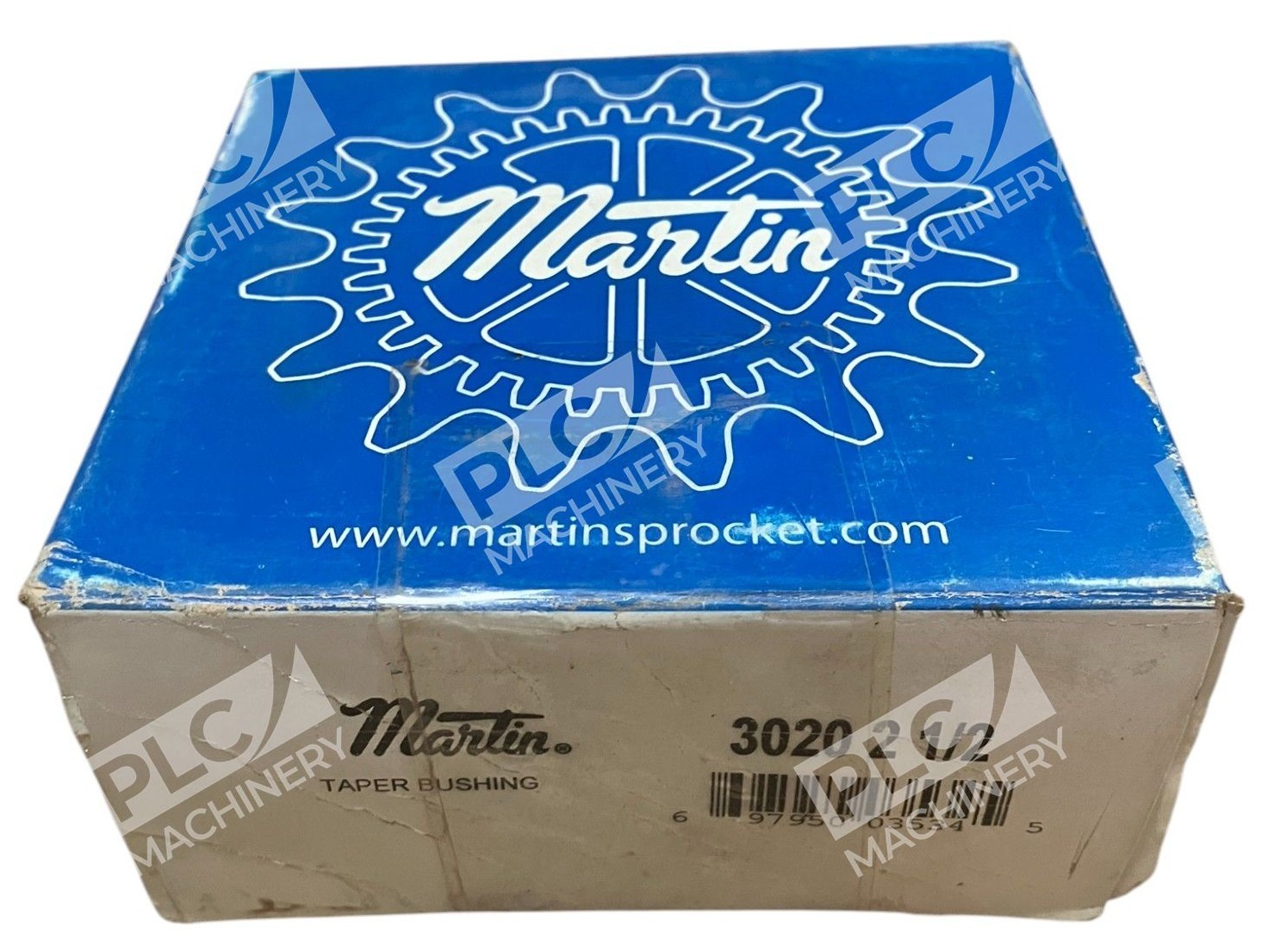

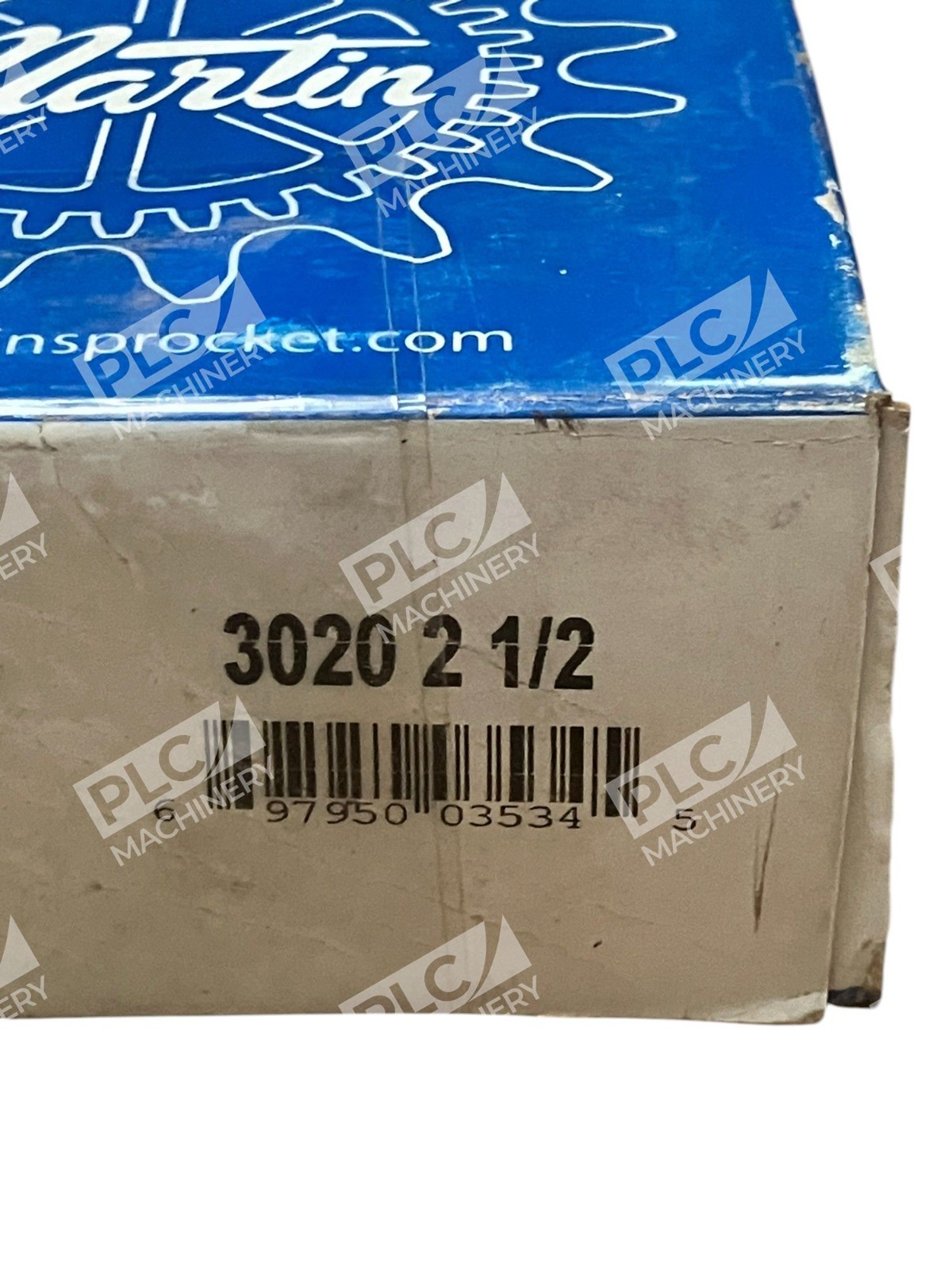

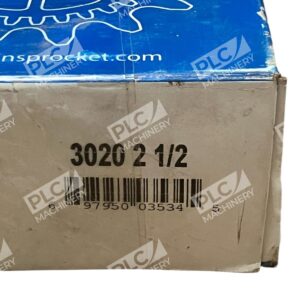

The Martin 3020-2-1/2 taper bushing is a precision-engineered component for mechanical power transmission applications. The Martin 3020-2-1/2 features a 2.5-inch finished bore and is manufactured from sintered powder steel, offering superior strength and wear resistance. Designed for flush mounting on drive shafts, this split-taper bushing eliminates protruding flange hardware and enables repeatable, high-clamping-force installation on pulleys, sheaves, and sprockets across automotive, construction, agricultural, and industrial machinery.
Key Features
- Sintered Powder Steel Construction: Greater strength and wear resistance than plain carbon steel
- Split Taper Design: Flush mounted for reduced mounting width and has a split taper for a tight clamp to shafts
- Shaft Retention: Keyed to the shaft to prevent the shaft from rotating in the bushing
- Compact Profile: No protruding flange; minimal axial footprint for space-constrained applications
- Cross-Manufacturer Compatibility: Interchangeable with taper bushings from various manufacturers
Technical Specifications
Based on the Martin 3020 series standard design, the 3020-2-1/2 typically includes the following dimensions:
- Bore Diameter: 2.5 inches (finished with keyway)
- Barrel Diameter (Large End): 4.25 inches
- Barrel Length: 2 inches
- Overall Length: 2 inches
- Taper Angle: 8 degrees
- Bolt Circle Diameter: 4 inches
- Bolt Holes: 2 count
- Fastener: 5/8-11 × 1-1/4 inch screw
- Keyway: 1/2 × 1/4 inch
- Torque Capacity: Approximately 24,000 in-lbs (varies with bore size)
- Material: Sintered steel
Typical Applications
Used in automobiles, construction equipment, agricultural machinery, and home appliances. The Martin 3020-2-1/2 is ideal for:
- Belt and chain drive power transmission systems
- Industrial machinery requiring repeatable, high-torque shaft coupling
- OEM and replacement installations where flush-mount profile is required
- Retrofit and repair of existing taper-bushed equipment
Compatibility & Replacements
Compatible With
- Standard taper-bushed pulleys (8-degree taper bore)
- Taper-bushed sheaves and sprockets
- Industrial drive shafts with keyway slots
- Power transmission systems requiring split-design bushings
Replaces / Drop-In Replacement For
- Martin 3020 series (2.5-inch bore equivalent)
- OEM taper bushings rated for 2.5-inch bores on compatible equipment
- Other manufacturers’ 8-degree split-taper bushings in the 2.5″ bore class
Works With
- Any 8-degree tapered bore pulley, sheave, or sprocket design
- Standard industrial shaft keyways (1/2 × 1/4 inch)
- Belt drives, chain drives, and gear-coupled systems
- Manual installation with standard socket wrench tools (5/8-inch)
