Overview

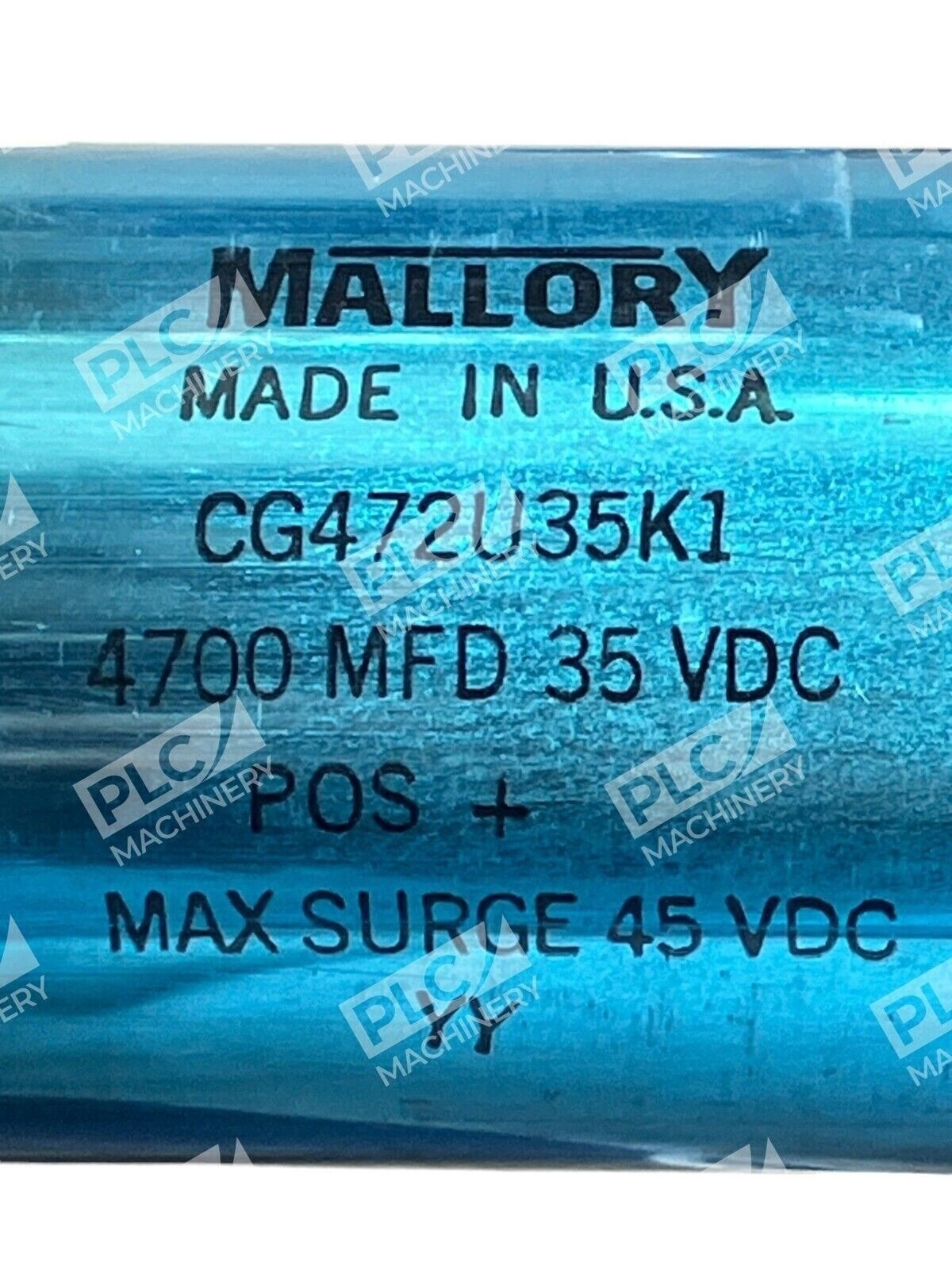

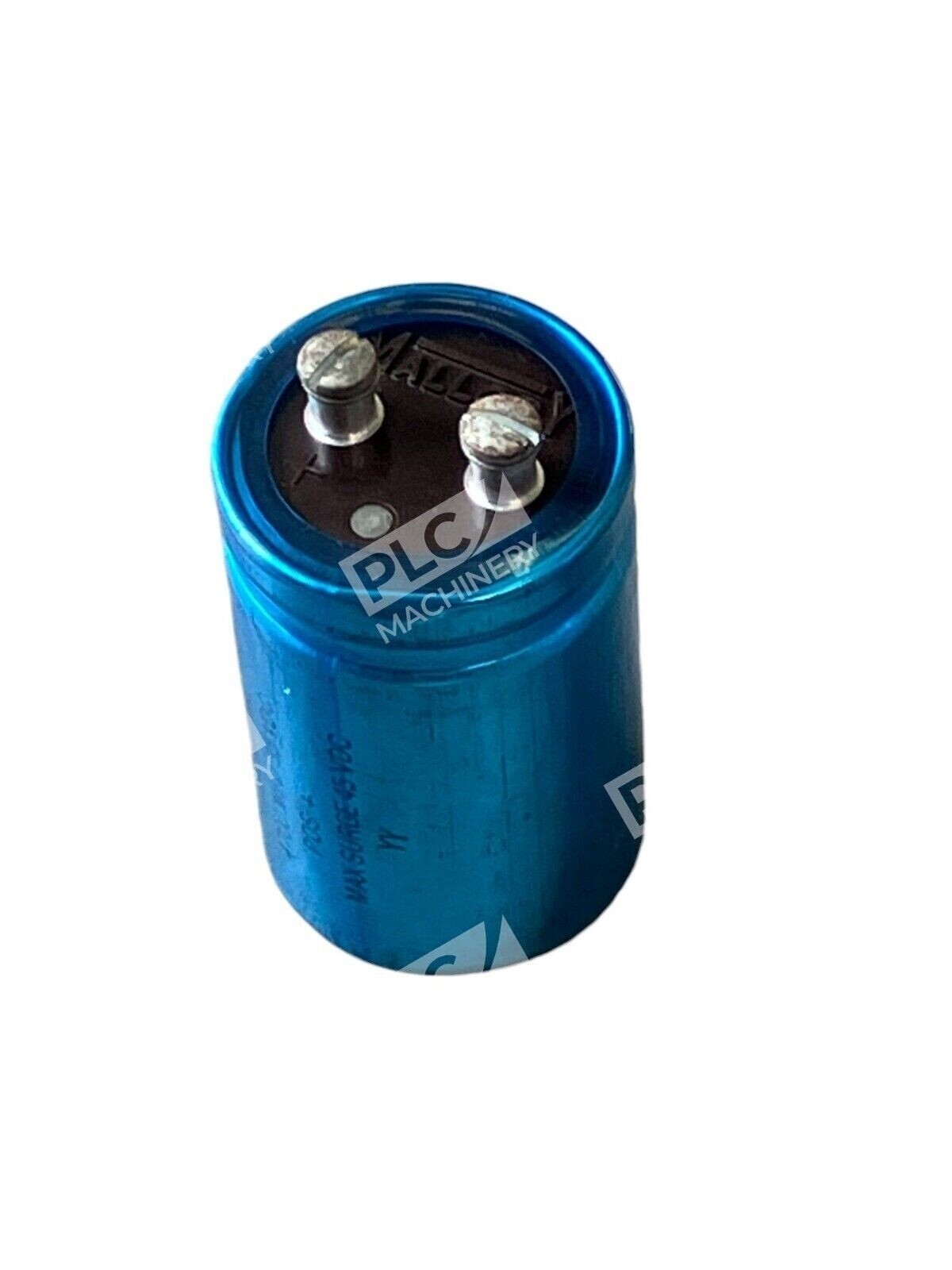

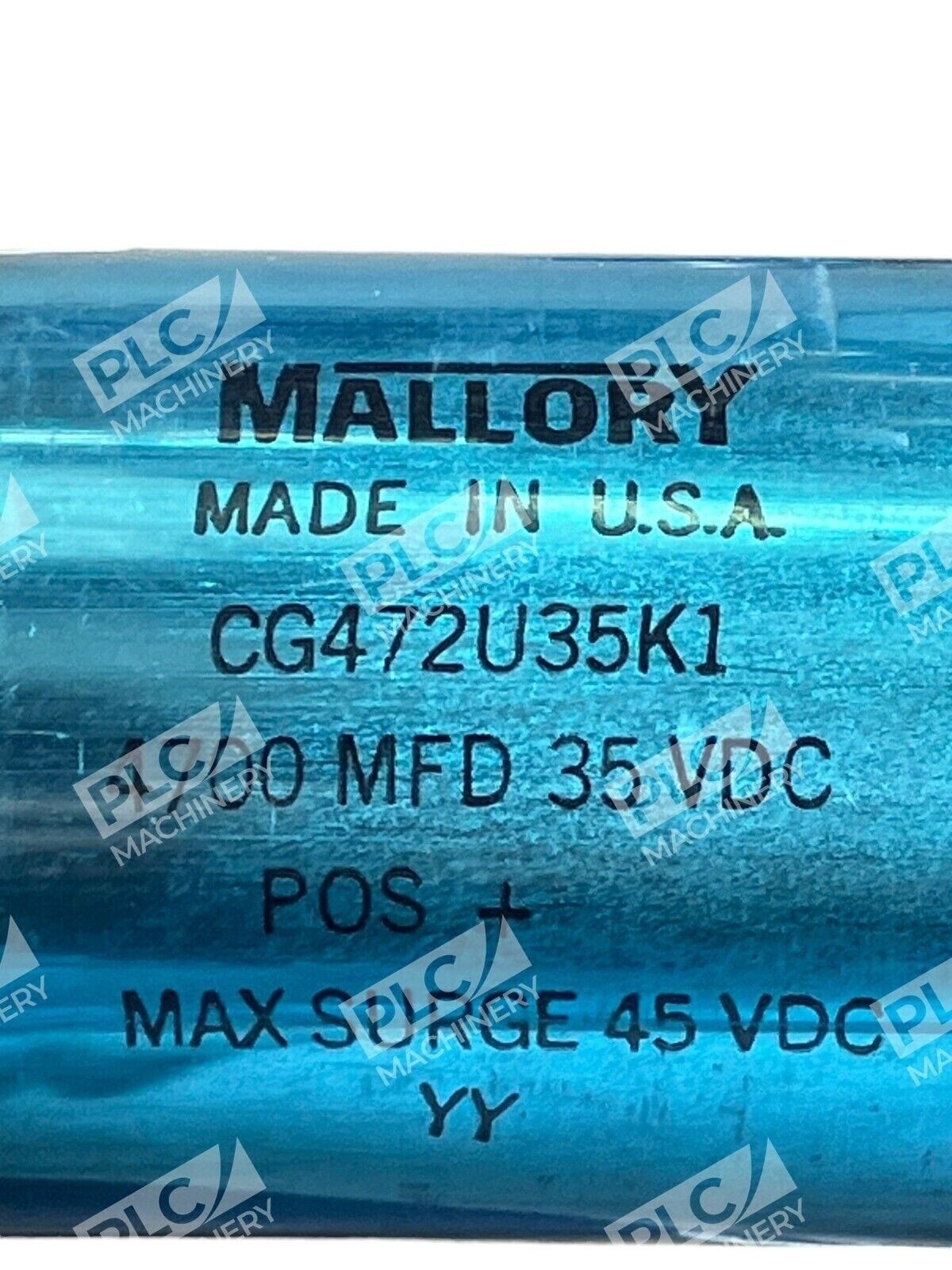

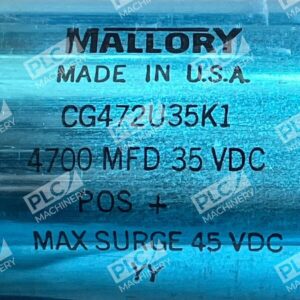

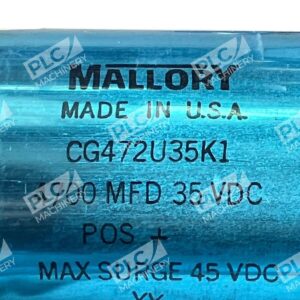

The Mallory CG472U35K1 is an aluminum electrolytic capacitor delivering 4700 microfarad (MFD) capacitance at a 35VDC voltage rating. This Type CG series unit features high-post screw terminals and PVC sleeving for secure connections in power supply circuits, filtering applications, and industrial control systems. Mallory capacitors are engineered for dependable performance in demanding industrial environments.
Key Features
- Capacitance: 4700 MFD (microfarad)
- Voltage Rating: 35VDC

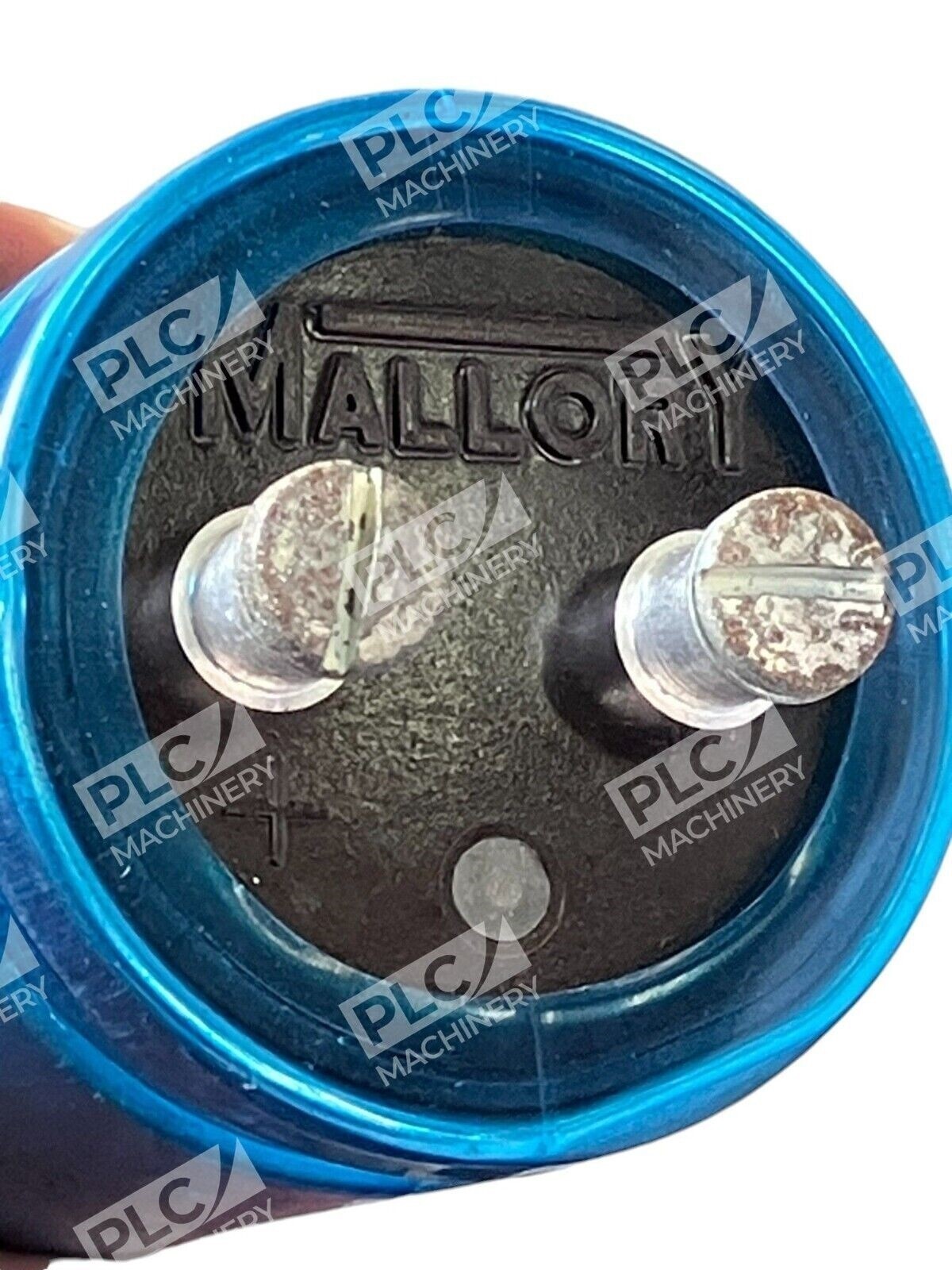

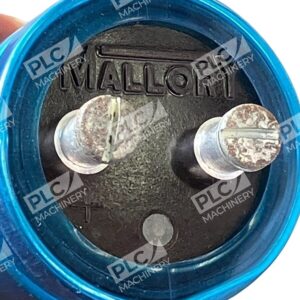

- High-post screw terminals for secure connection
- PVC sleeving for added protection
- Aluminum electrolytic construction for stable performance
- Type CG series industrial-grade design
Technical Specifications
This polarized aluminum electrolytic capacitor meets industrial standards for power conversion and filtering. The 4700 MFD / 35VDC rating suits boost circuits, energy storage modules, and smoothing applications in motor drives, uninterruptible power supplies, and industrial rectifier circuits.
Typical Applications
- Power supply filtering and energy storage
- AC/DC converter smoothing circuits
- Motor control and servo drive systems
- Industrial UPS (uninterruptible power supply) modules
- Rectification and boost converter stages
- Legacy control panel upgrades and refurbishment
Compatibility & Replacements
Compatible With
- Standard industrial power supply designs
- Motor control circuits operating at 24–48VDC nominal
- AC/DC rectifier systems up to 35VDC
- Switchmode and linear power supply topologies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment manufacturer before ordering. Capacitor replacement should be performed by qualified maintenance technicians.
Works With
- Industrial control panels and PLCs requiring bulk energy storage
- Drives and servo amplifiers with 24–48VDC bus voltage
- Legacy equipment refurbishment and repair projects
- Standard screw-terminal power distribution systems
