Overview

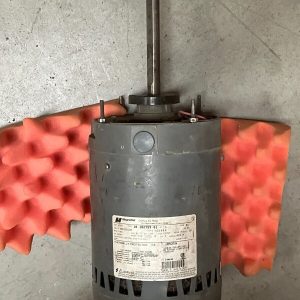

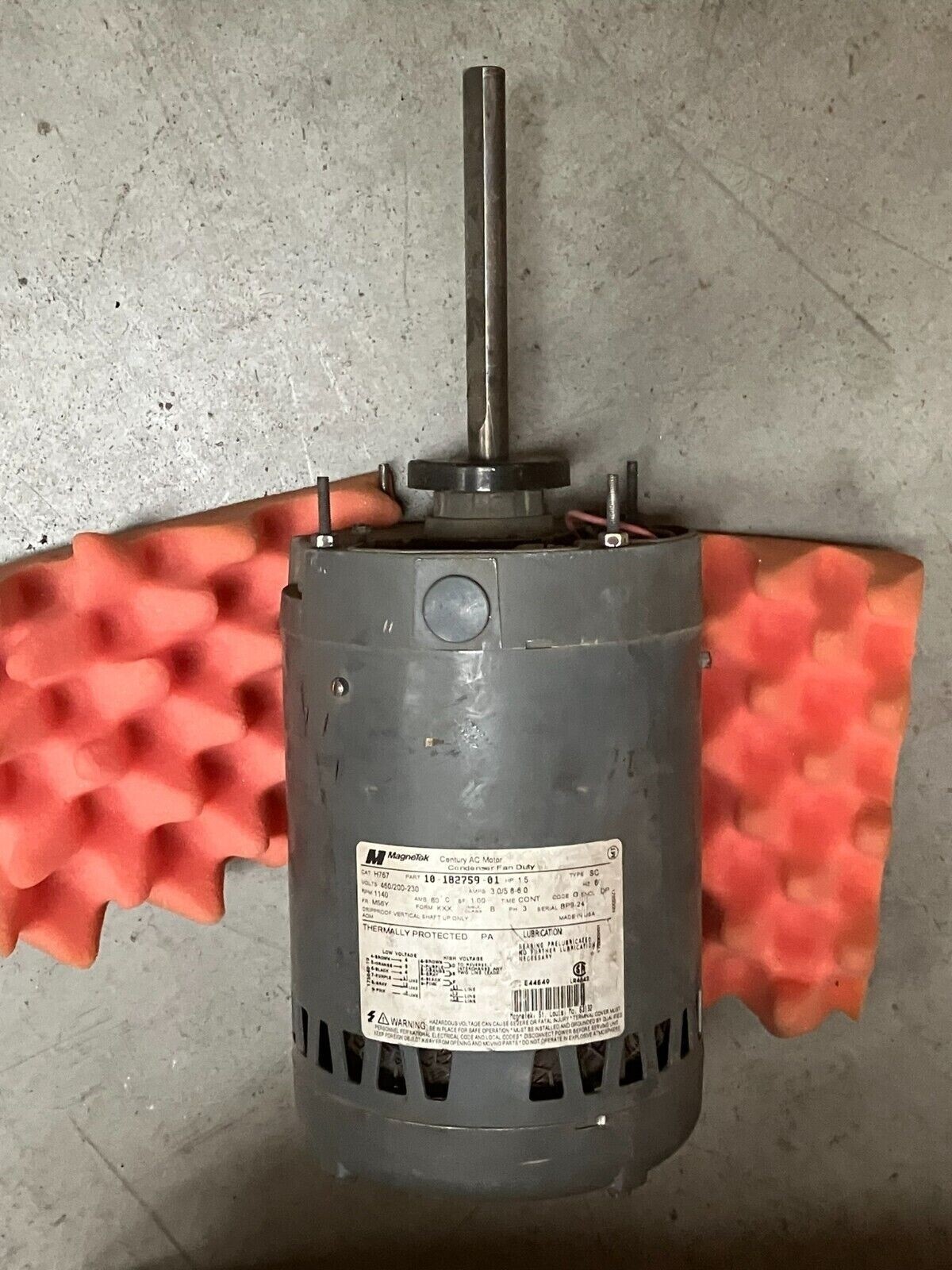

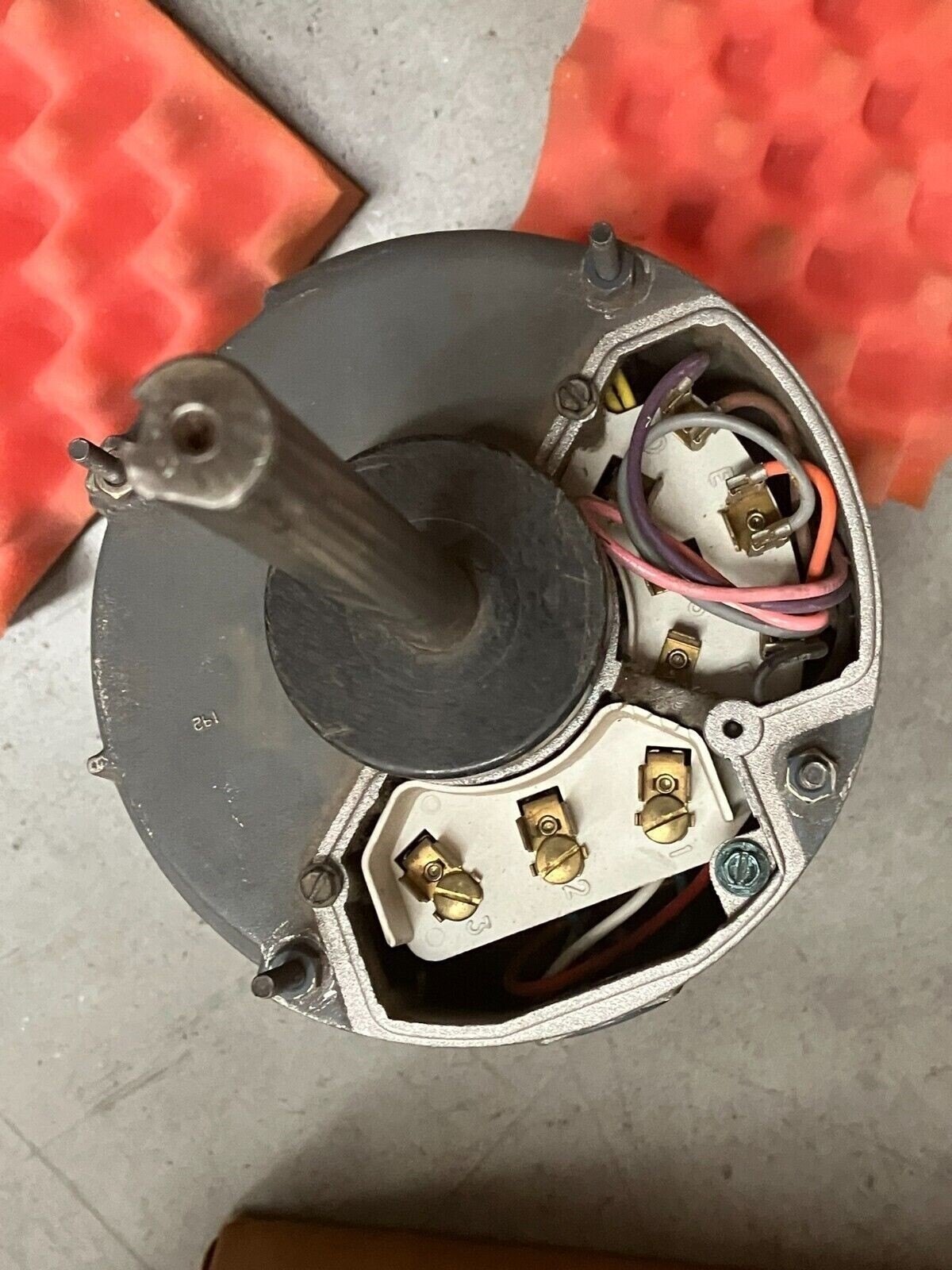

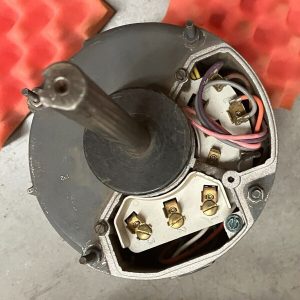

The Magnetek H767 is a heavy-duty condenser fan motor engineered for HVAC and refrigeration systems. This 1.5 HP, 1140 RPM unit delivers reliable performance in outdoor condenser applications. Featuring a durable ball bearing design and reversible rotation capability, the H767 meets the demanding requirements of commercial and industrial air conditioning equipment.
Key Features
- 1.5 HP motor with 1140 RPM nameplate speed
- 3-phase power for reliable, continuous-duty operation
- Reversible rotation for flexible installation
- Double sealed ball bearings for extended service life
- Open enclosure with air-over cooling
- B insulation class rated for 60°C ambient temperature
- 1 service factor for margin above rated load

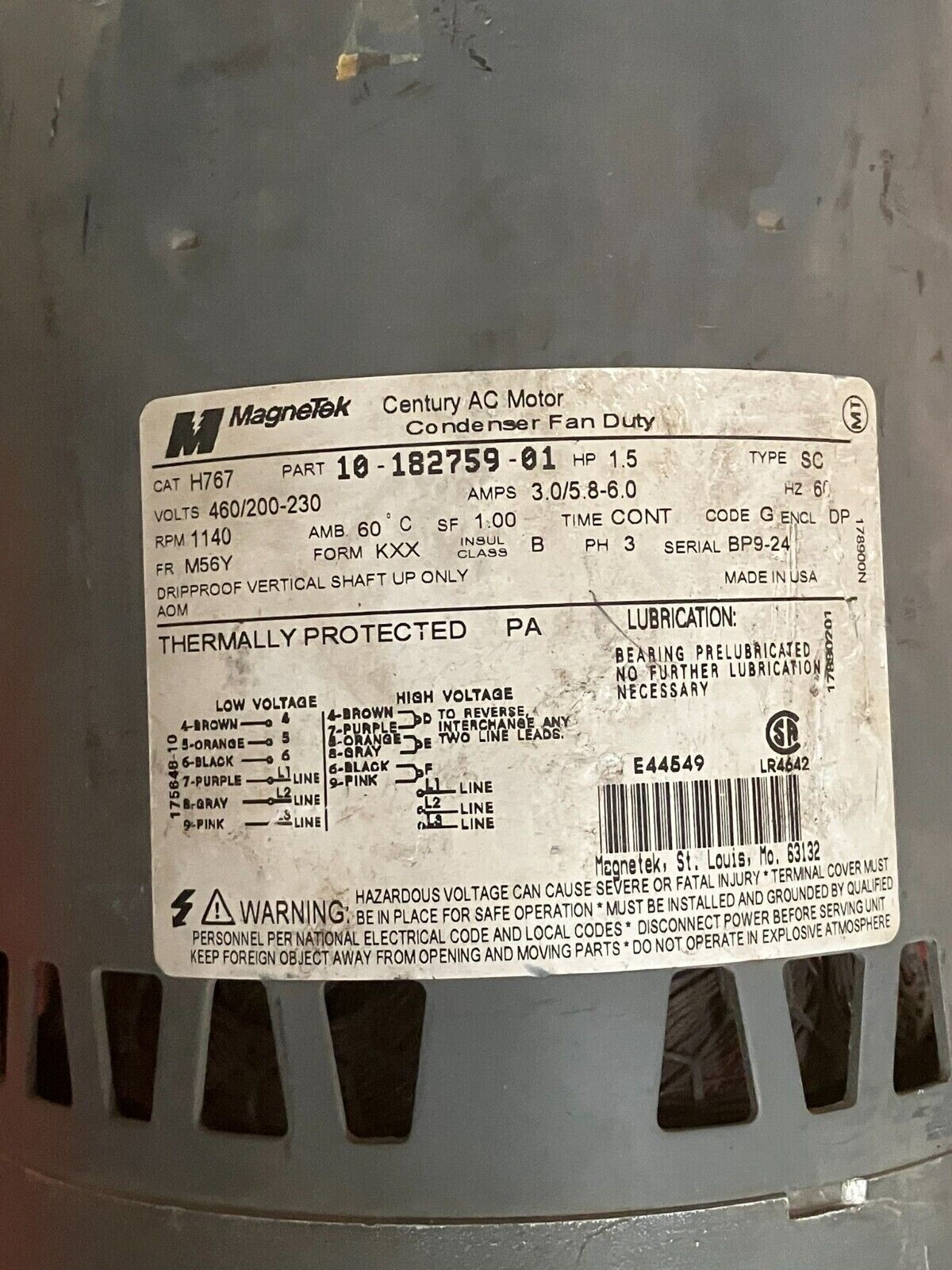

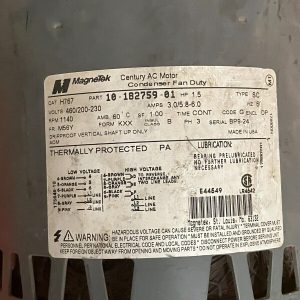

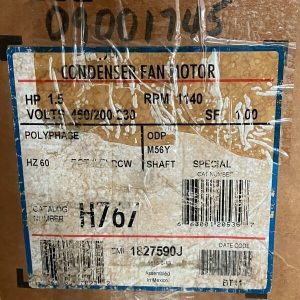

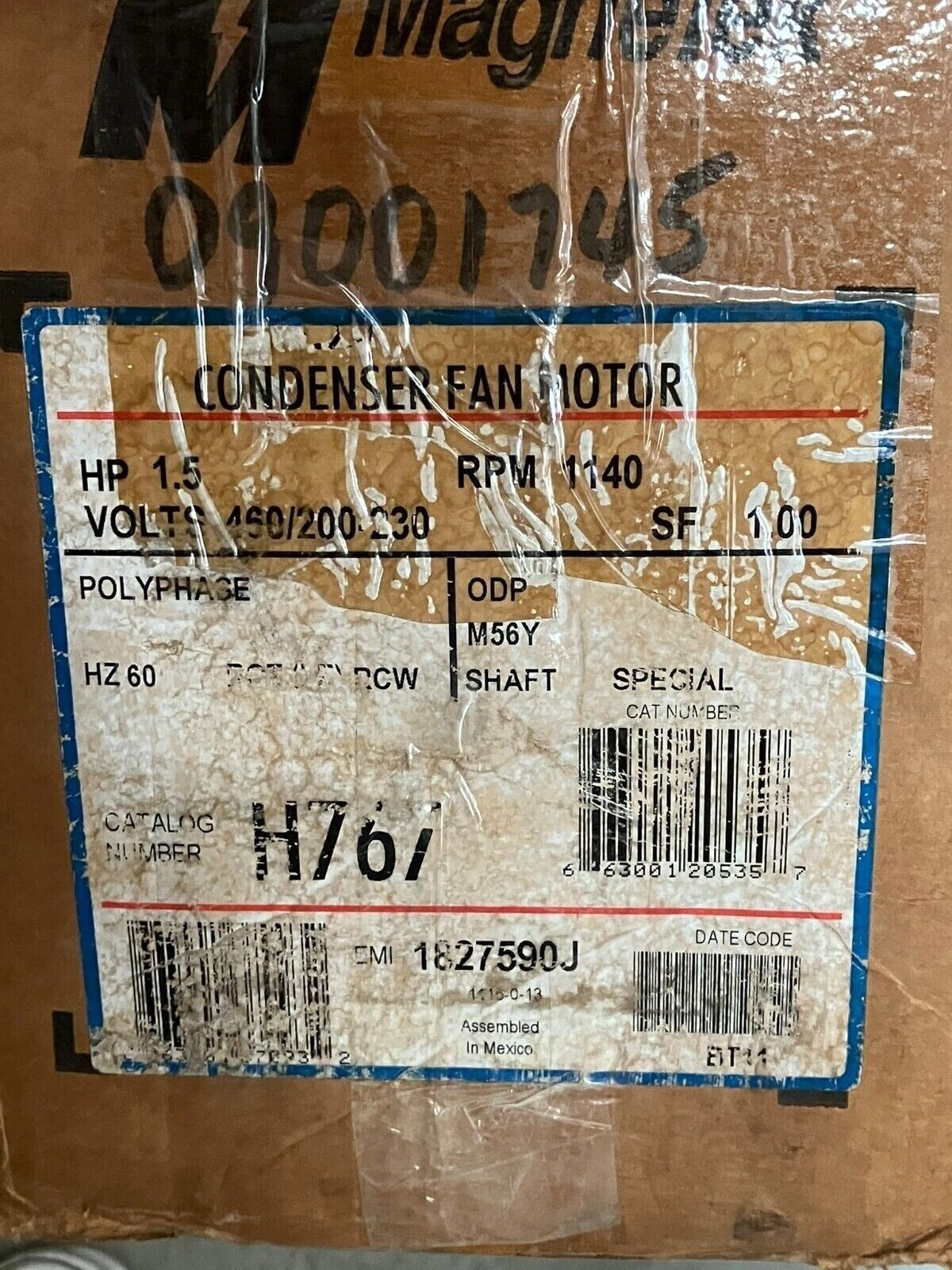

Technical Specifications
- Horsepower: 1.5 HP (1.1 kW)
- Speed: 1140 RPM at 60 Hz
- Voltage: 200–230 / 460 Volts, 3-phase
- Current: 3.0 / 5.8–6.0 Amperes (full load)
- Frame: M56Y (56 frame equivalent)
- Enclosure: Open, air-over construction
- Bearing Type: Double sealed ball bearings
- Shaft: 5/8″ diameter × 6″ length, reversible keyway
- Mounting: 1″ end studs, belly band capable
- Motor Case Length: 16.81″
- Weight: 34 lbs
- Insulation Class: B
- Ambient Rating: 60°C continuous
- Poles: 6 poles (1140 RPM)
- Frequency: 60 Hz
Typical Applications
The Magnetek H767 is designed for outdoor condenser fan duty in:
- Commercial air conditioning condensing units
- Refrigeration system compressor packages
- HVAC equipment retrofit and replacement
- Industrial cooling systems requiring 1.5 HP continuous operation
- Equipment from major OEMs including Heil, Tempstar, Comfort Maker, and Arcoaire
Compatibility & Replacements
Compatible With
- 3-phase 200–230/460V power supplies, 60 Hz
- Standard condenser mounting frames with 1″ stud configurations
- HVAC units requiring reversible-rotation fan duty motors
- Belly band and fixed flange mounting systems
Replaces / Drop-In Replacement For
- Century H767 (same OEM part)
- Magnetek H767 (all production variants)
- Cross-reference models: H765, H766, FC3156, P48SX6V3, CFM3166A, Dayton 429J39
- OEM replacement for Heil, Tempstar, Comfort Maker, Arcoaire, and Trane outdoor units
- Direct replacement for units tagged 182759, 182759-01, and related legacy part numbers
Works With
- Condenser fan capacitors (5 µF rated for motor applications)
- Standard three-phase soft-starter and VFD compatible
- Thermal overload protection and disconnect switches
- Reversible rotation control via contactor/relay circuits
