Overview

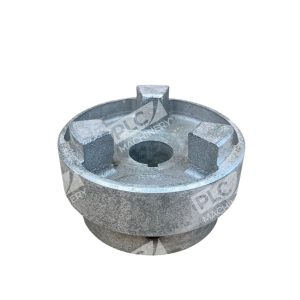

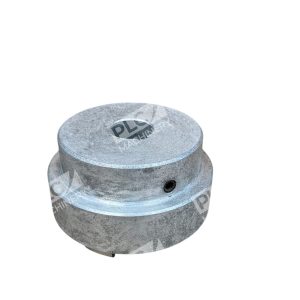

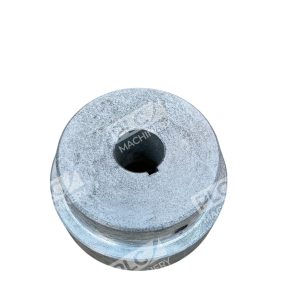

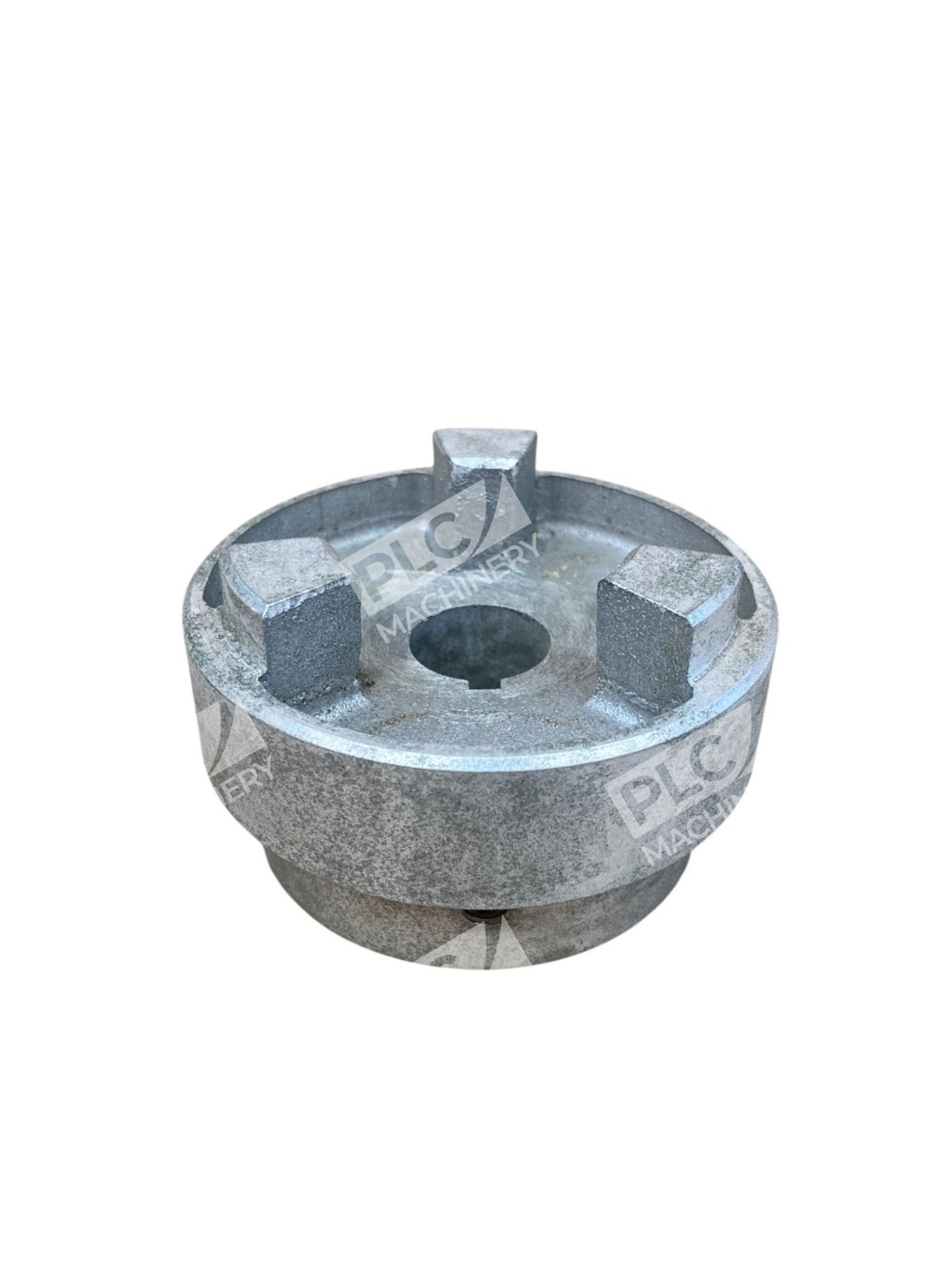

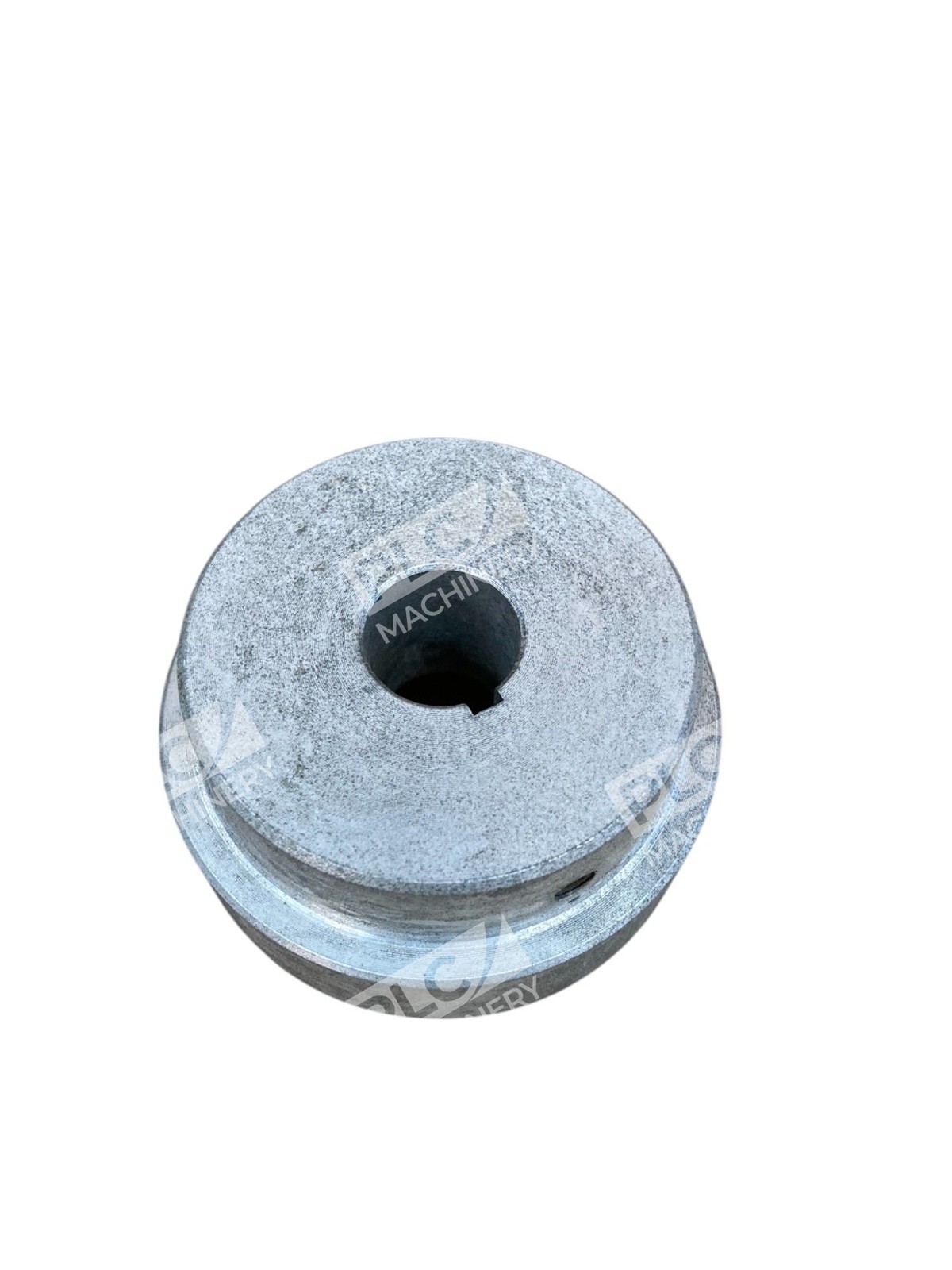

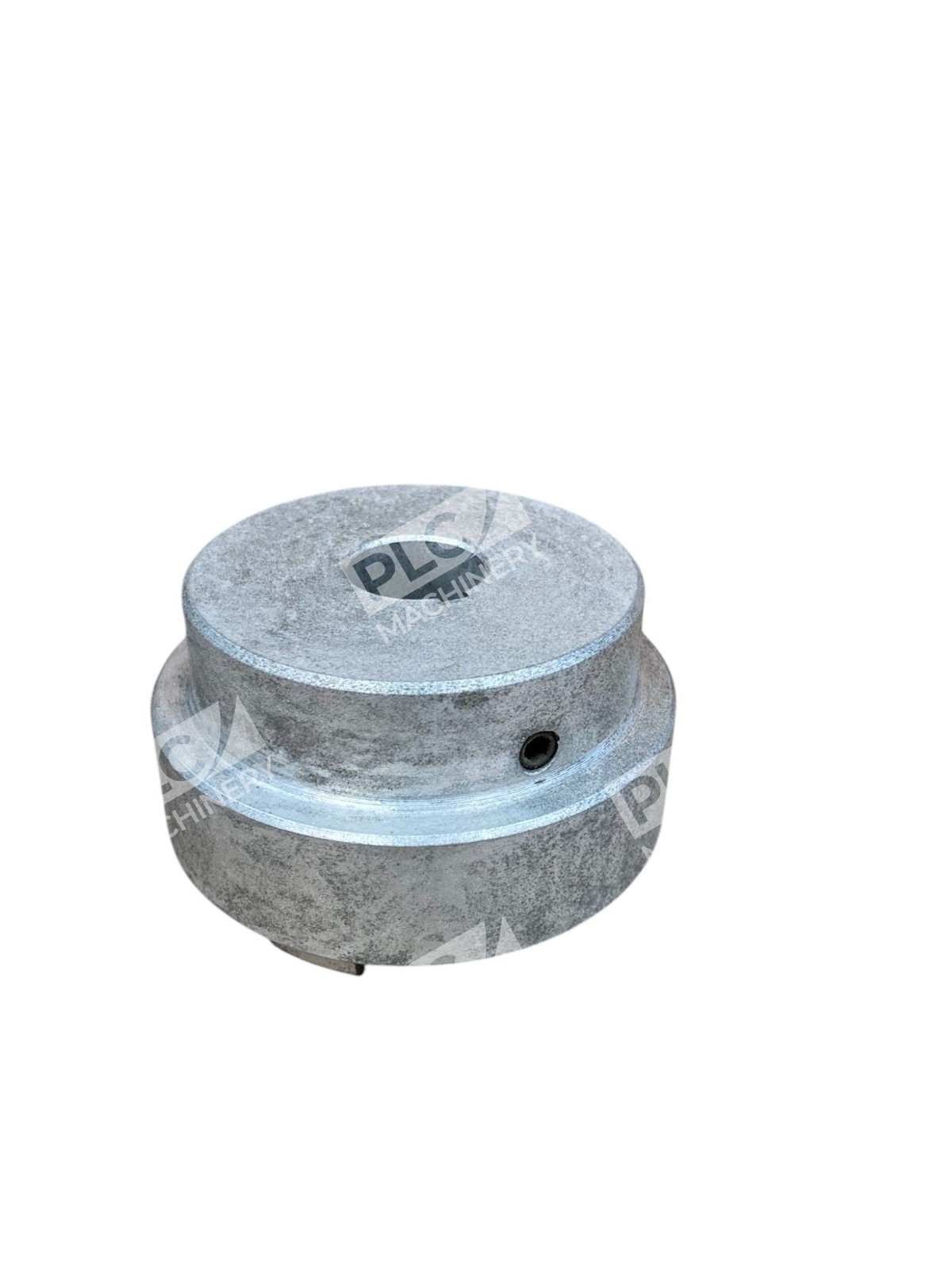

The Magnaloy M30002806 is a Model 300 flexible drive coupling hub manufactured by Magnaloy Coupling Company, a leading producer of lightweight, precision drive couplings since 1956. This hub features a 7/8″ bore and 3/16″ keyway, making it ideal for connecting hydraulic pumps, motors, and industrial drive equipment. The solid magnesium alloy construction provides exceptional strength-to-weight performance while maintaining tight machining tolerances for reliable, vibration-free operation.
Key Features
- Magnesium alloy construction—76% lighter than cast iron, 36% lighter than aluminum, yet stronger than both
- Close machining tolerances (TIR .002″) ensure vibration-free alignment without special tools
- Heat-treated solid magnesium alloy permanent mold castings for maximum durability
- Standard single set-screw design over keyway; optional double set-screw configurations available (DSS45/DSS90)
- Corrosion-resistant and rust-proof for long service life
- Reduced bearing and shaft loads, extending component lifespan
Technical Specifications
- Part Number: M30002806
- Model: 300 Hub
- Bore Diameter: 7/8″
- Keyway Width: 3/16″
- Material: Magnesium alloy (heat-treated)
- Machining Tolerance (TIR): .002″
- Set-Screw Configuration: Standard single set-screw (optional double set-screw available)
- Corrosion Resistance: Rust-proof, corrosion-resistant
Typical Applications
The Magnaloy M30002806 is commonly used in:
- Hydraulic pump and motor drive systems
- Industrial machinery requiring lightweight coupling solutions
- Fluid power applications and hydraulic reservoirs
- Equipment where reduced inertial loads improve efficiency and bearing life
- Systems requiring precise shaft alignment and minimal vibration
Compatibility & Replacements
Compatible With
- Magnaloy Model 300 coupling series components
- 7/8″ bore shaft applications
- 3/16″ square keyway shafts
- Hydraulic pump and motor assemblies
- Industrial drive equipment and machinery
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering for cross-reference equivalents.
Works With
- Magnaloy flexible coupling insert assemblies
- Standard set-screw and optional double set-screw retention systems
- Hydraulic power units and pump-motor assemblies
- Industrial drive transmission systems
