Overview

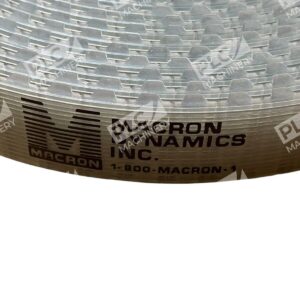

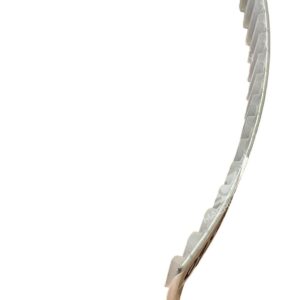

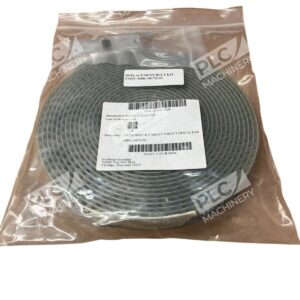

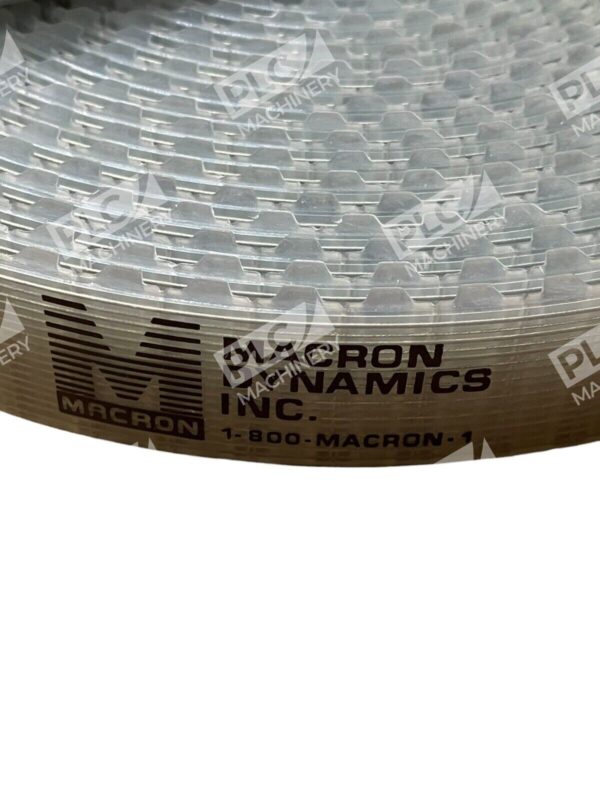

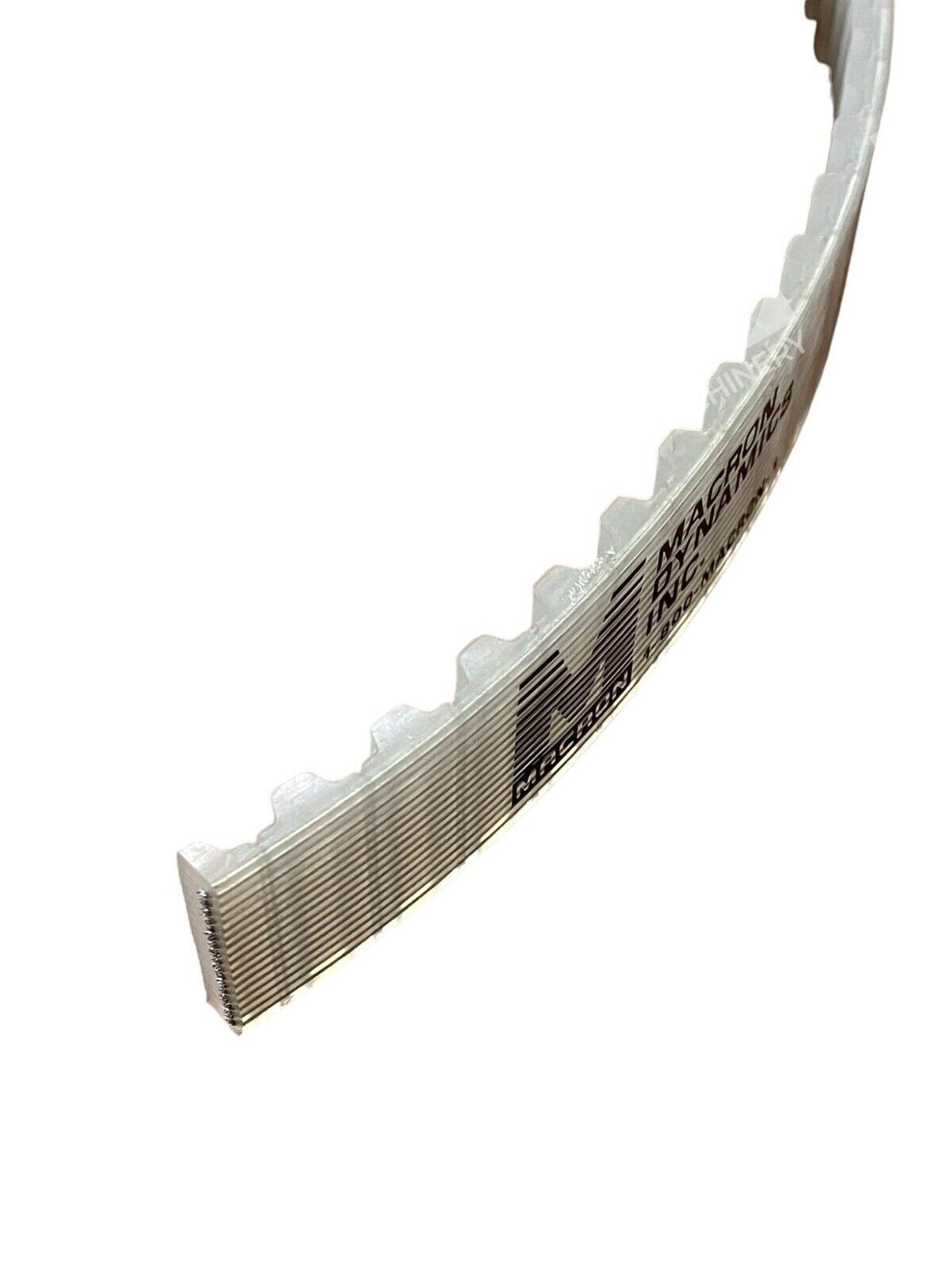

The Macron Dynamics DBK-10172C01 is a replacement drive belt kit engineered for use with Macron belt-driven linear actuator and gantry systems. This kit provides a complete solution for maintaining and restoring actuator performance when belt wear or damage occurs. The kit includes belt and tension assembly with hardware, with tension tool sold separately. Designed for industrial automation applications requiring reliable linear motion control.
Key Features
- Pre-assembled design – Pre-assembled to ensure perfect fit, with the actuator or gantry system part number provided for accurate matching

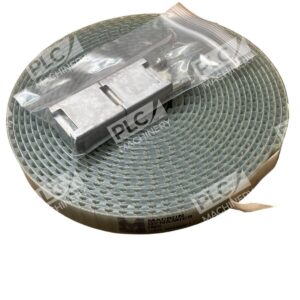

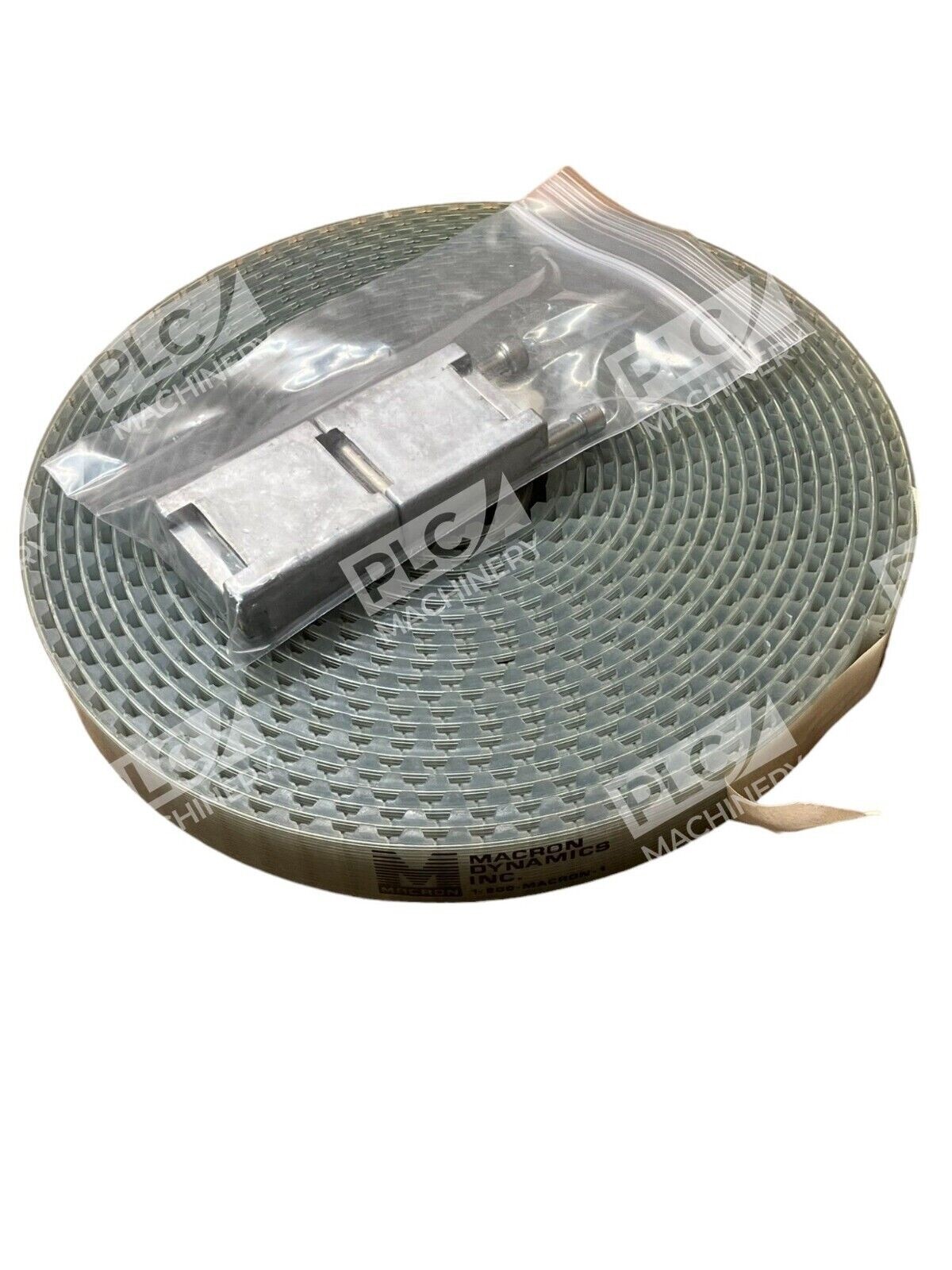

- Complete kit contents – Includes belt, tension assembly, and mounting hardware for a comprehensive replacement
- Fast repair capability – Designed for fast repair to minimize system downtime during maintenance
- Tensioning assembly included – Belt tension assembly supplied; external tension tool available separately
- OEM quality – Genuine Macron Dynamics replacement part for original equipment performance
Technical Specifications
| Manufacturer | Macron Dynamics, Inc. |

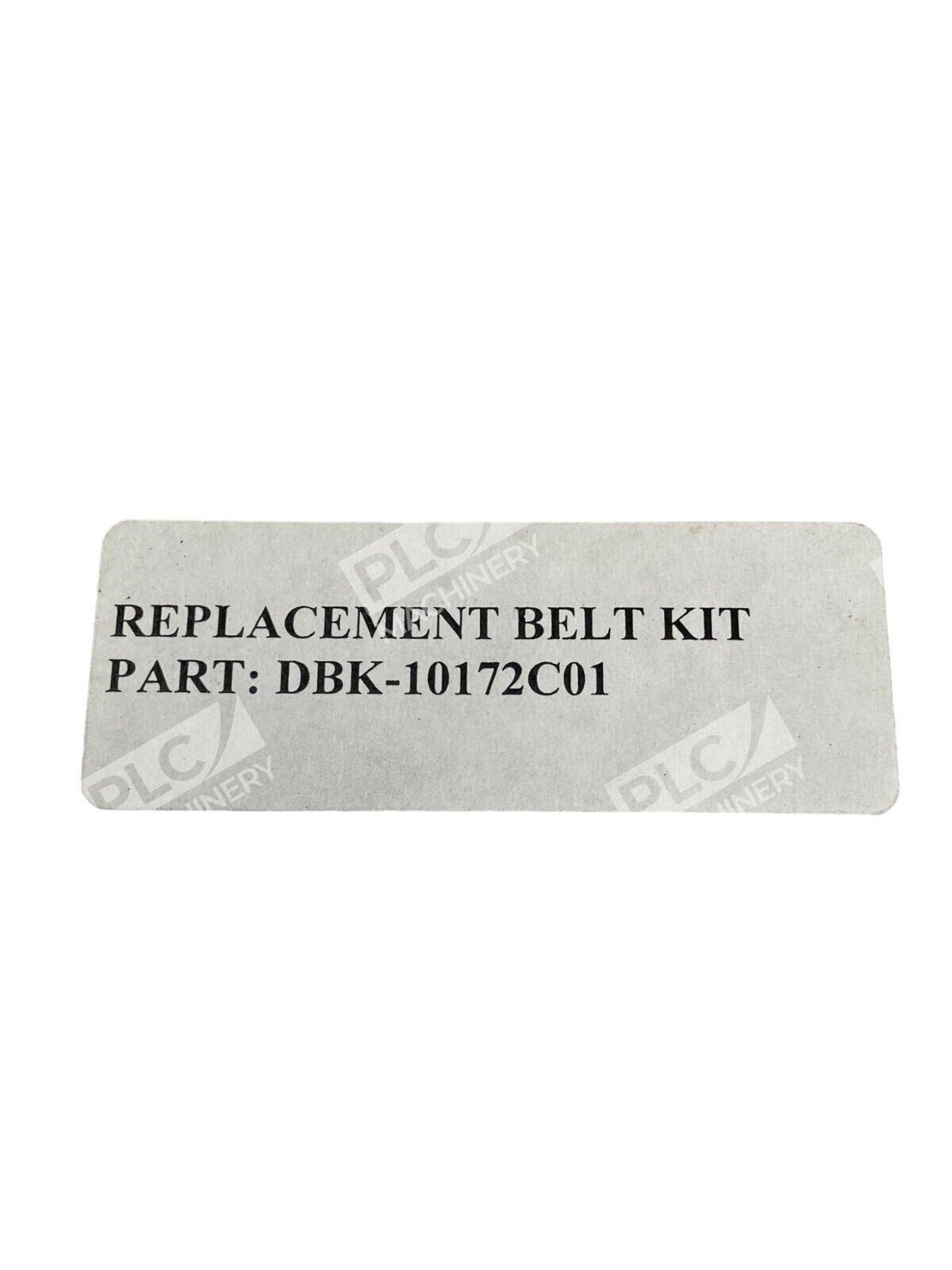

| Part Number | DBK-10172C01 |
| Product Type | Drive Belt Kit Replacement |
| Kit Contents | Belt, tension assembly, hardware |
| Application | Macron belt-driven linear actuators and gantry systems |
| Installation | Replacement part for existing Macron systems |
| Tension Tool | Sold separately |
| Series | DBK – Drive Belt Kit |
Typical Applications
The Macron DBK-10172C01 replacement belt kit is used in industrial automation environments including:
- Material handling and packaging automation systems
- Manufacturing automation and machine tools
- Defense, military, and aerospace applications
- Medical and pharmaceutical processing systems
- Linear robotic transport and positioning systems
- Preventive maintenance programs for belt-driven actuators
Belt tension monitoring and tension setting is critical for proper actuator performance, making regular belt replacement part of effective system maintenance.
Compatibility & Replacements
Compatible With
- Macron Dynamics belt-driven linear actuator systems
- Macron MacFRAME gantry systems
- Macron MSA series linear actuators
- Macron belt-driven transport units (RTU)
- Macron linear robotic automation platforms
Replaces / Drop-In Replacement For
The DBK-10172C01 is a replacement belt kit for compatible Macron actuator models. Provide the Actuator or Gantry system part number to assure the right match for your specific system configuration. Verify compatibility with your system integrator or Macron technical support (1-800-MACRON-1) before ordering.
Works With
- Macron Dynamics linear actuator drive systems
- MacFRAME aluminum structural components
- Macron belt-driven positioning and transport systems
- Macron gantry automation platforms
