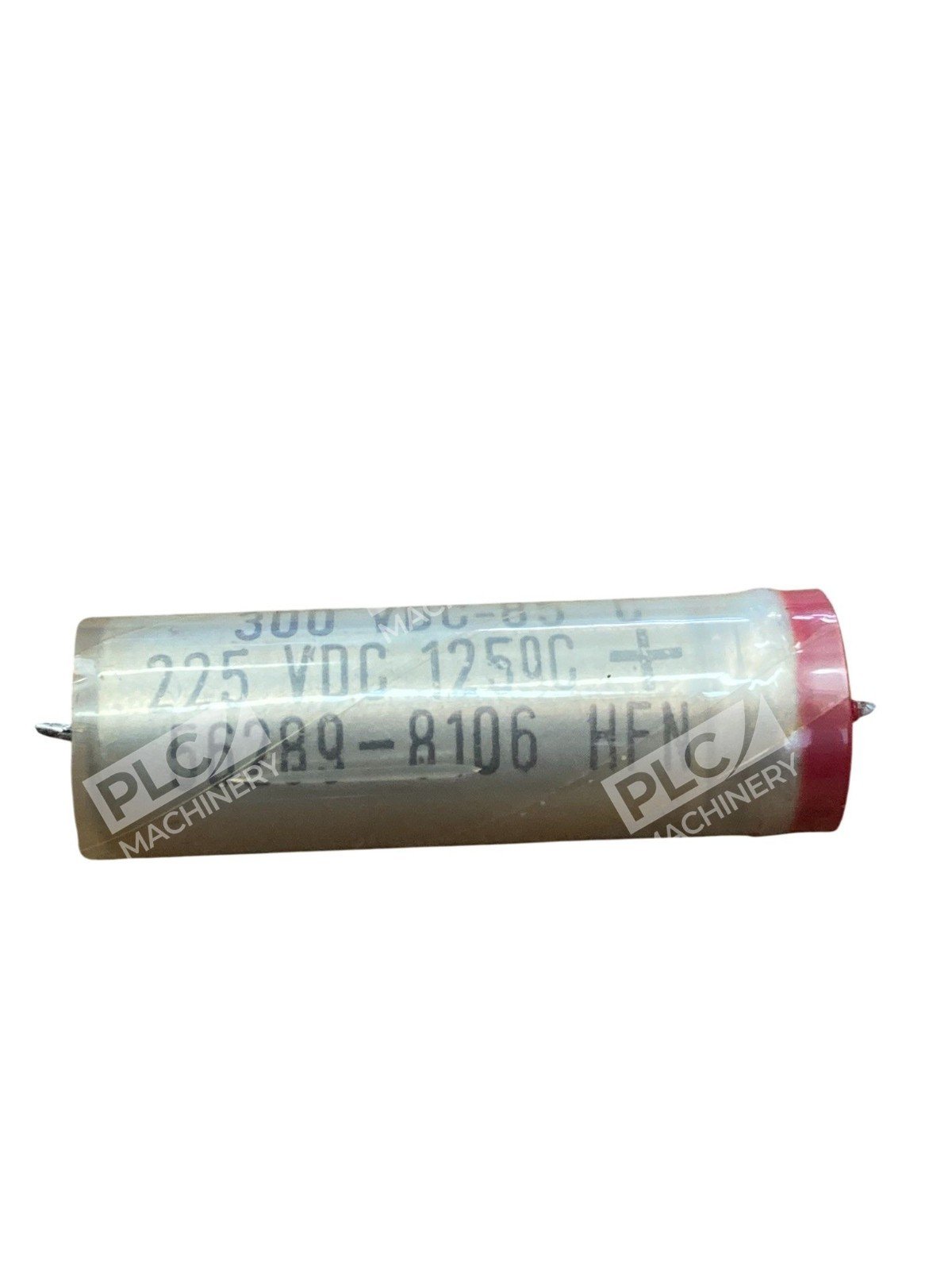

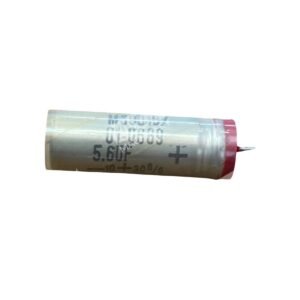

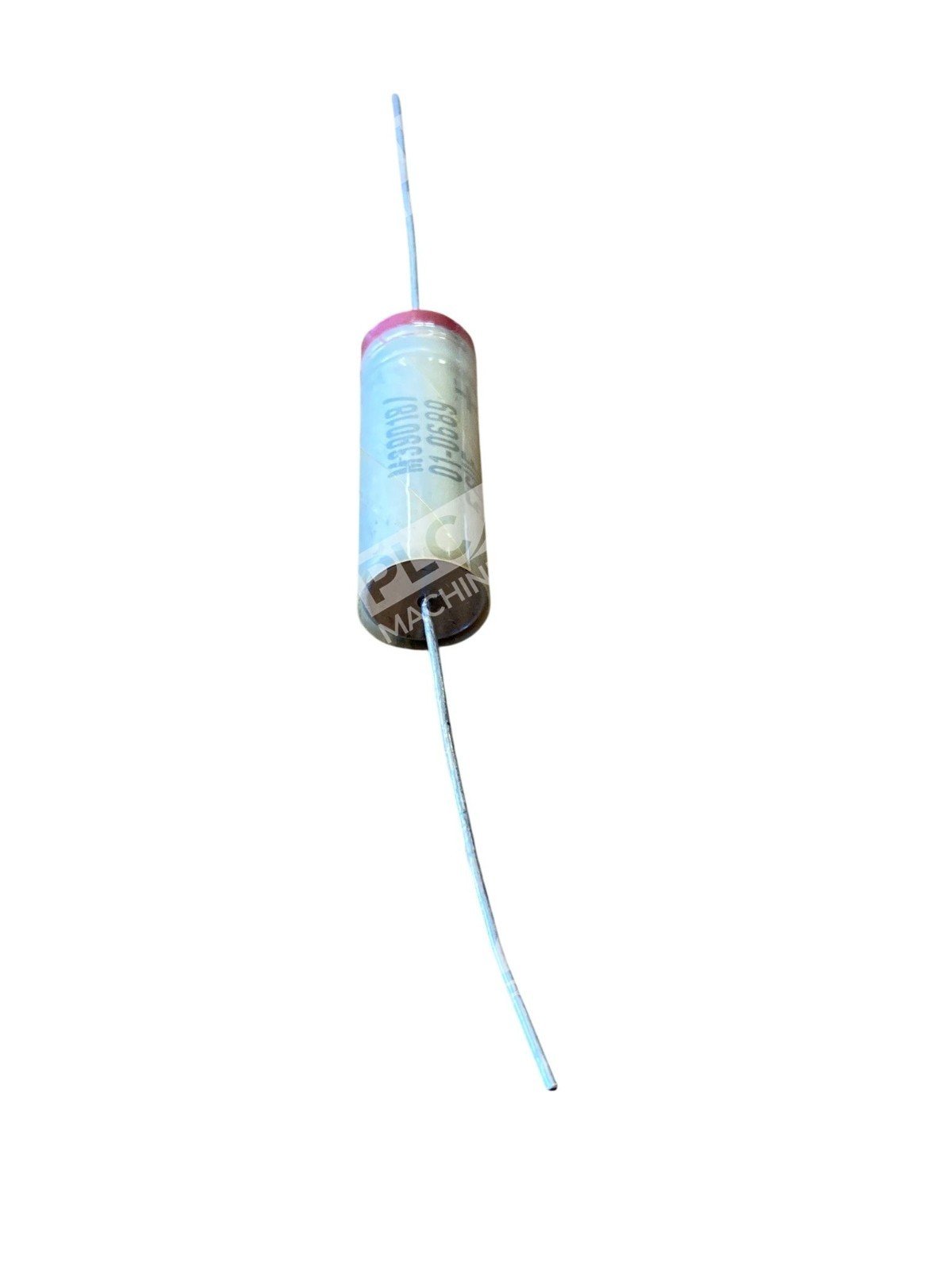

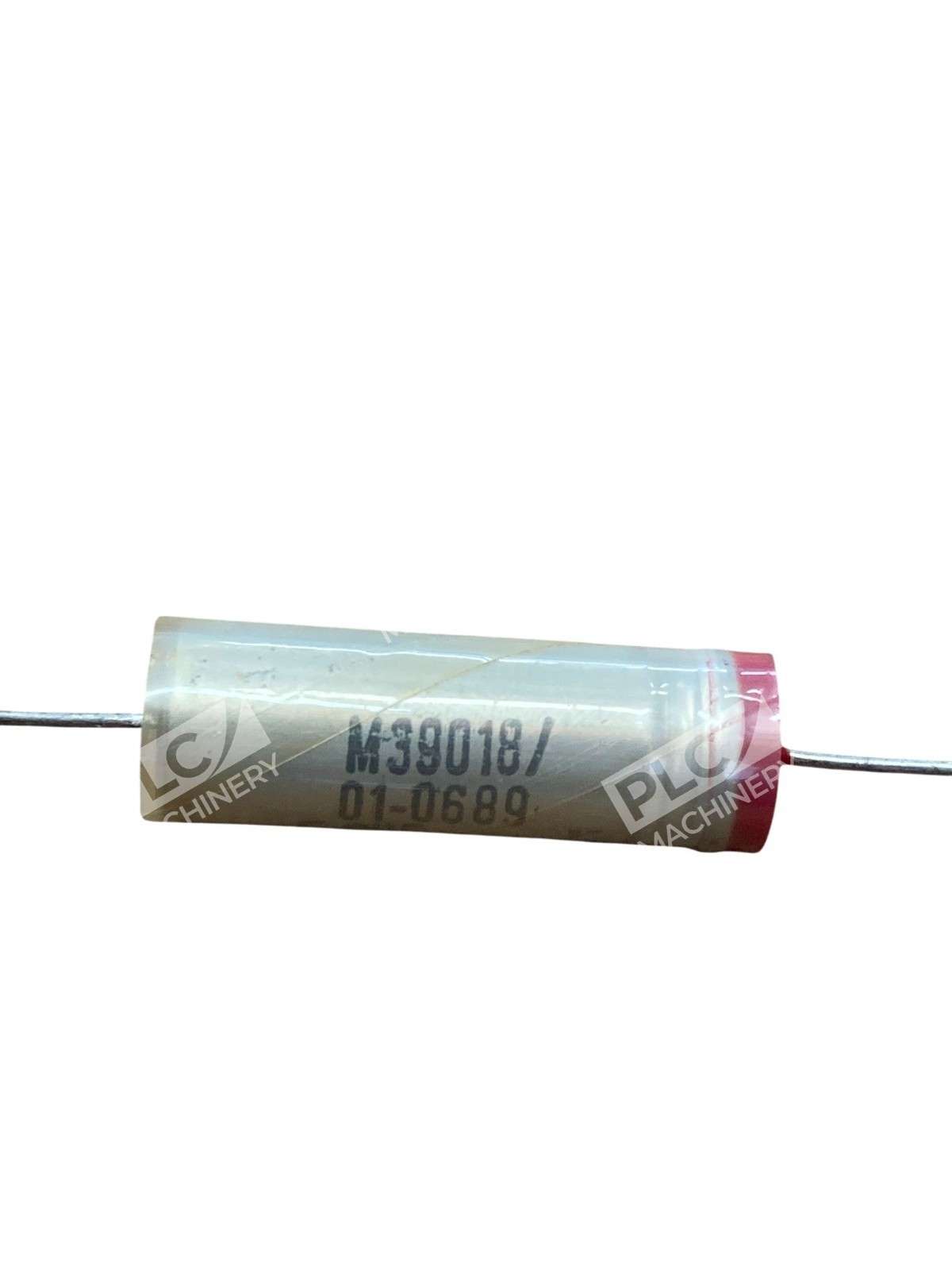

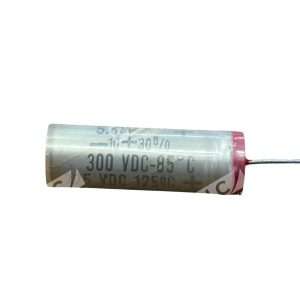

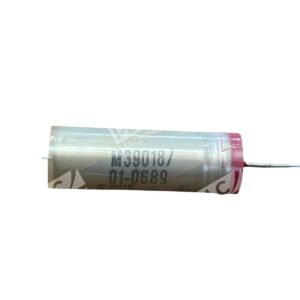

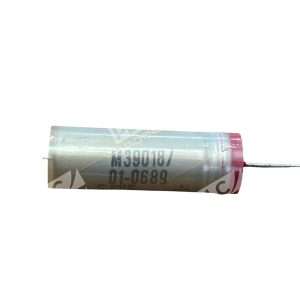

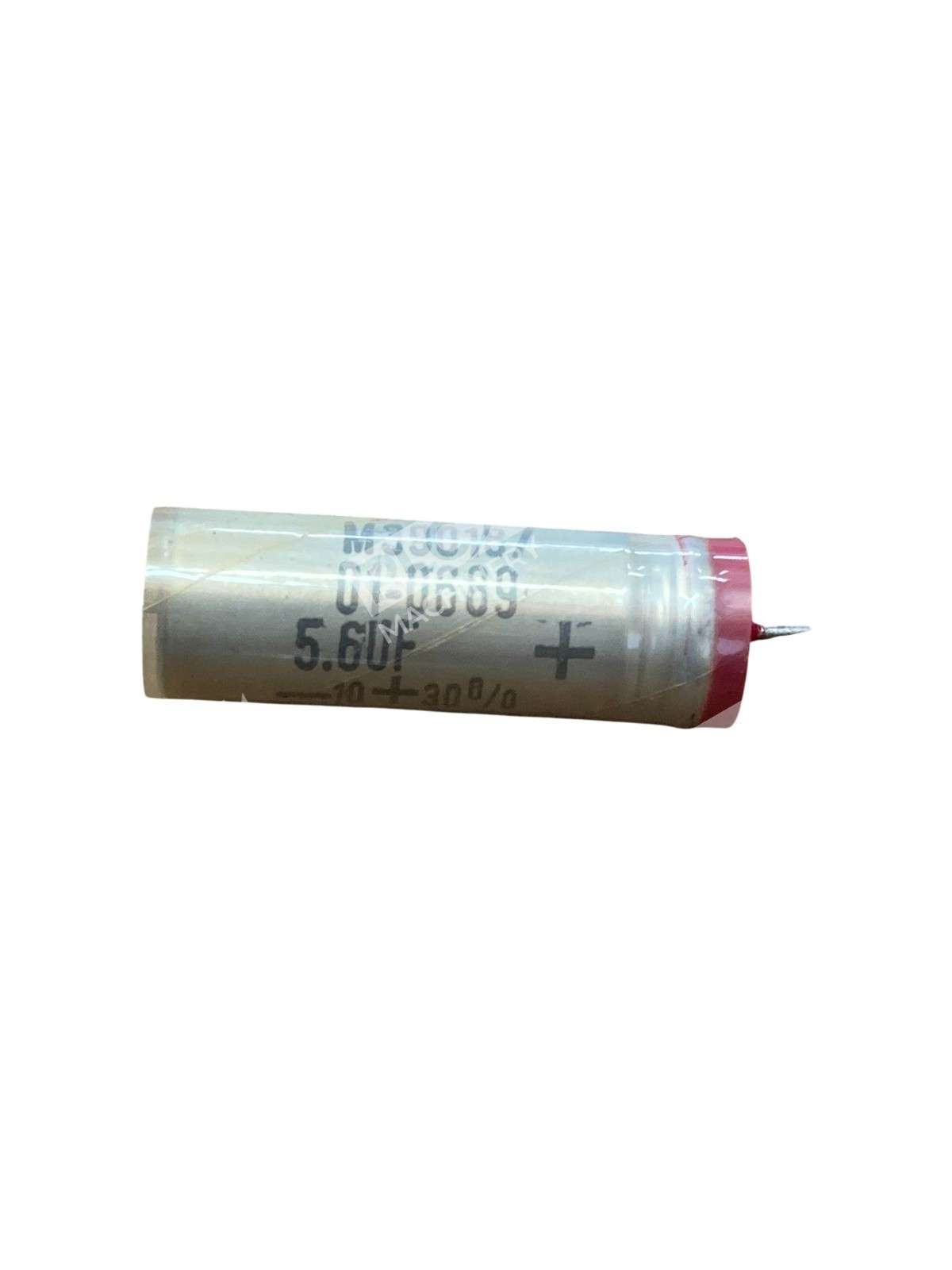

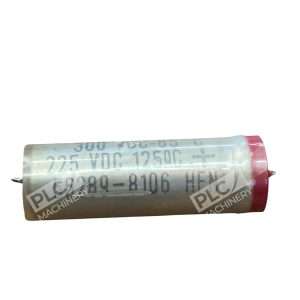

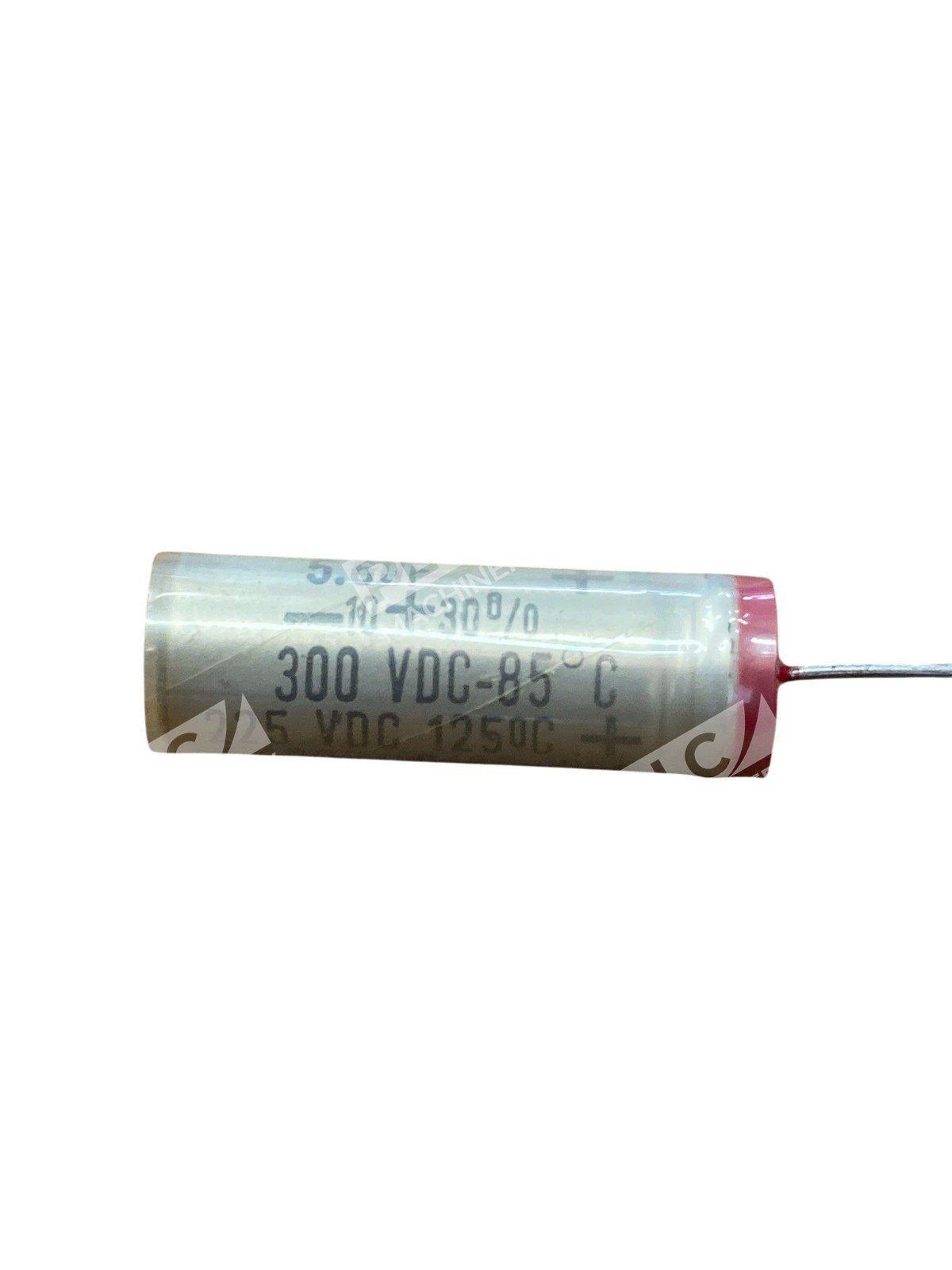

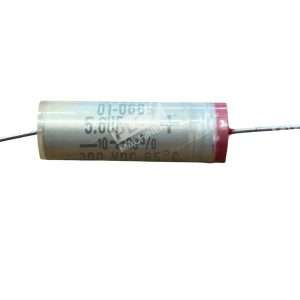

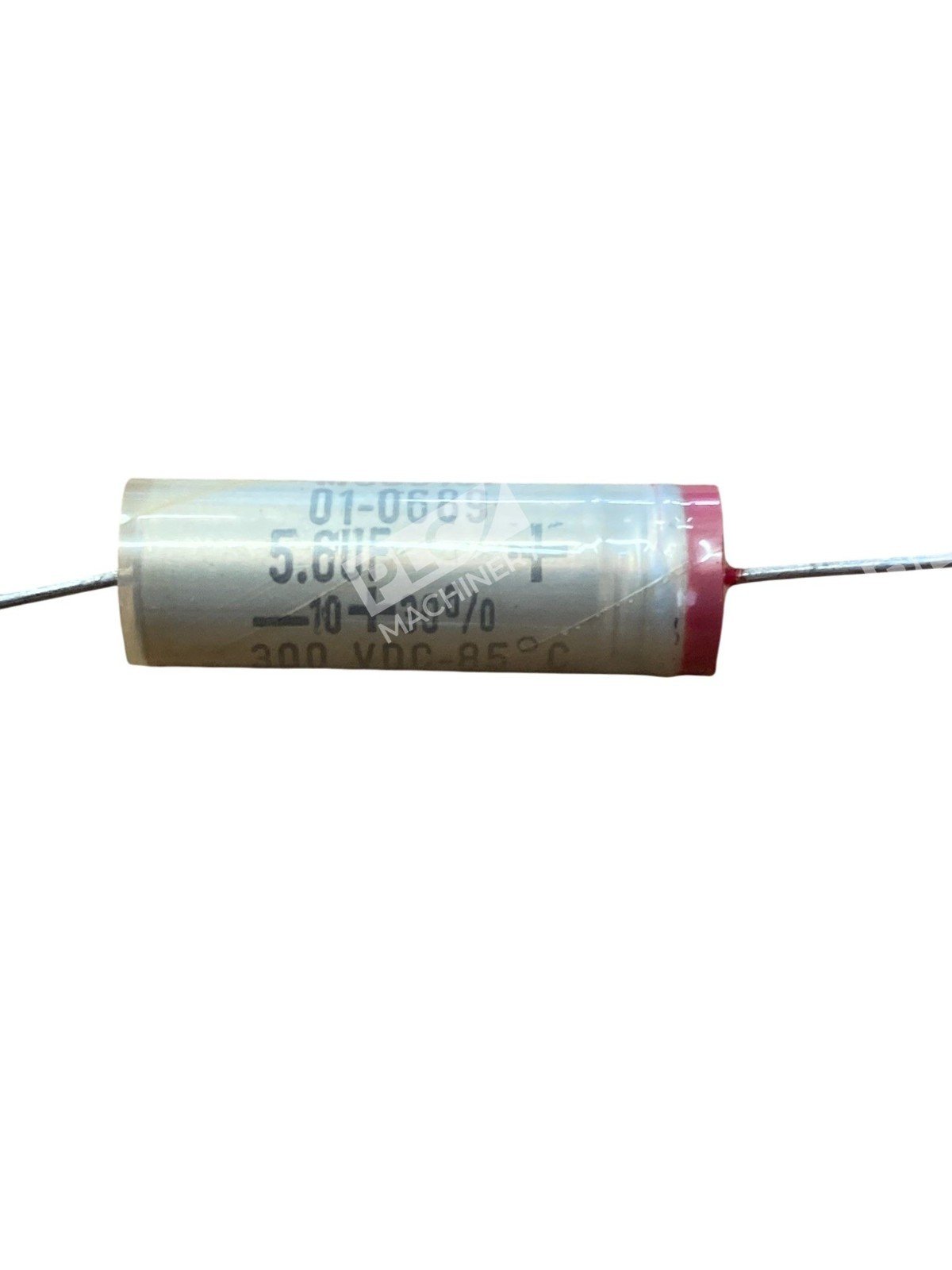

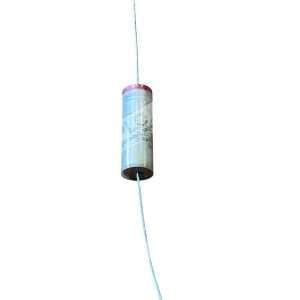

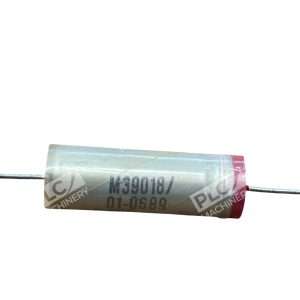

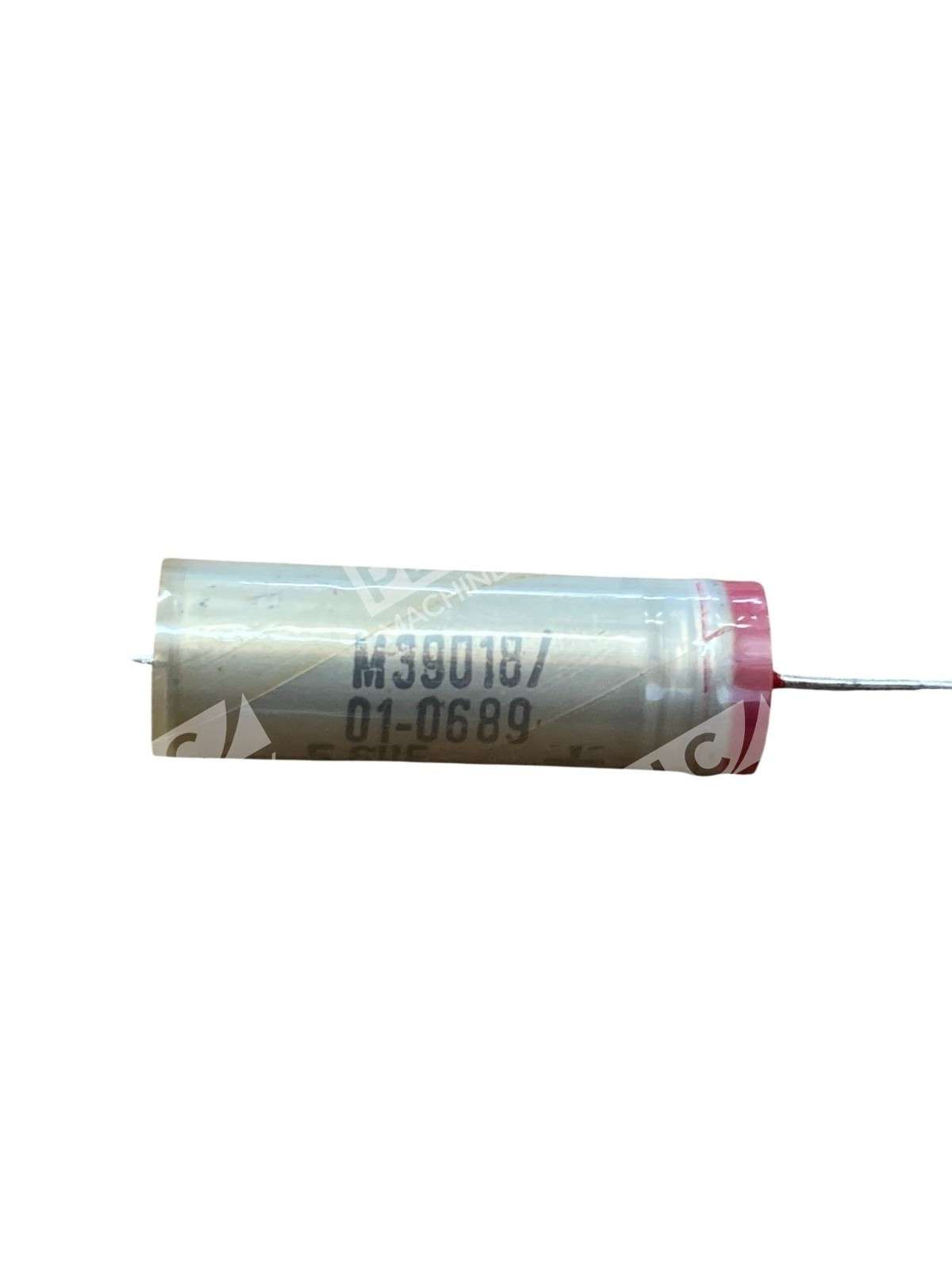

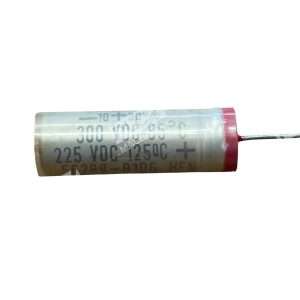

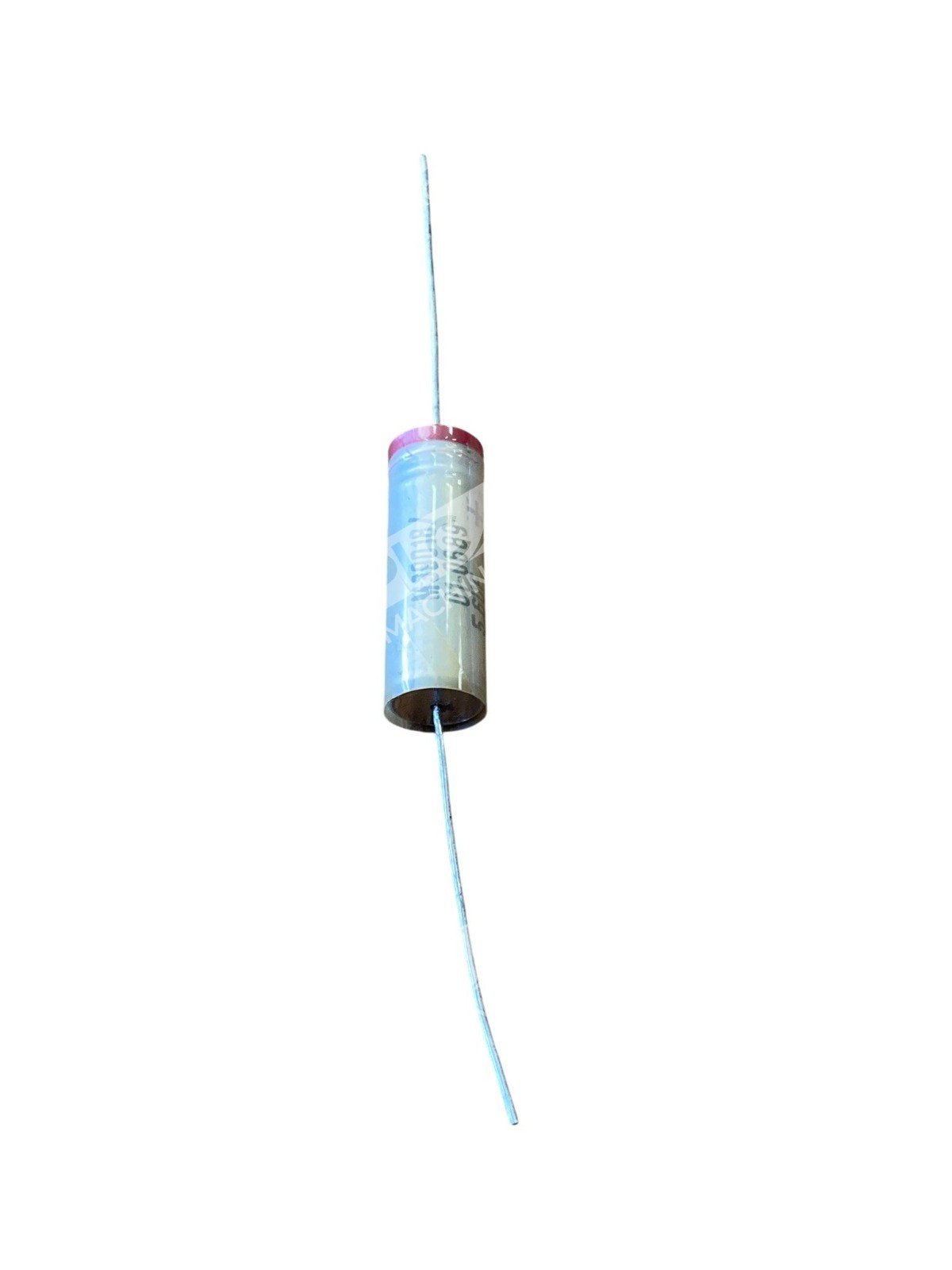

M39018/01-0689 Electrolytic Capacitor
The M39018/01-0689 is a high-reliability aluminum electrolytic capacitor designed for demanding applications requiring stable performance under varying environmental conditions. This capacitor is part of the MIL-PRF-39018/01 series, adhering to stringent military specifications.
Key Features
- Capacitance: 5.6 µF
- Voltage Rating: 300 VDC (operational up to 325 VDC surge at 85°C); 225 VDC (operational up to 250 VDC surge at 125°C)
- Capacitance Tolerance: -10% to +30% at 25°C; -10% to +50% at 85°C; -10% to +75% at 125°C
- Equivalent Series Resistance (ESR): 0.084 Ω at 120 Hz
- Maximum Ripple Current: 0.35 A at 120 Hz
- Operating Temperature Range: -55°C to +125°C
- Case Size: A2
Applications
The M39018/01-0689 capacitor is ideal for use in military, aerospace, and industrial applications where reliability and performance are critical. Its robust design ensures consistent operation in power supplies, filtering circuits, and other electronic systems exposed to harsh environments.
Compliance and Standards
This capacitor meets the MIL-PRF-39018/01 military specification, ensuring high-quality standards for performance and reliability. It is suitable for applications requiring compliance with stringent military and aerospace standards.
For detailed specifications and additional information, please refer to the official datasheet.
