Overview

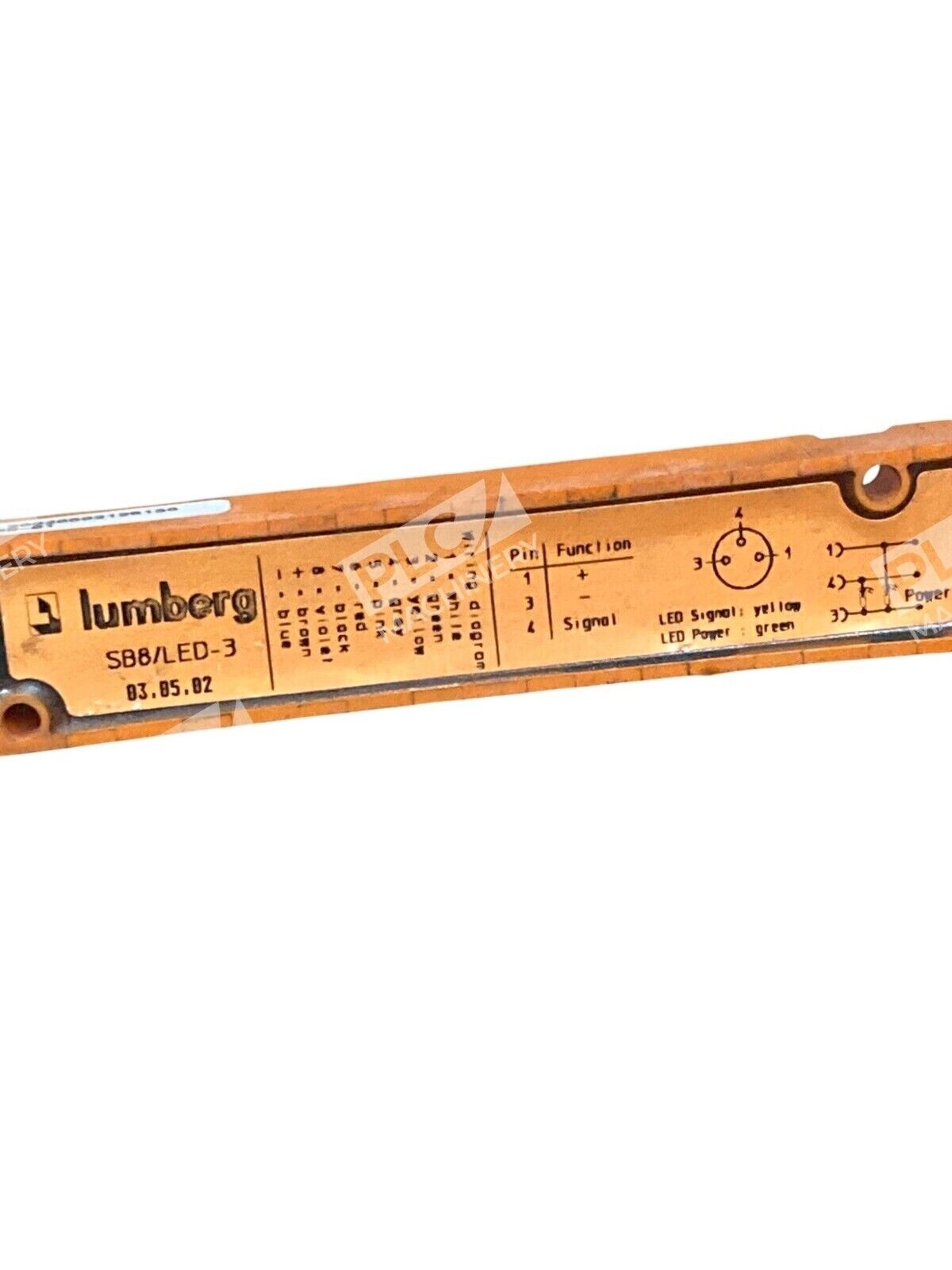

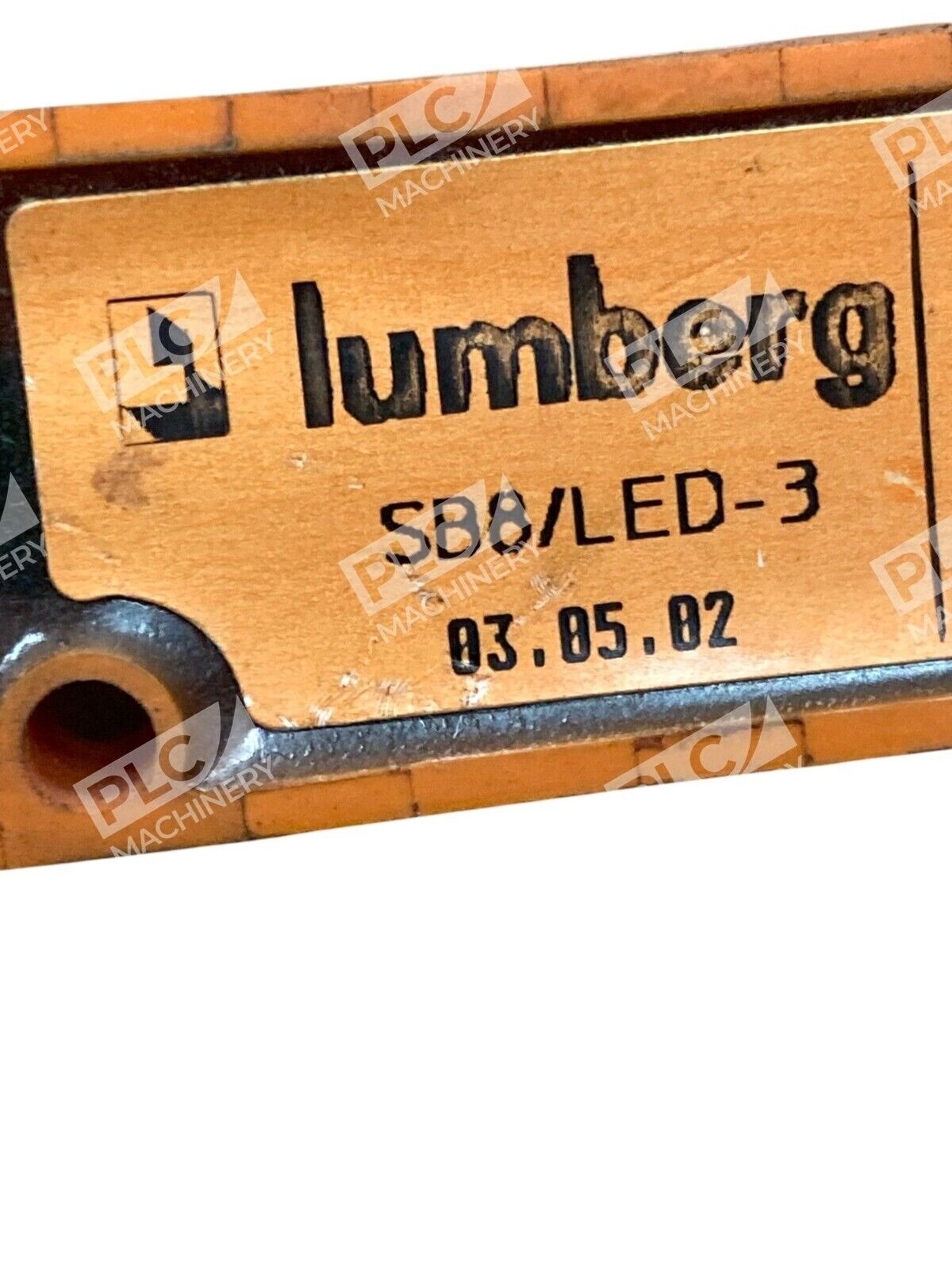

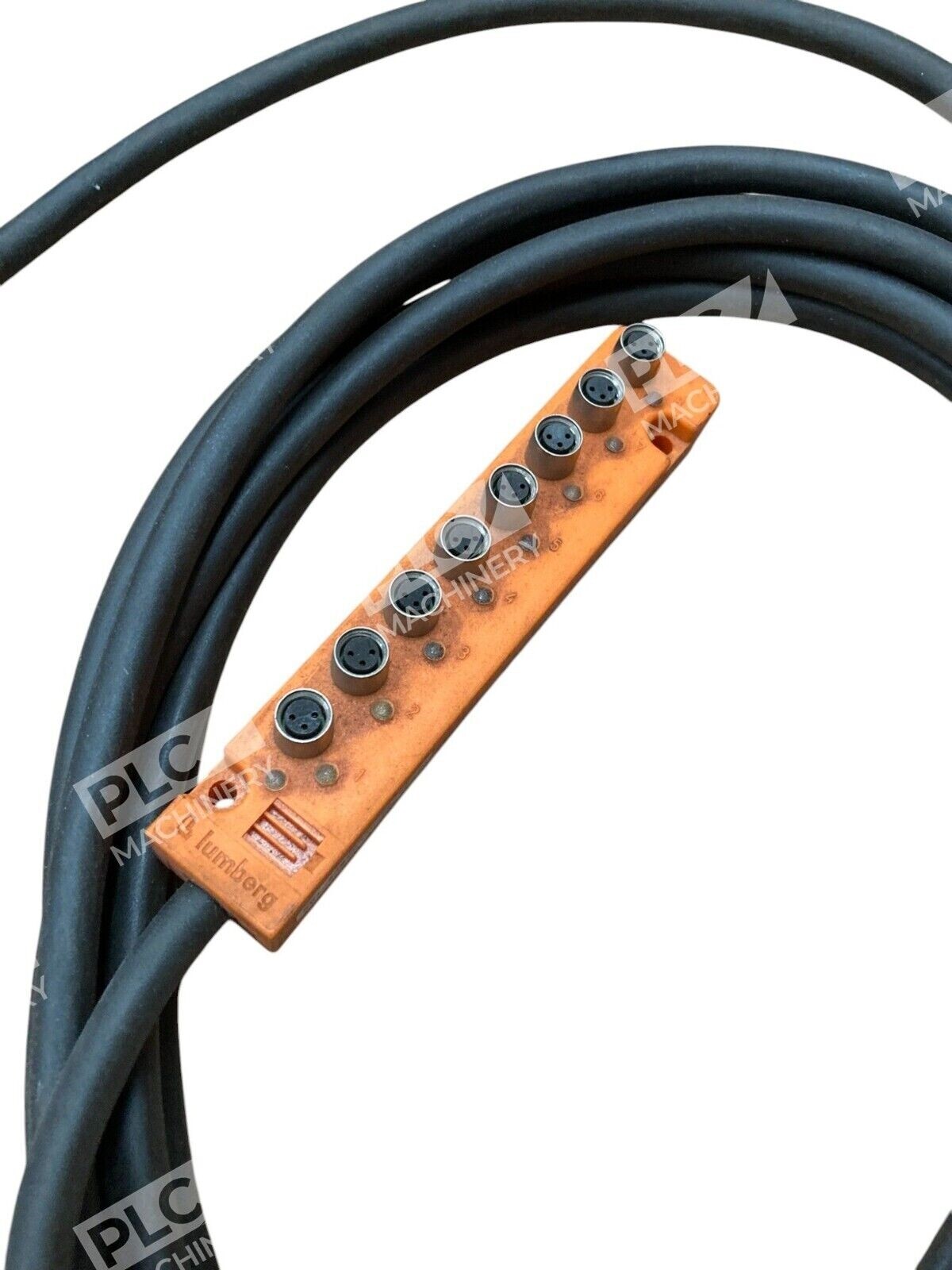

The Lumberg SB8/LED-3 is a miniature sensor distributor designed for compact industrial automation installations. This PICO (M8) format distribution box provides 8 ports with 3-pole connectors, offering one signal per port. Each port features integrated LED indicators for quick diagnostic feedback. The unit meets IP 67 and NEMA 6P ratings, making it suitable for washdown and harsh industrial environments.
Key Features
- 8-Port Configuration: Supports up to 8 simultaneous sensor connections
- PICO M8 Standard: Miniature A-coded M8 connectors for space-constrained installations
- 3-Pole Design: Provides signal and power connections with one I/O per port
- Integrated LED Indicators: Built-in diagnostics for PnP (push/pull) signal monitoring
- Harsh Environment Rating: IP 67 and NEMA 6P protection against dust, water, and industrial contamination
- Halogen-Free Cable: Includes Lumflex PUR material for improved flame resistance and environmental compliance
Technical Specifications

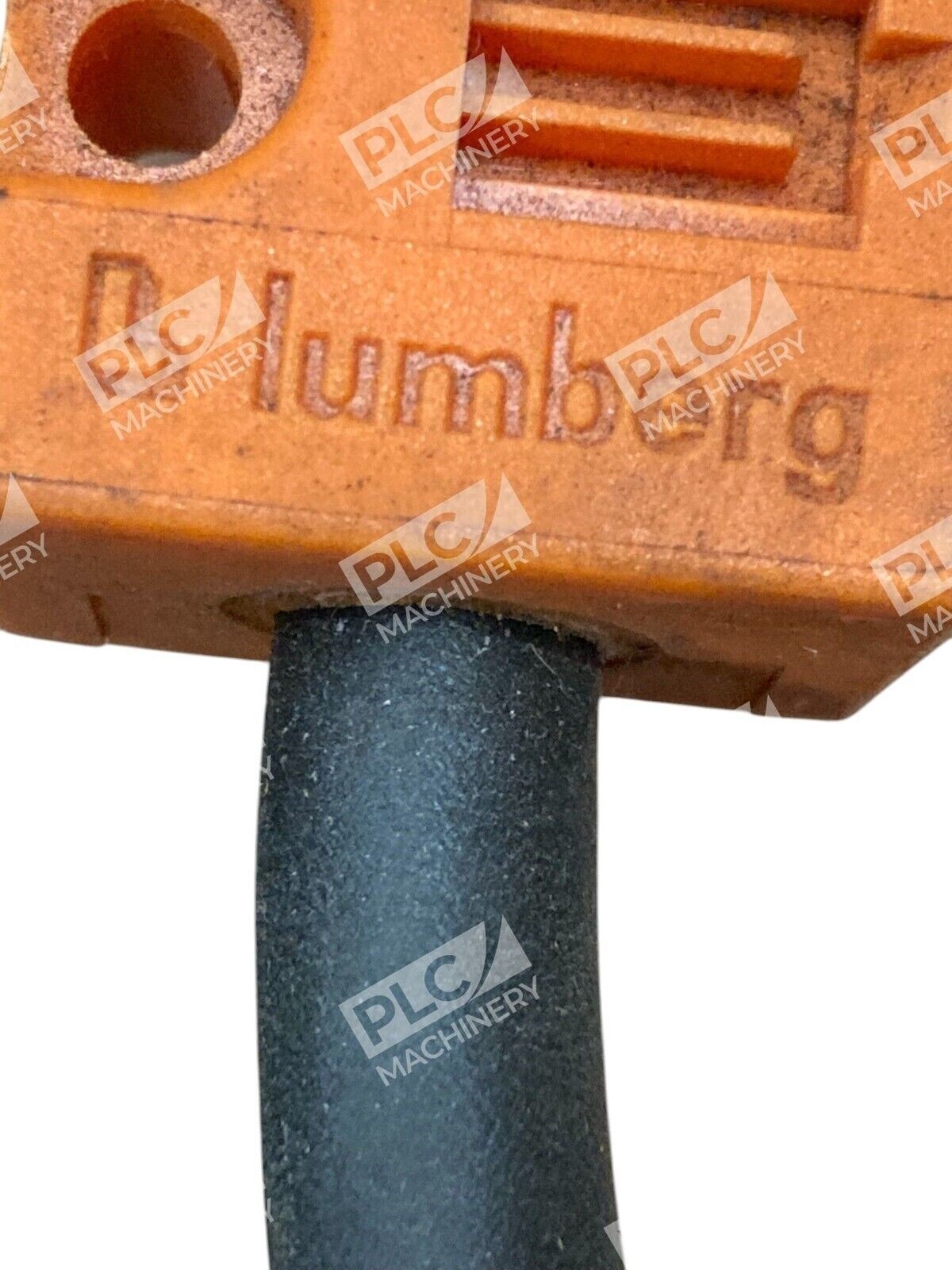

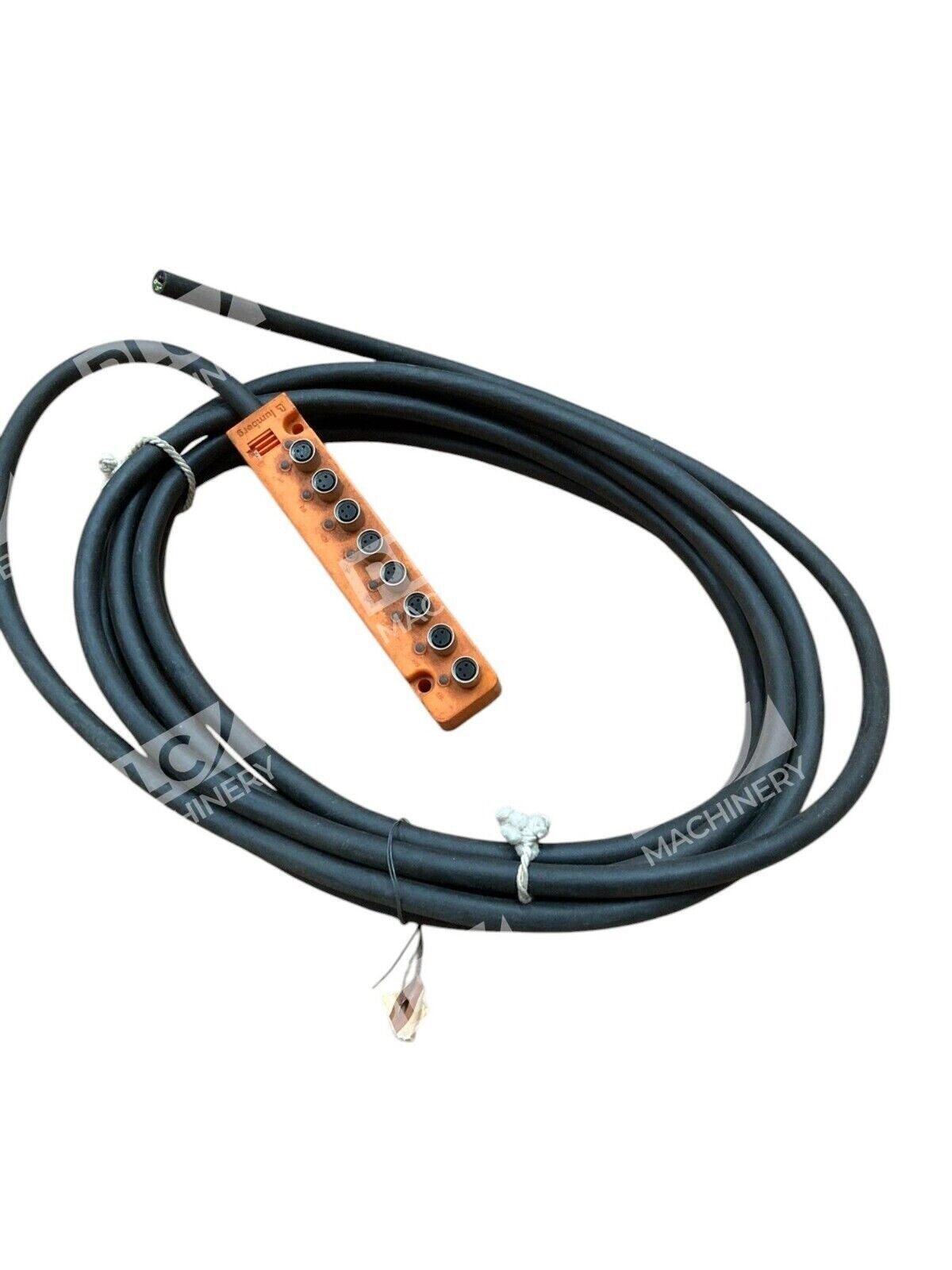

The Lumberg SB8/LED-3 integrates sensor distribution with built-in status monitoring. Key specifications include M8 3-pole A-coded connectors, 8-port architecture, and plastic/TPU construction with orange housing for visibility. Standard cable lengths are available in 5-meter and 10-meter configurations (SB8/LED-3/5M and SB8/LED-3/10M variants). The distributor features open control line interface design and is RoHS compliant.
Typical Applications
- Conveyor and material handling sensor networks
- Factory automation and assembly line I/O distribution
- Machine vision and proximity sensor hubs
- Robotic systems requiring centralized sensor connectivity
- Distributed control systems in IP 67–rated enclosures
- Harsh environment monitoring in food, beverage, and automotive manufacturing
Compatibility & Replacements
Compatible With
- Lumberg Automation standard M8 PICO sensor systems
- Any PICO M8 A-coded connector interface
- Sensor networks using 3-pole signal distribution
- Industrial control systems requiring modular I/O hubs
Replaces / Drop-In Replacement For
The Lumberg SB8/LED-3 directly replaces earlier versions of the SB 8/LED series and is functionally equivalent to the ASBSM 8/LED 3 variant. Verify compatibility with your system integrator before ordering if replacing a different distributor series.
Works With
- M8 A-coded sensor and actuator connectors (PICO standard)
- Push-pull (PnP) signal architectures
- Standard industrial PLC and automation controller networks
- Distributed I/O modules from Lumberg Automation and compatible third-party suppliers
