Overview

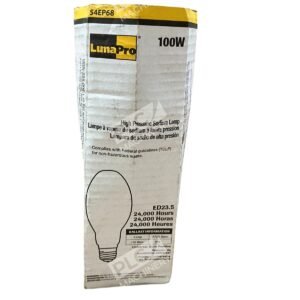

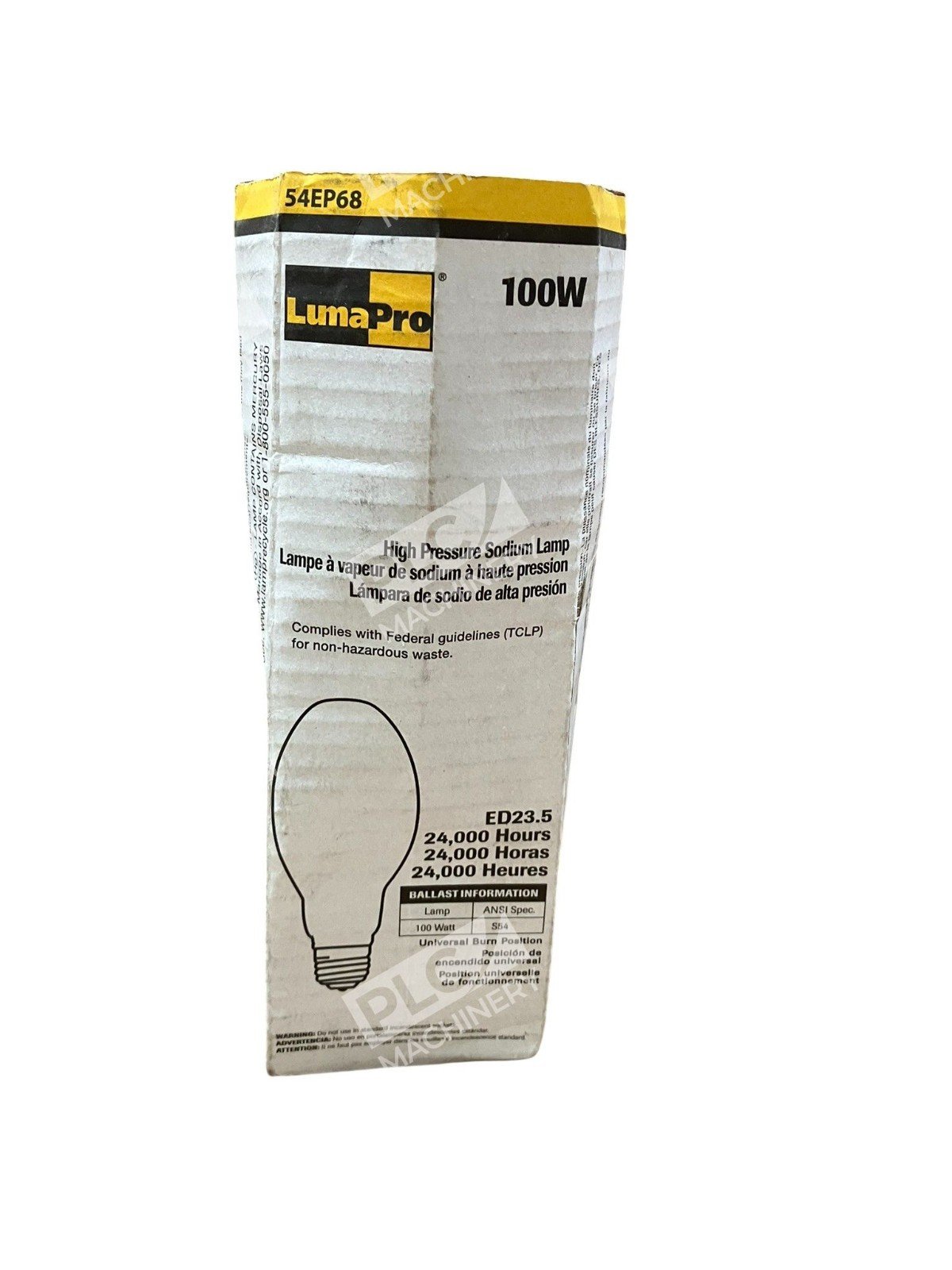

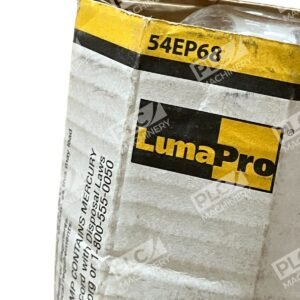

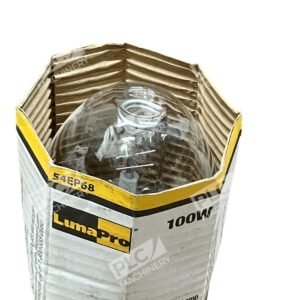

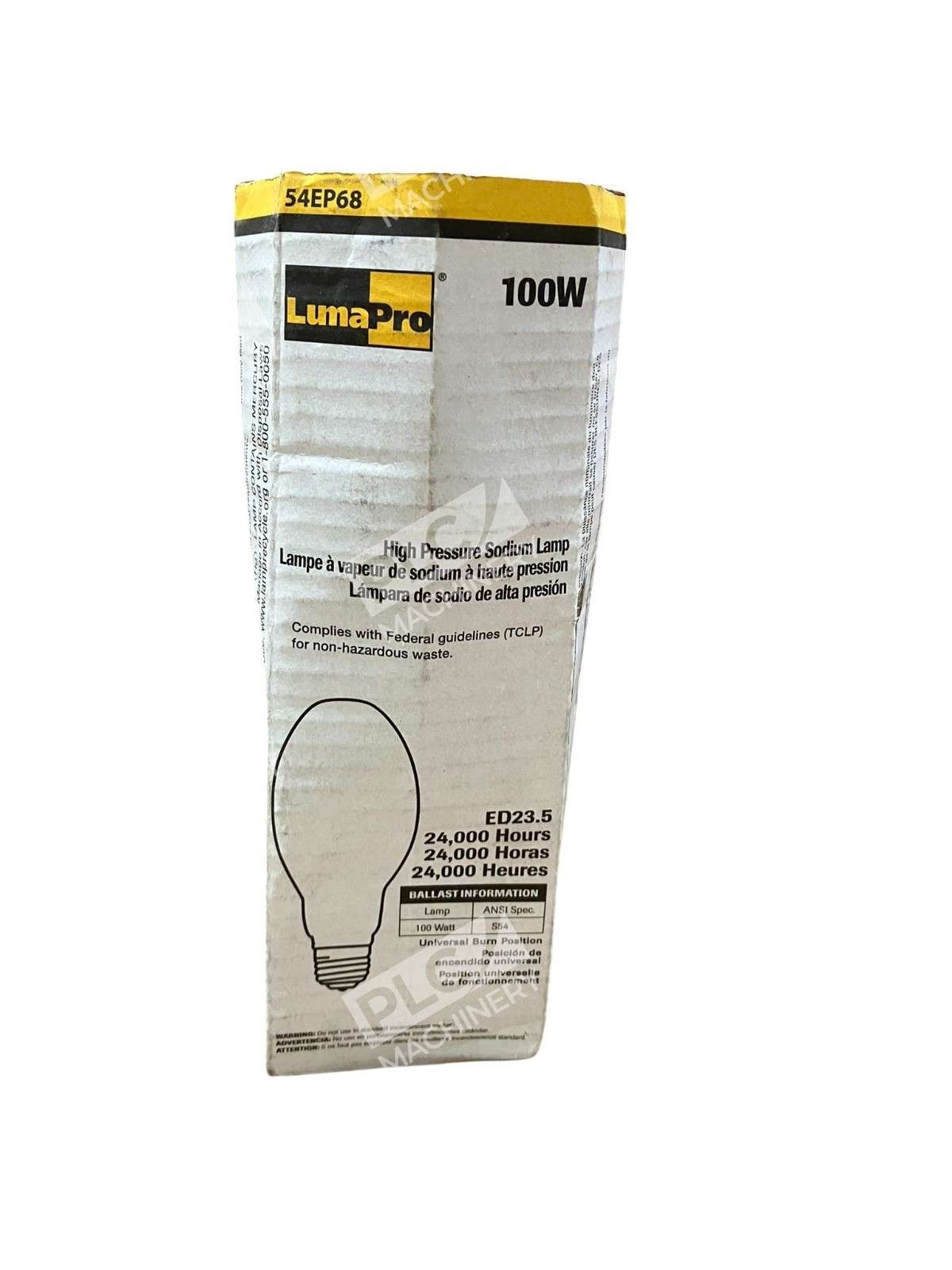

The LumaPro 54EP68 100W HPS lamp is a high-pressure sodium lighting solution engineered for commercial and industrial facilities requiring reliable, efficient area lighting. Conforming to ANSI S54 standards with an ED23.5 clear bulb shape, this lamp delivers consistent illumination for outdoor and indoor high-bay installations. Built for extended service life and maximum light output in high-luminous applications.
Key Features
- 9,500 initial lumens — High-efficiency light output suitable for parking lots, streetlights, and warehouse applications
- 24,000-hour rated life — Extended service intervals reduce maintenance frequency and labor costs
- 2000–2100K color temperature — Warm white light ideal for safety and security lighting
- Universal burn position — Can be installed in any orientation (horizontal, vertical, or base-down)

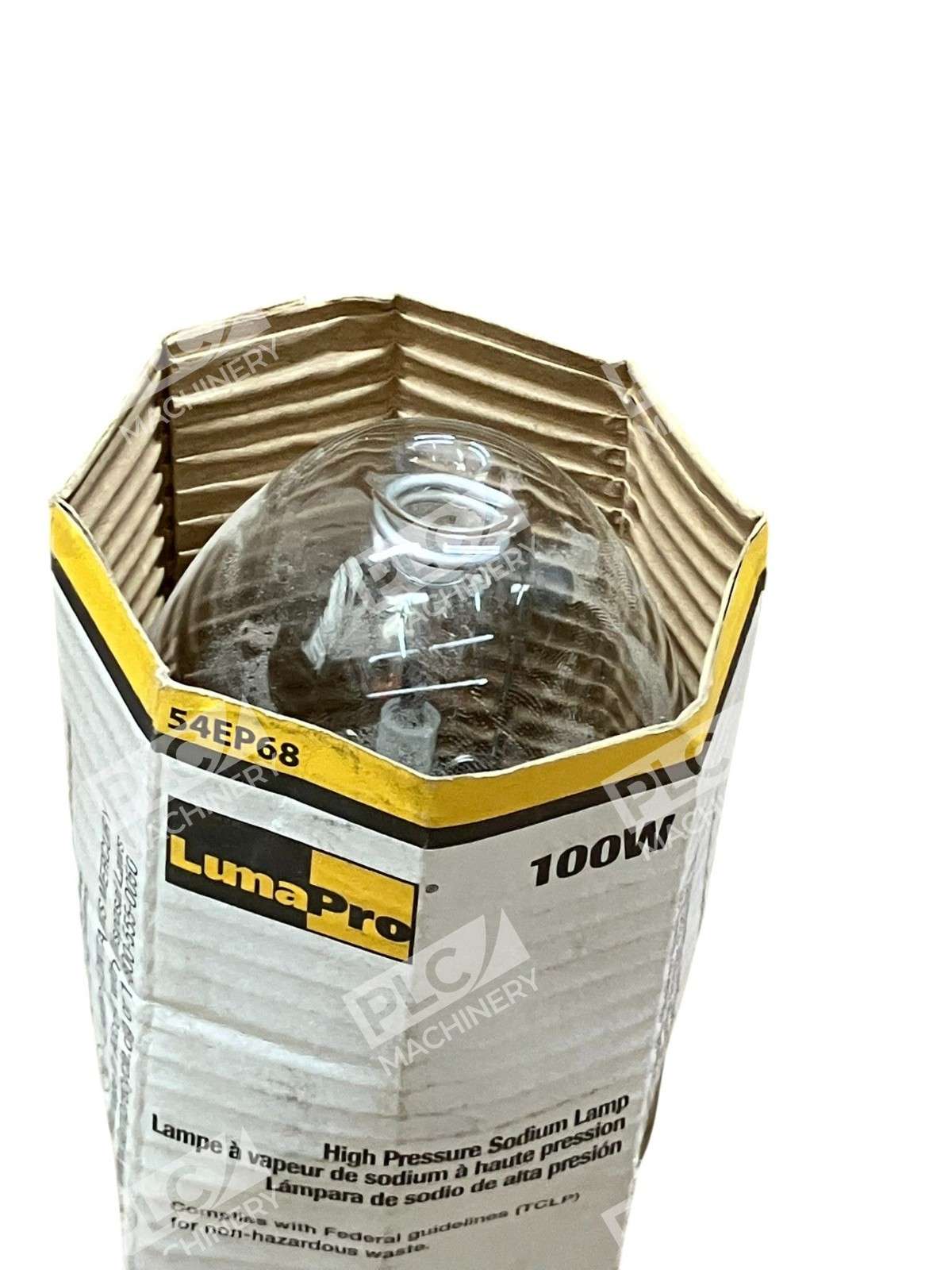

- Clear ED23.5 bulb — Proven, standard form factor for direct replacement in compatible fixtures
- Low CRI (22) — Acceptable for area and outdoor lighting; not recommended for color-critical applications
Technical Specifications
- Wattage: 100W
- ANSI Code: S54
- Bulb Shape: ED23.5
- Base Type: E39 Mogul Screw
- Color Temperature: 2000–2100K
- Initial Lumens: 9,500
- Mean Lumens: 7,150
- Rated Life: 24,000 hours
- Burn Position: Universal
- CRI: 22
- MOL (Length): 7.75 inches
- Bulb Diameter: Approximately 5 inches (ED23.5 standard)
Typical Applications
- Outdoor area lighting: Parking lots, walkways, pedestrian areas, municipal streetlights
- Roadway and perimeter security: Highways, building perimeters, security fencing
- Industrial high-bay: Warehouses, manufacturing facilities, loading docks, large open indoor spaces
- Commercial facades: Parking structures, building exteriors, signage
- Terminal and transit: Bus stations, train platforms, airport grounds
Compatibility & Replacements
Compatible With
- HPS-rated ballasts conforming to ANSI S54 specifications
- Enclosed luminaires and high-intensity discharge (HID) fixtures rated for 100W HPS lamps
- E39 Mogul Screw sockets (fixture must support this base type)
- Universal burn-position fixtures (no orientation restrictions)
- Fixtures previously housing standard 100W HPS lamps with ANSI code S54
Replaces / Drop-In Replacement For
- Sylvania LU100/ECO and variants (e.g., LU100/MED for compatible base types)
- GE and Howard-branded 100W S54 HPS lamps
- Plusrite and other third-party LU100/ED23.5 HPS lamps with E39 Mogul base
- Any legacy 100W ANSI S54 HPS fixture lamp with matching ED23.5 shape and E39 base
Works With
- ANSI S54-rated HPS ballasts and igniters
- Standard HPS fixture wiring and control systems (no special drivers required)
- Mercury-compatible recycling and disposal programs (RoHS-compliant ECO versions available)
