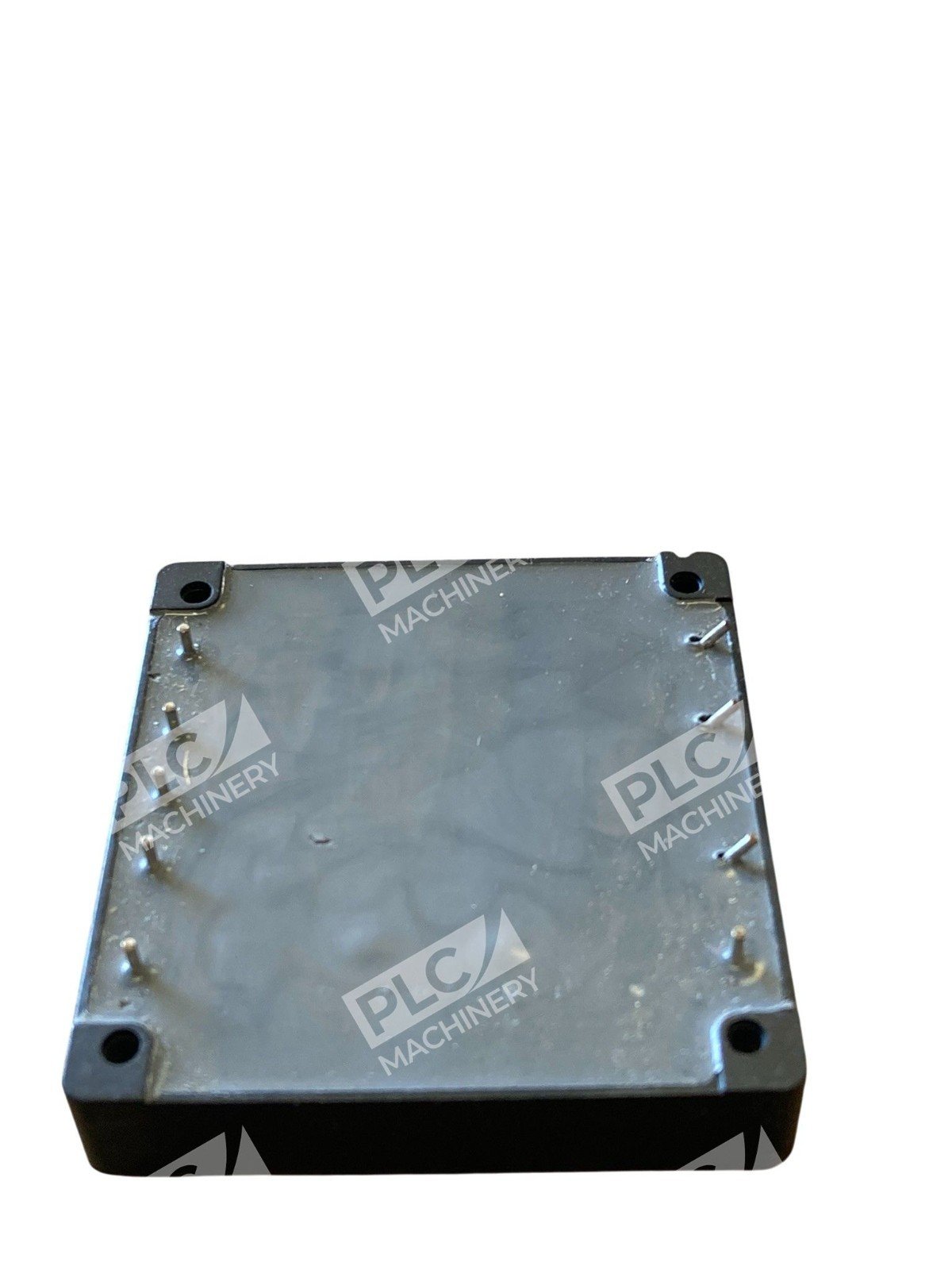

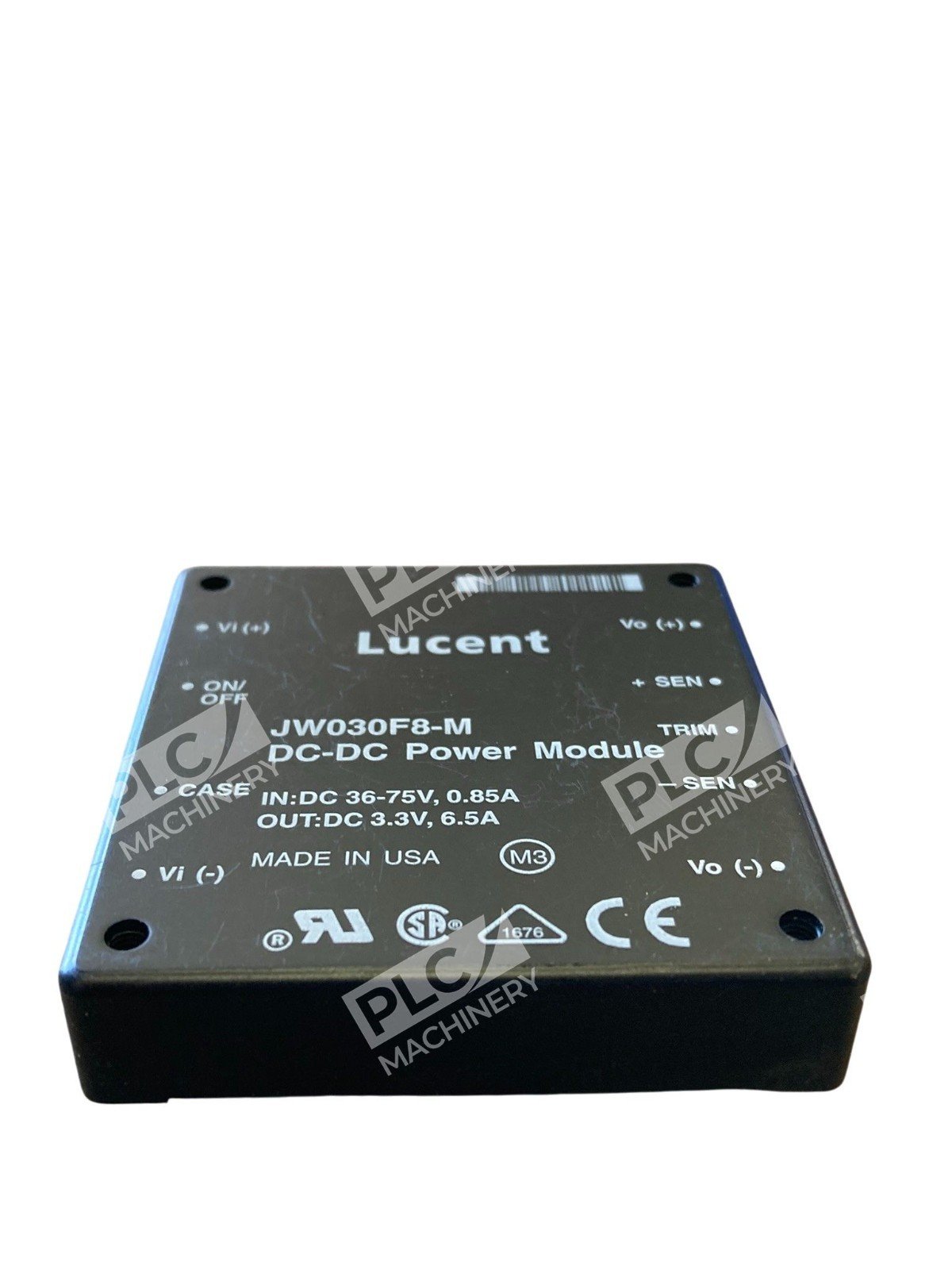

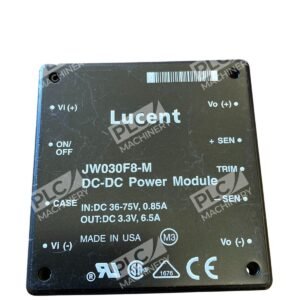

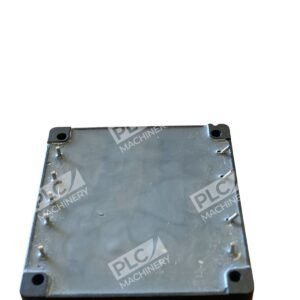

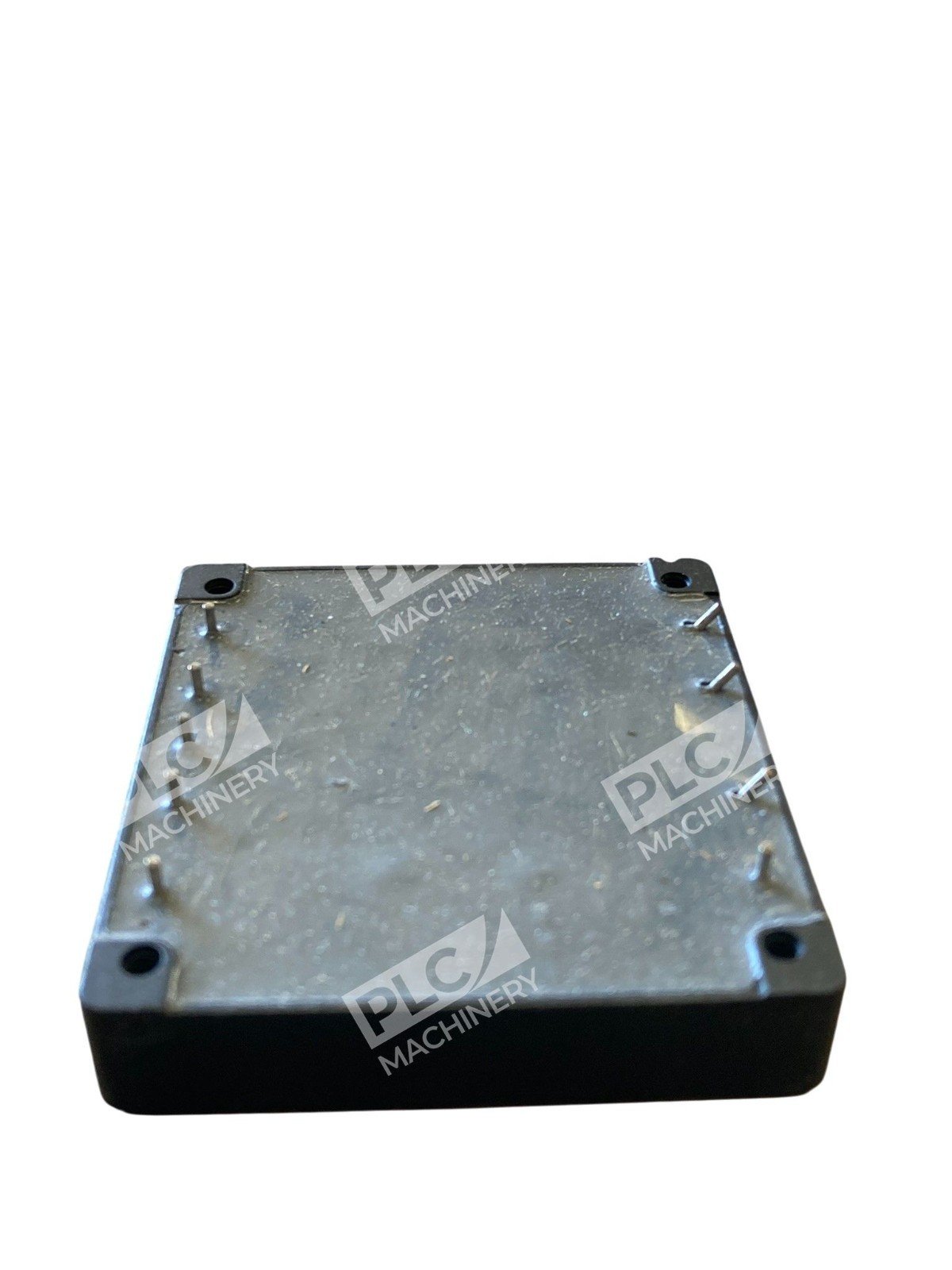

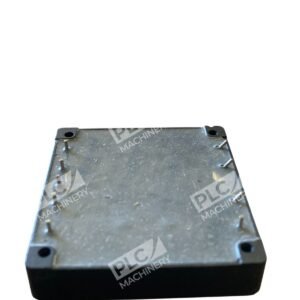

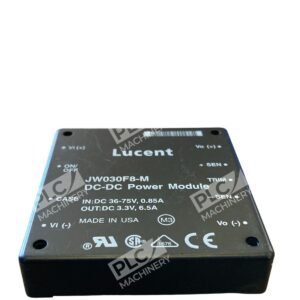

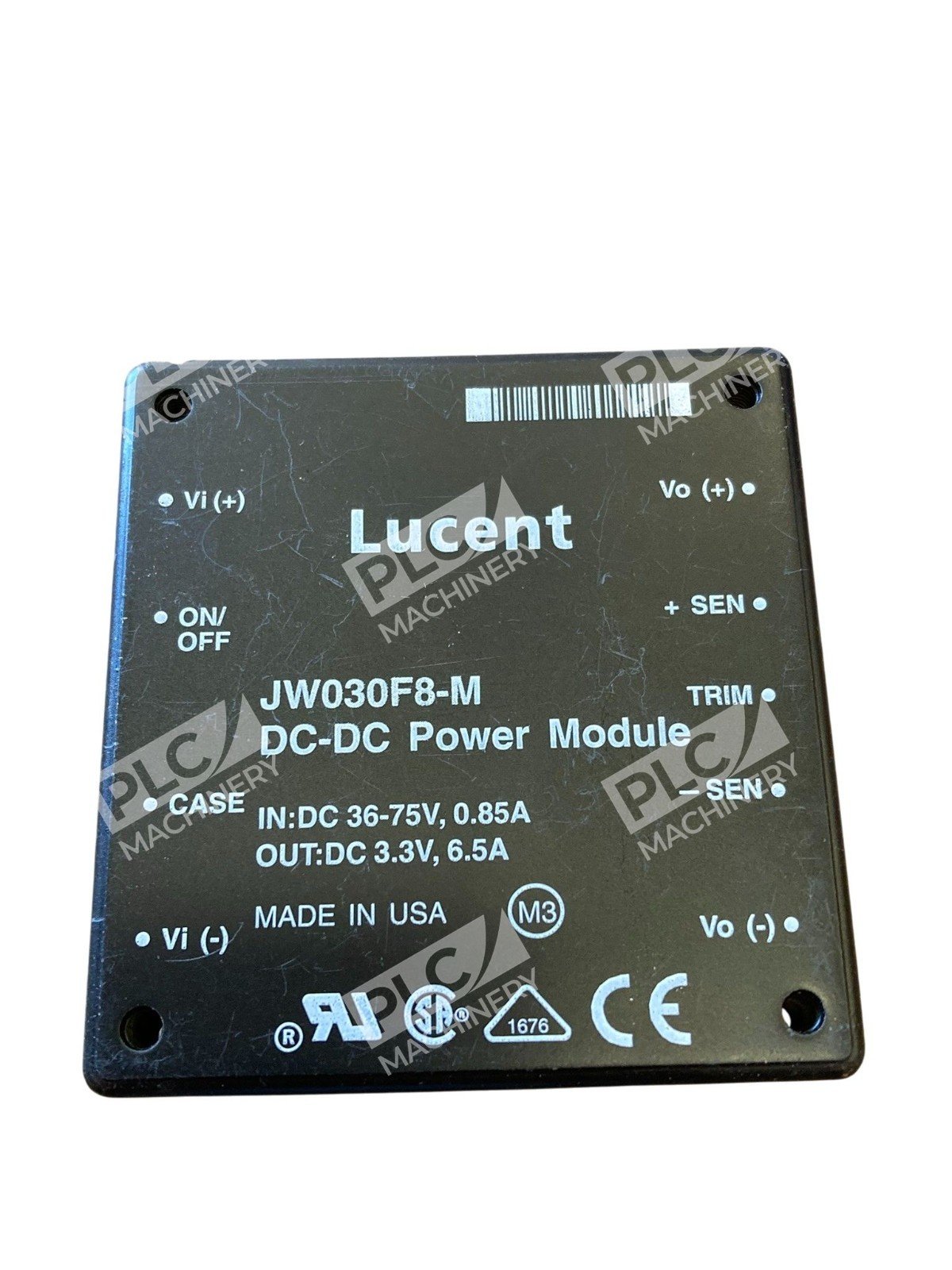

Lucent JW030F8-M DC/DC Converter Power Module
The Lucent JW030F8-M is a high-performance DC/DC converter power module designed to deliver reliable and efficient power conversion for various applications. This module operates over an input voltage range of 36 Vdc to 75 Vdc, providing a precisely regulated output suitable for diverse electronic systems.
Key Features
- Compact Design: Measuring 61.0 mm x 57.9 mm x 12.7 mm (2.40 in. x 2.28 in. x 0.50 in.), the JW030F8-M is ideal for space-constrained applications.
- High Efficiency: Achieves a typical full-load efficiency of up to 83%, ensuring minimal energy loss during operation.
- Low Output Noise: Delivers clean and stable power, essential for sensitive electronic components.
- Industry-Standard Pinout: Facilitates easy integration into existing systems with standardized connections.
- Metal Case with Case Ground Pin: Enhances durability and provides effective grounding for improved performance.
- Wide Input Voltage Range: Supports a 2:1 input voltage range, accommodating various power sources.
- Overcurrent Protection: Safeguards the module and connected devices from potential damage due to excessive current.
- Remote On/Off Control: Allows for convenient power management and system integration.
- Remote Sense Capability: Compensates for voltage drops, ensuring accurate voltage delivery to the load.
- Adjustable Output Voltage: Offers flexibility with output voltage adjustment from 80% to 110% of the nominal output voltage.
Applications
The JW030F8-M is well-suited for use in distributed power architectures and communications equipment, where reliable and efficient power conversion is critical.
Certifications
This power module meets several safety and quality standards, including:
- UL 1950 Recognized
- CSA C22.2 No. 950-95 Certified
- VDE 0805 (EN60950, IEC950) Licensed
Additionally, the module complies with CE mark directives 73/23/EEC and 93/68/EEC, ensuring adherence to European safety standards.
Options
For enhanced versatility, the JW030F8-M offers optional features such as heat sinks for extended operation, choice of remote on/off logic configuration, and short pin lengths (2.79 mm ± 0.25 mm or 3.68 mm ± 0.25 mm) to suit various installation requirements.
In summary, the Lucent JW030F8-M DC/DC Converter Power Module combines compact design, high efficiency, and robust features, making it an excellent choice for demanding power conversion applications.
